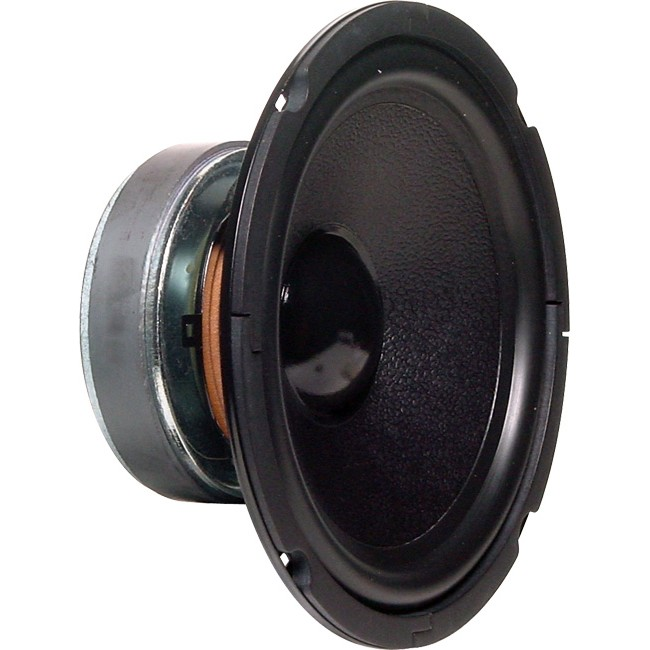

SPW5015 200MM 8" 60W RMS 8OHM WOOFER

SPARE SPEAKER REPLACEMENT

Code: 39155015

2.31 kg
9321758025406
EACH
8
Low Stock
$77 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

100W 8" Woofer PECC Speaker



  • This series of loudspeakers feature rubber surrounds and high rigidity, fibre impregnated poly emulsion coated cones (PECC).
  • All voice coils are wound on aluminium formers, and magnet pole pieces are vented for heat dissipation.
  • Bump back plates are employed to prevent voice coil over-excursion.
  • These drivers are suited to bass oriented enclosures, such as home theatre or car audio subwoofer enclosures.

Specifications:

  • Rated Input Power: 60W RMS
  • Max Input Power: 100W
  • Impedance (300Hz): 8Ω
  • Frequency Resp: 35Hz-6kHz
  • Resonant Frequency: 35Hz
  • Sensitivity 1W @ 1m: 91dB
  • Voice Coil Diameter: 35mm
  • QMS: 2.87
  • QES: 0.28
  • QTS: 0.25
  • VAS: 48L
  • Nett Weight: 2.22kg
  • Magnet Weight: 848g
  • Overall Diameter: 205mm
  • Cutout Diameter: 183mm
  • Mounting Depth: 85mm
  • Suggested Vented Enclosure (Tuned to 30Hz) Volume: 25LPort: 50mmØ x 179mmL
  • Suggested Sealed Enclosure Volume: 25L

Connection diagram
Click on image for larger version
