ZD929C 48W SOLDERING STATION

DIGITAL DISPLAY DOSS

Code: 38571665

1.96 kg
9328202002068
EACH
5
97 IN
STOCK
TRADE ALERT!
$129 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

2012 Doss Solder Range Sell SheetPDF

View our entire range of Doss Soldering Stations and Irons by downloading the 2012 Doss Solder Range Sell Sheet

DOSS ZD929 SERIES SOLDERING STATIONS

These professional electronic temperature controlled soldering stations have been developed to meet the present and future needs of the electronics industry. They incorporate a sophisticated electronic circuit which enablesthe user to change the tip temperature from 160°C (320°F) to 480°C (900°F) without the need to change the tip or the heating element. The temperature is maintained within ±10° of its preset temperature.

This is made possible by an unique temperature sensor that is located near the tip. Resulting in rapid response and little temperature variation. The tip of the unit is isolated from the AC line by a transformer. Completely electronic switching and grounded tip protects voltage and current sensitive components against transient spikes sometimes caused by other units utilising mechanical switching circuits.

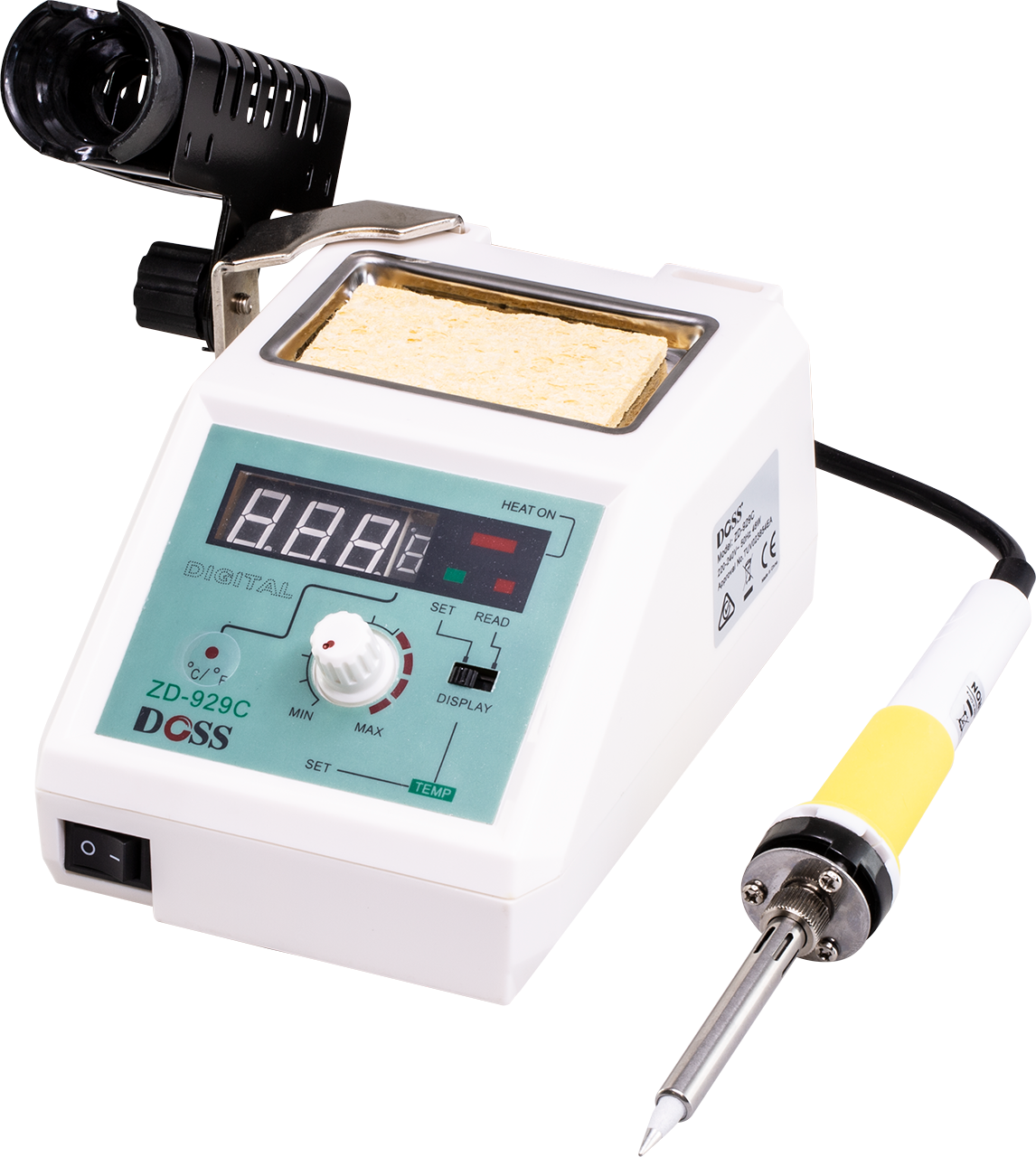

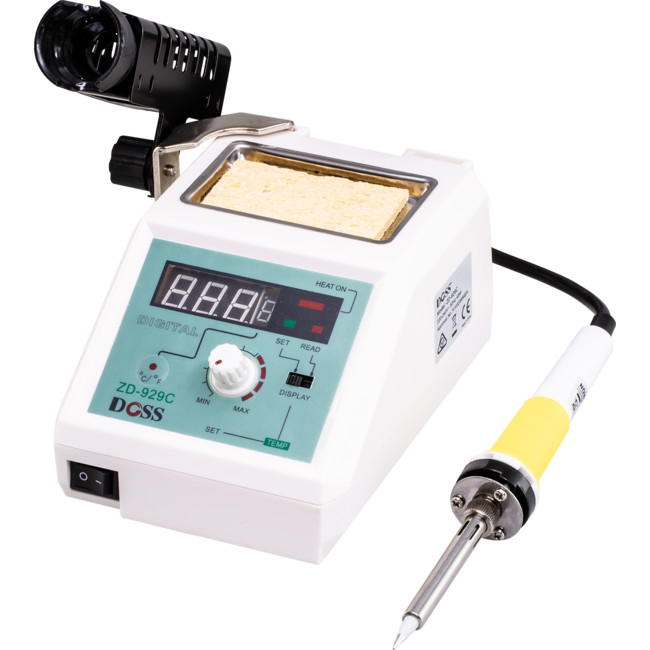

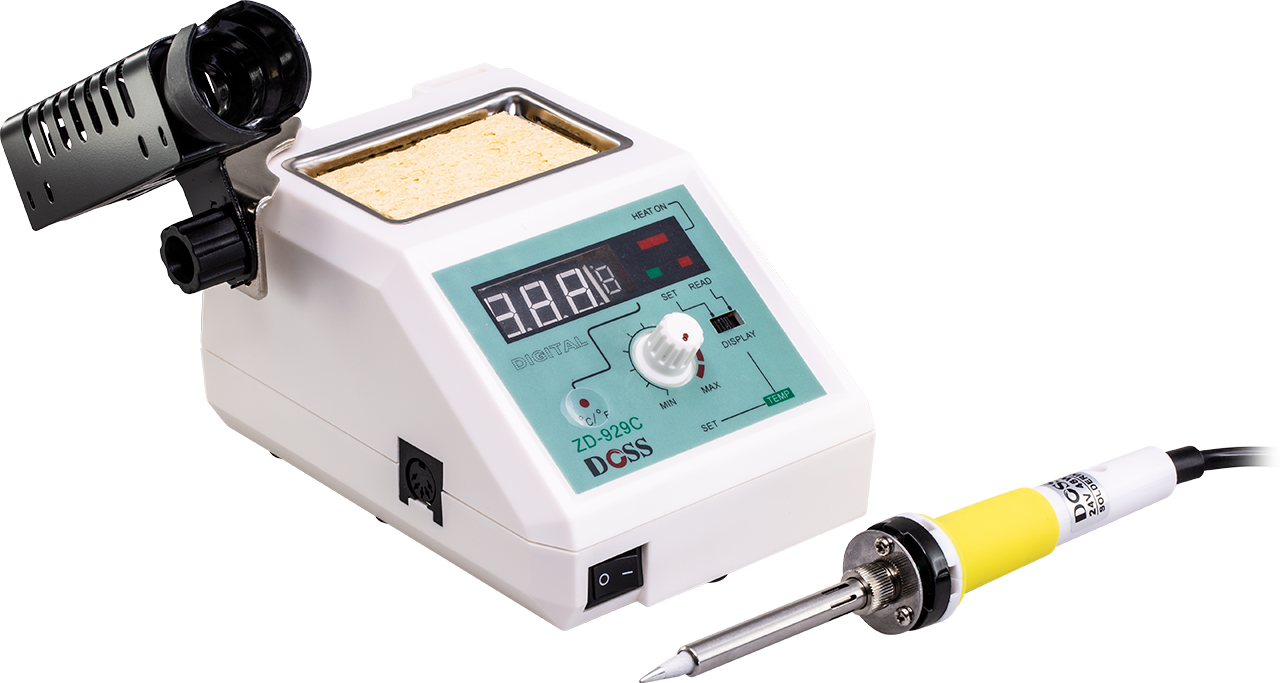

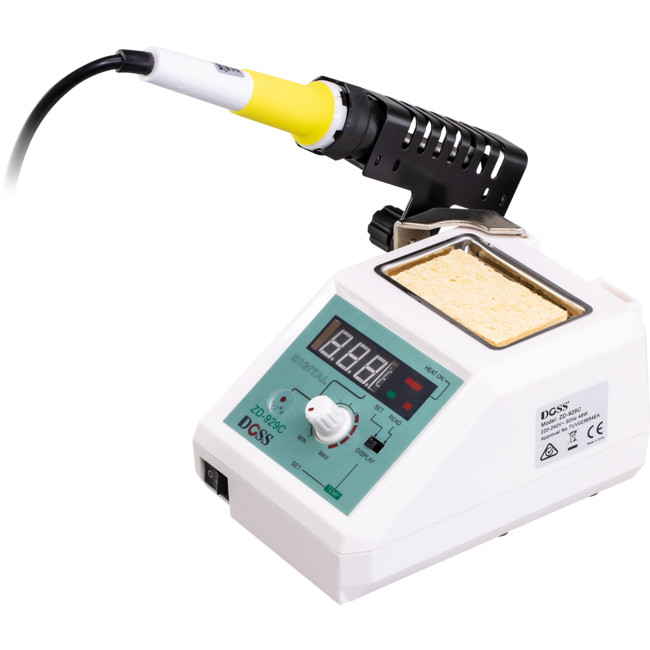

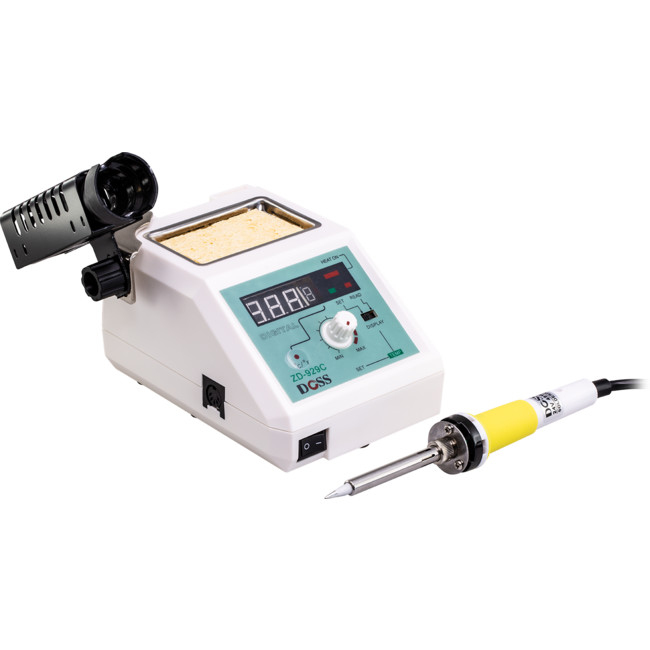

ZD929C DOSS Soldering Station with Digital Display

This unit incorporates a digital LED temperature readout which accurately indicates the temperature of the tip.

  • Professional soldering station 48W (160 ~ 480°C)
  • Voltage Supply: 220V AC ~ 240V AC
  • Set/Read temperature switch
  • Accurate digital temperature display
  • °C/°F digital display switch
  • Iron Voltage: 24V AC
  • Soldering Iron Length: 198mm
  • Station: L 170 x W 116 x H 96 mm
