MOD1HDV3 MPEG2 1080P HD DVB-T MODULATOR

OGG LABS

Code: 37400225

1.02 kg
649870574039
EACH
1 IN
STOCK
DON'T PAY $698
$459 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

MOD1HDV3 MPEG2 1080P HD DVB-T MODULATOR - OGG LABS

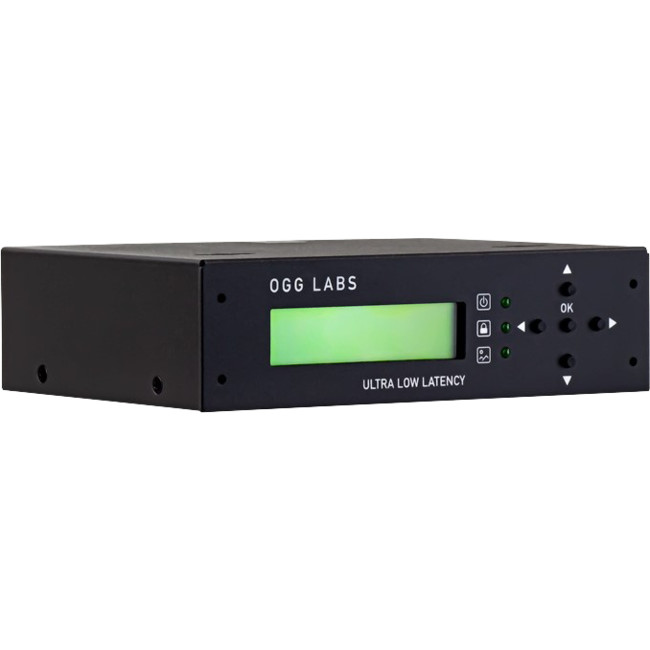

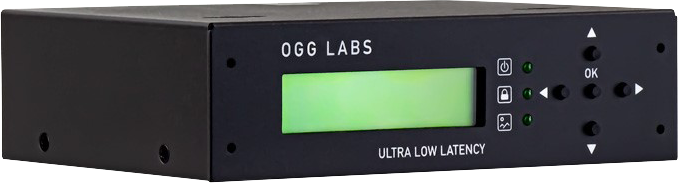

MOD1HDv3 is a compact single silicon low latency MPEG2 Full HD 1080p DVB-T Modulator. It includes a range of presets that allow many MOD1HDv3 to be setup on a MATV network quickly, no laptop or network configuration needed.

Rack mount bracket options available -- BKT193RU 19"multi-purpose 3RU Rack Mount Bracket. Designed to mount 6 x PayTV boxes or 4 x MOD1HDv3s and 4 x PayTV boxes or 8 x MOD1HDv3s. Also available MOD1BKT 19" rack mount bracket for mounting two MOD1HDv3 modulators.

Features:

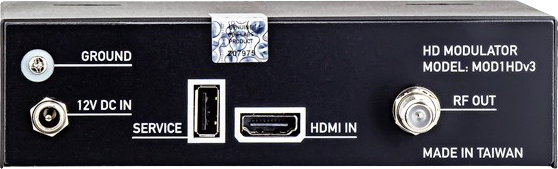

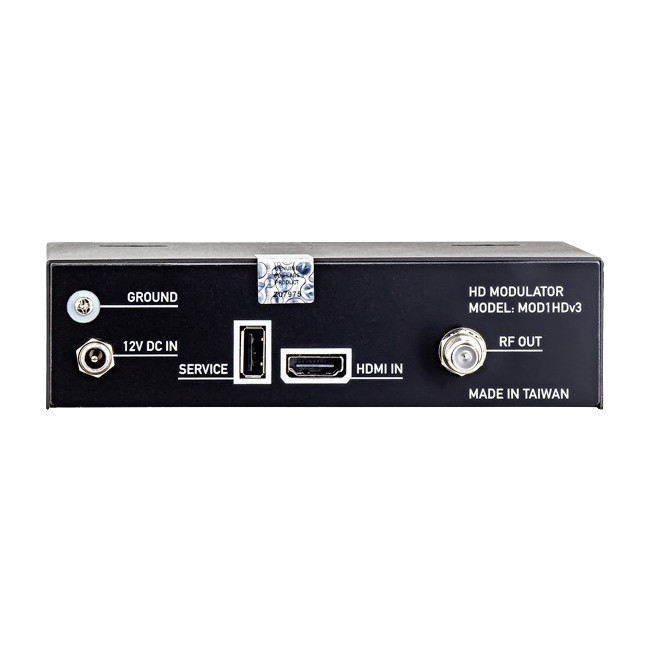

  • Convert 1 HDMI HD video and audio input into MPEG2.
  • Encoding MPEG-2 MP@ML.
  • Resolution up to 1080p @30fps matches PayTV HD.
  • Program via front keypad & LCD.
  • Full Band output, RF frequency range 177.5MHz to 816.5MHz. BER >00e5, MER 30db typical.
  • Output level 110 to 90dbuv.
  • USB2.0 software update port.
  • Better picture quality promise.
  • Fully Programmable all parameters can be customised easily from the menu.
  • Low latency reduced time delay between input video andoutput program.
  • Quick Deploy many HD channels reduces setup time.
