CRM51R VANDAL PROOF IR REMOTE PANEL

5 BUTTONS IN ROW ON RECTANGLE

Code: 37165005

0.5000 kg
EACH
SPECIAL
BUY-IN
1 IN STOCK
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
$341 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

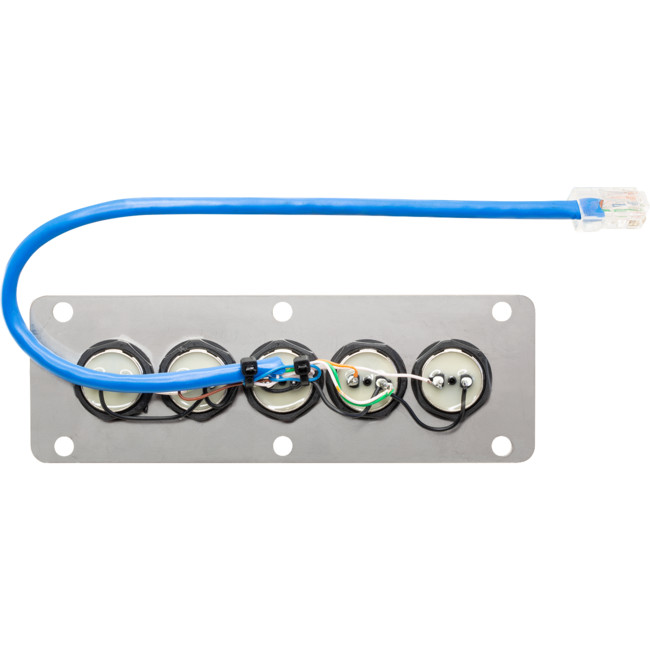

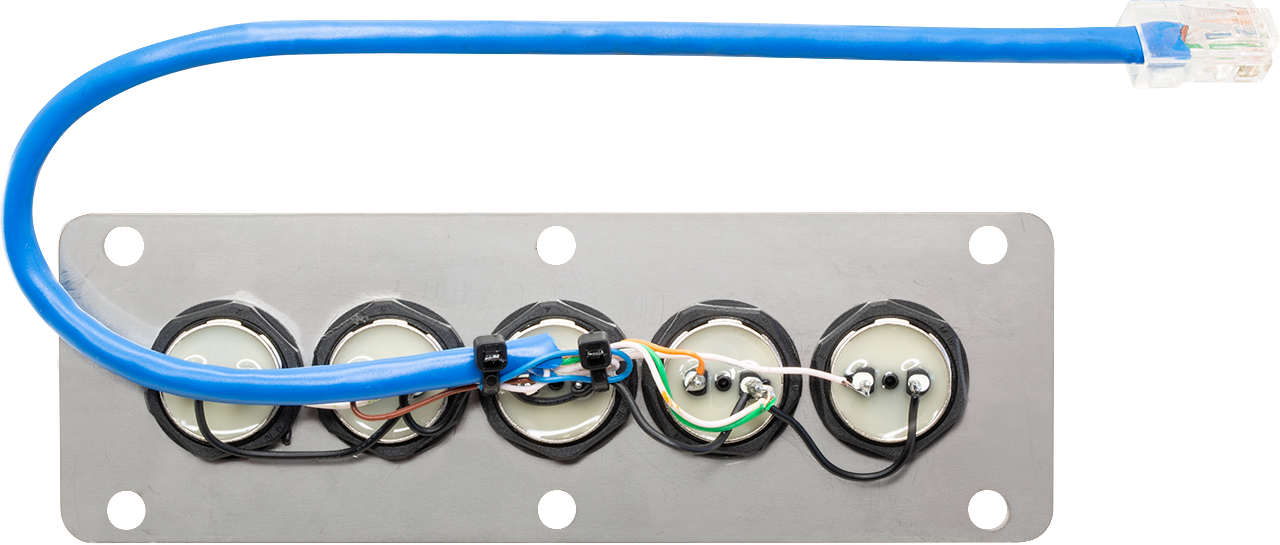

The CRM51R is a custom remote plate only designed primarily for prisons and public spaces.

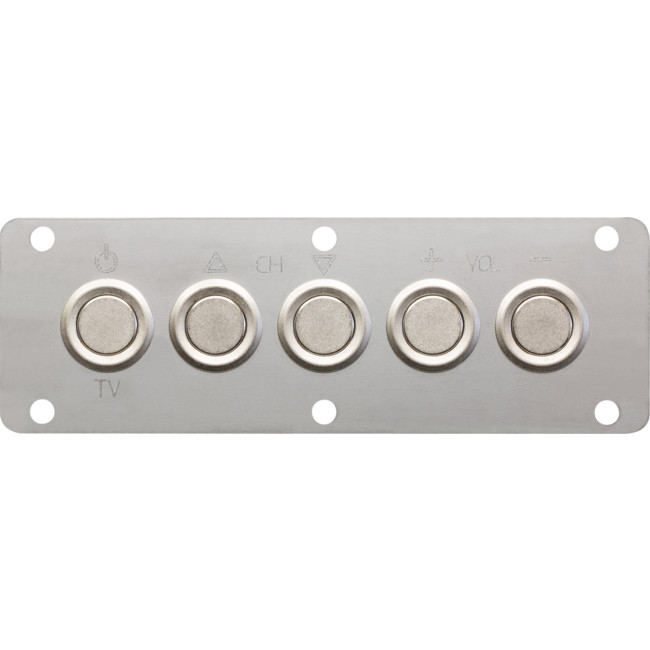

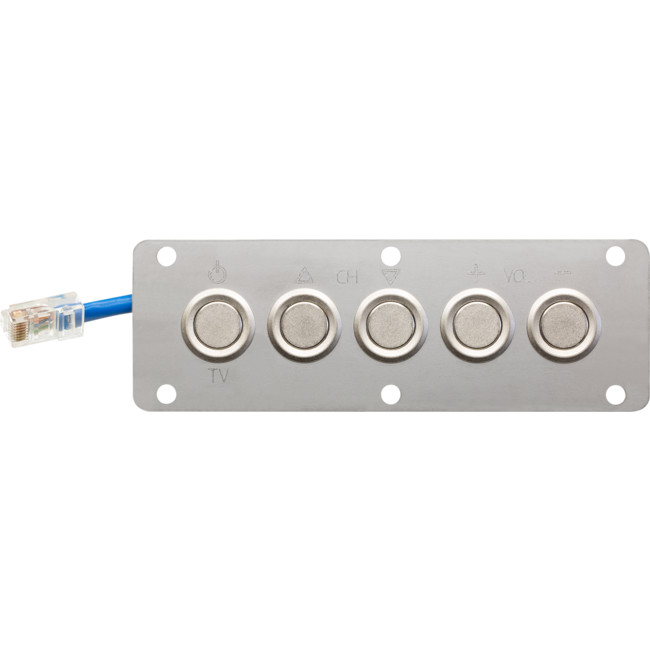

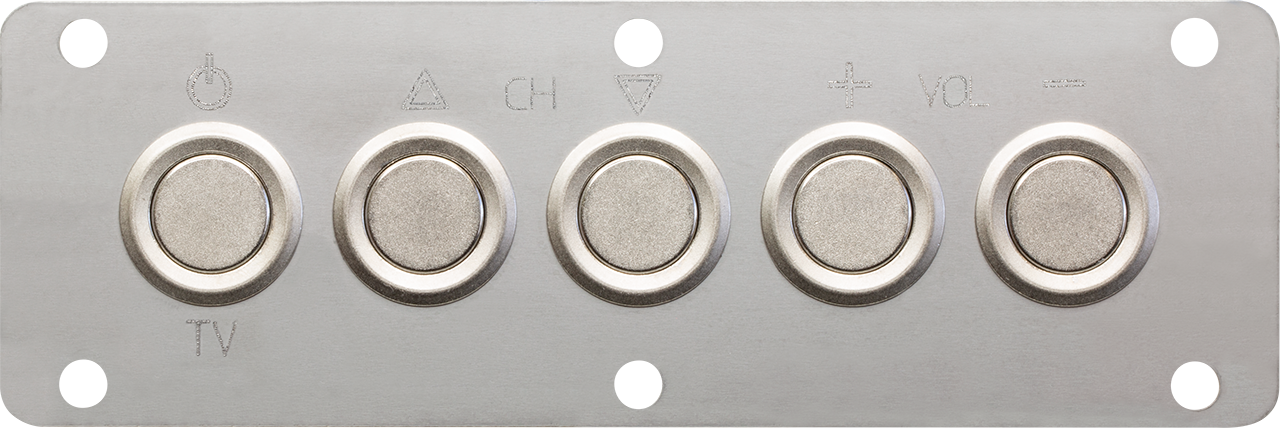

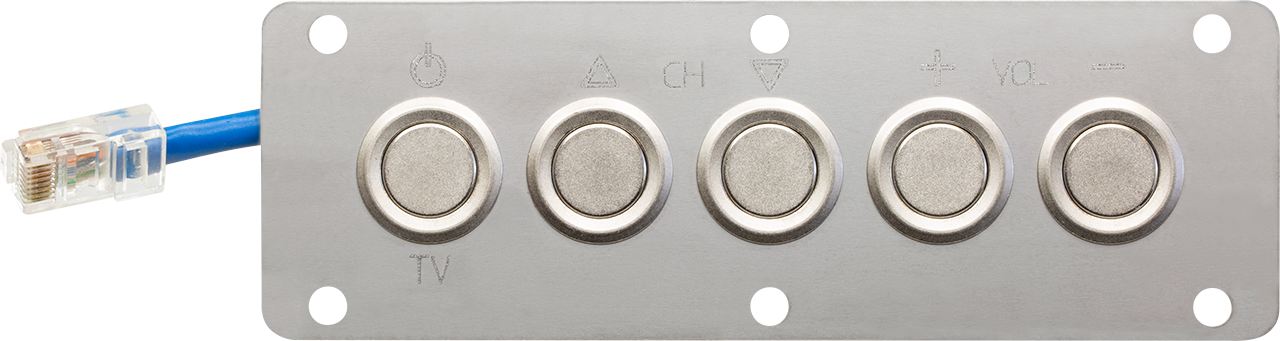

The CRM51R is a rectangular plate with 5 buttons in a row

It provdes a vandal-proof IR remote solution allowing foreasy operation of TV sets.

The panel is custom programmed to match your original TV remote and provides 5 buttons for the following operation:

  • Volume up
  • Volume down
  • On/off
  • Channel up
  • Channel down



For a complete remote solution you will also need

1 x CRM51R

1 x Control Box

1 x SM1205 Power supply

1 x PRO1141 IR Emitter



For Complete kit order with code 37165009 - CRM51RKIT



How does it work?

The following diagram should explain the connection setup.

  1. The terminal connector that plugs into the control boxhas two outlets. One for power and the other for the included IR beamer. Hook up the included power supply to theDC socket and the 3.5mm IR beamer plug to the 3.5mm socket coming out of the terminal connector. The IR beamer should be positioned over the IR receiver located on the TV.
  2. Connect the panel to the control box using the RJ45 port..
  3. Mount the keypad panel to a secure location and turn your TV on/off, volume up and down or channel up or down using the buttons.

The following picture shows the CRM51 mounted in a Britexenclosure.

Britex enclosures are made from high quality material andcan be ordered upon request. For more information on the Britex enclosures, please email us at sales@radioparts.com.au.
