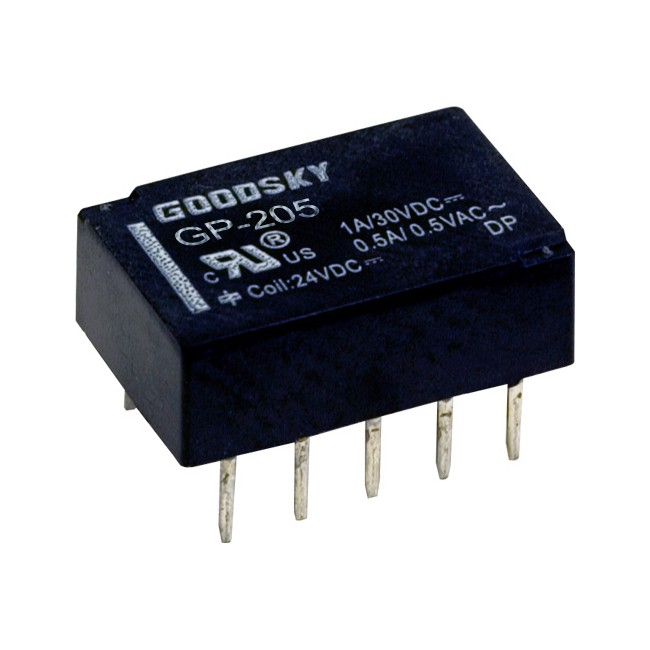

GP205 5V DC 1A COMPACT RELAY

LOW PROFILE DIL PITCH

Code: 37056100

0.0010 kg
EACH
In Stock
$6.58 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

5V DC 1A COMPACT RELAY

Application : Telecommunication Equipment, Office Equipment, Security Alarm Systems, Measuring instruments, Medical Monitoring Equipment, Audio Visual Equipment, Flight Simulator, Sensor Control.

Reduced package size and power consumption compared to conventional relays.

Compact, light weight, Low power consumption, and Low magnetic interferrence

FEATURES:

  • DIL Pitch Terminals High Sensitivity :0.14W or 0.10W Nominal Power.
  • Conforms to FCC Part 68 1.5kV Surge and Dielectric 1,000VAC.
  • Monostable or bistable relays of Single Coil magnet latching Type available.

SPECIFICATIONS:

  • Contact Rating
    • Nominal Load(Resistive Load Cosφ=1)
      • Contact Capacity.................... 1A at 30V DC. / 0.5A at 125V AC.
      • Rated Carrying Current ........ 1A.
      • Max. Allowable Current ........ 1A.
      • Max. Allowable Voltage......... DC 30V, AC 125V.
      • Max. Allowable Power Force 30W, 62.5VA.
      • Min. Switching Load ............. DC 10mV, 0.01mA.
    • Contact Material....................Ag Alloy.
    • Contact Form.........................DPDT.
  • Contact Resistance ................ 50 mΩ Max.
  • Operate Time.........................3 mSec. Max.
  • Release Time..........................3 mSec. Max.
  • Dielectric Strength :
    • Between Coil & Contact ........ 1,000V AC at 50/60 Hz for one minute.
    • Between Contacts .................. 1,000V AC at 50/60 Hz for one minute.
    • Between Contact Poles .......... 1,000V AC at 50/60 Hz for one minute.
  • Surge Resistance ................... 1,500V (between coil & contact 1x40 μSec.)
  • Insulation Resistance............ 1,000Mega Ωmin. at 500VDC.
  • Max. On/Off Switching :
    • Electrical ................................ 20 Ops per Minute.
    • Mechanical............................. 180 Ops per Minute.
  • Temperature Range .............. -40- 70°C
  • Humidity Range .................... 45 - 85% RH.
  • Coil Temperature Rise .......... 50°C Max.
  • Vibration :
    • Endurance ............................. 10 to 55 Hz dual amplitude width 1.5mm.
    • Error Operation..................... 10 to 55 Hz dual amplitude width 1.5mm.
  • Shock :
    • Endurance ............................. 100 G Min.
    • Error Operation..................... 10 G Min.
  • Life Expectancy :
    • Mechanical ............................ 1,000,000,000 Operations at No Load condition.
    • Electrical ................................ 1A/30V DC: 2x 1,000,000 0.5A/125VAC: 1x 1,000,000 Operations at Rated Resistive Load.
  • Weight.................................... about 1.5 g.
  • Safety Standard & Its File Number :
    • C-UL....................................... E141060.
