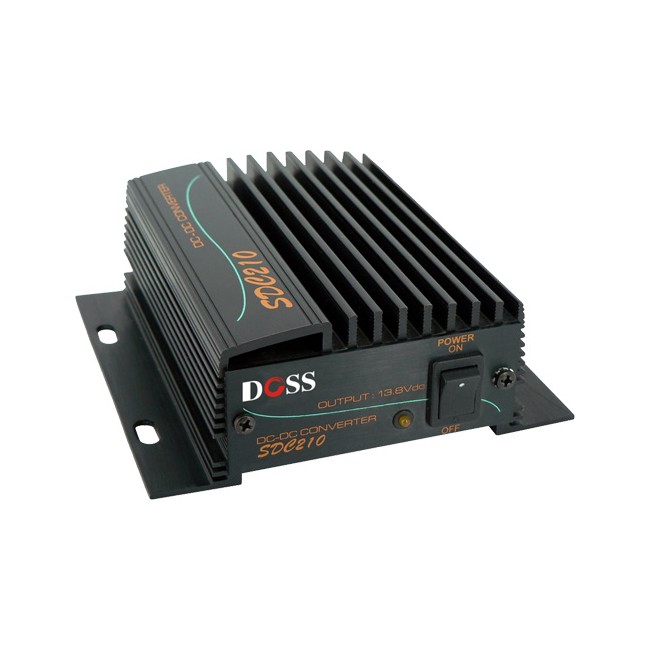

SDC210 DC-DC CONVERTER SWITCHING 24V

OUTPUT 13.8V 10A MAX 8A CONTIN

Code: 33774918

0.8000 kg
9328202033413
EACH
20
15 IN
STOCK
$69 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

This series of DC-DC Switching Mode converters are built to meet the high current applications at 13.8V.

In addition to the high efficiency, the low profile construction makes use of the heat sinks as main body of the robust, rugged housing of the unit. The OVP (Over Voltage Protection) protects sensitive electronic equipment.

Input 22-30Vdc, Output 13.8Vdc, Output 8A(Cont.)/10A(Peak)

  • 13.8V Regulated Output Voltage
  • 22-30 VDC Input voltage
  • High Efficiency 88%
  • High Power Density
  • Output overvoltage protection
  • Short Circuit and Overload Protection
  • LED Power ON indicator
  • EMC INTERFERENCE IMMUNITY
  • POWER ON-OFF SWITCH
Input Voltage Range 22 To 30 V DC
Output Voltage 13.8 V DC
Continuous Output Current 8A
Maximum Output Current 10A
Ripple & Noise (P-P) 200mV
Load Regulation 500mV
Line Regulation 20mV
Output Voltage Protection Over Voltage Protection
Efficiency 88%
Protection Short Circuit Protection, Overload Protection
Indicators Power On LED
Input Connection Type Cable
Output Connection Type Cable
Cooling System Natural Convention
Input Fuse Type Standard Car Blade Fuse
Approvals CE EN55014, EN55022
Dimensions (WxHxD) 125x47x120 (mm)
Weight 0.55 Kg
