PSD241 24V PS FOR ARU104 / ARU108 MK2

AUDAC

Code: 33770340

EACH
Special
Buy-In
$80 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

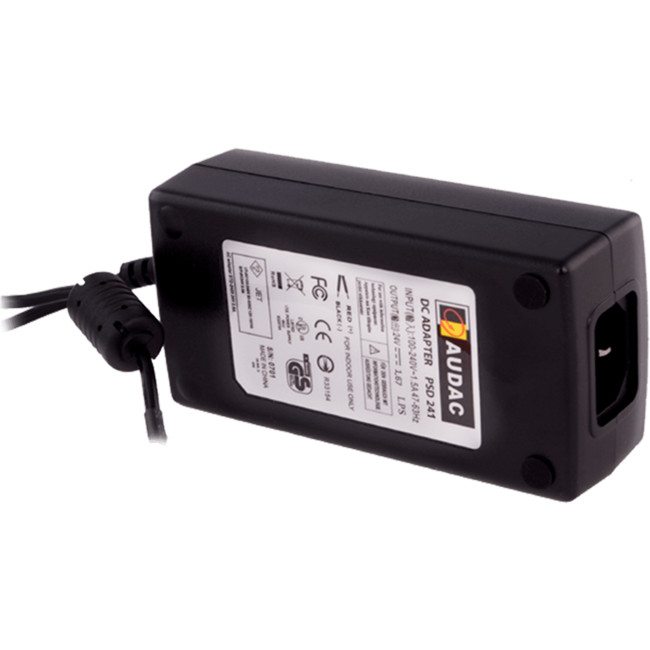

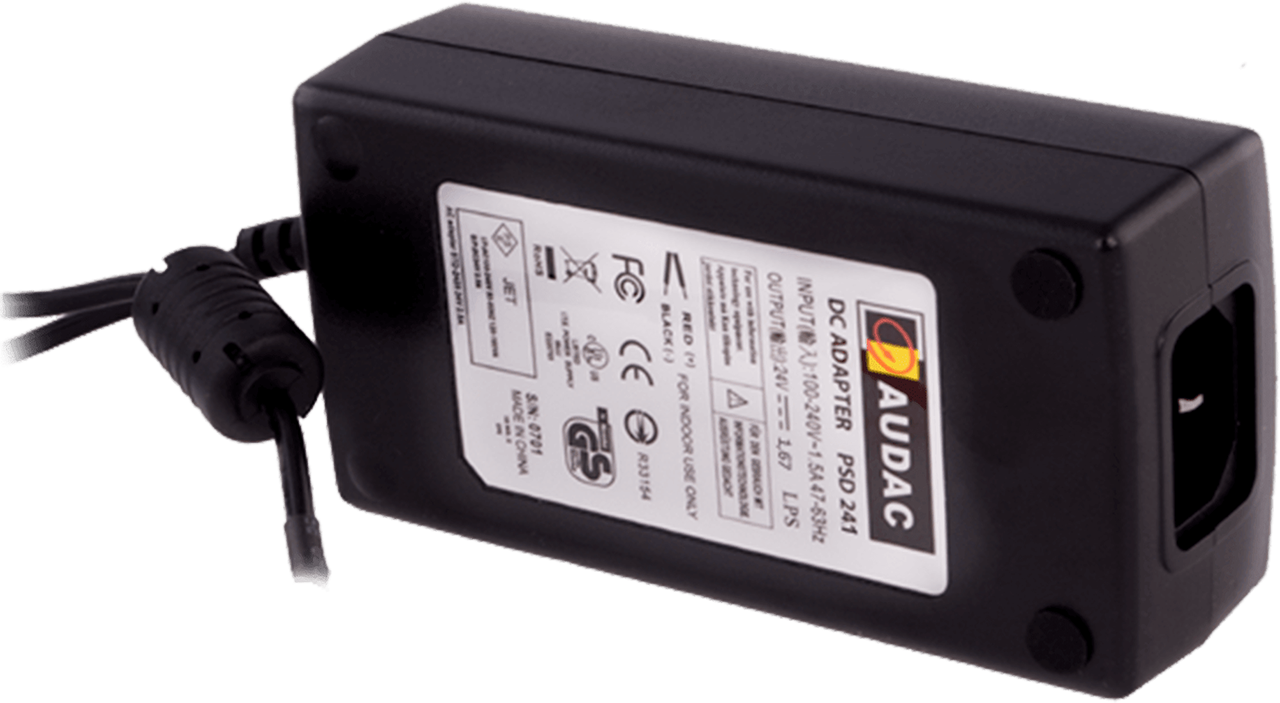

AUDAC PSD241 POWER SUPPLY 24V DC 1.67A ABS

The PSD241 is designed specifically for equipment with a low power consumption (1,67A at max 40W), such as the extremely efficient AMP20 amplifier.

The PSD series offers a wide range of versatile switching power supplies.

They are mainly used as power supply for extension units,interface boxes or other expansion units of sound systems, but they can be used for all kinds of applications requiring12V DC or 24V DC, at different current ratings.

There are two different construction forms available, standard ABS housings suited for standard applications, and industrial graded designed DIN rail mounting versions, to beused in all kinds of applications.

Going from small and simple applications to industrial environments and hazardous locations.



SYSTEM SPECIFICATIONS
Regulation 22.80Vmin ~ 24.00Vtyp ~ 25.20Vmax
Max. Power 40.08 W
Ripple and Noise 240 mV
Efficiency > 85%
Safety UL / cUL / CB / GS / PSE / BSMI / RCM
Protection Over Voltage
DC Short circuit
Over Current
Energy certification MEPS V
Energy Star V
Erp (Stage 2)
Inputs Connector IEC C14 Connector
Outputs Connector Tinned cable ends (Red ‘ ’ / Black ‘-’ )
DC Outputs current 1.67 A
Outputs Voltage 24V DC ± 5%
AC Inputs Voltage 100 ~ 240 V AC
Frequency 47 ~ 63 Hz
PRODUCT FEATURES
Dimensions 100 x 50 x 33 mm (W x H x D)
Weight 0.190 kg
Construction ABS
Connection cable length 1.5 m
Colours Black
Material Flammability UL 94V-0
