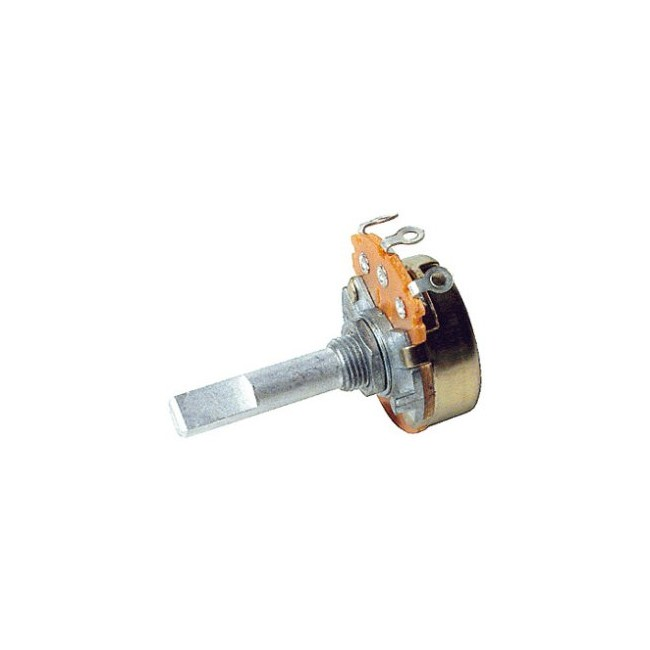

24SN25KA 25K (A) LOGARITHMIC POT

With imperial standard shaft & bushings made to ourrigid engineering specifications. The potentiometers are full size - 24mm diameter types . Power rating is 0.5W max. They have genuine 6.35mm (1/4) shafts with a flat machined 25% of the diameter for grubscrews or interference fit knob mounting. The shaft is a generous 38mm long. The bush is a 3/8 32 T.H.D. type which we believe is necessary for good fixing to a panel. Another important feature of the pots is their PCB mount capability. The pins are rigidly mounted on phenolic with the centre pin offset from the two outer terminals. When soldered into a PCB, the pot is quite rigidly held on its own. Double gangpots are held in 6 places and require no extra mechanical mounting assistance. The pins are large enough to terminate screened cable, etc.,if the job requires hard wiring. An engineering drawing appears below. You may safely use it to design PCB artwork etc., as we have standardised this design.Value25K



Specifications

AC Voltage rating : 150.0V

Continuous Power : 0.25W

Resistance level : 25.0k?

Potentiometer Diameter : 24mm

Log or Linear? : Logarithmic

Potentiometer Knob Type : Imperial D

Potentiometer Terminal Type : PCB mount

Potentiometer Shaft Length : 38.5mm

potentiometer nut size : 24mm(3/8inch 32THD)

Pack Quantity : 1.0pc

Passive mount type : Panel, Through Hole

Passive connector type : Solder Legs

Component package : Metal can

Passive number of legs : 3.0

Passive marking code : Number code
