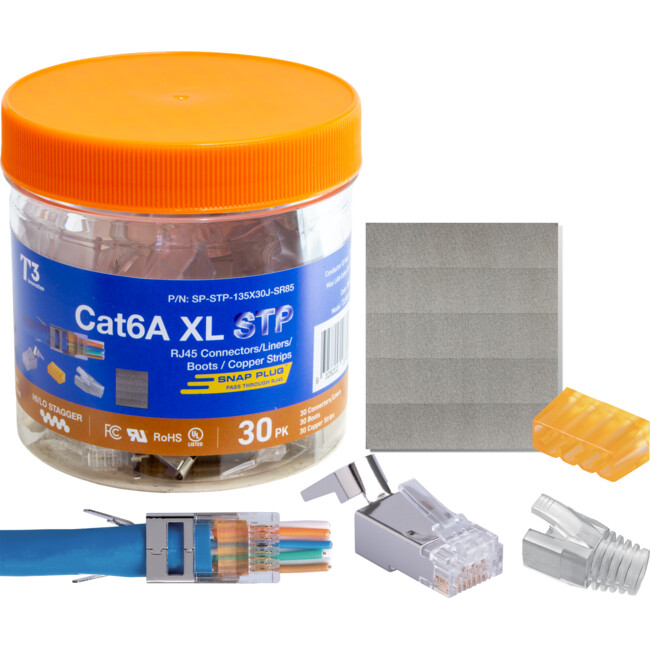

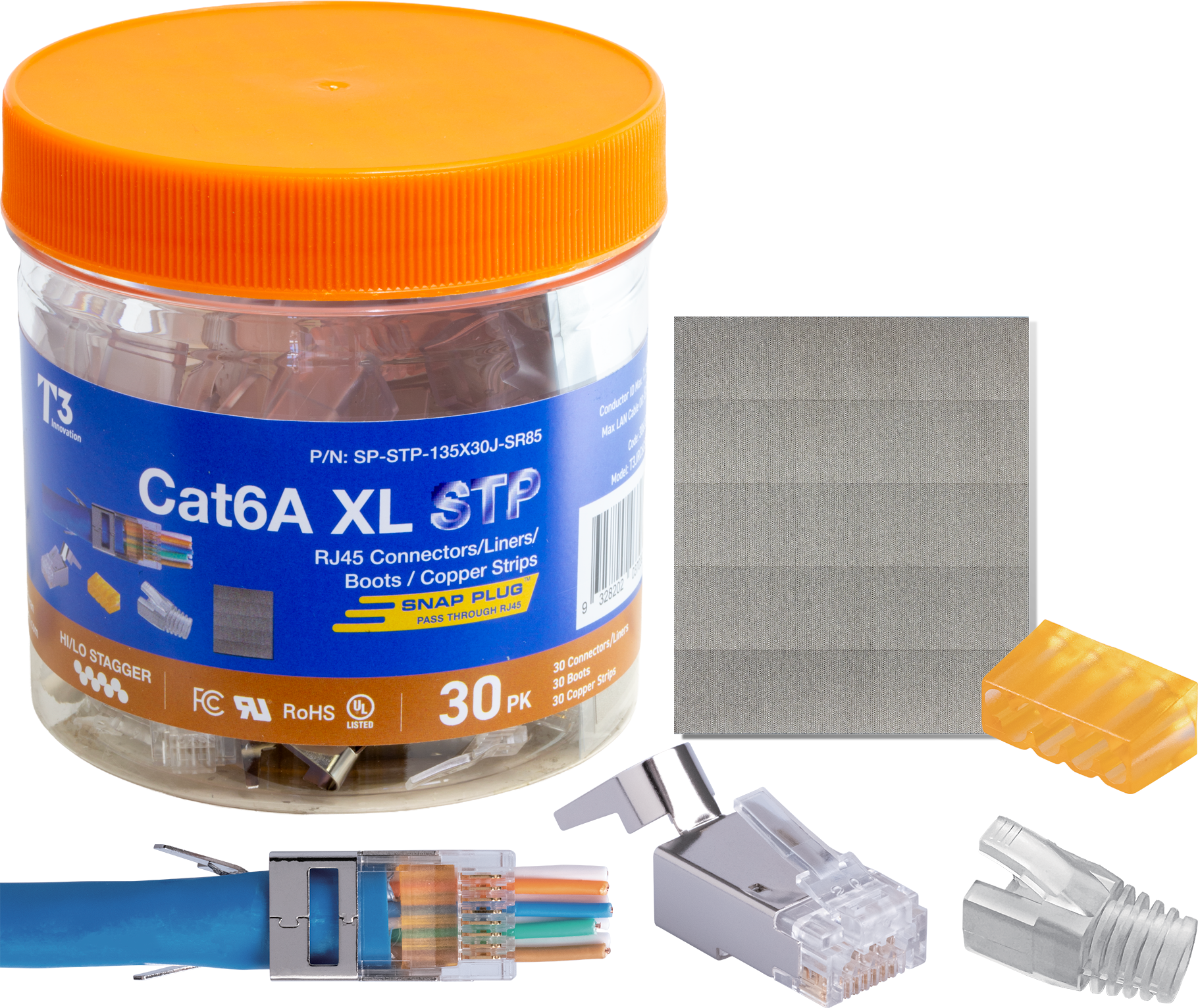

30PCS CAT6A STP SNAP PLUG WITH EXTERNAL GROUND + 30 PCS BOOT & 30 PCS COPPER STRIP COMBO JAR
T3 STP RJ45 CAT6A SOLID SNAP PLUG 1.35MM WITH EXTERNAL GROUND
The T3 Snap Plug™ and Snap Plug Tool are designed to simplify the process of terminating RJ45 modular plugs. It is a time-consuming process to assemble traditional RJ45 modular plugs, and the most difficult part would be putting the wire into the conductor in the correct order. The thicker the conductor is, the more difficult the job is going to be.
The T3 SNAP PLUG™ enables the conductors to pass through the connector itself, making it a lot easier to verify wiring order before crimp, reducing possible errors and waste of materials, save time and effort on terminating RJ45 connectors.
Use the SNAP PLUG TOOL to crimp and trim in a single step, making professional wire termination fast and easy.
Specifications
- CAT6A Shielded plug with external ground 1pc type
- 1 piece 3 prongs RJ45
- 50-micron fully gold-plated contacts
- Max Conductor ID: 1.35mm/0.053", solid or stranded 22 AWG
- Hi/Lo stagger push through with load bar
- Compliant with PoE and PoH standards
- Meets ANSI/TIA specifications
CLEAR RJ45 RUBBER BOOT
This strain relief and snaggles boot is designed to be crimped with the Snap Plug CAT6A shielded connector, the plug will lock the strain relief in place, creating one professional, integral assembly.
- Maintains specified bend radius for maximum cable performance.
- Prevent cable pairs from being over compressed.
- Prolong life of your termination.
- UL and ROHS compliant.
- Max. LAN cable OD: 8.5mm
COPPER FABRIC STRIP
- For bonding the shielded ethernet cable.
- On removable plastic sheets for easy handling.
- Allows the connection hardware to drain off effectively those excess electromagnetic interference (EMI/RFI) and ESD (electrostatic discharge).
- Copper fabric strip size: 15mm x 32mm
{tab FAQ}
Q: I have a Platinum Tools crimper EZRJPROHD that was designed for the Platinum Tools EZ connectors. Can I use this crimper on the T3 Snap Plug?
A: The T3 products are designed with tight tolerances to work perfectly together. Platinum Tools manufacture their EZ plugs in the US as opposed to Taiwan, so their matching crimper is designed to work with just their connectors. Having said this, in our samples, the Platinum crimper still worked with T3 connectors.
Below is a picture of the end result. Note the slight indentation (damage) on the T3 connector left by the Platinum Tools crimper. Please be aware, as the crimp tool is not designed for other plugs, if you use it very often, your crimp tool will be worn out quickly.
