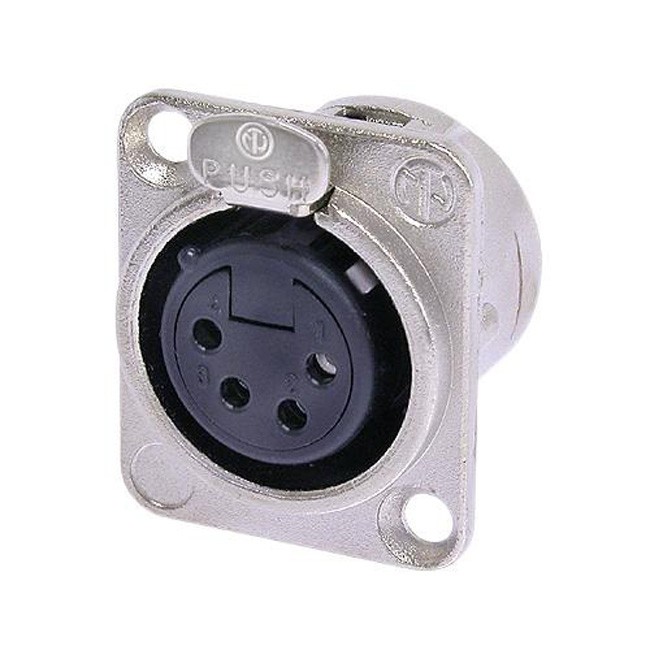

PD5682 4 PIN PANEL XLR SOCKET NEUTRIK

Code: 30365682

0.0260 kg
EACH
54 IN
STOCK
$16.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

4 pole female receptacle, solder cups, Nickel housing, silver contacts

Universal D-size metal body XLR panel mount series. UL recognized component.

Features & Benefits

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version



Technical Information

Products
Title
NC4FD-L-1
Connection Type XLR
Electrical
Capacitance between contacts
= 7 pF
Dielectric strength
1,5 kVdc
Contact resistance
= 5 mO (inner)
Insulation resistance
> 2 GO (initial)
Rated current per contact
10 A
Rated voltage
50 V
Mechanical
Insertion force
= 20 N
Withdrawal force
= 20 N
Lifetime
> 1000 mating cycles
Mounting direction
front &rear
Chassis shape
D
Wiresize
max. 16 AWG
Wiresize
max. 1.5 mm2
Wiring
Solder contacts
Locking device
latch lock
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating Nickel
Locking element
Steel Ck67
Environmental
Approval
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to 80 °C
User manualPRODUCT DRAWING
