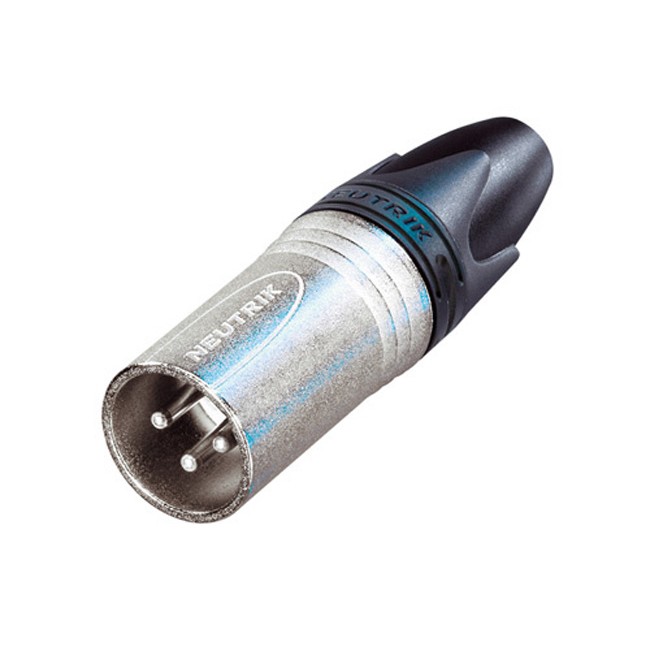

PD5290 3 PIN XLR LINE PLUG

Code: 30365290

0.0330 kg
7613187000379
EACH
In Stock
$9.90 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

3 pole male cable connector withNickel housing and silver contacts.

The next generation of the worldwide accepted standardof XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane glandgives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design-valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well proteced against any damage



Technical Information

Products
Title NC3MXX
Connection Type XLR
Electrical
Capacitance between contacts
= 4 pF
Dielectric strength
1,5 kVdc
Contact resistance
= 3 mO (inner)
Insulation resistance
> 2 GO (initial)
Rated current per contact
16 A
Rated voltage
50 V
Mechanical
Insertion force
= 20 N
Withdrawal force
= 20 N
Lifetime
> 1000 mating cycles
Cabel O.D.
3.5 - 8.0 mm
Wiresize
max. 2.5 mm2
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
latch lock
Material
Contact plating
2 µm Ag
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating Nickel
Strain relief
Polyacetal (POM)
Boot
Polyuretan
Bushing
Polyamide (PA 6 15% GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to 80 °C
User manual
ASSEMBLY INSTRUCTIONS
