AC5030 HDMI AUDIO EXTRACTOR

OPTICAL STEREO 4K HDCP

Code: 30251929

0.2530 kg
9319236753187
EACH
5 IN
STOCK
$99.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

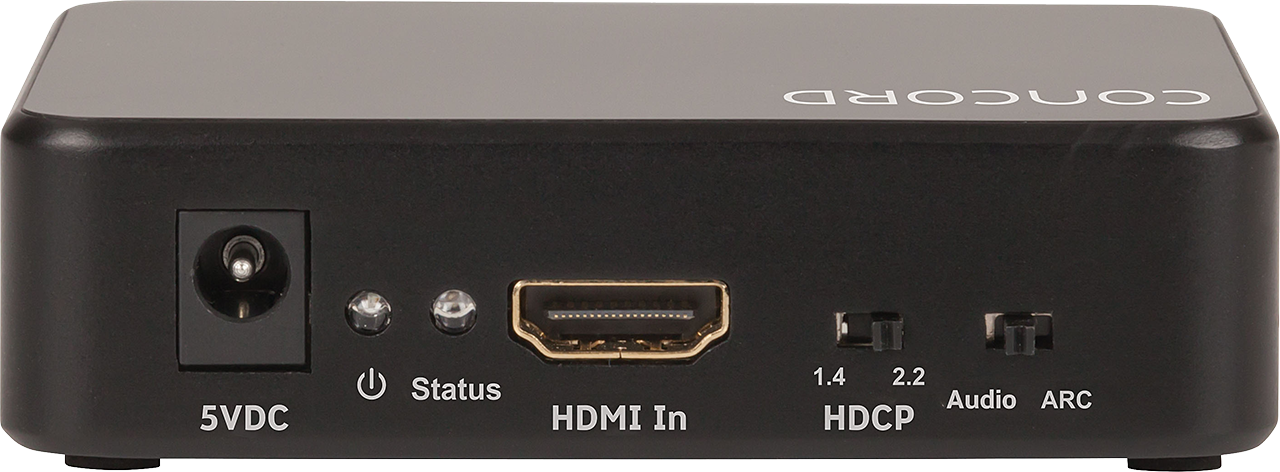

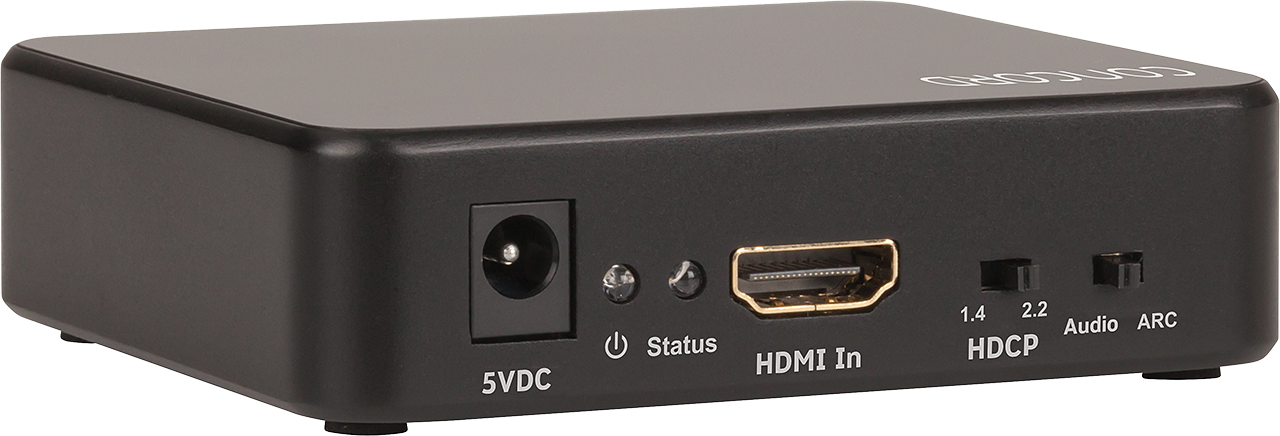

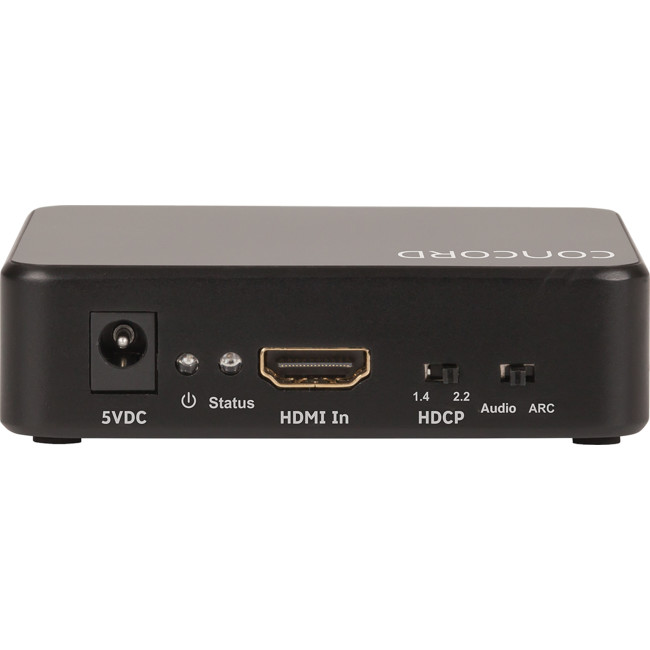

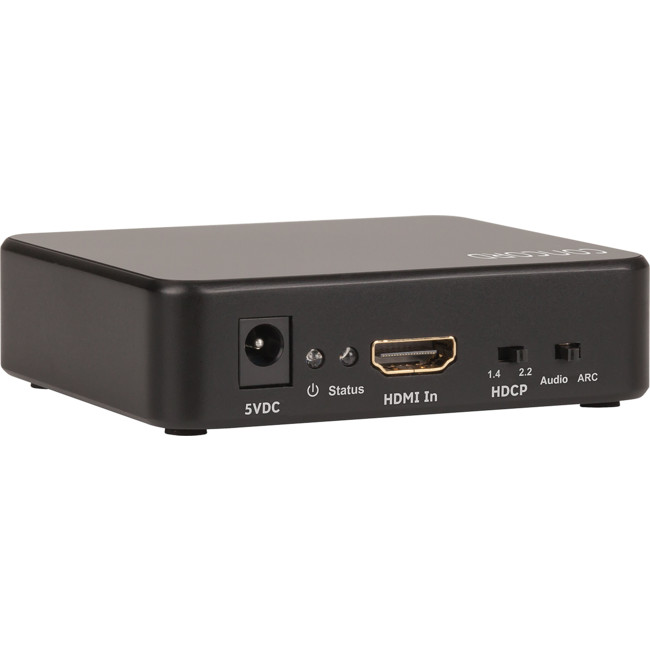

Concord HDMI Audio Extractor

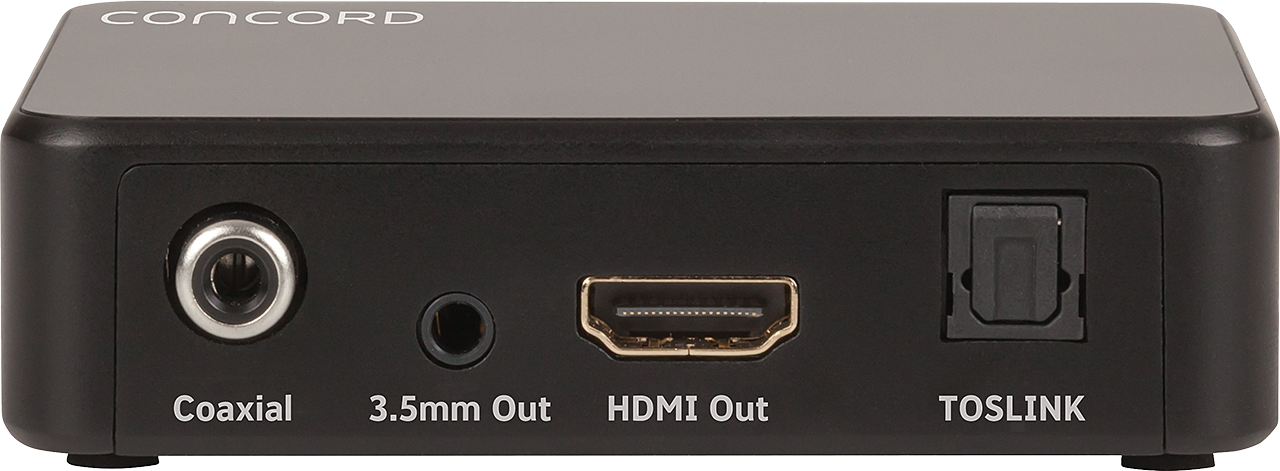

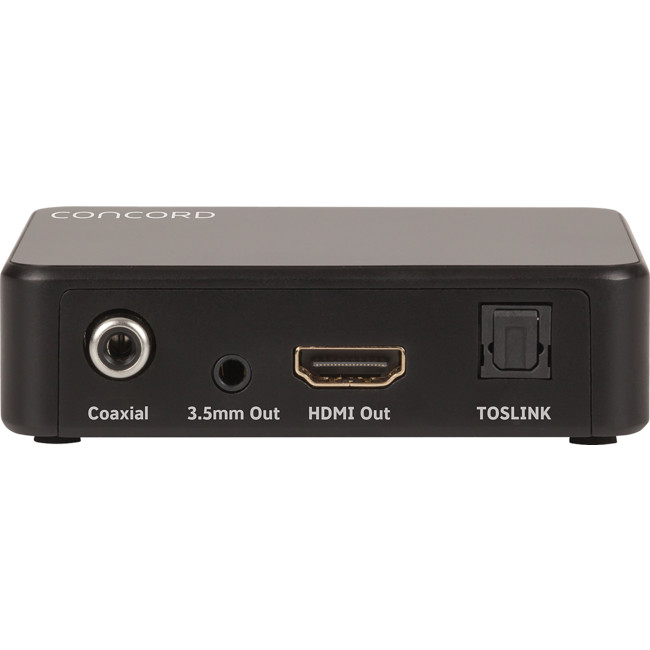

This converter extracts the audio stream from a HDMI signal so you can listen to the audio through your home theatre system, amplifier or active speakers. Outputs include digital TOSLINK optical, digital coaxial and analogue 3.5mm stereo audio. It supports HDCP 2.2, HDCP 1.4,HDMI 2.0 and AV signals up to 4K @ 60Hz. HDR, Dolby, DTS, LPCM, and 3D video are also supported, along with an ARC (Audio Return Channel). The HDMI output enables you to stillfeed the video to your TV or other display, supported by EDID data transmission.

Features:
- Extracts audio stream from HDMI
- Suitable up to 4K @ 60Hz

Specifications

Digital Audio Format : LPCM, Dolby Digital/Plus/Ex, DTS-HD Master Audio 5.1, Dolby TrueHD
Width : 90.0mm
Height : 24.0mm
Depth : 80.0mm
DC Plugpack Voltage : 5.0V
DC Current Draw : 1.0A
Supported Display Resolution : 4K UHD (3840 x 2160)
Resolution Frequency : 30.0Hz, 60.0Hz
HDMI Version : 2.0b
HDMI Maximum Data Rate : 18.0Gb/s
HDMI Maximum Colour Depth : 10.0b
HDCP Version : 2.2, 1.4
HDR Version : HDR 10
Switcher/Converter Type : Converter
Input type : HDMI
Input Connection : HDMI Type-A
Output Type : HDMI, Audio, Digital Audio
Output Connection : HDMI Type-A, RCA Digital Coaxial Audio (SPDIF), TOSLINK
