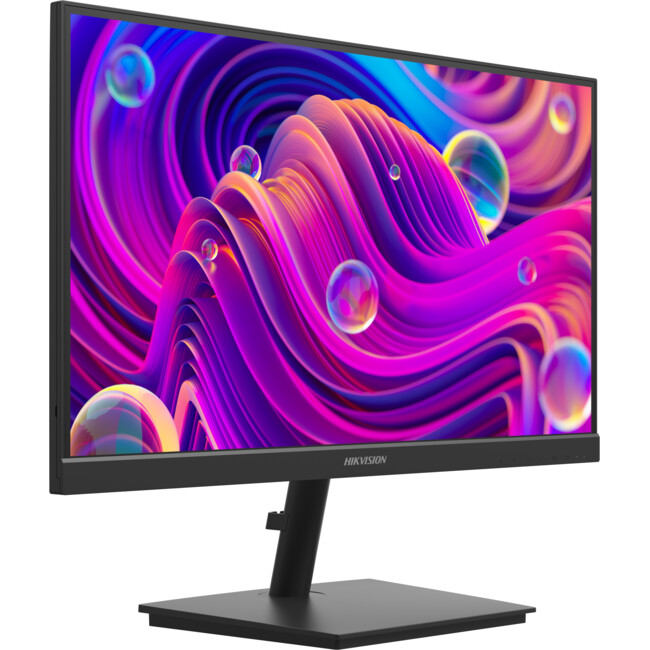

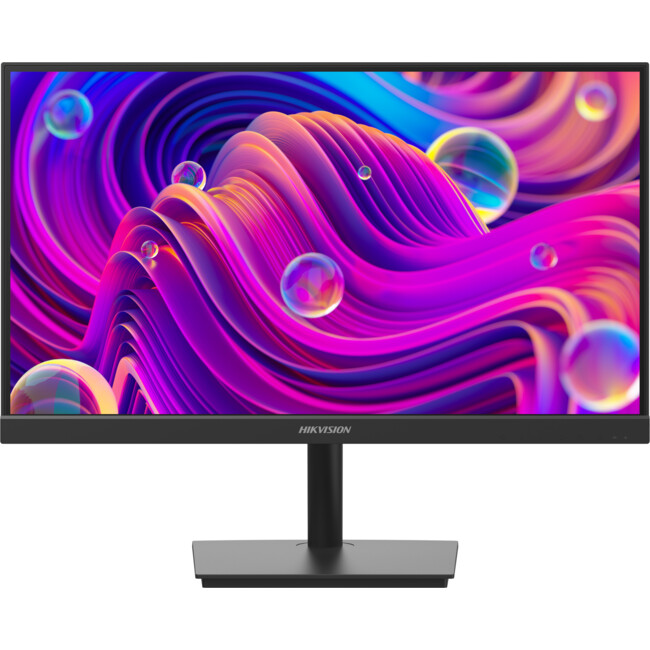

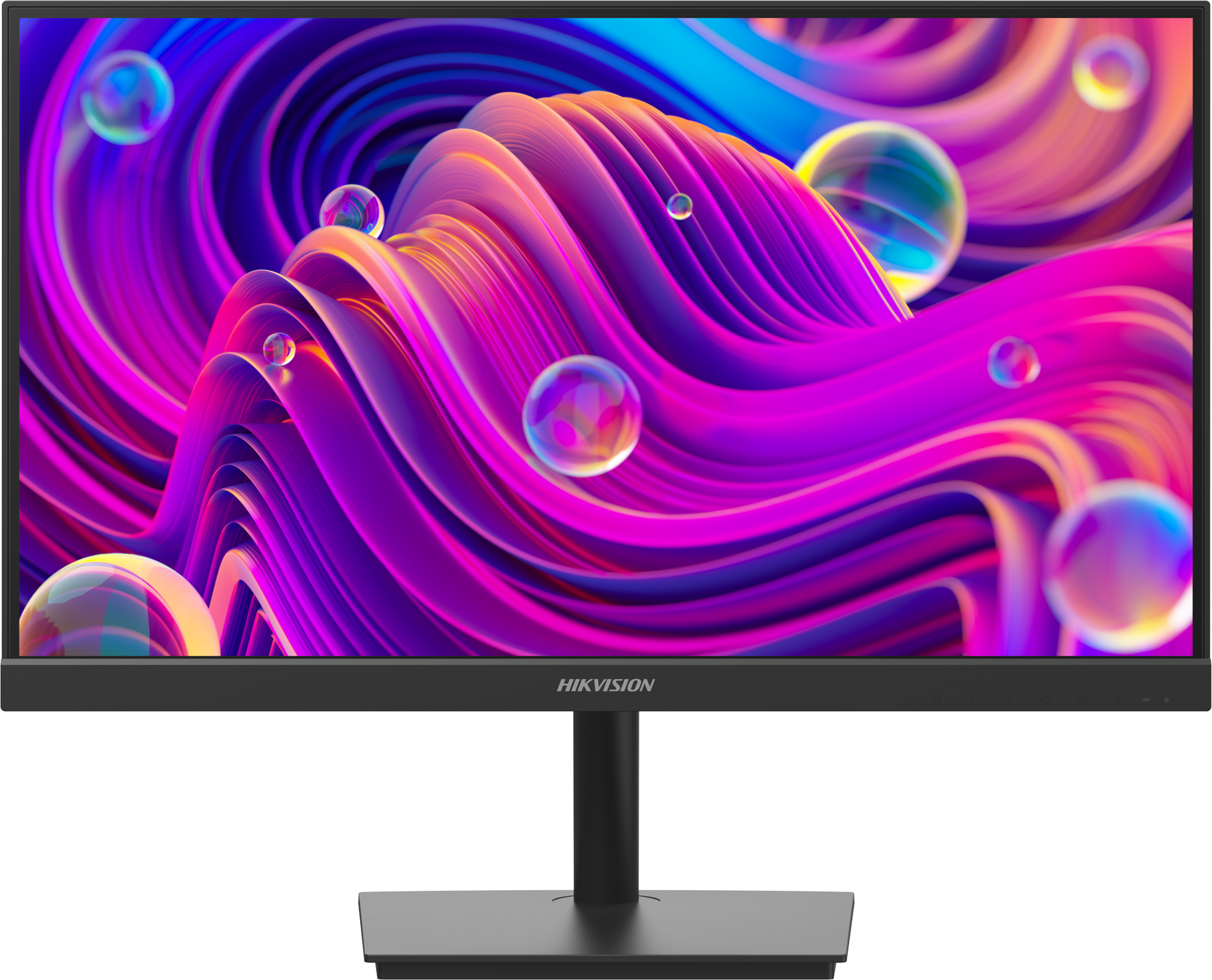

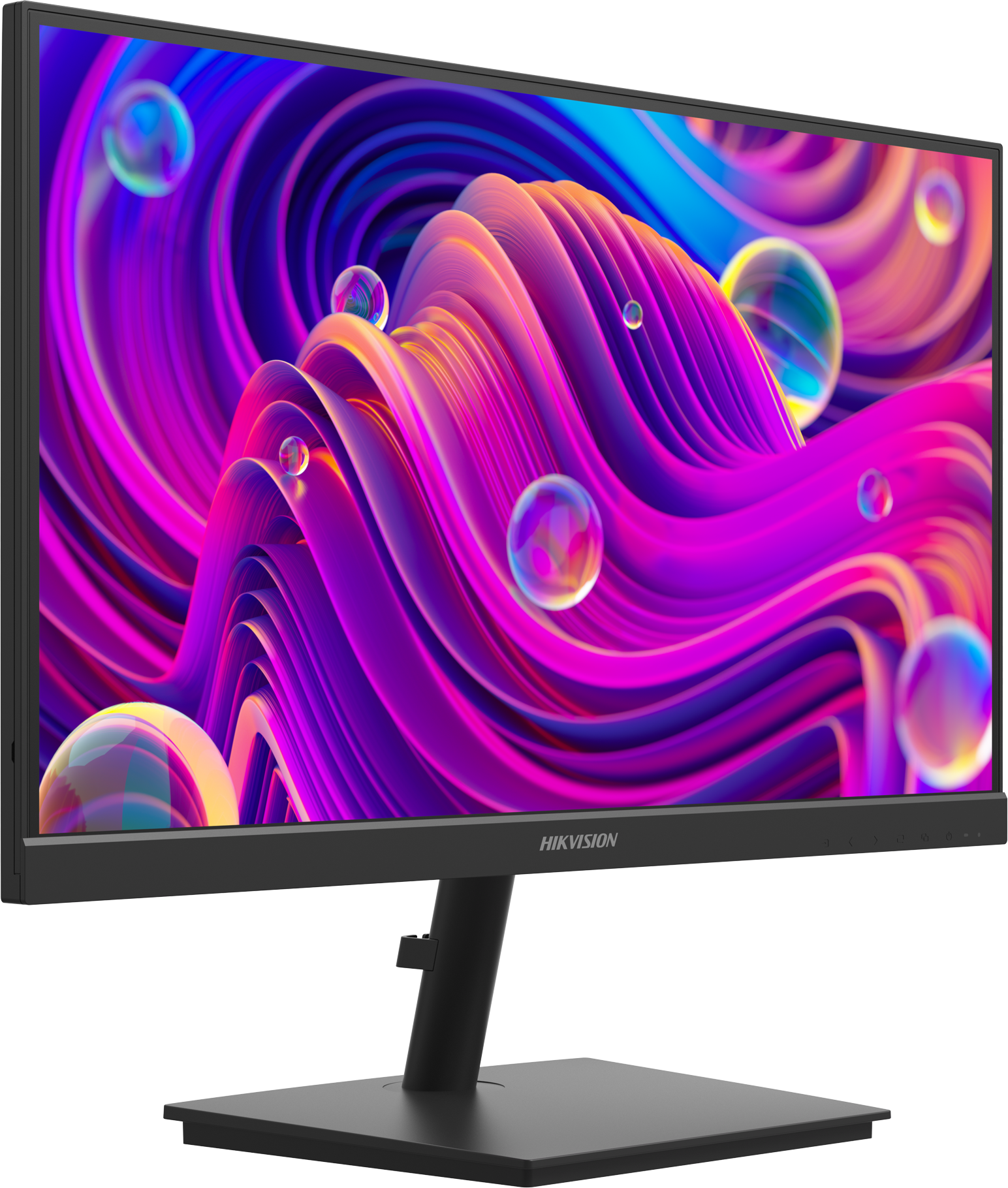

D5022F2-1V2S 21.5" FHD 5MS LED MONITOR

21.5 inch FHD 100Hz VA Monitor with Speaker

• 100 Hz refresh rate, more fluid and life-like video
• Ultra-thin device body with ultra-thin border for 3 sides.
• 8 bit LVDS FHD (1920 × 1080) display.
• Low blue light design for eye care.
• Multiple interfaces, including VGA, HDMI, audio in, and built-in speaker.
• Support VESA wall mount.

Display

• Screen Size21.5 inch, 54.48 cm
• Active Display Area478.65 mm (H) × 260.28 mm (V), 12.45 dm²
• Resolution1920 × 1080
• BacklightE-LED
• Pixel Pitch0.241 mm (H) × 0.241 mm (V)
• Brightness250 cd/m²
• Viewing Angle178° (H) / 178° (V)
• Color Depth8 bit 16.7 M
• Contrast Ratio3000 : 1
• Response Time8 ms
• Refresh Rate100 Hz
• HazeHaze 25%, 3H
• Reliability7 × 24 H
• Color Gamut72% NTSC

Interface

• Video & Audio InputHDMI 1.4 × 1, VGA × 1,Audio In × 1
• Video & Audio OutputSpeaker × 2 ( 4Ω 2W)
• Data Transmission InterfaceNone
• Control InterfaceNone

Working Environment

• Working Temperature0°C to 40 °C (32 °F to 104 °F)
• Working Humidity20% to 90% RH (Non-Condensing)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Storage Humidity10% to 90% RH (Non-Condensing)

General

• Power SupplyDC 12V,2A
• Power Consumption≤ 24 W
• Network Standby Power Consumption≤ 0.5 W
• Standby Time600s
• Casing MaterialPlastic
• Bezel Width2.38 mm (top/left/right), 21.55 mm (bottom)

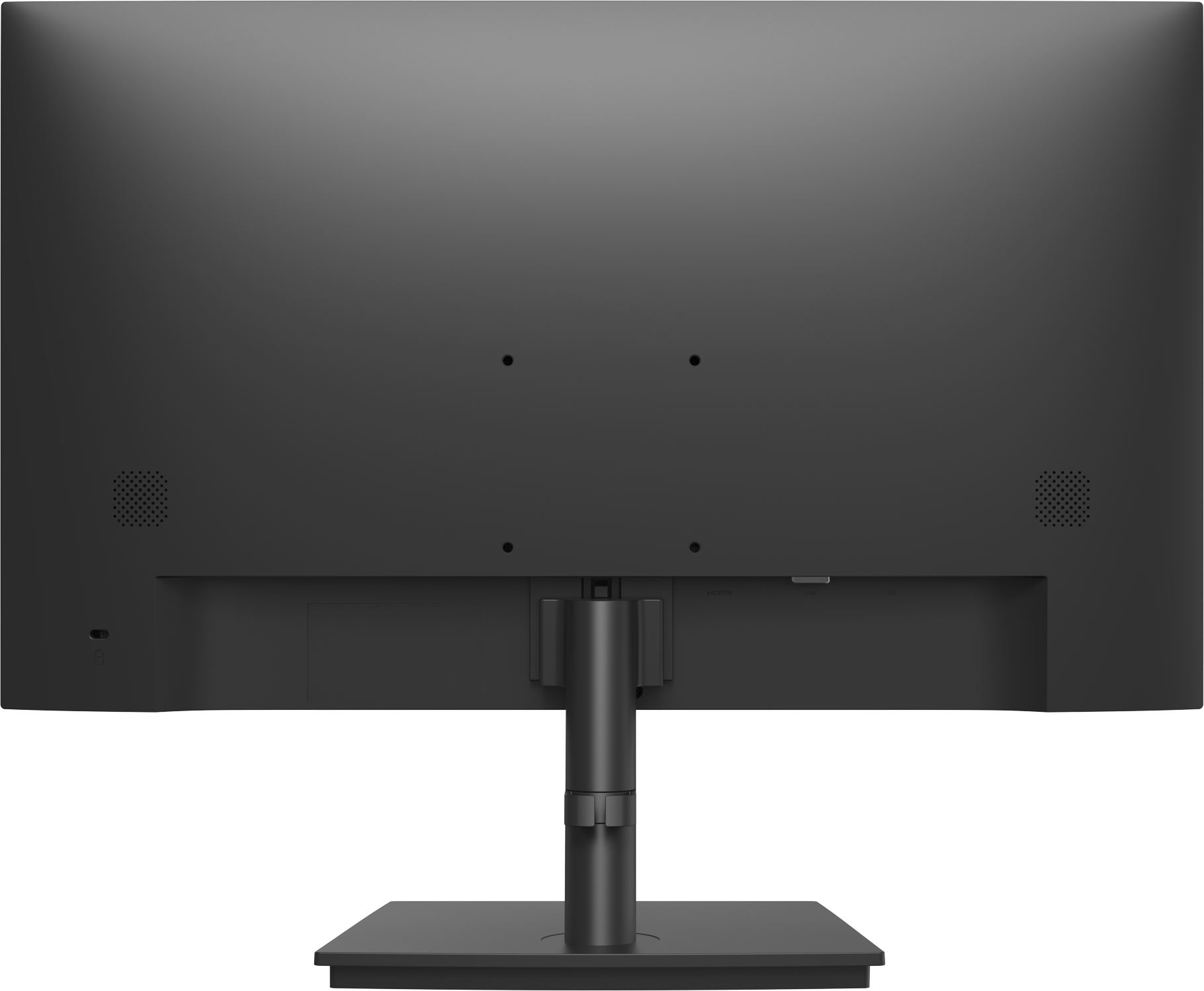

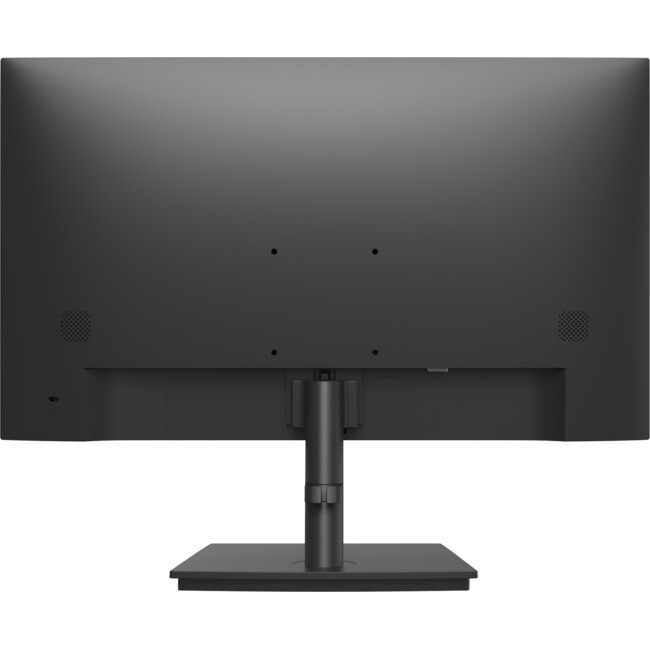

• VESA75 mm × 75 mm (4 - M4 × 6 mm)
• Package Dimensions (W × H × D)599 (W) mm × 393 (H) mm × 109 (D) mm
• Product Dimensions (W × H × D)

  With base: 493.26 (W) mm × 393.45 (H) mm × 185.74 (D) mm

  (19.42 (W) × 15.49 (H) × 7.31 (D)) inch

  Without base: 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm

  (19.42 (W) × 11.42 (H) × 1.67 (D)) inch

• Net Weight2.0 ± 0.5 kg
• Gross Weight3.2 ± 0.5 kg
• Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
• Remarks

  The base is included by default.

  The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
