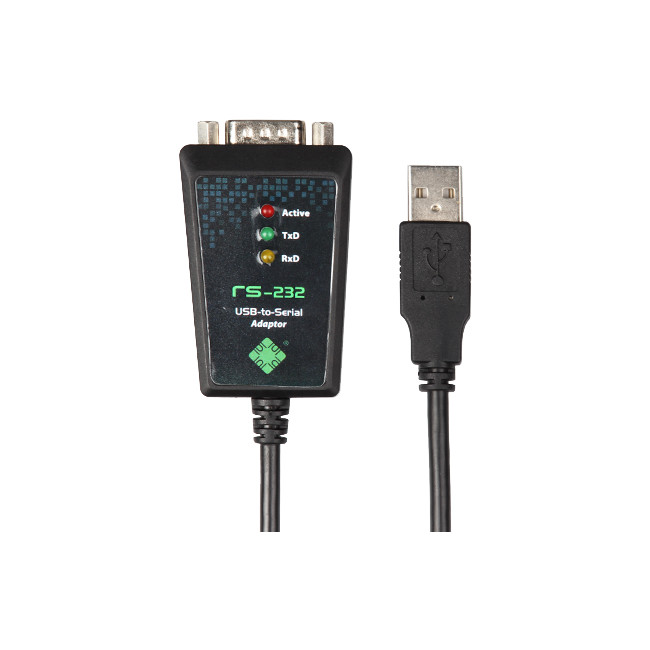

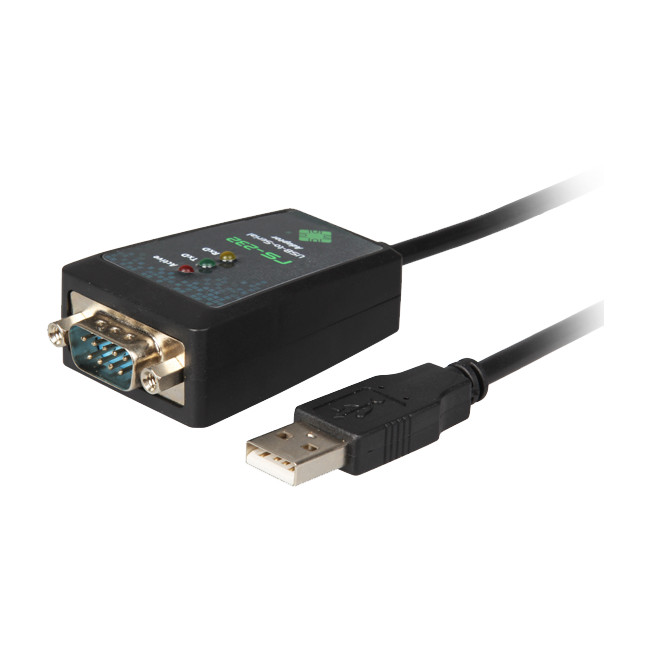

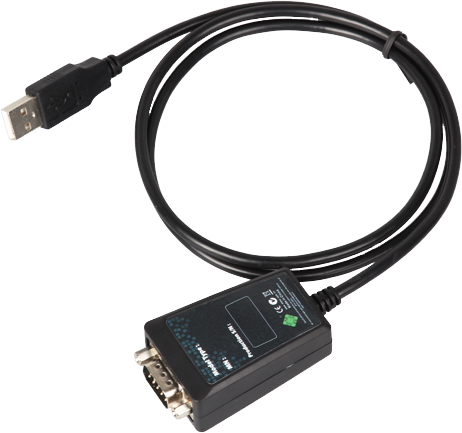

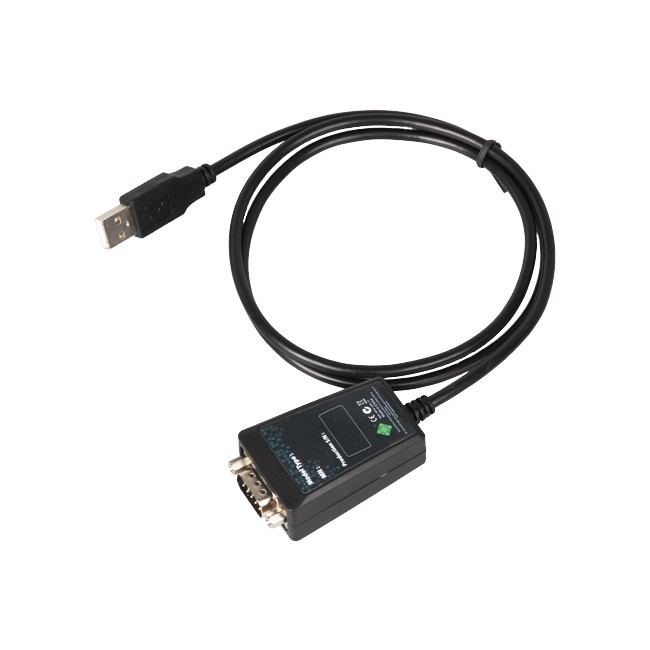

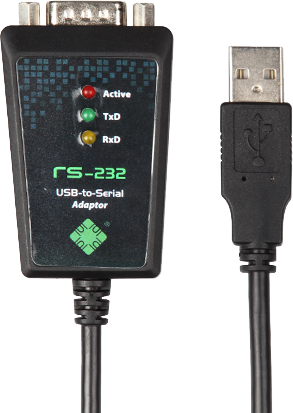

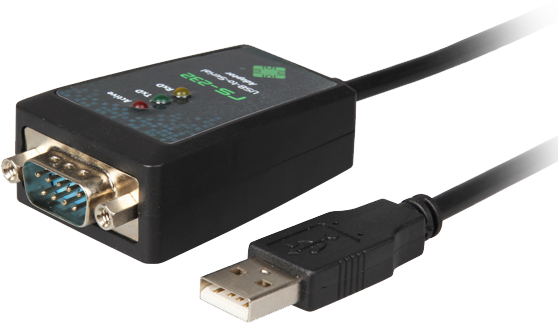

UR232 USB2.0 TO SERIAL RS232 LEAD 1M

IOCrest USB 2.0 to Serial Converter (FTDI Chipset) - 1 meter

Features

1. Standards: conforming to USBV1.0, 1.1 and 2.0
2. USB signals: VCC, DATA , DATA-, GND and FG
3. RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI
4. Single chip USB to asynchronous serial data transfer interface
5. Support Bits per second Data transfer rates from 300 baud to 921600baud (RS232 ) at TTL levels
6. UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
7. Flow control none, hardware and xon/xoff
8. Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
9. UART signal inversion option
10. USB 2.0 Full Speed capable
11. Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
12. Extended operating temperature range; -40 to 85°C


Applications

• USB to UART Cable
• POS Printer Terminal
• Networking System
• Industrial and Power Meter
• USB Bar Code Reader
• USB Digital Camera Interface
• USB Wireless/Wired Modem

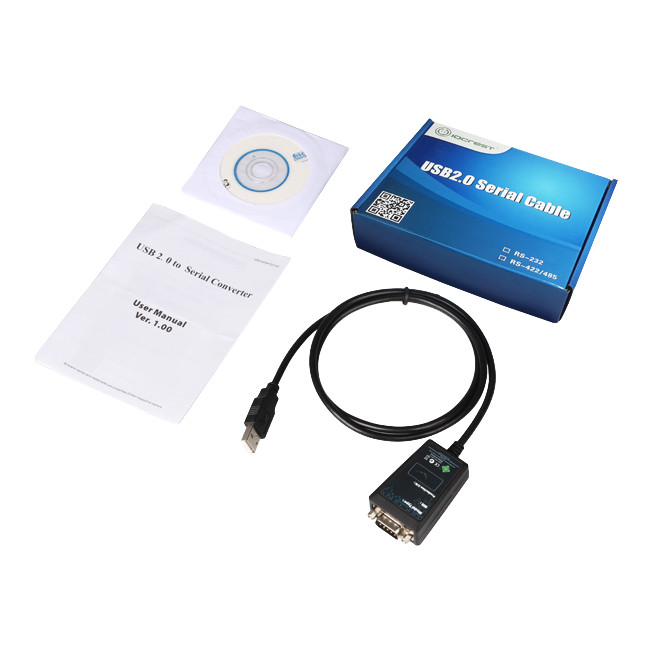

Package details

• 1x USB 2.0 to Serial Converter
• 1x User Manual
• 1x CD Driver
