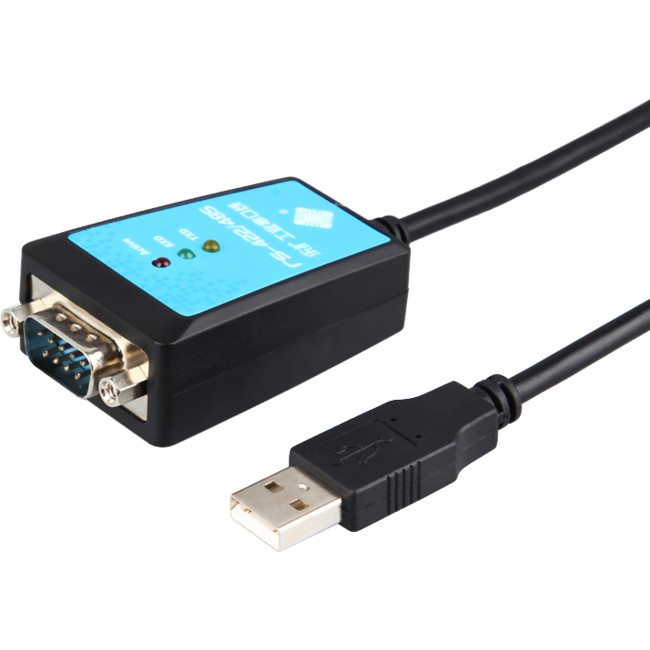

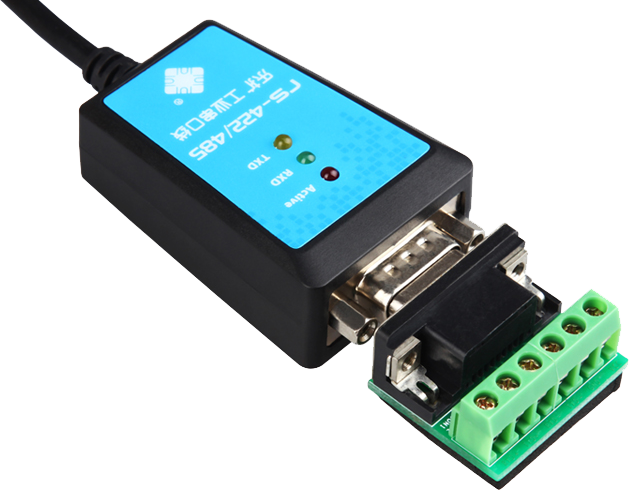

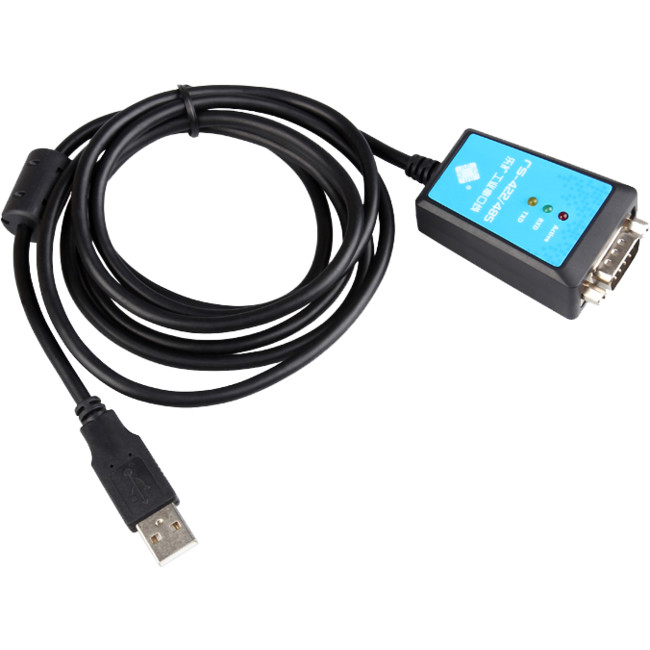

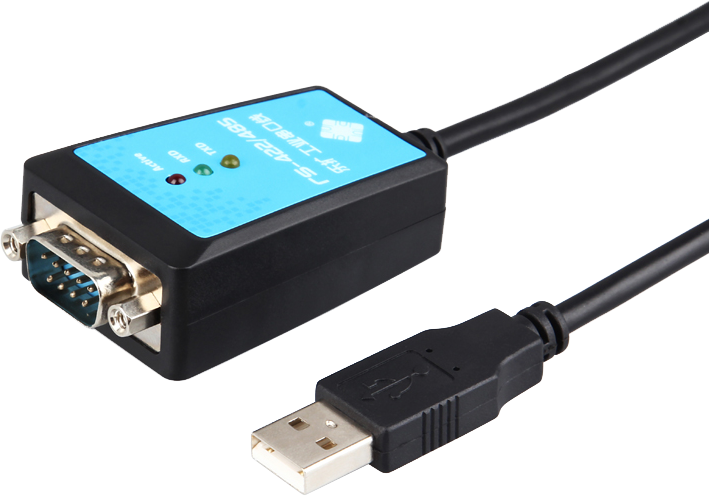

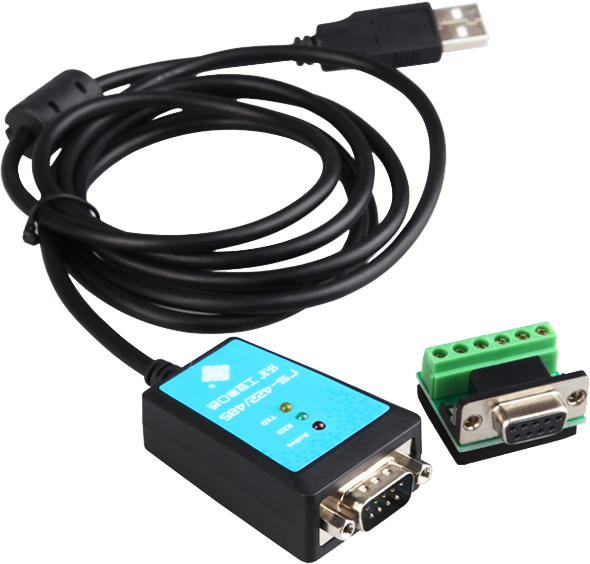

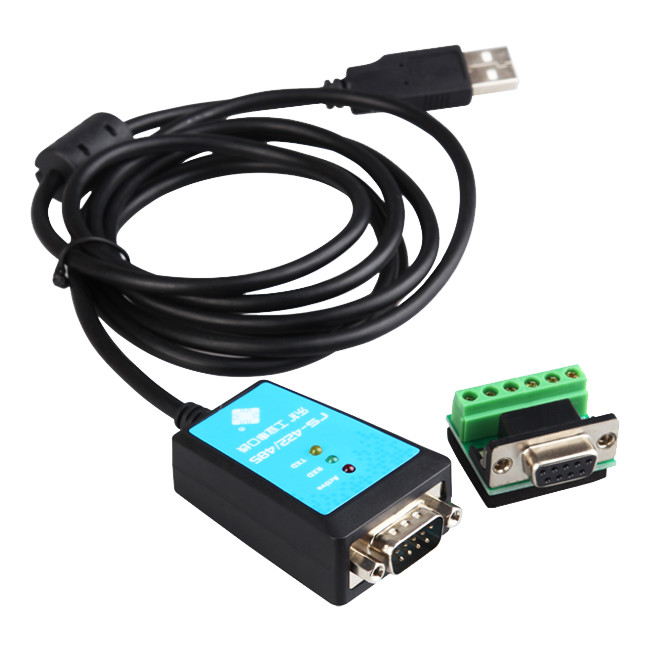

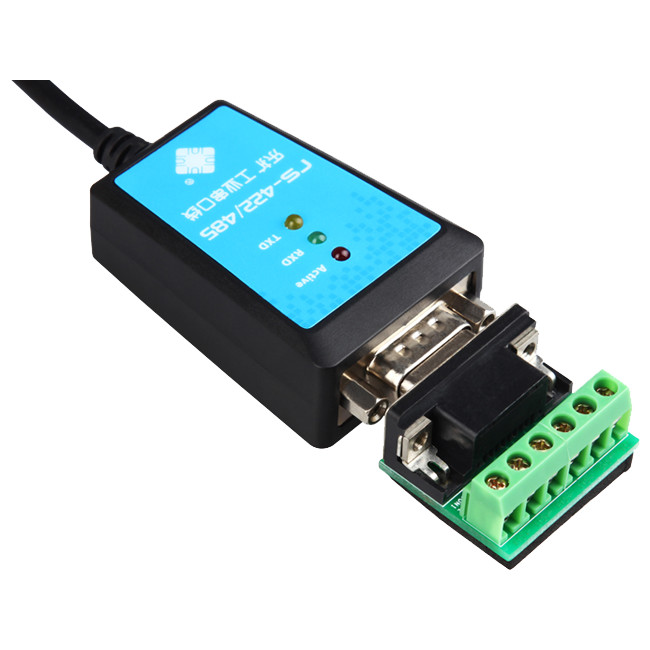

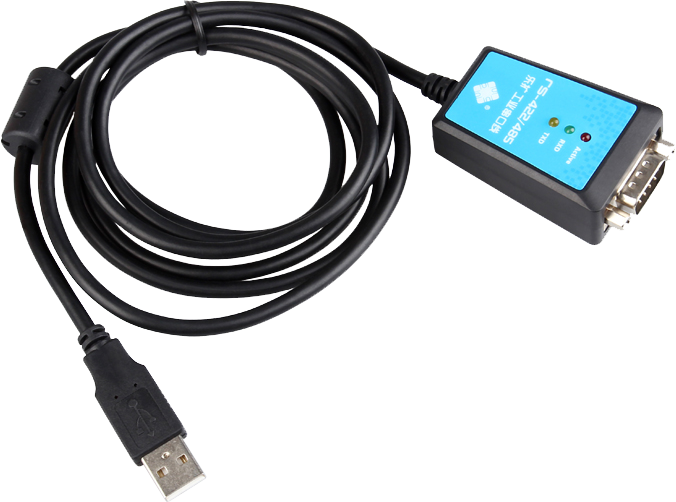

IOUSB428502 USB2.0 TO RS422 RS485 - 1.8M

IOCrest USB 2.0 to RS422/485 (FTDI chipset)

Features

1. Standards: conforming to USBV1.0, 1.1 and 2.0
2. RS-485,RS-422 TIA/EIA Standard
3. USB signals: VCC, DATA , DATA-, GND and FG
4. RS-422 Signal: T/R ,T/R-,RXT ,RXD-,GND; RS-485 signals: T/R ,T/R-.GND
5. Working mode: asynchronous working?point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
6. Single chip USB to asynchronous serial data transfer interface
7. Direction control: Adopt the technology which automatically controls the data-flow direction?automatically distinguish and control the data-transmission direction;
8. Support Bits per second Data transfer rates from 300 baud to 921600baud;
9. UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
10. .Flow control none, hardware and xon/xoff
11. Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
12. Transmission distance: RS-485/422 port:1.2km (300bps-921600bps).USB port : No more han 5 meters
13. Interface protection: surge protection and ±15KV ESD protection
14. Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
15. Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
16. Transmission media: twisted-pair cable or shielded cable;
17. Extended operating temperature range; -40 to 85°C



Applications

• USB to UART Cable
• POS Printer Terminal
• Networking System
• Industrial and Power Meter
• USB Bar Code Reader
• USB Digital Camera Interface
• USB Wireless/Wired Modem

Package details

• 1x USB 2.0 to Serial Converter
• 1x User Manual
• 1x CD Driver
• 1x Adapter
