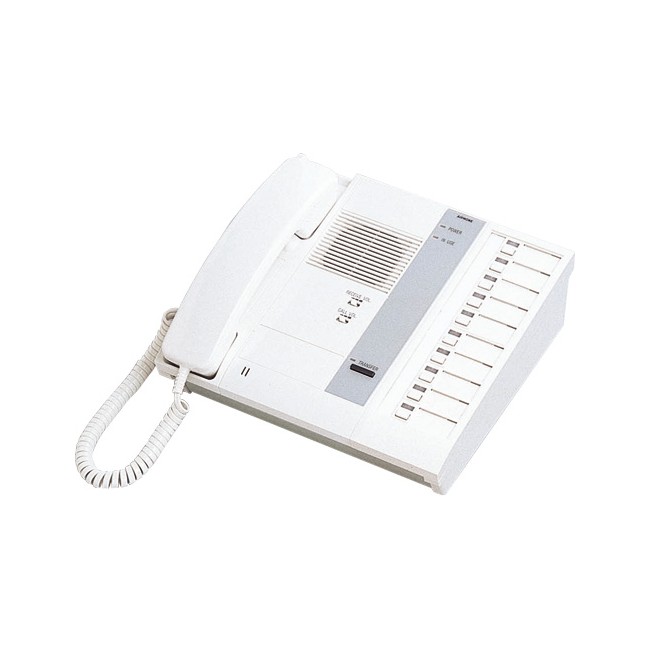

Aiphone's TC-Minternal telephone type intercom has been designed for buildings, bowling alleys, elevators and restaurants. The TC-M is a single or dual master system, expandable to 60 substations, 10 and 20-call masters, with 20 and 40-call add-onselectors.
The Aiphone TC-M system is suitable for connection to TBSE handset sub stations as well as audio and video doorstations by the use of door adaptors.
In addition the TC-M features a pick up handset to call, with tone and LED annunciation at master, the handset substationscan talk to each other through the connection at master.
The TC-M offers a choice of 3 door station adaptorsTB-AD1 for IE/IF audio door (up to 3), or TB-AD10 for up to 10 IE/IF doors, or TB-ADM10 for up to 10 MY or MK Pan Tilt doors stations.
Note systems with door stations will require a TCMMOD kit for each master station if two master stations are used.
Door release is available for up to 10 door stations by using a TCMRELAY adaptor. Multiple door release adaptors can be used if there are more than 10 doors.
Specifications:
| 18V DC, 350mA 15-16V AC 50/60Hz, 750mA |
| 6W, 3W standby |
| Pick up TB-SE handset. Rings TB-M(?)
w/tremolo & LED, staying.
At TB-M, pick up and press a lit selector
to reply. |
| 2 parallel wires per TB-SE, nonpolarized |
| 0.6mmm | 1.0mm |
| 200m | 480m |
| 400m | 900m |
TB-10M: 10-call master
TB-20M: 20-call master
TB-20G: 20-call add-on selector
TB-40G: 40-call add-on selector
TB-40GS: 40-call add-on selector w/expander
TB-SE: Sub station
TB-SE-R: Sub station(red case)
Power supply (18V DC): PS-18E
TB-AD1: Door station adaptor
IF-DA: Door station
