IXSOFT IX SOFTWARE MASTER STATION

AIPHONE

Code: 21817575

EACH
20
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
DON'T PAY $1585
TRADE ALERT!
$1320 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

IX SOFT - IX Intercom application for PC

Easy-to-Use PC Master Station Software with Intuitive Interface

IX-SOFT is a software master station for the IX Series.

Use IX-SOFT to call and communicate with IX Series stations across a network.

Software master station features include monitoring, paging, and door release.

Check device functionality and network status of each station using the Line Supervision menu.

Use the interactive map to quickly interact with door andmaster stations by selecting them individually or by dragging to select a group.

IX-SOFT requires a single, transferable lifetime license per PC.

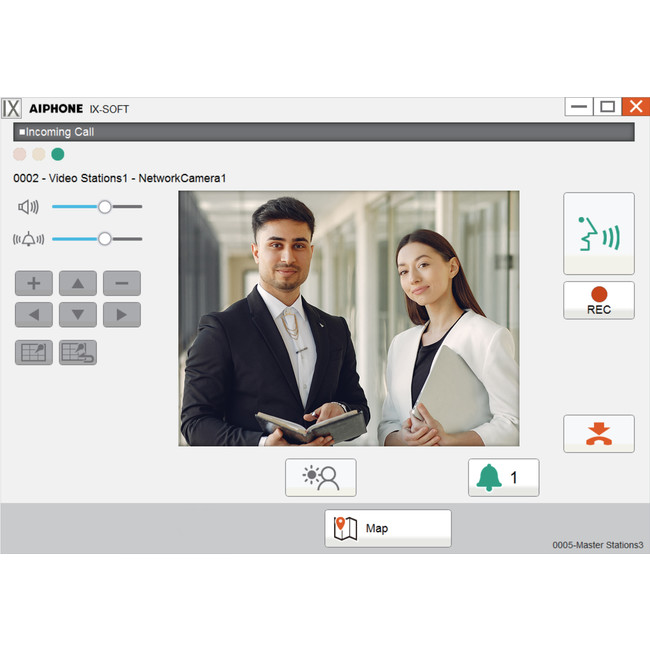

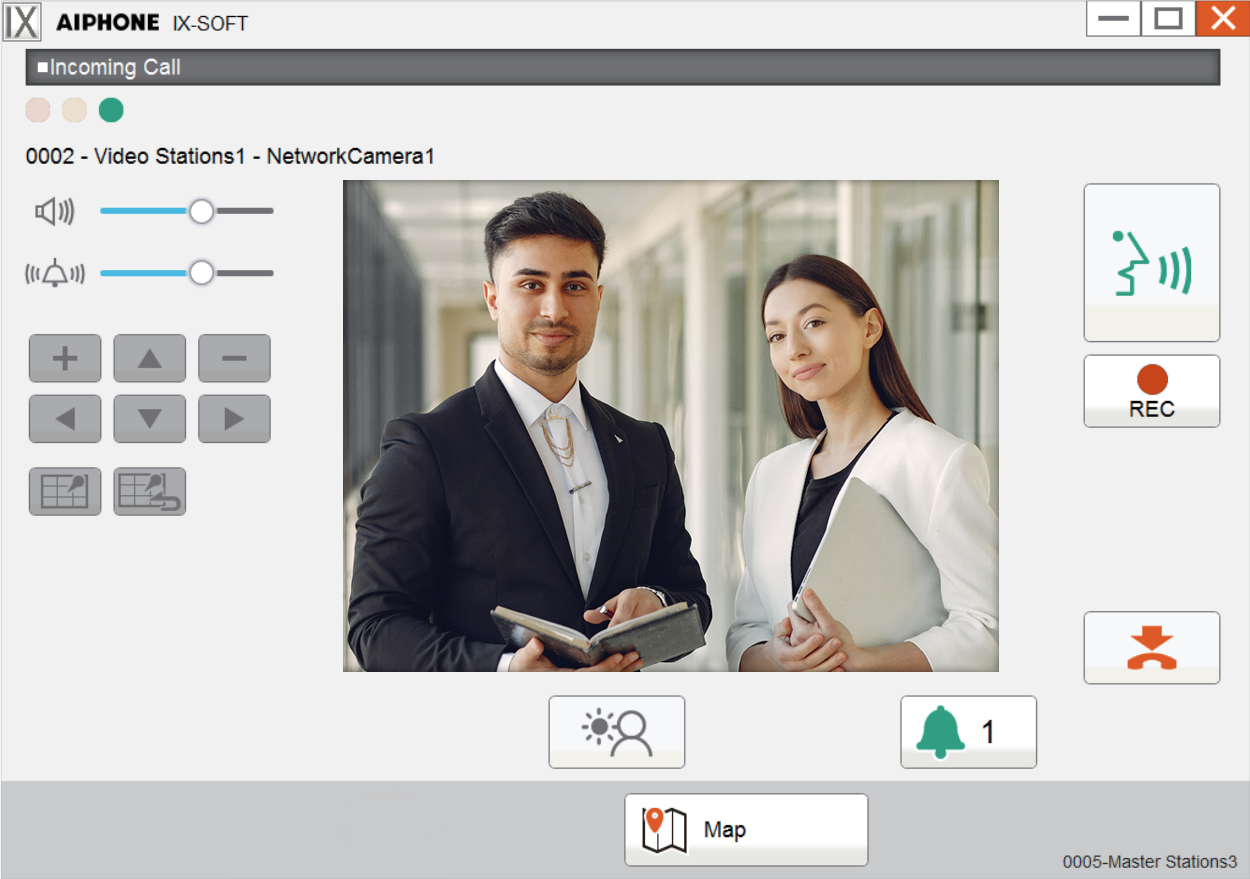

IX-SOFT_Communicating_400x300 --IX-SOFT_Address-Book_400x300

IX-SOFT_Map_400x300



Benefits using software?

  • Computer screen offers a larger viewing platform
  • Reclaim valuable desk space
  • Can be used anywhere connected to the network
  • Interactive Map

Step 1.Download the software from Aiphone's website (https://www.aiphone.net/) to the PC.

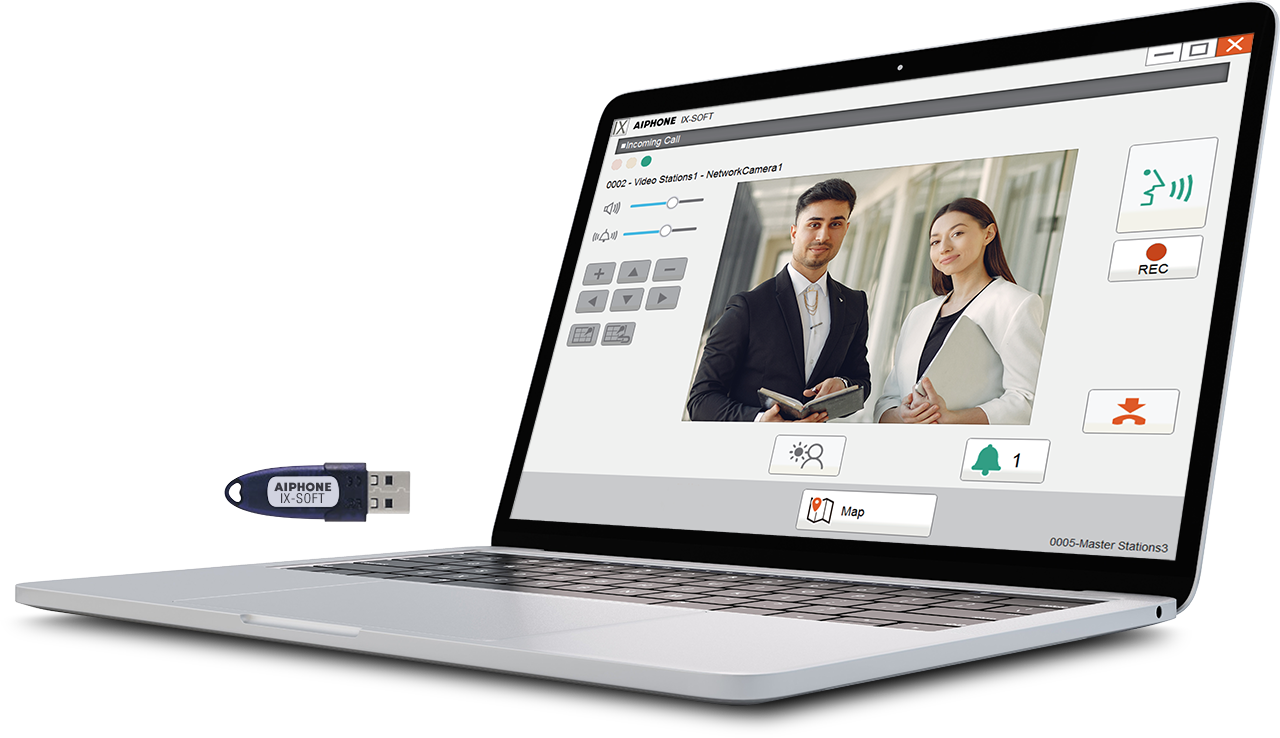

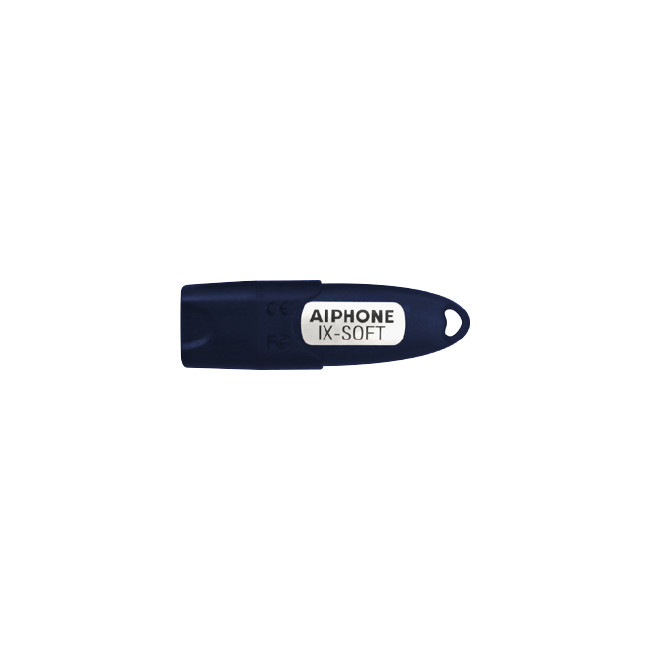

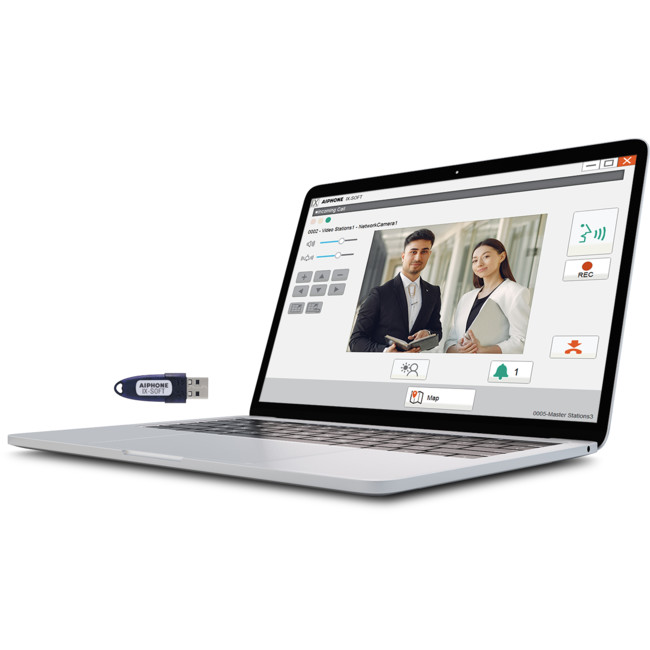

Step 2.USB dongle must be connected to the PC while using the software.

Features

The software offers the same features as a physical IX master station.

  • Video & Audio communication with station by PC
  • Simultaneous video from door station and network camera
  • Unlock the door after verifying visitor
  • Page to all stations or individual groups
  • Video conversations can easily be recorded
  • Interactive map is a visual, efficient way of selecting stations
  • Device check and Line Supervision ensure the system will operate as expected



Recording on PC

The software can record the video and audio from conversations automatically or manually.

Up to 999 recorded files can be saved

Up to 50 Speed dial buttons

The Speed Dial buttons can be used to quickly perform functions that have been pre-assigned.

  • IX-M7 - Up to 8 Favorite Buttons

A good example of this great feature would beToll Gates and Airports allowing communication and monitoring of multiple door stations or network cameras at boarding gates or toll booths.

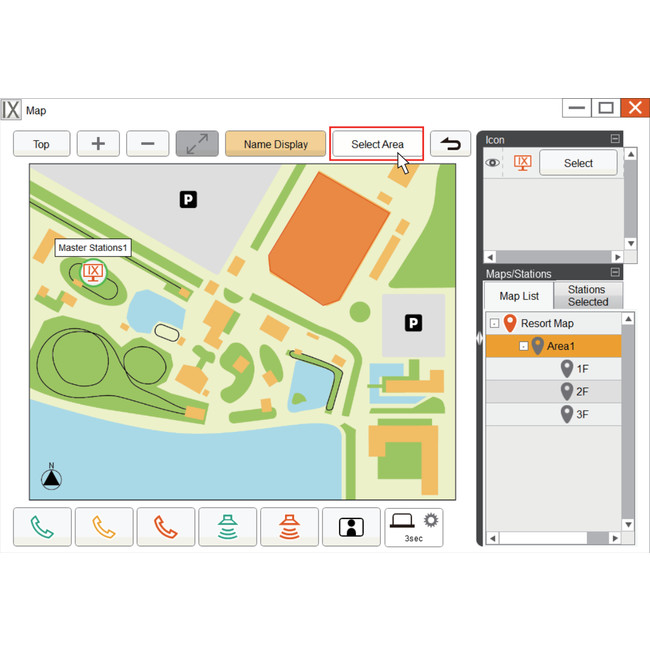

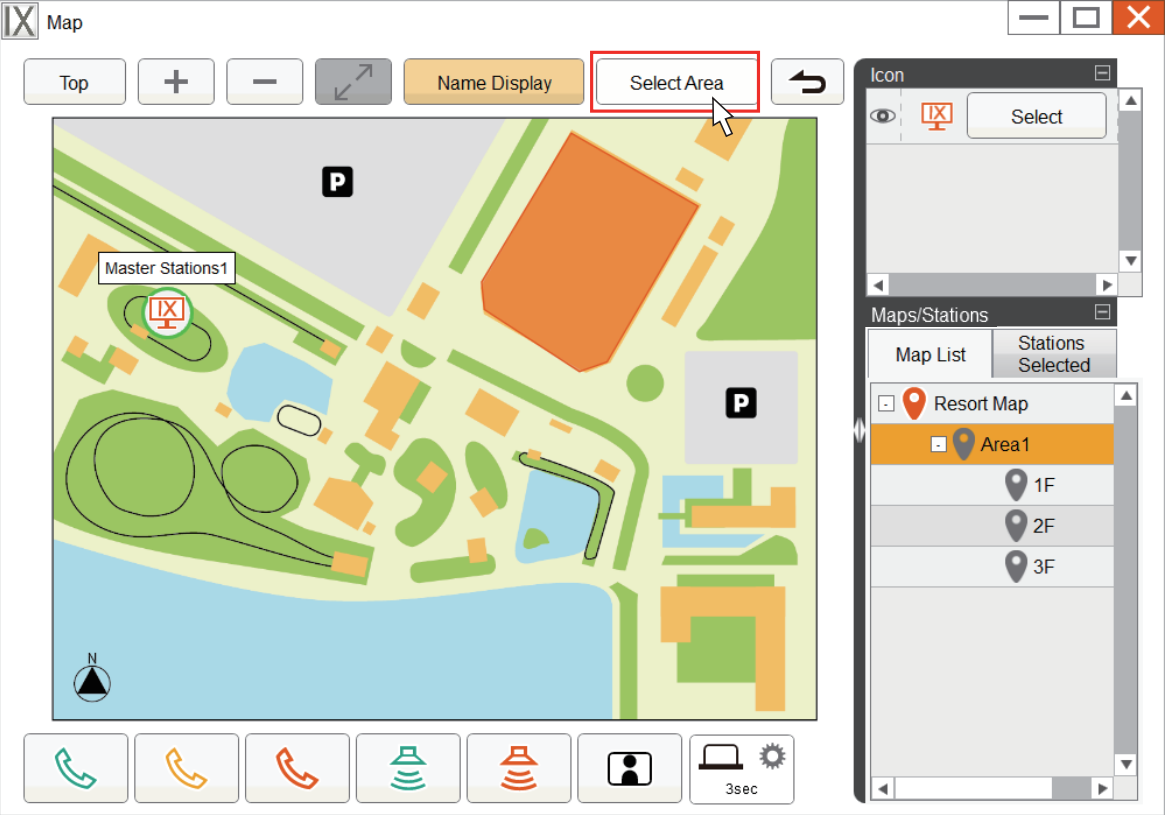

Interactive Map

Interactive map allows system operation and status from abird's eye view via station icons.

Layering maps provides the ability to zoom into specific areas for easier selection. (campus, building, floor, etc.)

Popular applications would include

  • Commercial Facilities and Offices
  • Universities
  • Airports
  • Parking Facilities



Specifications

System requirements

Operating System:

Windows® 7 Professional, Windows® 7 Enterprise, Windows® 7 Ultimate Windows® 8.1, Windows® 8.1 Pro, Windows® 8.1 Enterprise Windows® 10 Home, Windows® 10 Pro, Windows® 10 Enterprise, Windows® 10 Education

CPU:

32 bit (x86) processor or 64 bit (x64) processor, 2 GHz or higher (Windows® 7 is 64 bit only)

Screen resolution:

1024 x 768 or greater

Runtime:

.NET Framework 4.6.2 or later (Windows® 7 requires SP1) Microsoft Visual C Redistributable Package for Visual Studio 2017 or later

Software Specs

Video codec:

H.264/AVC, Motion-JPEG

Audio codec:

G.711 (µ-law, A-law), G.722

Protocol:

IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS

Encryption:

TLS 1.2 (CRAM-MD5 for email)

Packet delivery:

Unicast or Multicast

Station capacity:

Max. 499 stations (Max 9,998 in expanded mode)

Video Streaming:

ONVIF Profile S
