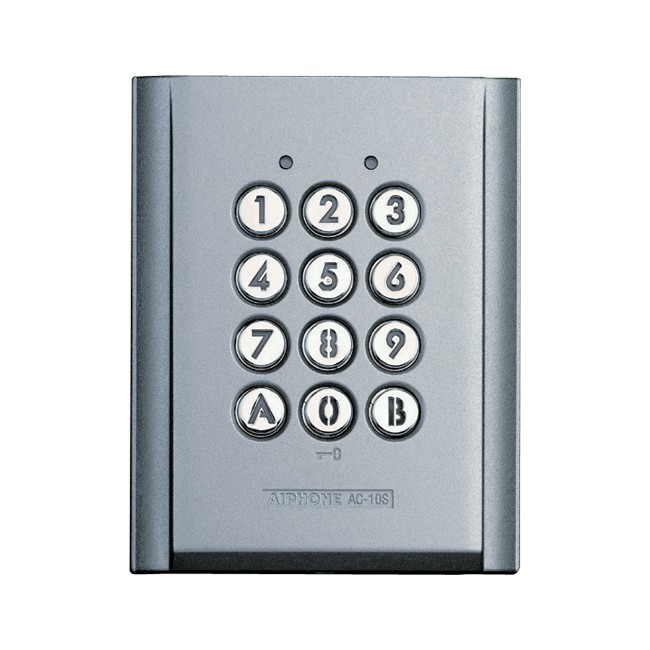

AC10S SURFACE MOUNT ACCESS CONTROL

AIPHONE DOOR ACCESS CONTROL

FEATURES:

• Up to 100 user codes (#1 relay: 60, #2 relay: 40)
• 4, 5 or 6 digits user code length
• 2 relays (both of relays have N/O and N/C)
• Keypad lockout function
• Anti-tailgate function
• One push door release with external timer connection
• Key pad illumination

SPECIFICATIONS:

• Power Source 12 – 24V AC/DC
• Consumption AC: Max. 100mA
• DC: Max. 70mA
• Relay Outputs: 2
• Contact rating: 24V AC/DC
• 3A (resistive load)
• 1A (inductive load)
• Dry contact: N/O or N/C
• Operating time: 1- 99 secs
• Access Code Number: Up to 100 (#1: 60, #2: 40) Code length: 4 – 6 digit
• Wiring Two conductors
• Wiring Distance Unit~Power supply Door strike 0.65 – 1.0mm 100m Unit power 0.65 – 1.0mm 300m
• Exit/entry button & timer 0.65 – 1.0mm 300m
• IP Rating IP54
