JOS1F 7" COLOUR VIDEO INTERCOM KIT

WITH JO1MD, JODVF & P/S

Code: 21810734

2.80 kg
4968249592396
EACH
5
30 IN
STOCK
DON'T PAY $862
TRADE ALERT!
$726 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

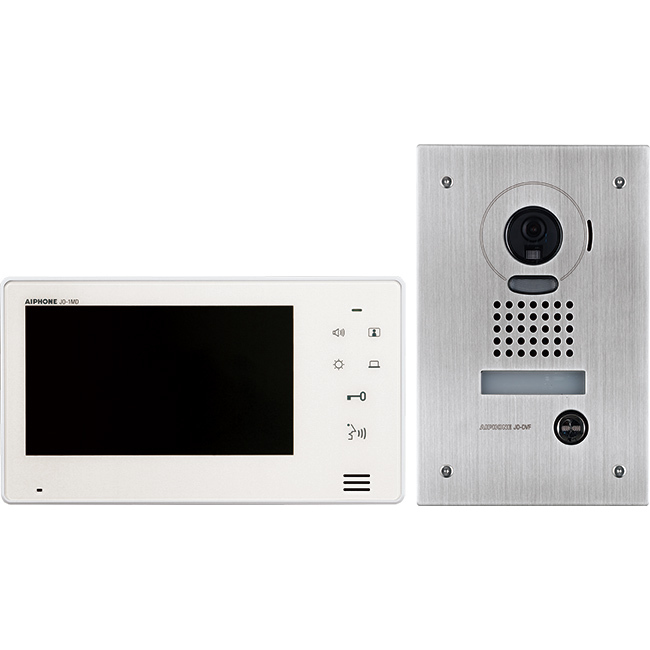

The Aiphone JOS1F kit icludes 1 x JO1MD Master monitor, 1 x JODVF Stainless Steel Vandal Resistant Flush mount Door Station and 18 volt Power Supply

The JO series is a stylish design 7" screen that delivers high quality images. The JO Series can accommodate one door and up to two inside stations.

Easy to identify and use touch buttons makes it simple tooperate allowing identification and communication withvisitors at locked doors.

Door / gate release button allows you to accept your visitor with out leaving the screen.

The JO series is equiped with an advanced light adjustment feature to compensate for varying light levels

The JOS1F includes:

1 x JODVF Stainless steel vandal resistant flush mount door station

1 x JO1MD master station

1 x 18 volt power supply

OPTIONAL:

1 x JO1FD Expansion monitor


FEATURES:

  • Power Source 18V DC
  • Communication
    • Hands-free: Auto-voice actuation
    • PTT: Push-to-talk, release-to-listen
  • Video Monitor 7" color LCD screen
  • Door Release Contact rating: 24V AC/DC, 500mA - use RY-18L for larger contact rating
  • Min. Illumination 5 lux at 1'6"
  • Wiring Door to master: 2 conductor, mid cap, solid, non-shielded
  • Wire Type KBWIRE

Ready to install box sets include one door station, one inside station, and power supply.

other Kits available

JOS1F - Includes 1 x JODVF door station and 1 x JO1MD master station and 1 x 18 volt power supply
JOS1A - Includes 1 x JODA door station and 1 x JO1MD master station and 1 x 18 volt power supply



SPECIFICATIONS:

JO-1MD Master Station
  • Power supply
18 Volts DC
  • Current consumption
( Standby ) 24 mA ( Max ) 410 mA
  • Communication
Hands-free: Auto-voice actuation
  PTT: Press-to-talk, release to listen
  • Ambient temperature
0 - 40°C ( 32°F - 104°F)
  • Monitor
7 inch color LCD screen
  • Mounting
Wall mount
  • Electrical Box
3 gang box
  • Material
Flame resistant ABS resin
  • Color
White
  • Dimmension
130 (H) x 230 (W) x 21 (D) (mm)



5-1/8 (H) x 9-1/16 (W) x 13/16 (D) (inches)
  • Weight
Approx. 470g (1.04 lbs.)

JO-DA/JO-DV/JO-DVF (Video door station)
  • Camera Unit
1/4 - inch color CMOS
  • Ambient temperature
-20 - 60°C (-4°F - 140°F)
  • Minimum illumination
Approx. 5 lux at 50 cm (1'6'') distance
  • Dimensions (JO-DA)

129 (H) x 97 (W) x 36 (D) (mm)

5-3/32 (H) x 3-27/32 (W) x 1-13/32 (D) (inches)

  • Dimensions (JO-DV)

173 (H) x 98 (W) x 27 (D) (mm)

6-13/16 (H) x 3-7/8 (W) x 1-3/8 (D) (inches)

  • Dimensions (JO-DVF)

209 (H) x 135 (W) x exposed area 3.5 (D) (mm)

8-1/4 (H) x 5-5/16 (W) x 5/16 (D) (inches)

  • (Flush mount back box for JO-DVF)

180 (H) x 110 (W) x 45 (D) (mm)

7-3/32 (H) X 4-3/8 (W) X 1-25/32 (D) (inches)

  • Weight (JO-DA)
Approx. 200 g (0.44 lbs.)
  • Weight (JO-DV)
Approx. 650 g (1.43 lbs.)
  • Weight (JO-DVF)
Approx. 580 g (1.27 lbs.)
  • (Flush mount back box for JO-DVF)
Approx. 550 g (1.2 lbs.)
  • IP rating
IP54 (JO-DA / JO-DV / JO-DVF)
  • IK rating

IK08 (JO-DV)

IK07 (JO-DVF)
