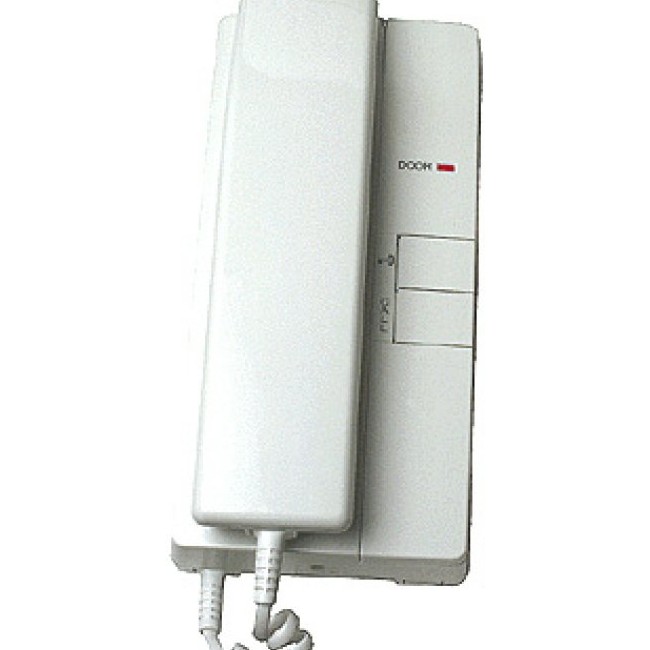

IEH1CD CHIME HANDSET INTERCOM

SLAVE UNIT - AIPHONE

Code: 21810426

0.5890 kg
4968249367338
EACH
30
Low Stock
DON'T PAY $215
TRADE ALERT!
$192.50 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

The Aiphone IE series handset intercom is suitable for home and business use. There are five different models of handsets master stations to suit different applications

The IEH-1CD audio handset sub master station for use withthe IE1GDU and IE2ADU master stations; max of two per system.

FEATURES:

  • Two and Four tone electronic chime
  • Chime volume adjustment on handsets
  • Answer the door from any room station
  • All Call internal calling between handsets
  • Door release button (additional hardware required)
  • AC or DC power source ( 12-16V AC or 12-24V DC )
  • Wiring::- 2 non polarized to door station, plus 2 to door release. and 6 wires in loop between rooms Distance 150 mtrs. ( 0.65mm - 22AWG), 360mtrs ( 1.0mm )
  • Optional chime extension
  • Can be used with IE or IF door stations
  • Size: 100 x 210 x 68mm ( WHD)
