  • USW-ULTRA-210W 8 PORT LAYER 2 POE SWITCH 210W

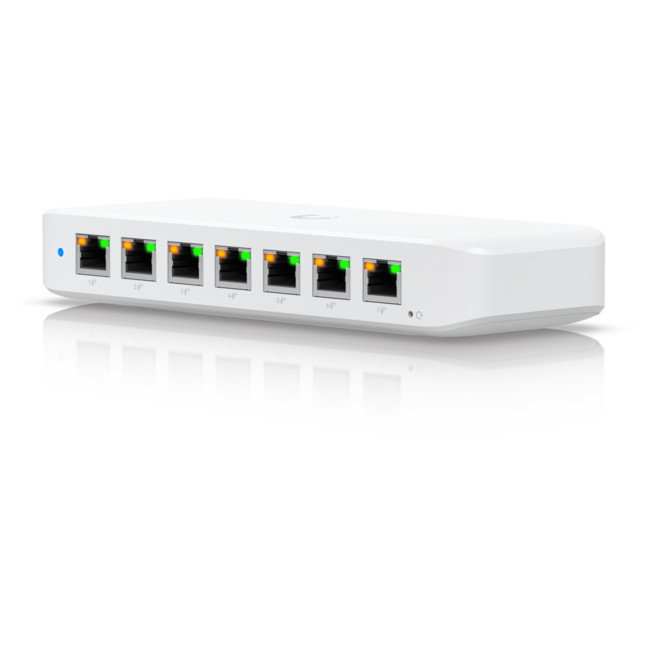

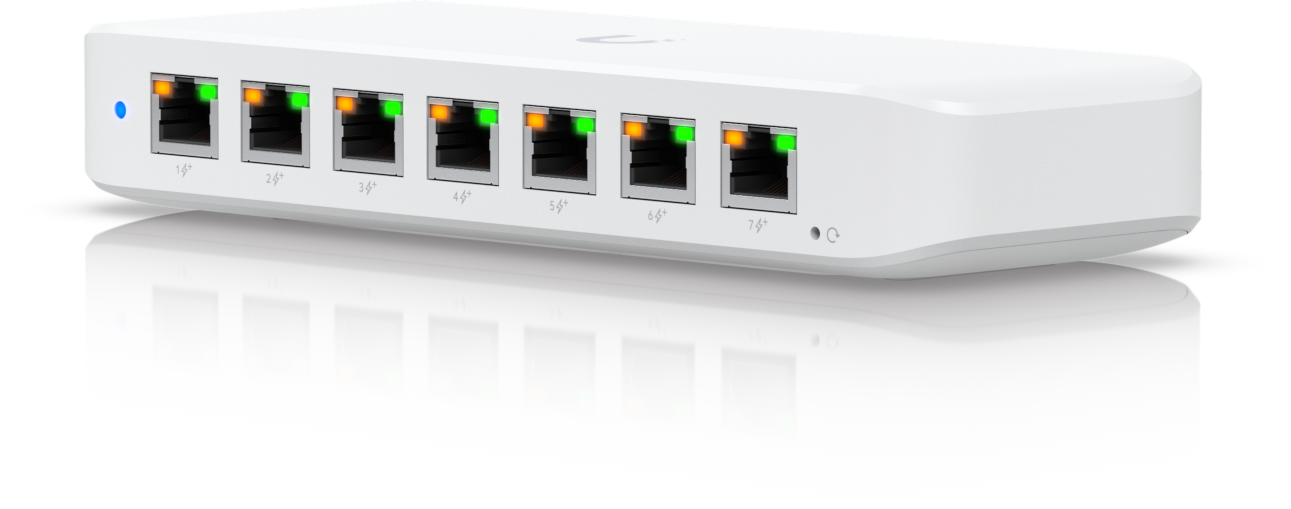

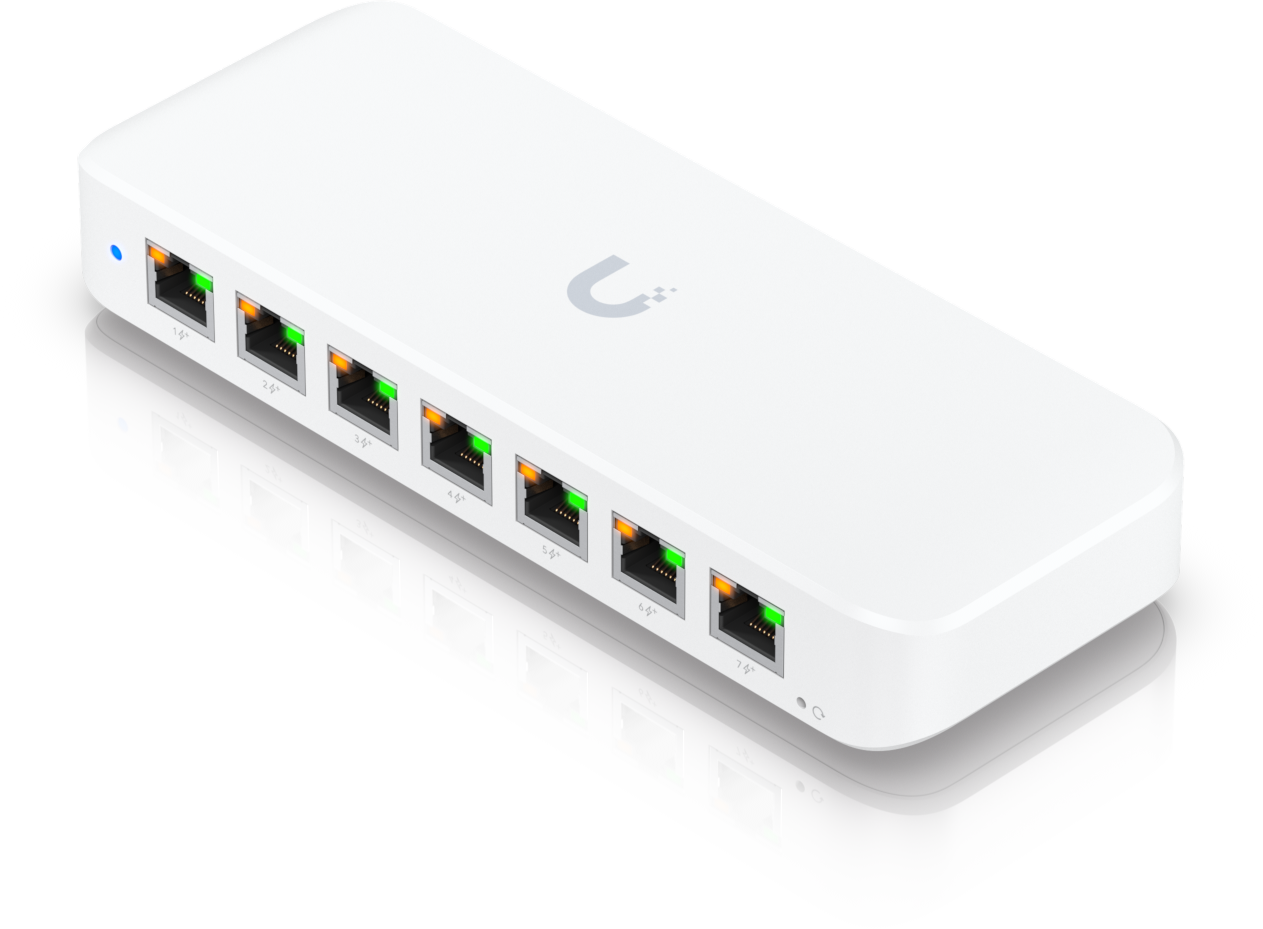

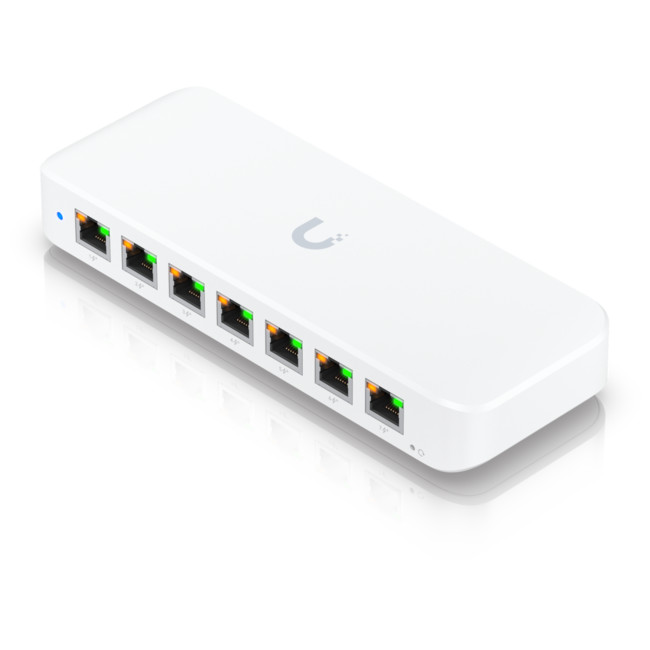

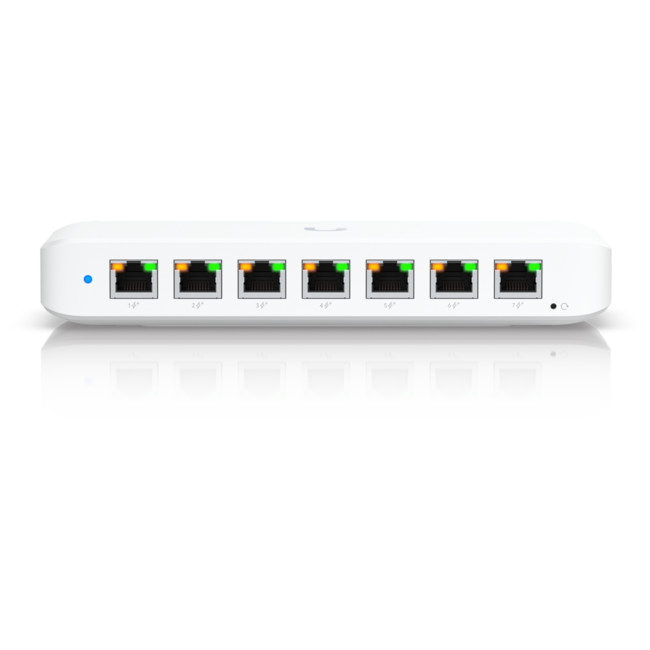

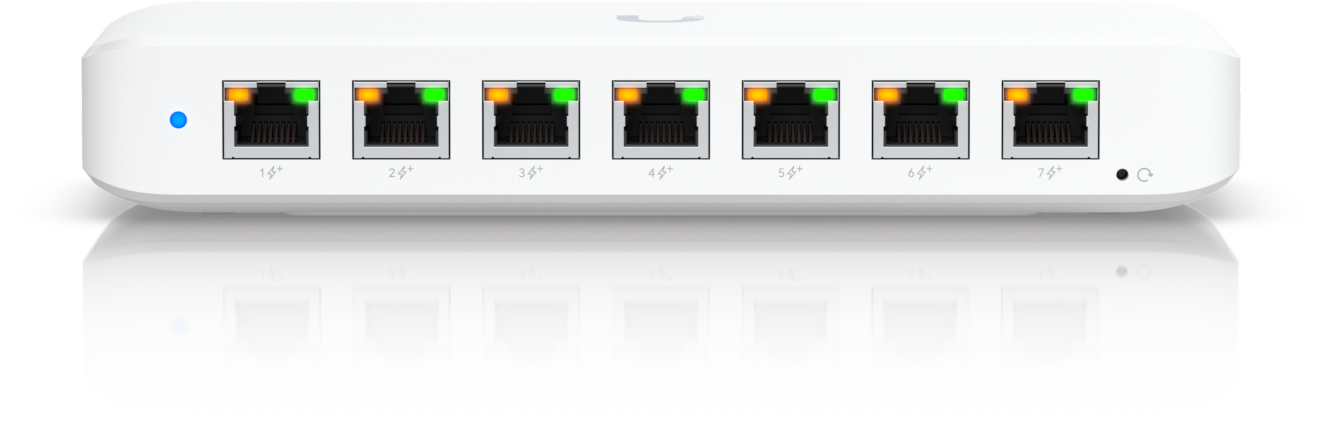

USW-ULTRA-210W 8 PORT LAYER 2 POE SWITCH 210W

Code: 09052633

810084693711
EACH
Low Stock
$439 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Ubiquiti Ultra 210W, Compact 8-port Layer 2 GbE PoE Switch Versatile Mounting Option,7 GbE PoE Output& 1 GbE port, Includes PSU

Mechanical
Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")
Weight Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
210W adapter: 770 g (1.7 lb)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
PoE interface (7) PoE/PoE (Pins 1, 2 ; 3, 6-)
(1) PoE (Pair A 1, 2 ; 3, 6-) (Pair B 4, 5 ; 7, 8-)
Total non-blocking throughput 8 Gbps
Switching capacity 16 Gbps

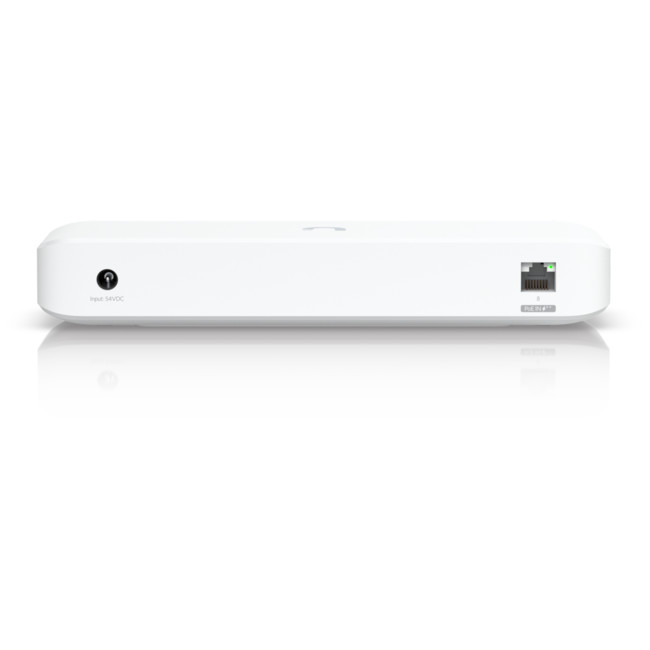

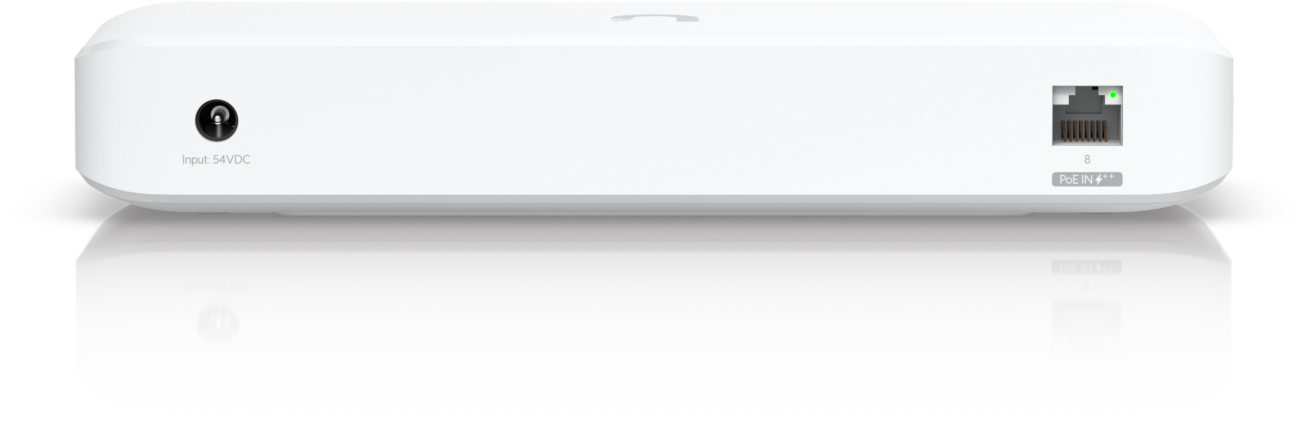

Power method (1) 54V, 3.9A power adapter (Included)
PoE (Pins 1, 2 ; 3, 6- and 4, 5 ; 7, 8-)
Power supply 54V, external, 3.9A/210W
Supported voltage range 44 57V DC
Max. power consumption 9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)
Total available PoE PoE input: 42W
PoE input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W*
*At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)
Max. PoE wattage per port by PSE 30W
Button Factory reset
Ambient operating temperature PoE input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features –
LEDs
System Status
Ethernet PoE
Link/activity
Application Requirements
UniFi Network Version 8.0.7 and later
