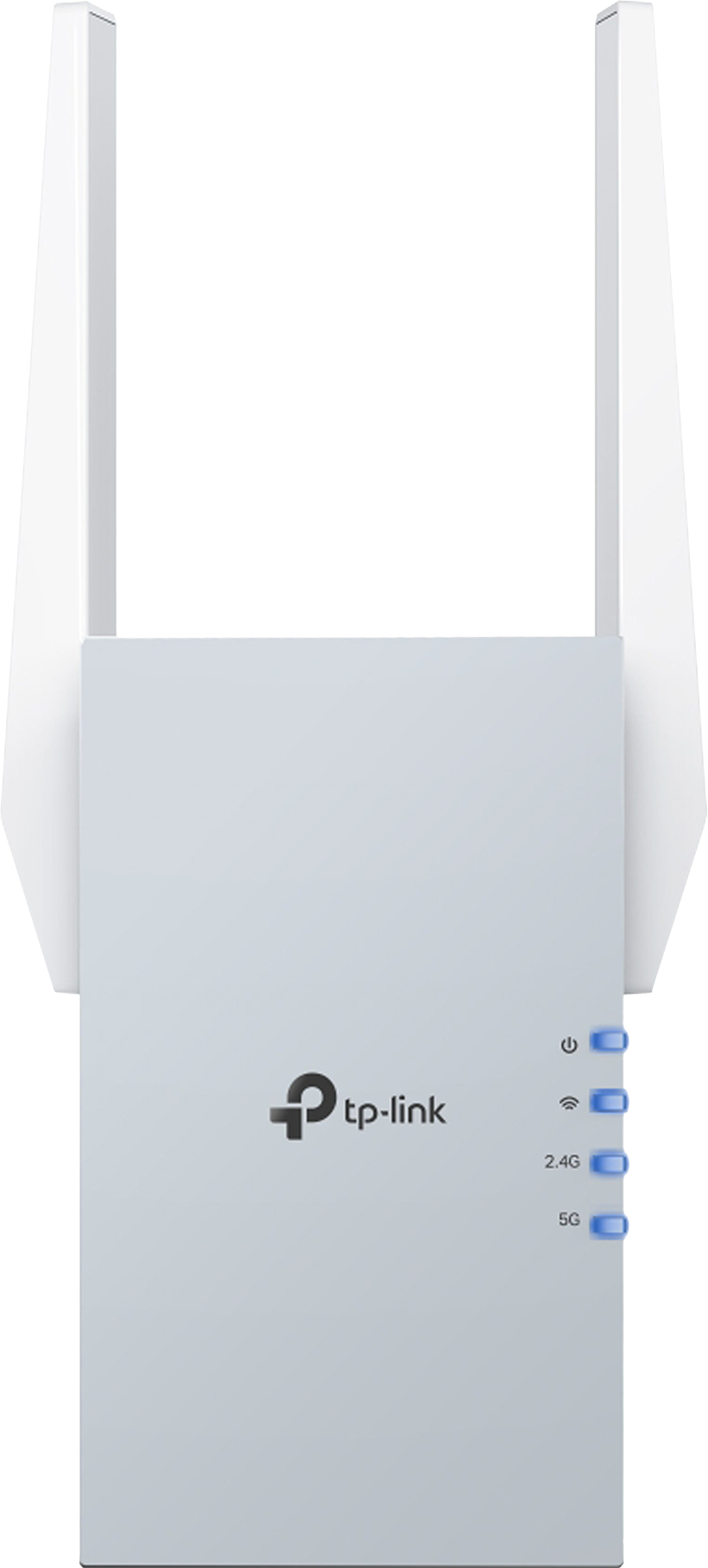

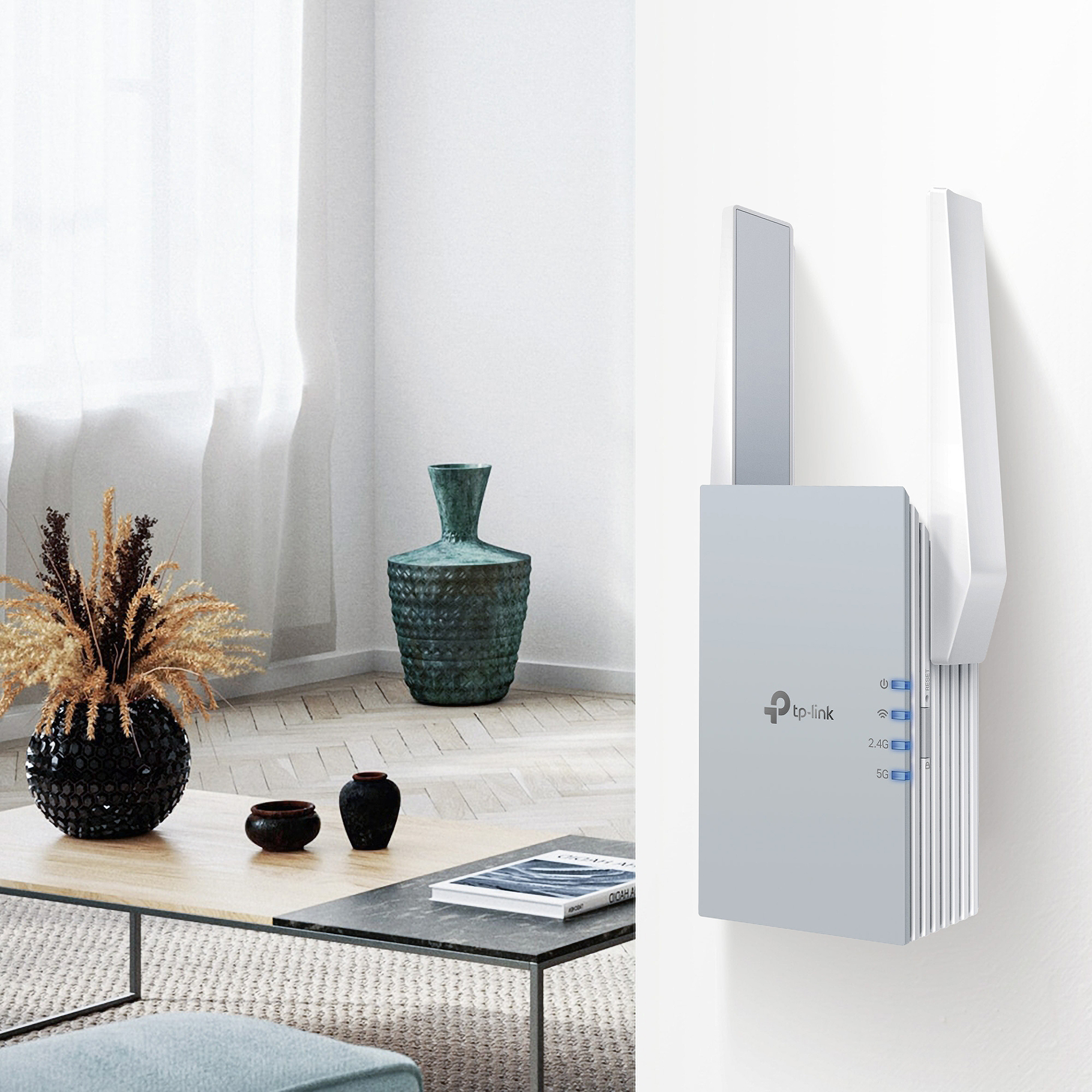

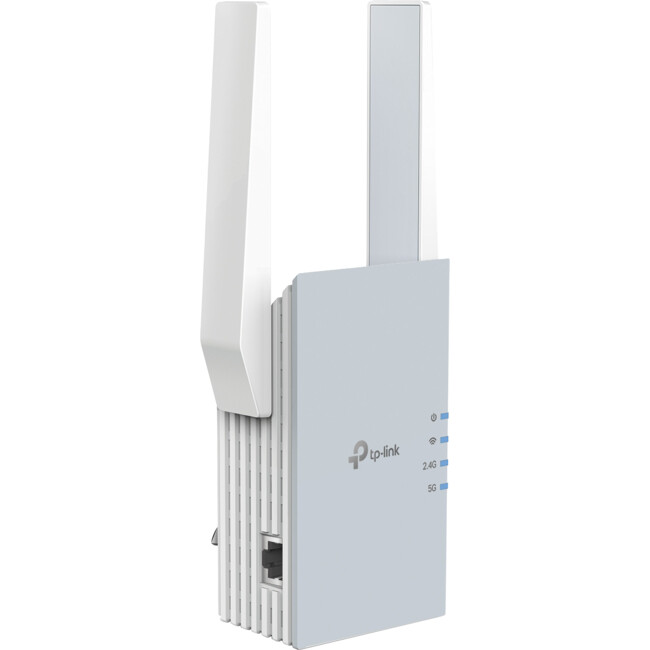

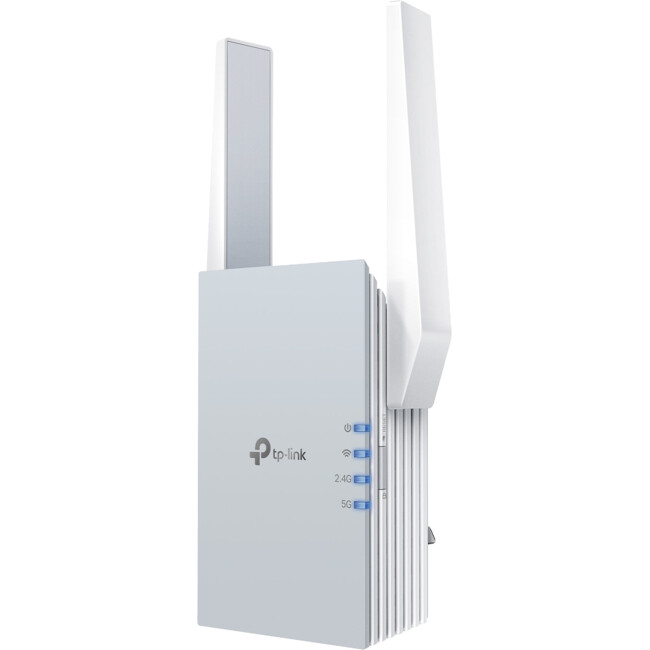

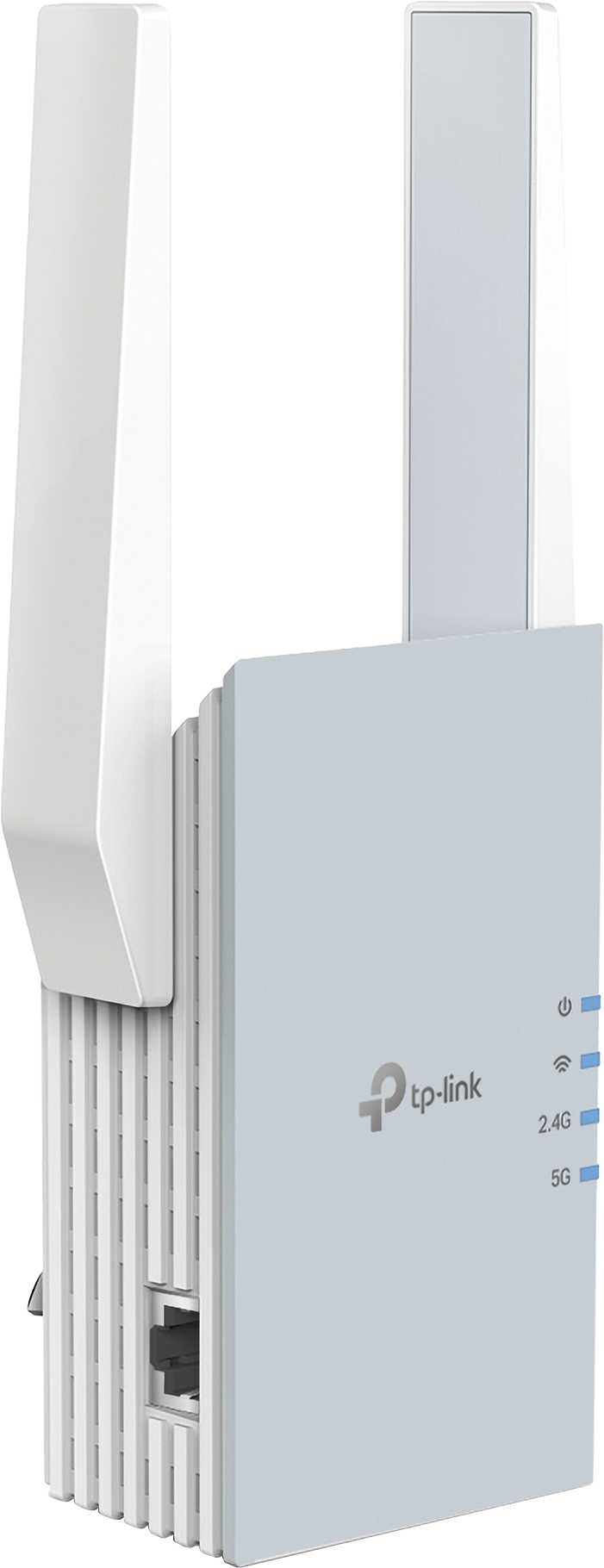

  • RE515X AX1500 WIFI6 RANGE EXTENDER EasyMesh

RE515X AX1500 WIFI6 RANGE EXTENDER

EasyMesh

Code: 09052610

0.4090 kg
EACH
Low Stock
$99 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

AX1500 Wi-Fi Range Extender

  • Up to 1.5Gbps Dual Band Wi-Fi:Separates 5 GHz (1200Mbps) and 2.4 GHz (300 Mbps) WiFi bands for faster speeds and greater capacity with the WiFi 6 technology.
  • SmartRoaming:Walk from room to room and stay connected with the fastest possible speeds.
  • EasyMesh-Compatible:Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.?
  • Gigabit Ethernet Port:Provides faster wired connections to smart TVs, computers and gaming consoles.
  • AP Mode:Create a new WiFi access point through the Gigabit Ethernetportto enhance your wired network with WiFi capability.
  • Easy Setup:Plug in and then easily set up via a press of the WPS button or via the Tether App.
  • Ultimate Compatibility:Extends the range of any Wi-Fi router or wireless access point.*

HARDWARE FEATURES
Interface 1 Gigabit Ethernet Port
Button WPS Button, Reset Button
Input Power 100-240V~50/60Hz
Max. Power Consumption 10W
Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna 2 External Antennas

WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Working Modes Range Extender/Access Point
Reception Sensitivity 5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Wireless Functions Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage
Wireless Security 64/128-bit WEP, WPA/WPA2-PSK encryptions
Transmission Power CE (EU): 2.4G<20dBm, 5G<30dBm
Mesh Technology EasyMesh-Compatible

OTHER
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 20002 Protocol: UDP

OTHERS
Certification FCC, RoHS
Package Content Wi-Fi Range Extender RE505X
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
