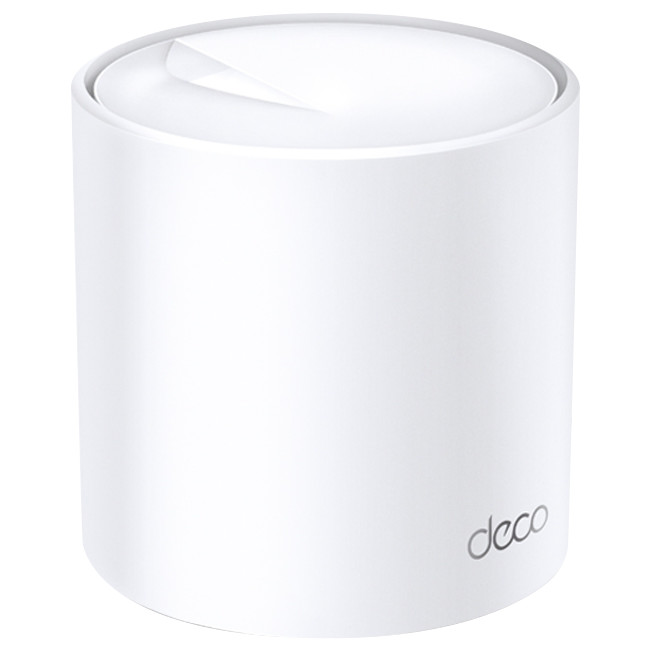

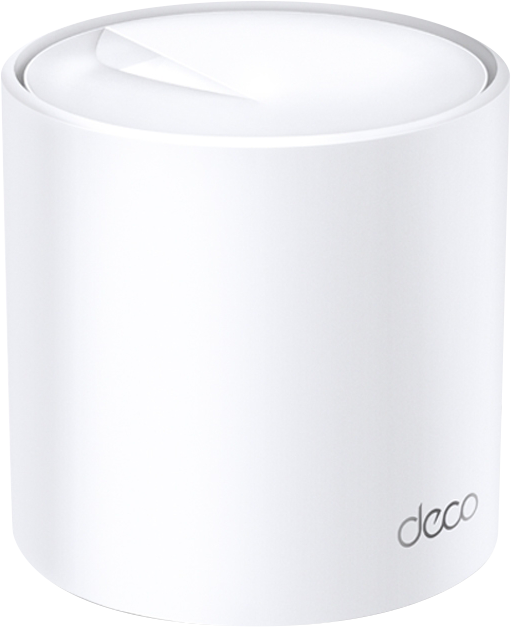

AX1800 Whole Home Mesh Wi-Fi System Deco X20 (1-pack)
Advanced Mesh Powered by Wi-Fi 6 Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.

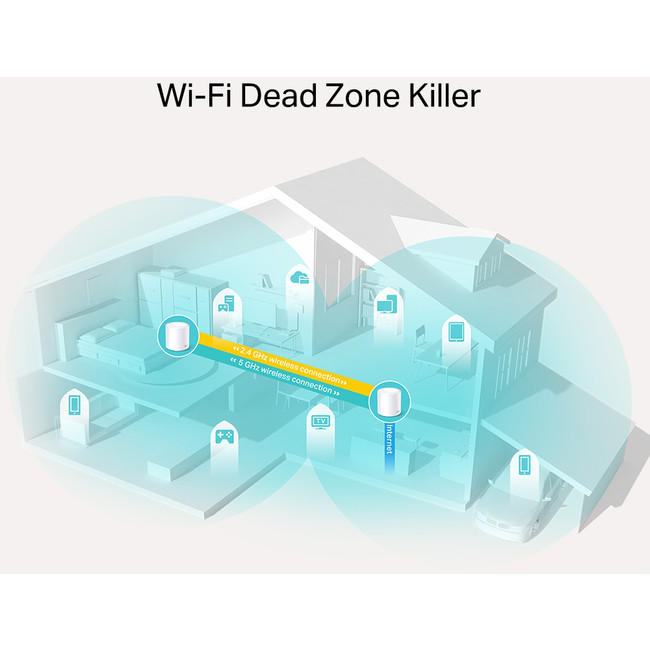

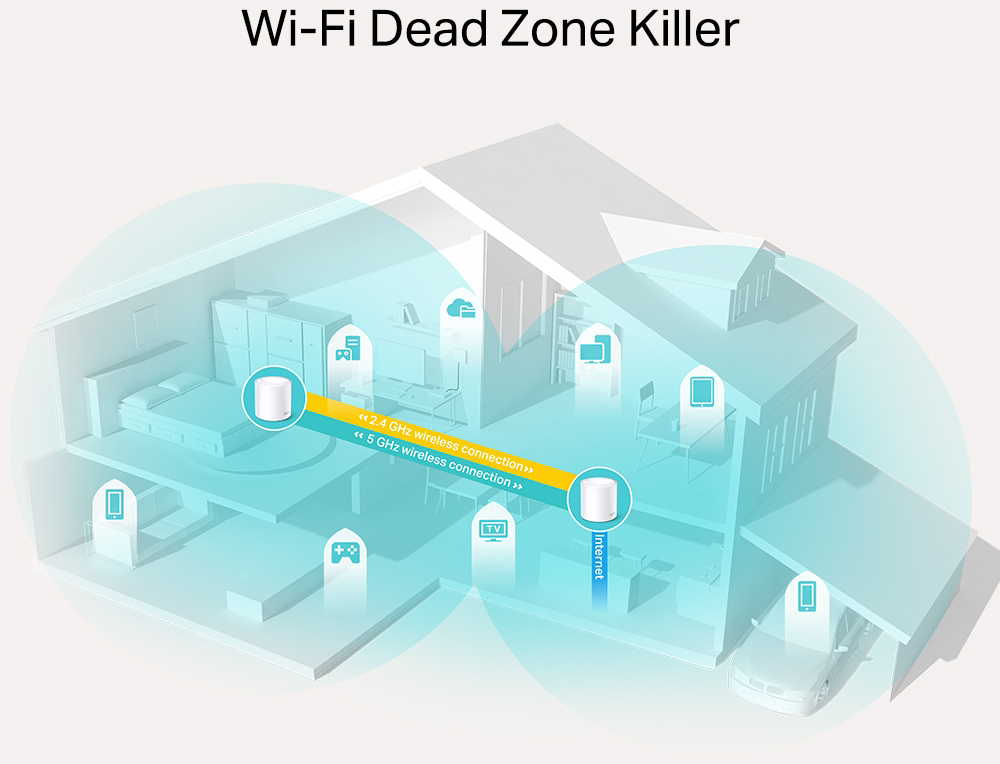

Internet Wi-Fi Dead Zone Killer With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20 boosts broader whole-home Wi-Fi up to 540 sqm (3-pack).? Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.
True Seamless Roaming for Greater Experiences TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.

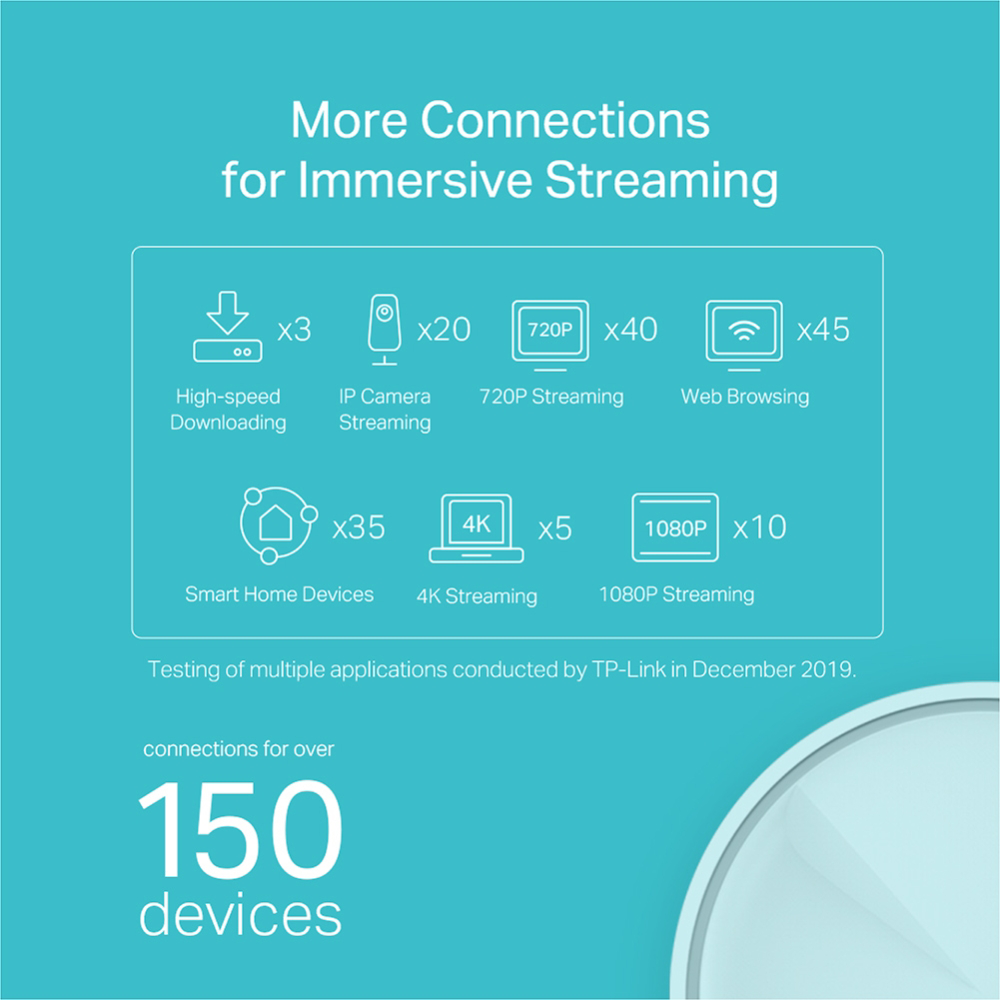

More Connections for Immersive Streaming Enjoy a more efficient network with 4× the average throughput on connected devices in dense environments thanksto Wi-Fi 6 technology?. Deco X20 is tested to connect over 150 devices without dragging down performance
Faster Wi-Fi 6 Speed = No Wait The latest 1024-QAM and higher symbol rate combines to boost speeds up to 1.8 Gbps?ideal for bandwidth-intensive tasks like cloud gaming and 4K UHD video. Families will enjoy immersive live-streaming with flawless video and clear audiowithout buffering.
Greatly Reduced Lag = More Fun Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow'shyper-connected home. Enjoy more responsive gaming and seamless video chatting even when multiple compatible devices are connected and transmitting data at the same time.
Your Home, Our Care Customize your home network with enhanced security using a kit of features builtin TP-Link HomeCareTM. Whether protecting your sensitive data or limiting the access of kids and guests, HomeCareTM provides you the tools you need to fully manage your network.

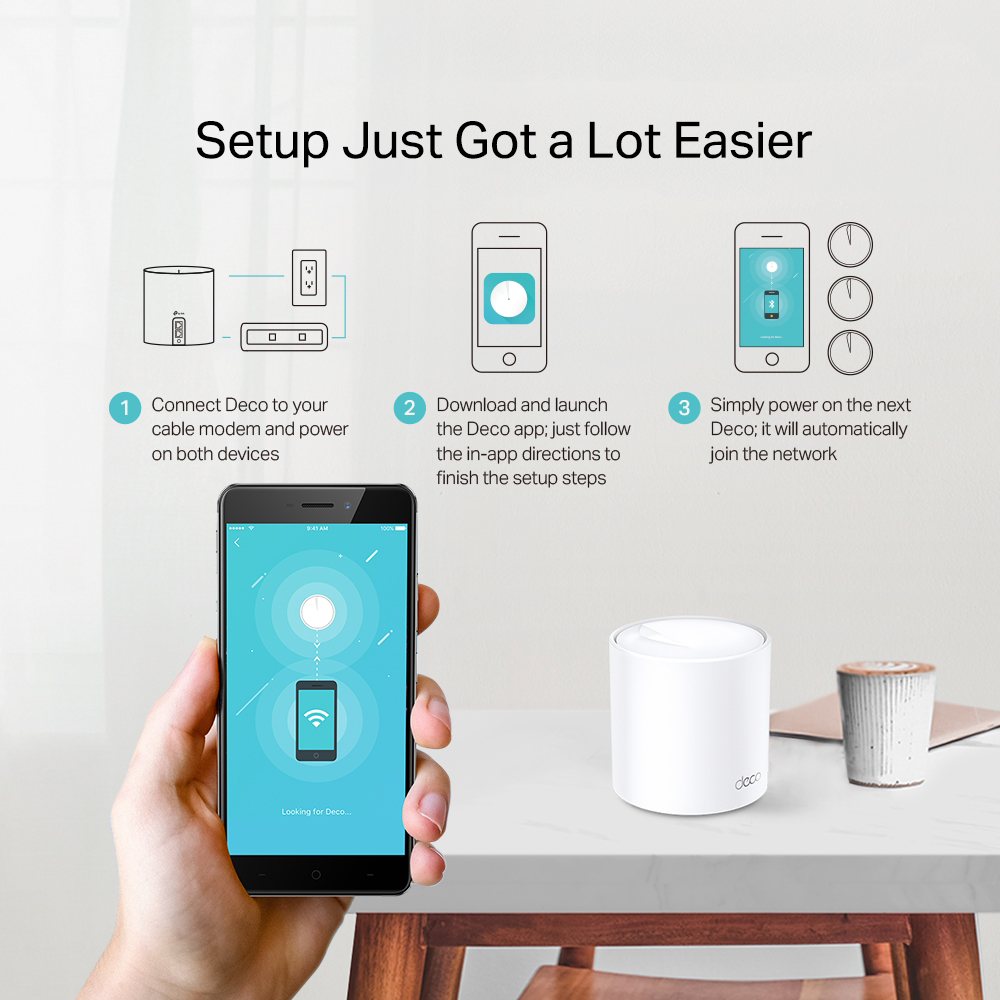

Setup Just Got a Lot Easier Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
Wi-Fi Made Easy
- Easy Management Manage your Wi-Fi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.
- Voice Control Pair with Alexa to control Deco X20 with simple voice commands. Enjoy the convenient life.
- All Decos Work Together Deco X20 is compatible with every other Deco model to form a mesh network. Expand mesh Wi-Fi coverage anytime by simply adding more Decos.
{tab Specifications}
| POWER |
| AC adapter input | 100-240V~50-60Hz 0.6A |
| AC adapter output | 12 V/1.5 A |
| HARDWARE FEATURES |

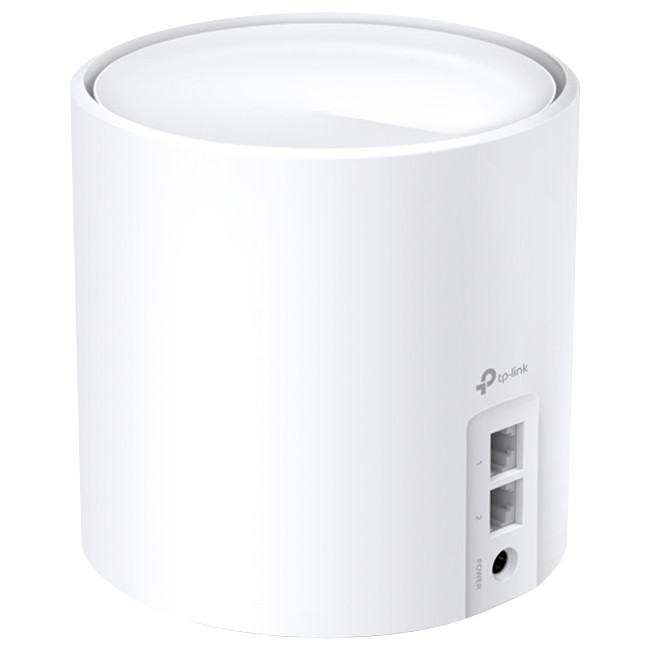

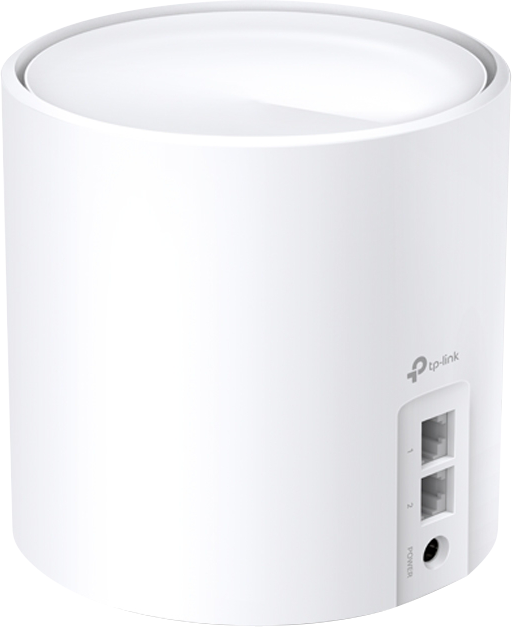

| Ports | 2 10/100/1000 Mbps RJ45 ports |
| Button | 1 RESET button on the underside |
| Power Consumption | 13.5W max |
| External Power Supply | 12 V/1.5 A |
| Flash | 1 Gbit |
| SDRAM | 4 Gbit |
| Dimensions ( W x D x H ) | 4.33 × 4.33 × 4.49 in (110× 110 × 114 mm) |
| Antenna | 4 internal omni-directional antennas |
| WIRELESS FEATURES |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz,
IEEE 802.11b/g/n/ax 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 575 Mbps on 2.4GHz, 1200 Mbps on 5GHz,1024QAM on
2.4GHz and 5GHz |
| Transmit Power | FCC: <30 dBm(2.4GHz), <30 dBm(5GHz)
CE: <20 dBm (2.4GHz), <23 dBm (5GHz) |
| Wireless Functions | Mesh Protocol: 802.11k/v/r |
| Wireless Security | WPA/WPA-PSK2/WPA3 encryptions |
| SOFTWARE FEATURES |
| Quality of Service | WMM |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management | Local Management; Remote Management; Multi-Managers |
| DHCP | Server |
| Firewall Security | SPI Firewall |
| Protocols | Supports IPv4 and IPv6 |
| Advanced Functions | Parental Controls, QoS (Quality of Service), Reporting, Assisted
Setup, Address Reservation, Port Forwarding, TP-LinkDDNS, IPTV, IPv6,
LED Control |
| Guest Network | 2.4GHz Guest Network×1, 5GHz Guest Network×1 |
| Working Modes | Router, Access Point |
| OTHERS |
| Certification | CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI |
| Package Contents | 1 Deco X20 units
1 RJ45 Ethernet cable
1 Power adapters
1 Quick Installation Guide |
| Smartphone/Tablet Requirements | iOS 9.0 or later,
Android 4.3 or later |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90%
Storage Humidity: 5%~90% |
