U7-LR WIFI 7 AP 5GBPS 300 CLIENTS 160SQM

NO POE INJECTOR

Code: 09051862

1.37 kg
810177161929
EACH
In Stock
$339 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

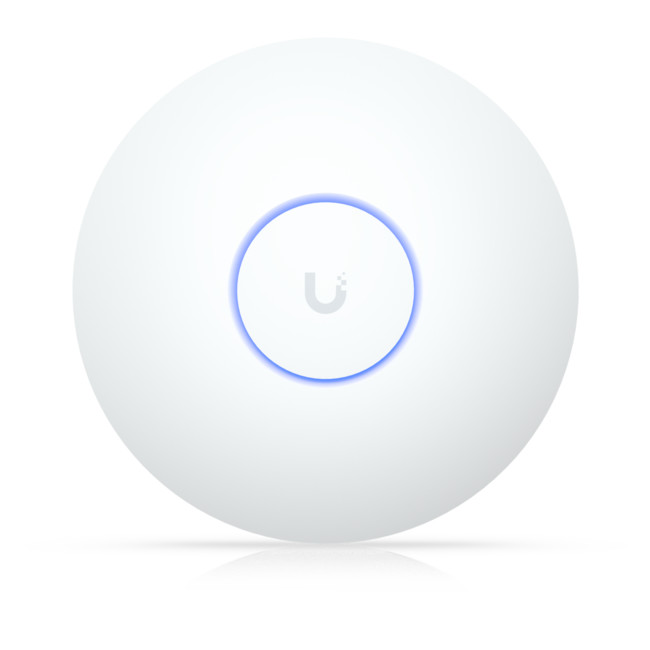

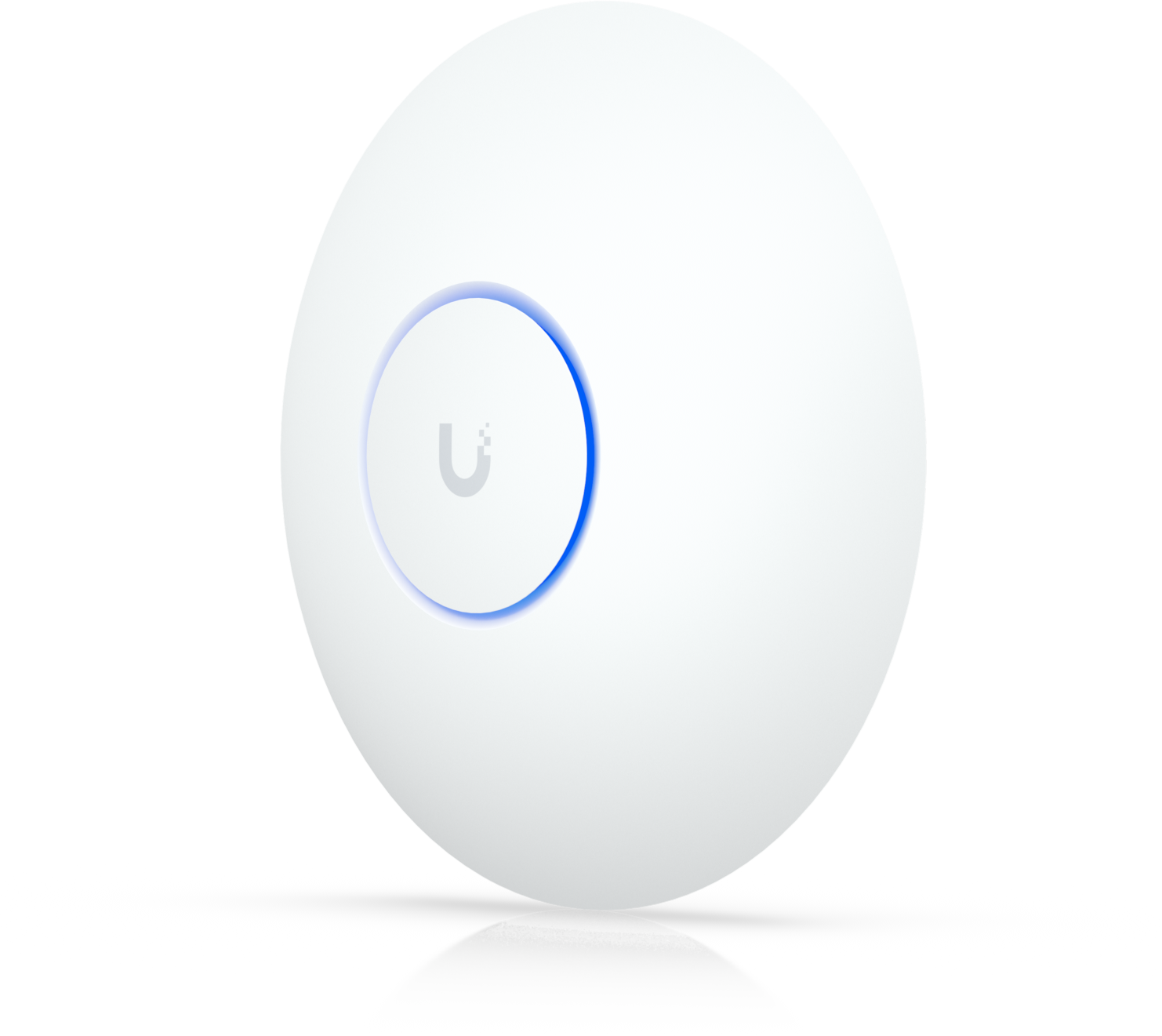

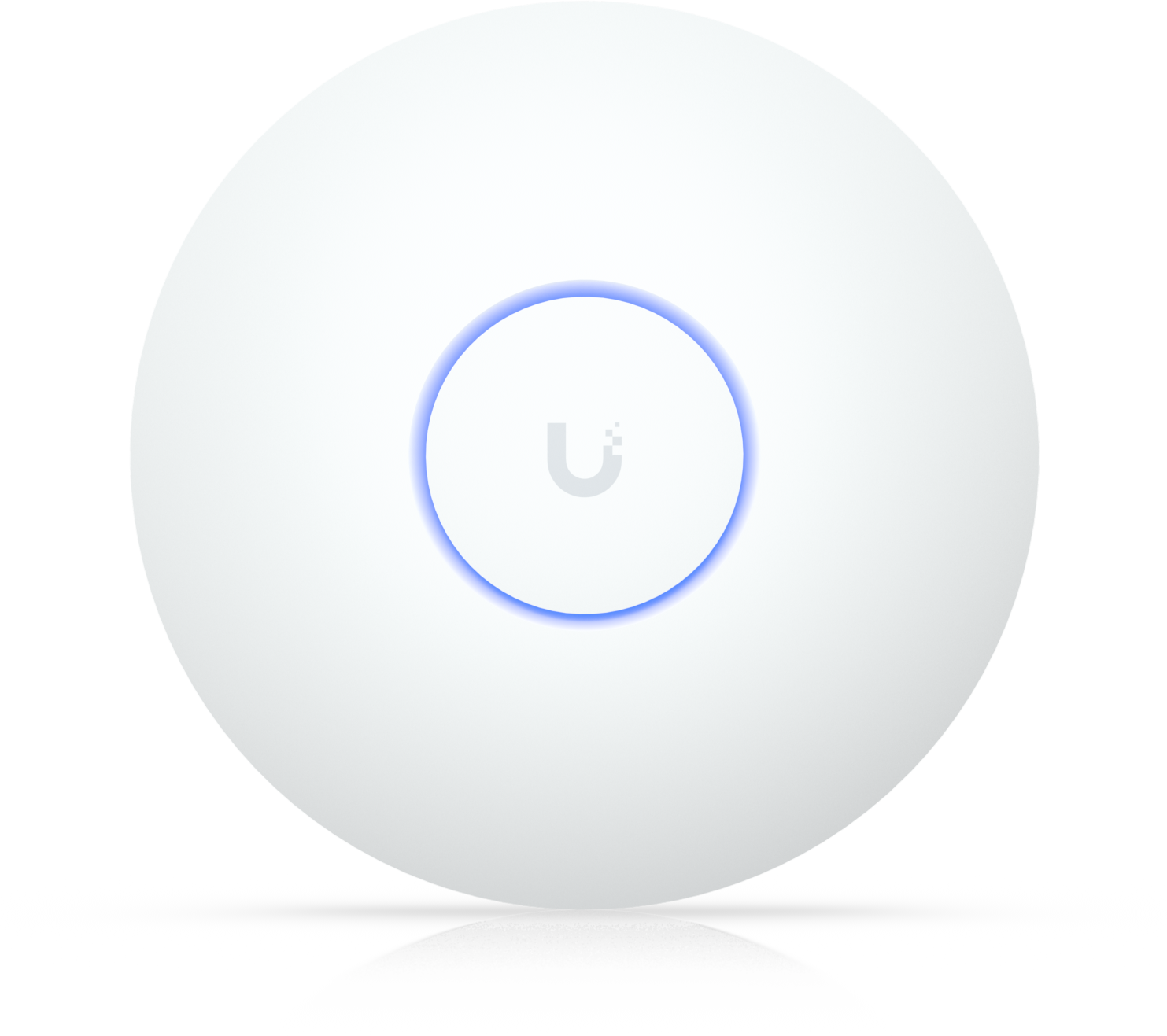

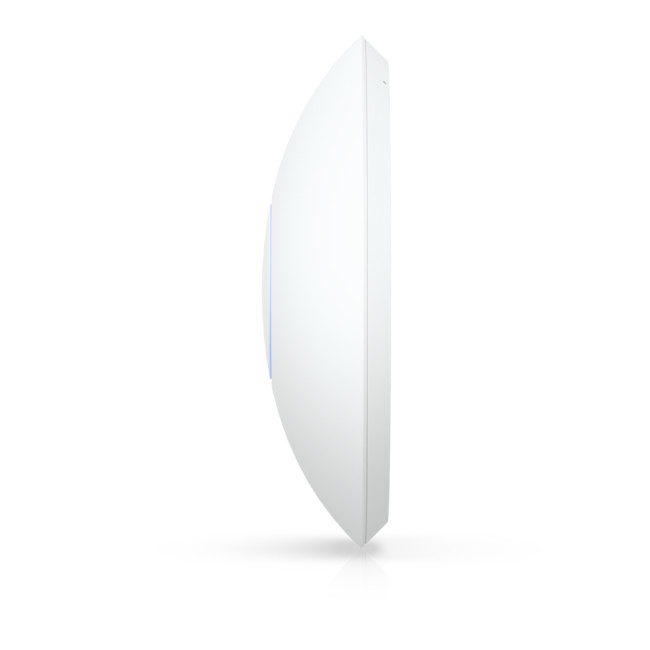

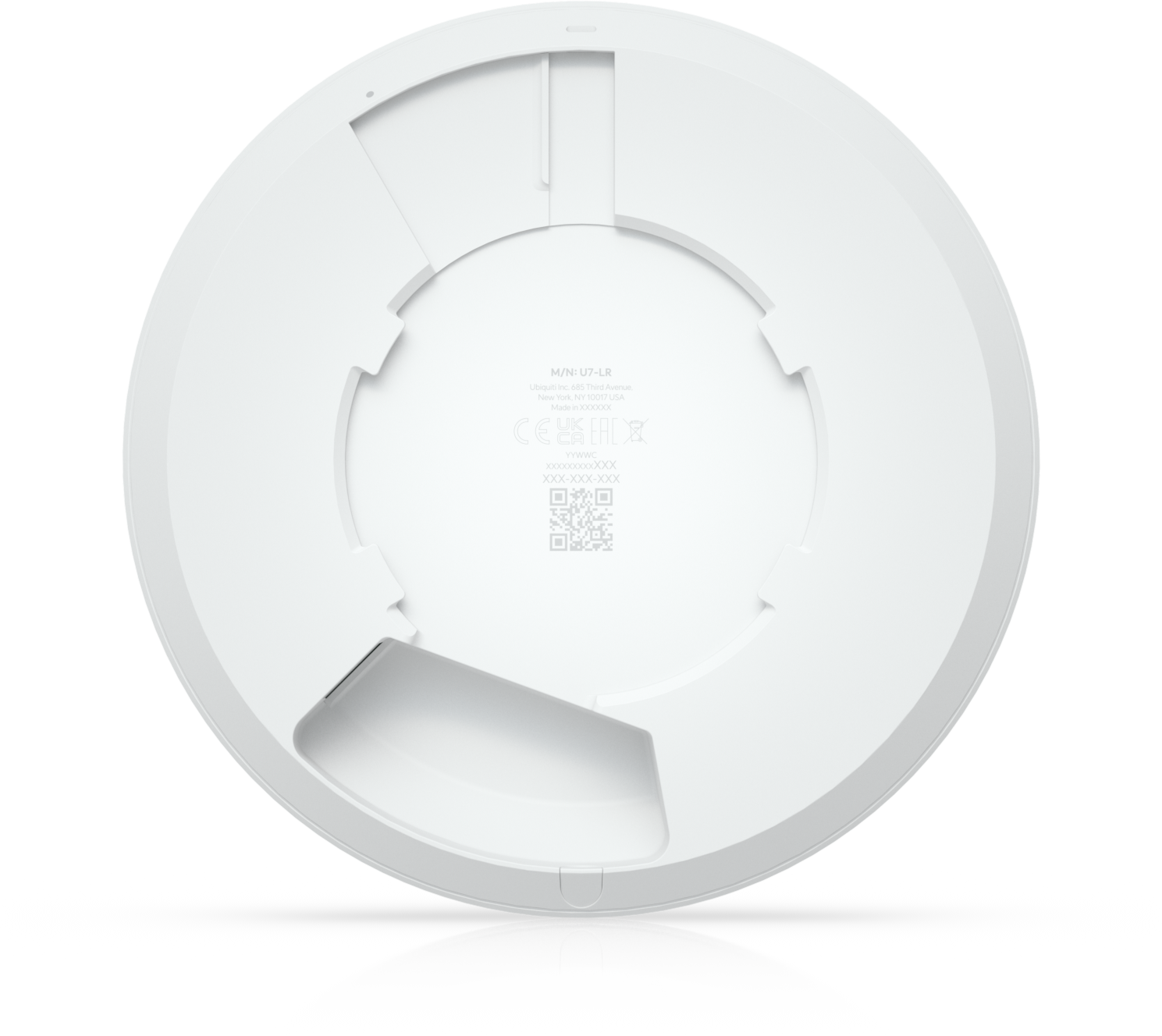

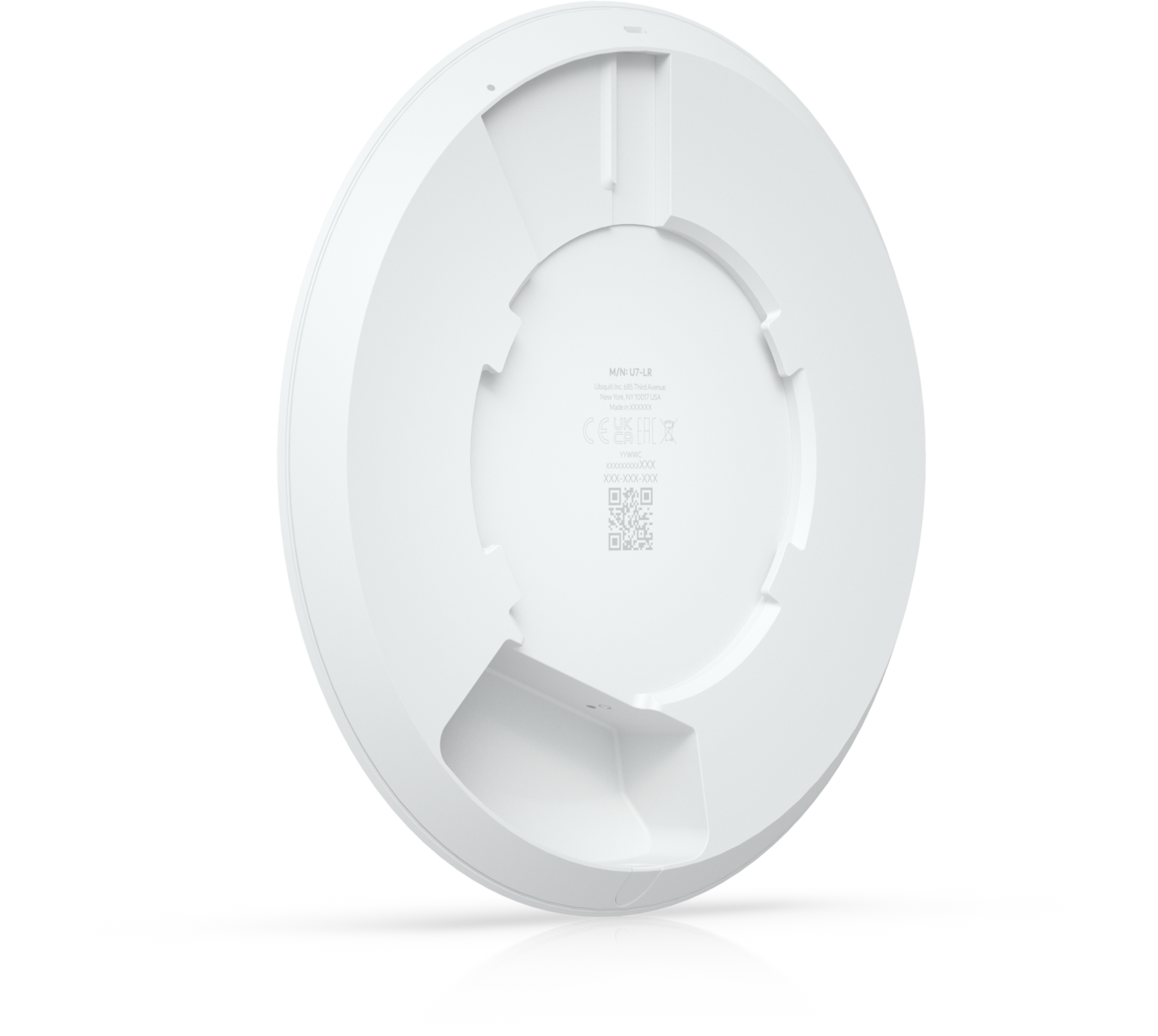

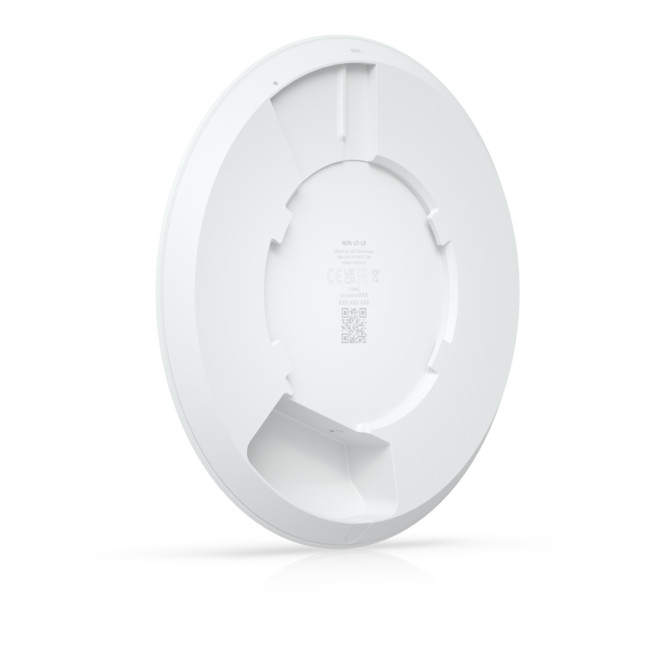

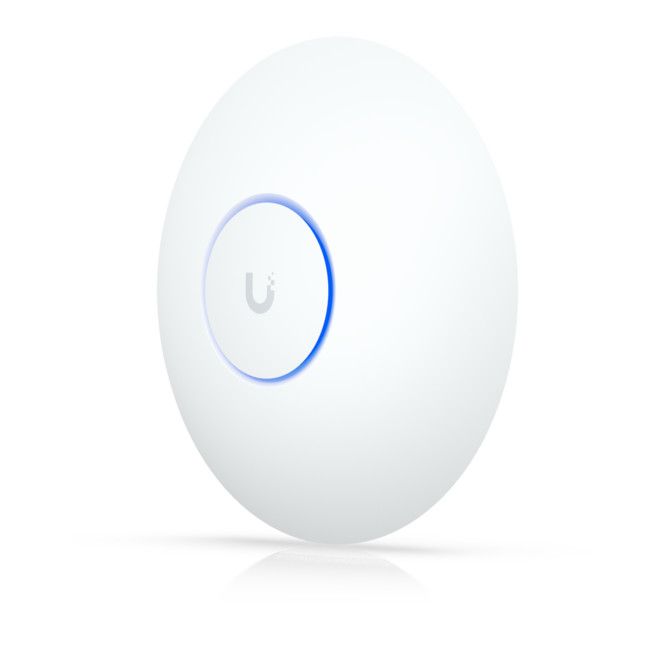

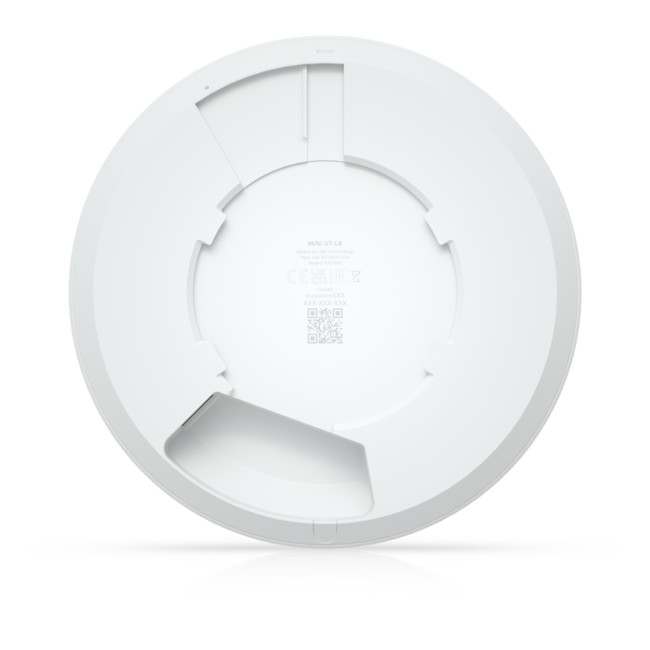

Ubiquiti U7 Long-Range, Compact, Ceiling-mount WiFi 7 AP, 5 Spatial Streams, Extended Signal Range, Cover Up to160m , 300 Devices, Uplink 2.5GbE

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.

  • WiFi 7
  • 5 spatial streams
  • 160 m (1,750 ft ) coverage
  • 300 connected devices
  • Powered using PoE
  • 2.5 GbE uplink
OVERVIEW
Dimensions Ø175.7 x 43 mm
WiFi Standards WiFi 7, WiFi 6, WiFi 5, WiFi 4
Spatial Streams 5
Coverage Area 160 m
Max. Client Count 300
Uplink 2.5 GbE
Mounting Ceiling, Wall
(Plastic Mounting Plate included)
Power Method PoE

PERFORMANCE
MIMO 5 GHz: 3 x 3 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 5 GHz: 4.3 Gbps (BW160)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain 5 GHz: 6 dBi
2.4 GHz: 4 dBi
Max. TX Power 5 GHz: 27 dBm
2.4 GHz: 26 dBm

SUPPORTED DATA RATES
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n (WiFi 4) 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

FEATURES Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN

HARDWARE
Max. Power Consumption 14W
Supported Voltage Range 42.5 57V DC

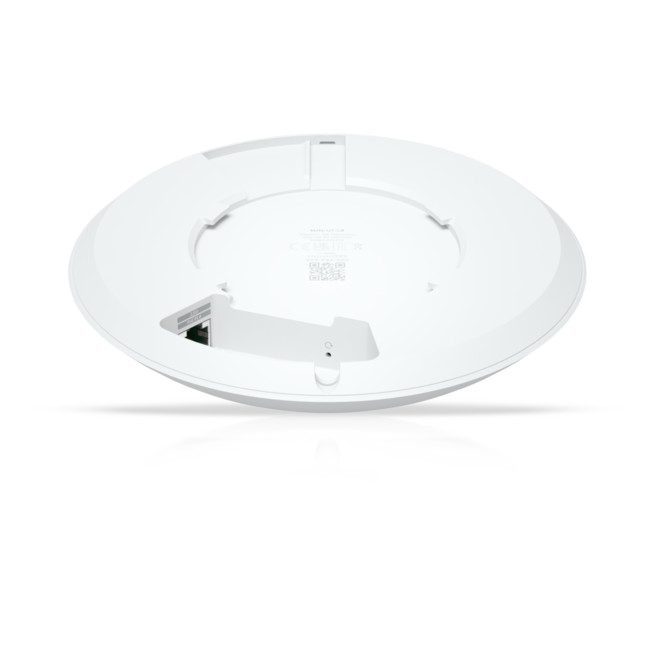

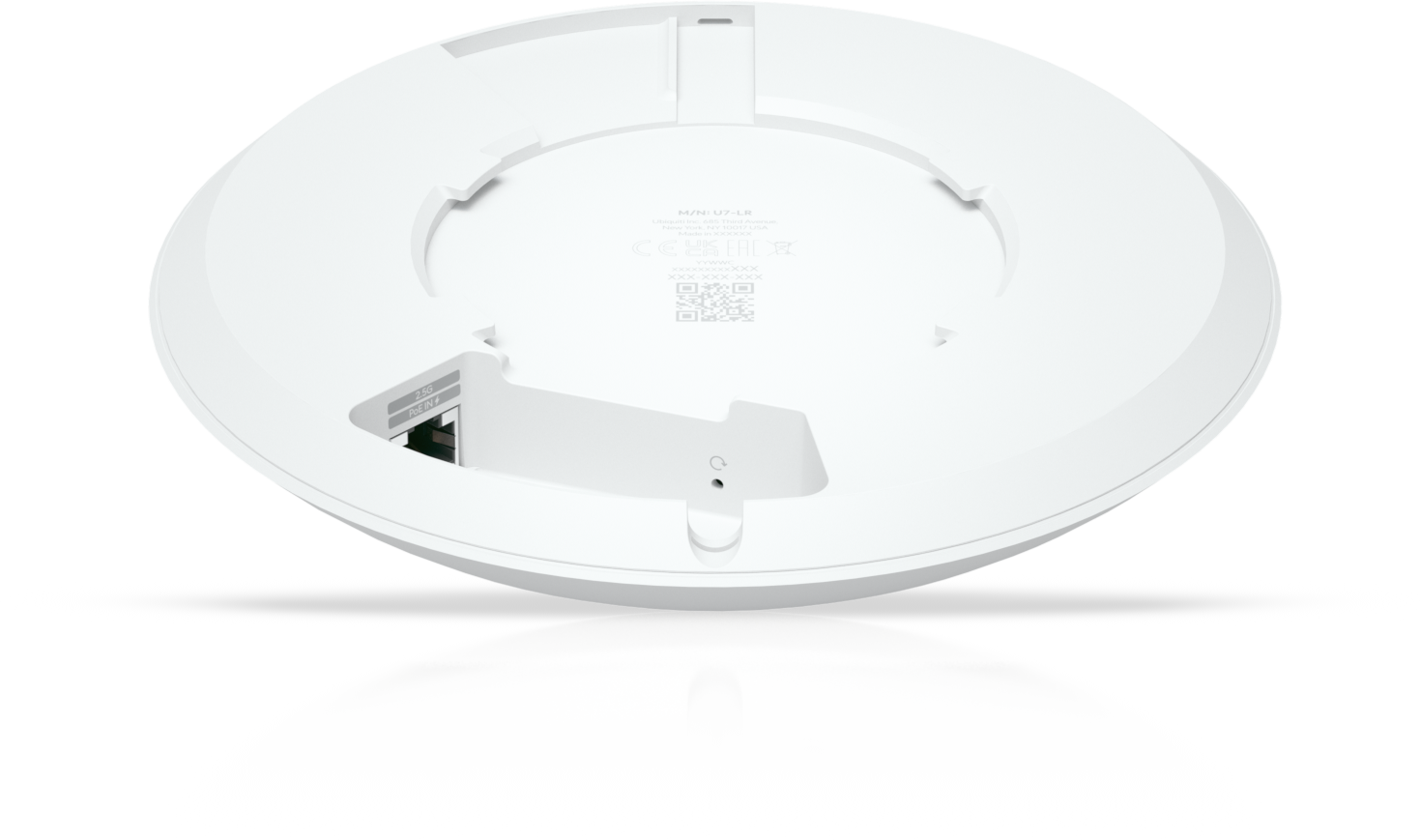

Networking Interface (1) 2.5 GbE RJ45 port
Weight 448 g
Management Ethernet
Enclosure Material Polycarbonate
aluminum alloy
Mount Material Polycarbonate
galvanized steel (SGCC)
LEDs System
White/Blue
Channel Bandwidth (MHz) HT 20/40
VHT 20/40/80/160
HE 20/40/80/160
EHT 20/40/80/160
Ambient Operating Temperature -30 to 50° C
Ambient Operating Humidity 5 to 95% noncondensing

SOFTWARE
Application Requirements UniFi Network Version 9.1.120 and later
Mobile Apps iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later
