USB32CAT14C - 100m USB 3.2 Gen1 Extender
Features
Extend Your USB Devices Over a Single Ethernet Cable
The USB32CAT14C is a high-performance extender that allows you to transmit USB 3.2 Gen1 signals up to 100 meters (328 feet) over a single Cat5e or Cat6 cable. This robust solution is perfect for extending USB peripherals in large offices, industrial settings, digital signage, and conference rooms, ensuring your devices remain connected over long distances without signal degradation.
Uncompromised Speed and Compatibility
Experience true USB 3.2 Gen1 performance with data transfer speeds of up to 5Gbps. The extender is also fully backward compatible with USB 2.0 and USB 1.1 devices. It seamlessly bridges the gap between modern and legacy equipment, supporting a wide range of operating systems, including macOS, Windows 7/8/10, and Linux.
Versatile Connectivity at Both Ends
The extender kit is designed for maximum flexibility:

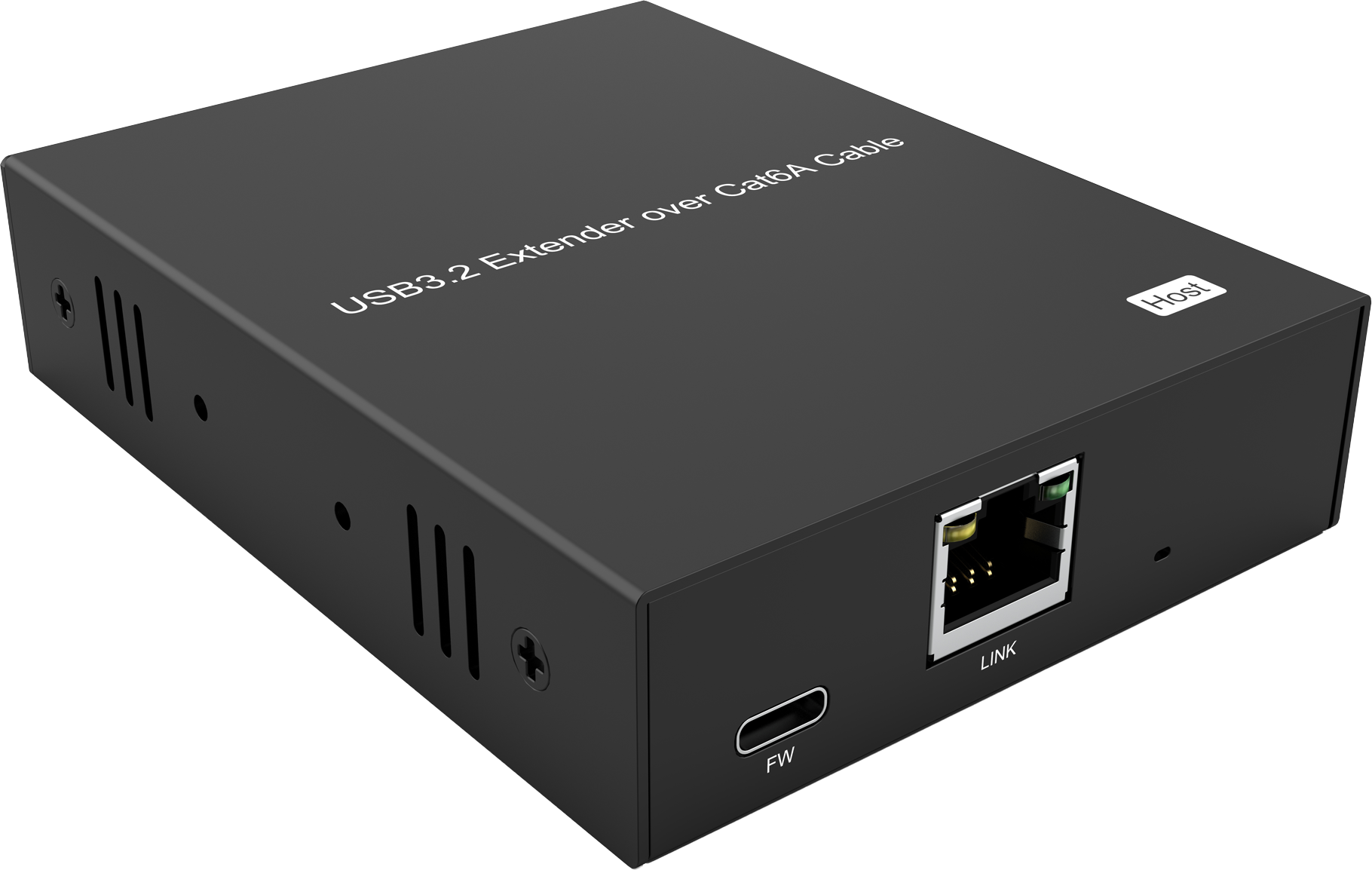

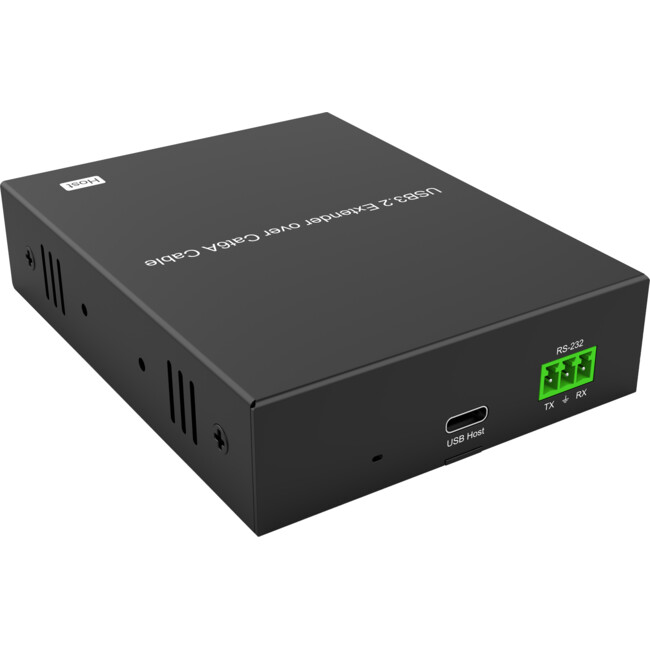

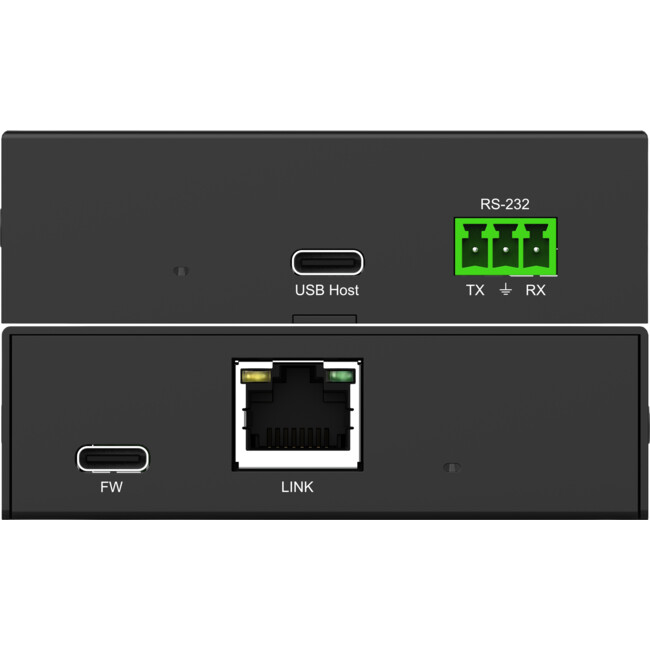

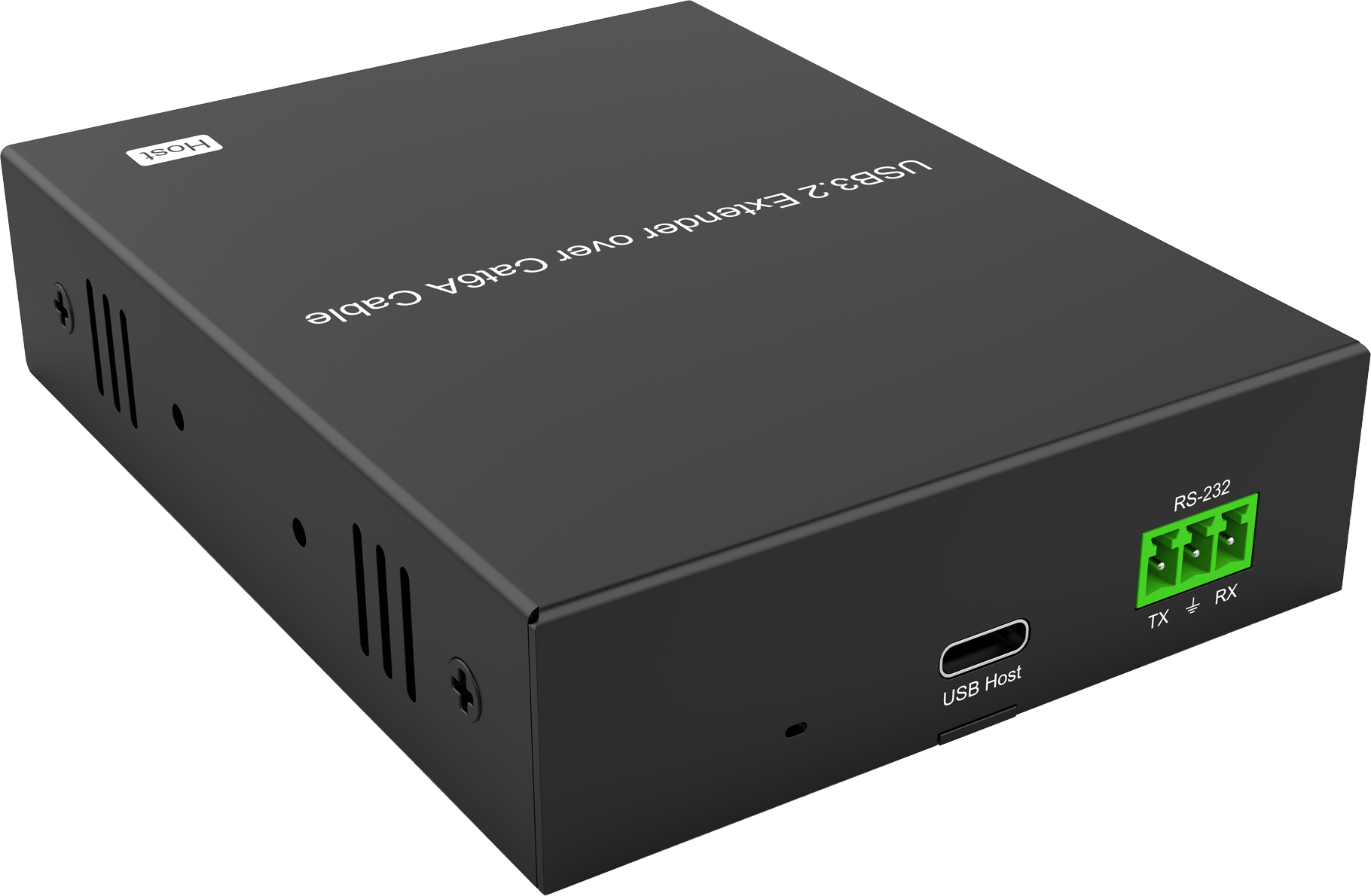

- Host Side: Features a single USB Type-C input for connecting to your PC or laptop.

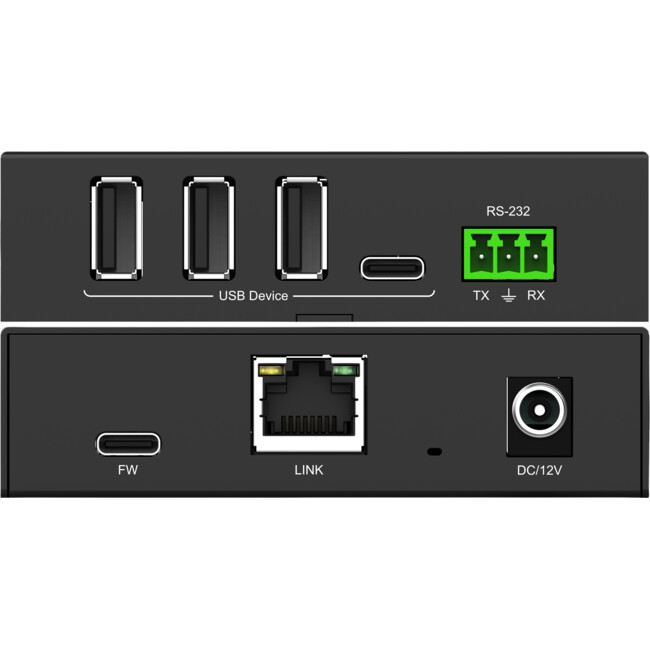

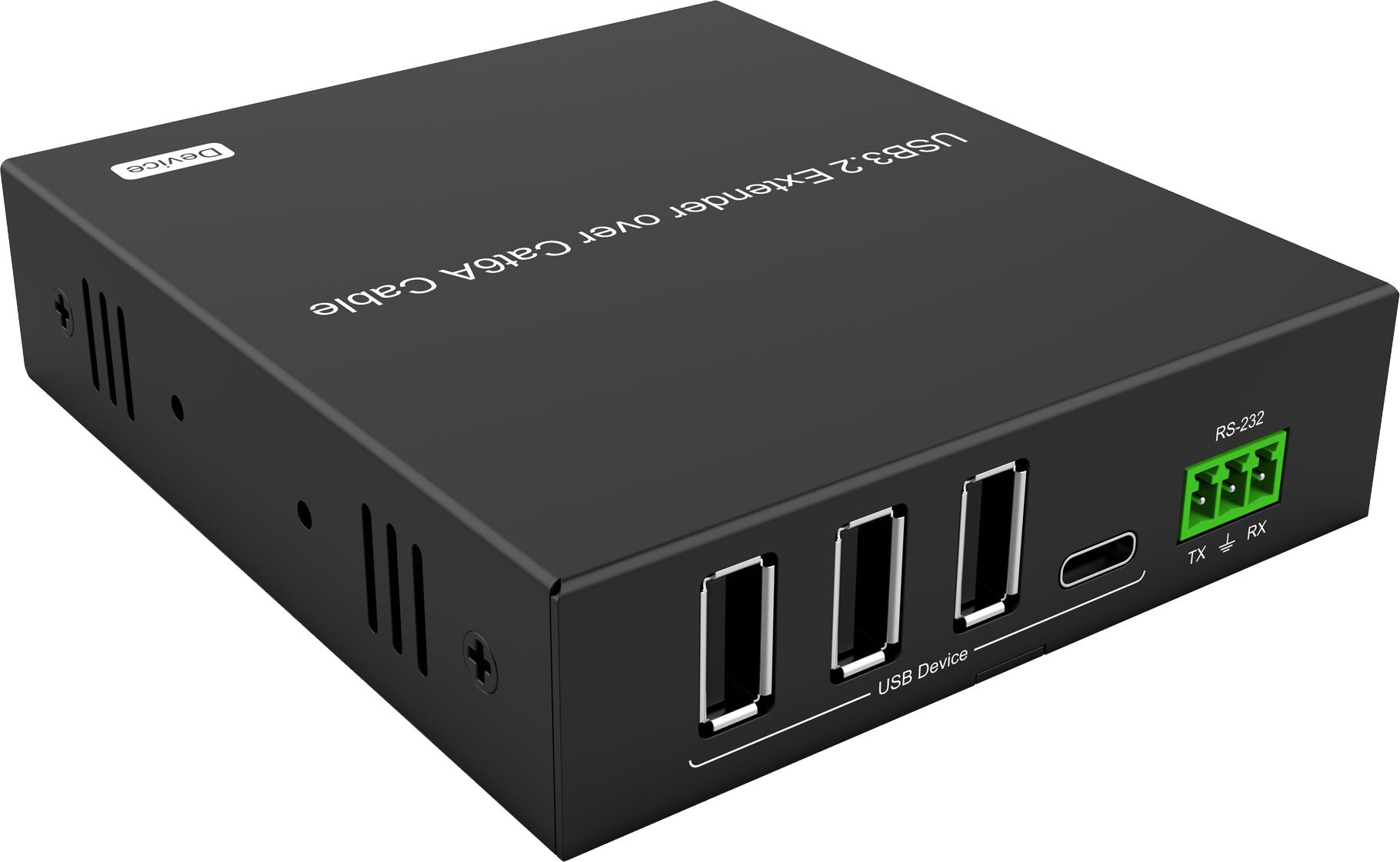

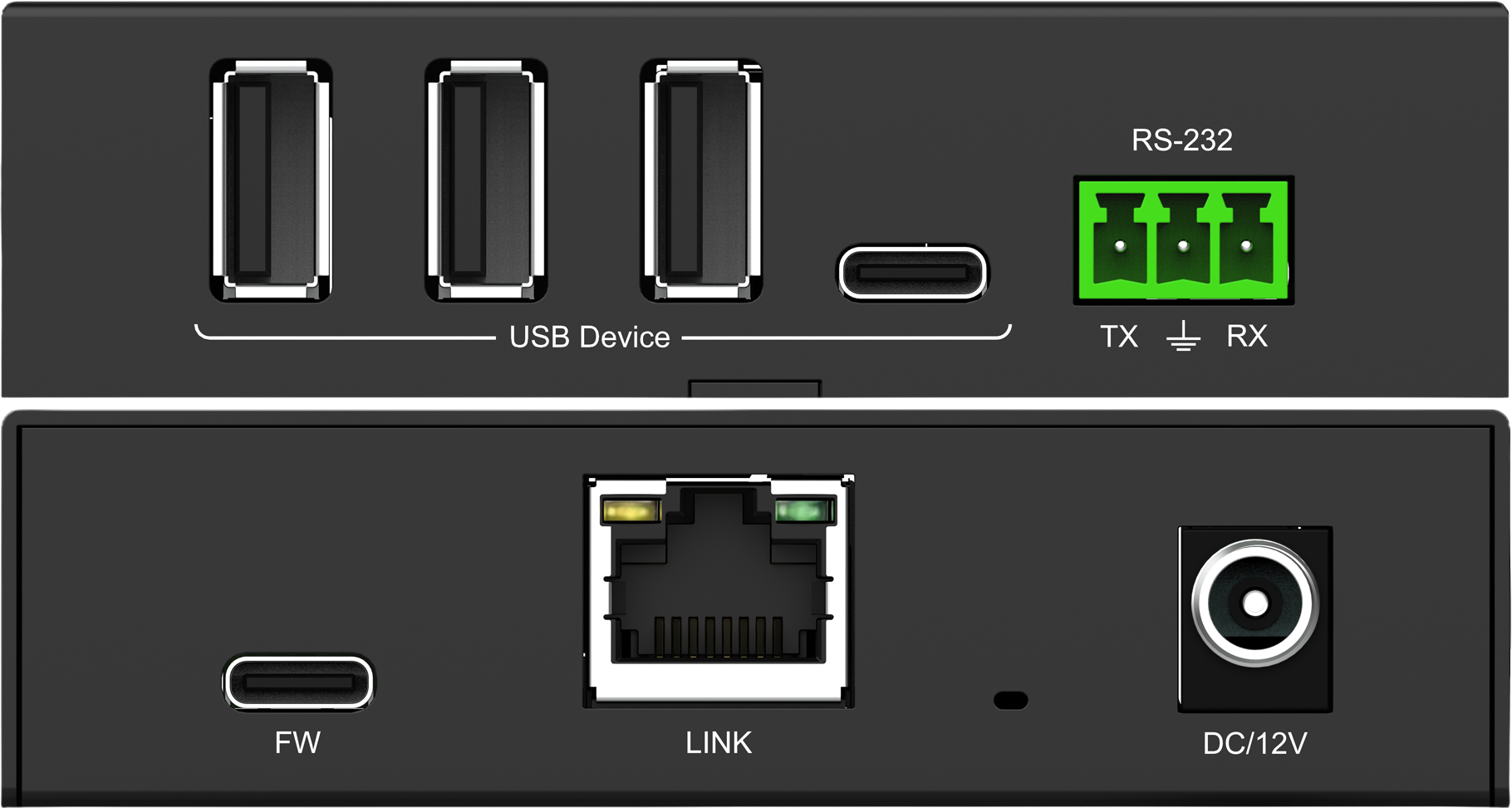

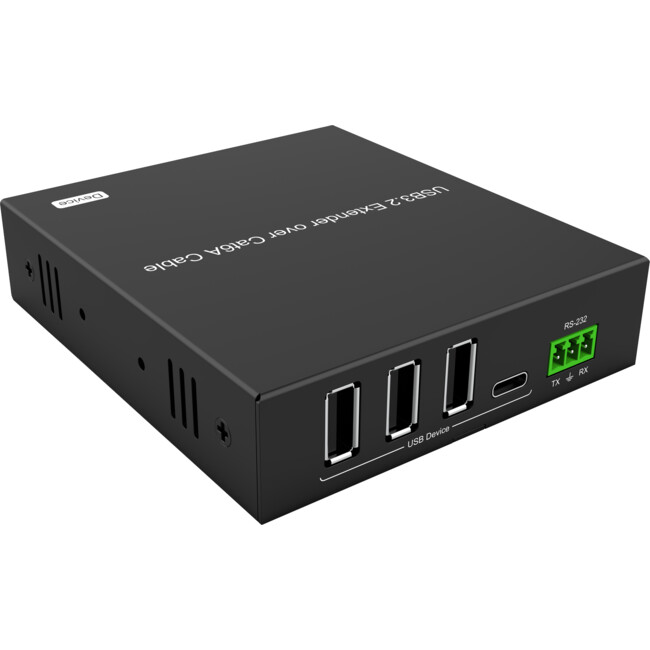

- Device Side: Provides a total of four USB ports—three standard USB-A ports and one USB Type-C port—allowing you to connect multiple devices simultaneously, such as printers, scanners, keyboards, mice, and external hard drives.

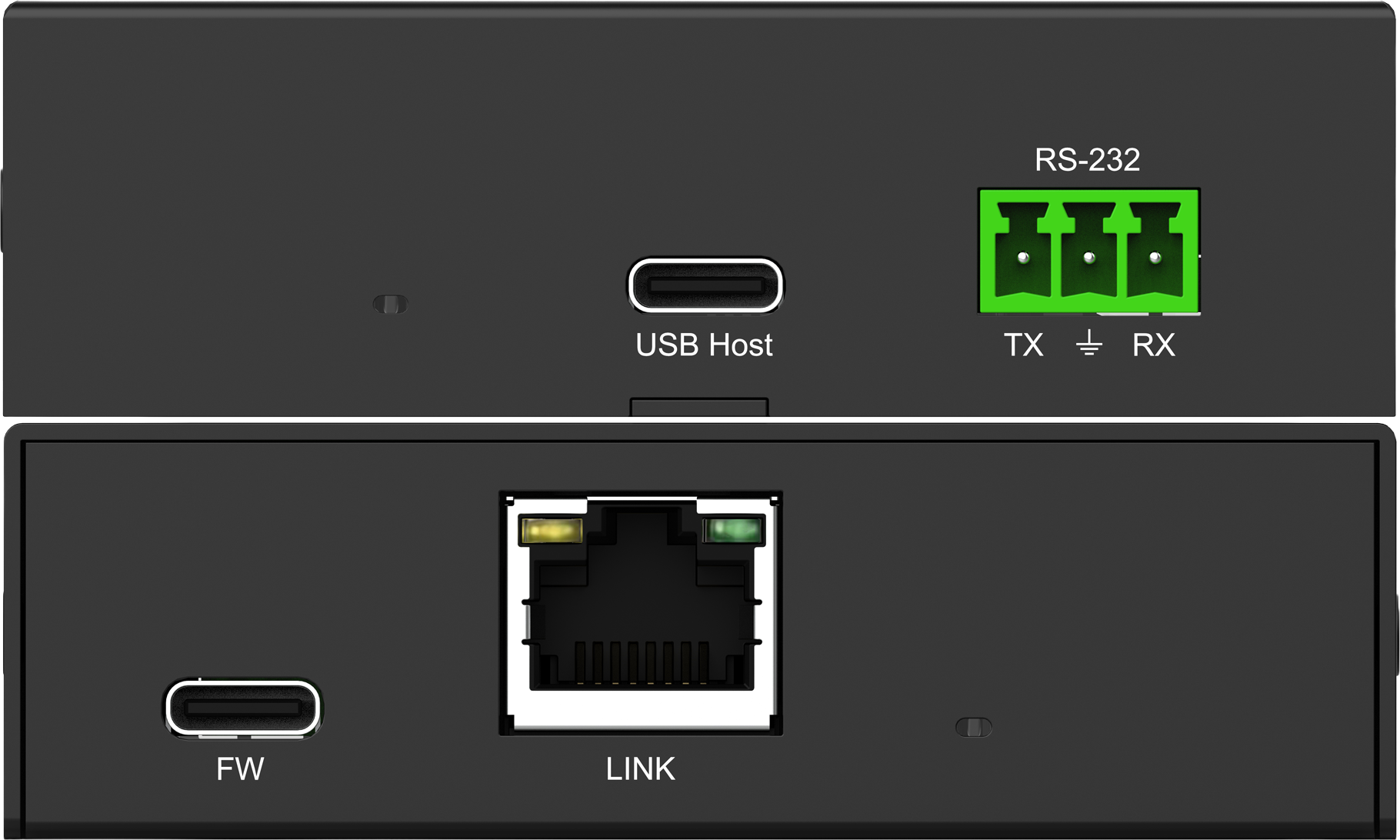

Additional Features for Professional Integration- RS232 Support: The built-in RS232 pass-through port allows for integration with industrial control systems and serial devices, making it ideal for more complex setups.

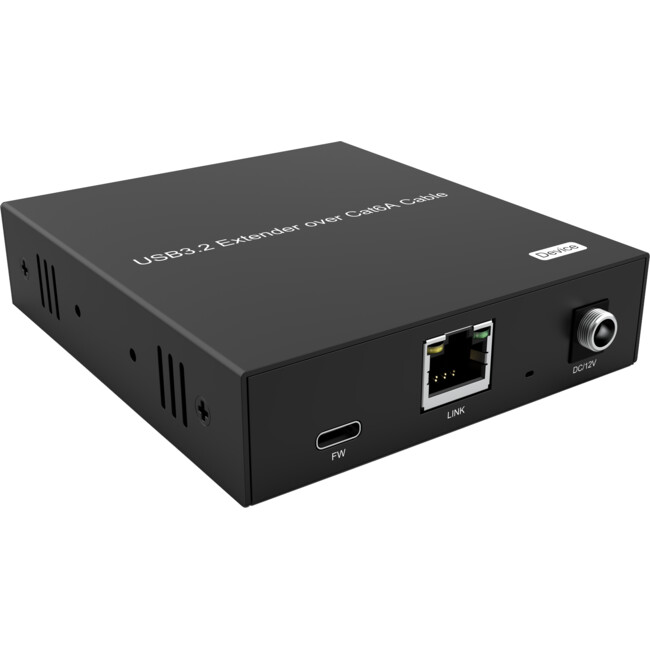

- Power over Cable (POC): The system supports Power over Cable, meaning the device unit can be powered by the host unit via the Ethernet cable, simplifying installation and reducing cable clutter. (Standard power adapter included).
Easy Installation and Reliable Performance

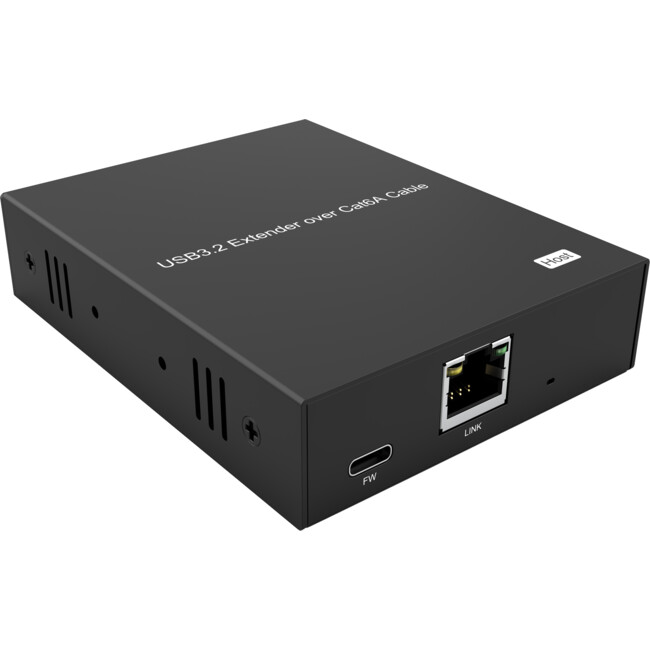

Setting up the USB32CAT14C is straightforward. Simply connect the source to the Host unit, the remote devices to the Device unit, and link the two with a single Cat5e/6 cable. Included in the box is a DC12V/3A power adapter to get you started.
Key Features at a Glance:
- Extended Distance: Transmits USB signals up to 100m (328ft) over a single Cat5e/Cat6 cable.
- High-Speed Data: Supports USB 3.2 Gen1 with transfer rates up to 5Gbps.
- Multiple Ports: 1x USB-C input on the host; 3x USB-A and 1x USB-C on the device side.
- Wide Compatibility: Works with USB 2.0/1.1 devices and major operating systems (Windows, macOS, Linux).
- Advanced Integration: Features an RS232 port for serial device control.
- Convenient Power: Supports Power over Cable (POC) for simplified wiring.
- Robust Construction: Designed for reliable performance in a variety of environments (Operating temp: 0 to +40°C).
Specification
Operating Temperature Range | 0 to +40°C(+32 to +104°F) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
USB port at HOST | 1x USB Type C |
USB port at Device | 3x USB3.0 Type A, 1x USB Type C |
Support operating systems | MAC OS v8.6 and above version,windows7/8/10,Linux system |
Transmission speed | 5Gbps |
Data transmission Distance | 100m over CAT5e/CAT6 cable |
Dimension (L×W×H) | Host:104.24x80.51x24.1mm, Device: 102.55x91.2x24.1mm |
Power supply | DC12V3A |
What is in the box?
- Main USB Extender Unit x 1 pair
- Operating Instructions Manual x 1pc
- Power Adapter DC12V/3A x 1pc
