| WIRELESS | Wi-Fi Speeds | BE9300 - 6 GHz: 5760 Mbps (802.11be)
- 5 GHz: 2880 Mbps (802.11be)
- 2.4 GHz: 688 Mbps (802.11be)
|

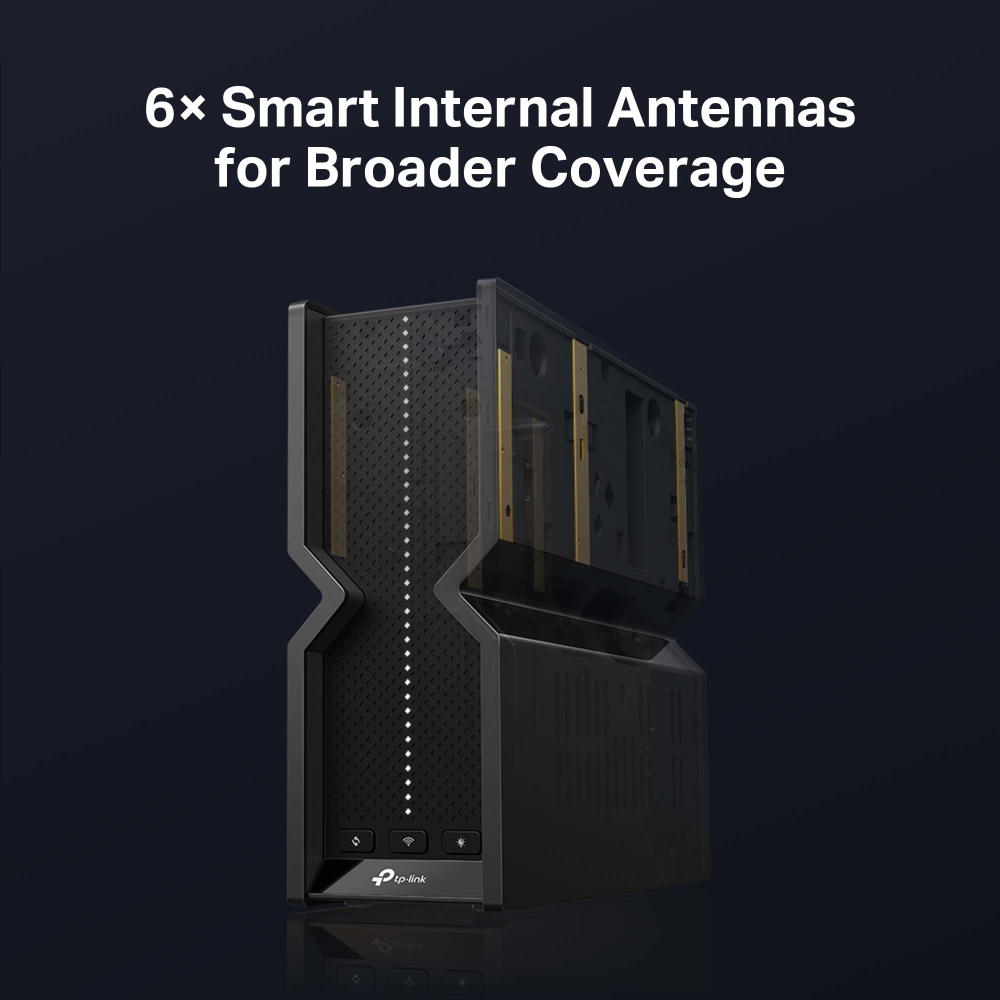

| Wi-Fi Range | 4 Bedroom Houses - 6 × Optimally Positioned Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas.
- Beamforming: Concentrates wireless signal strength towards clients to expand Wi-Fi range.
- High-Power FEM: Improves transmission power to strengthen signal coverage.
|
| Wi-Fi Capacity | High - Tri-Band: Allocate devices to different bands for optimal performance.
- 2×2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients.
- OFDMA: Simultaneously communicates with multiple clients.
- Airtime Fairness: Improves network efficiency by limiting excessive occupation.
- DFS: Access an extra band to reduce congestion.
- 6 Streams: Connect your devices to more bandwidth.
|
| Working Modes | - Router Mode
- Access Point Mode
|
| Advanced Features | - Multi-Link Operation (MLO)
- 320 MHz Channel
- 4K-QAM
- Multi-RUs
- EasyMesh Compatible
- Works with Alexa and Google Assistant
- IoT Network
|
| SECURITY | Network Security | - SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
|
| Guest Network | - 1 × 6 GHz Guest Network
- 1 × 5 GHz Guest Network
- 1 × 2.4 GHz Guest Network
|
| VPN Server | - OpenVPN Server
- PPTP VPN Server
- L2TP VPN Server
- WireGuard VPN Server
|
| VPN Client | - Open VPN Client
- PPTP VPN Client
- L2TP VPN Client
- WireGuard VPN Client
|
| Wi-Fi Encryption | - WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
|

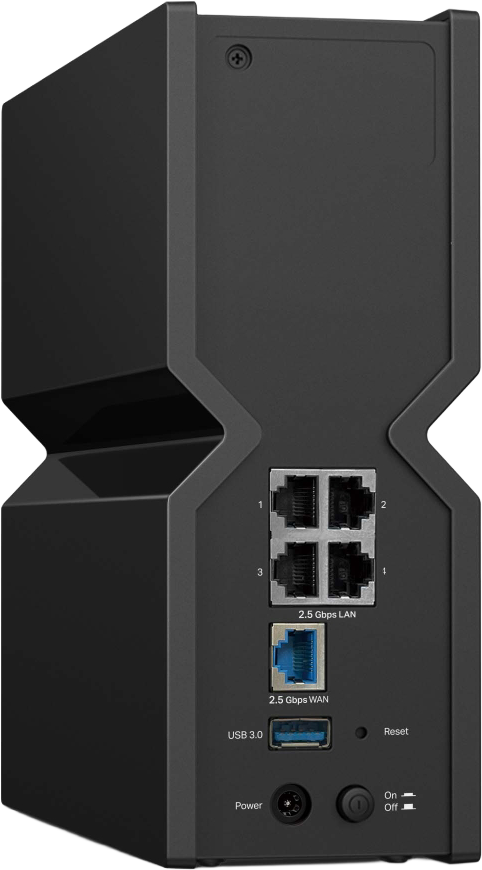

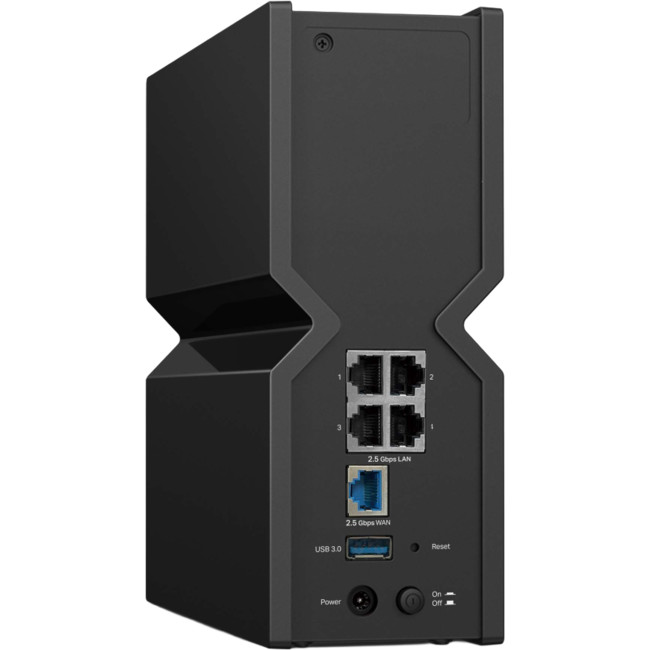

| HARDWARE | Ethernet Ports | - 1 × 2.5 Gbps WAN
- 4 × 2.5 Gbps LAN
|
| USB Support | 1 × USB 3.0 - Supported Partition Formats:
- Supported Functions:
- FTP Server
- Media Server
- Samba Server
|
| Buttons | - Power On/Off Button
- Wi-Fi On/Off Button
- LED Button
- WPS Button
- Reset Button
|
| Power | 12V 3.3A |
| SOFTWARE | Protocols | |
| Service Kit | HomeShield
Learn More |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls - Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
|
| WAN Type | - Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
|
| Quality of Service | QoS by Device |
| Cloud Service | - Auto Firmware Upgrade
- TP-Link ID
- DDNS
|
| NAT Forwarding | - Port Forwarding
- Port Triggering
- DMZ
- UPnP
|
| IPTV | - IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
|
| DHCP | - Address Reservation
- DHCP Client List
- Server
|
| DDNS | |
| Management Features | |
| ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
| Operating Humidity | 10%~90% non-condensing |
| GENERAL | System Requirements | - Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
|
| Dimensions (W×D×H) | 76mm × 231.7mm × 203mm (3″ × 9.1″ × 8″) |
| Certifications | CE, FCC, RoHS |

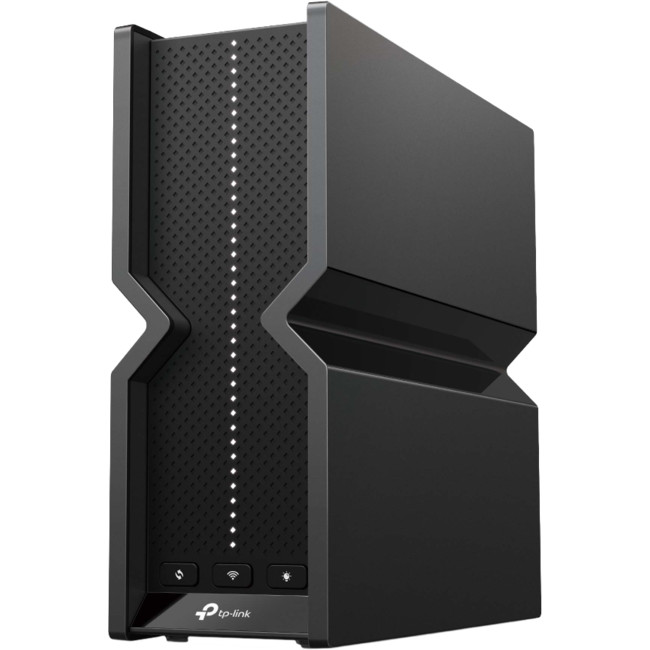

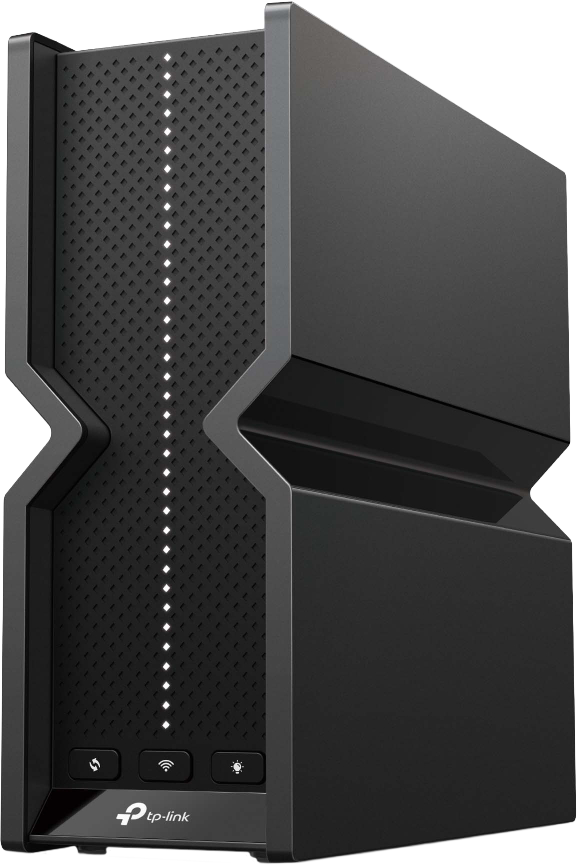

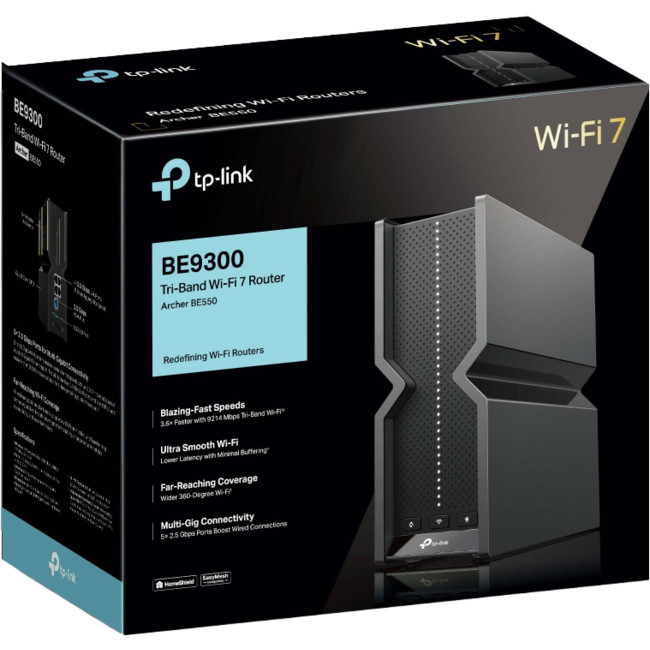

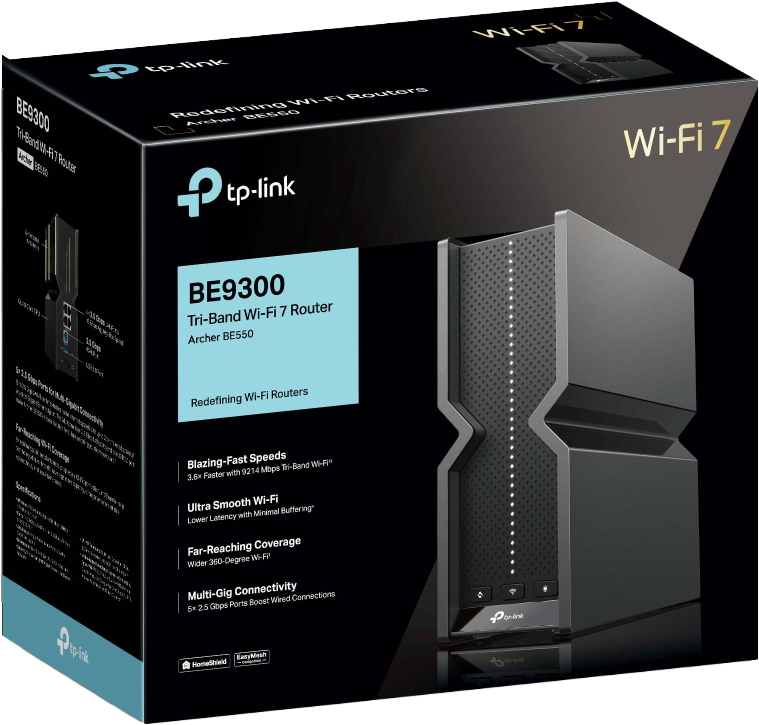

| Package Contents | - Wi-Fi 7 Router Archer BE550
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
|
