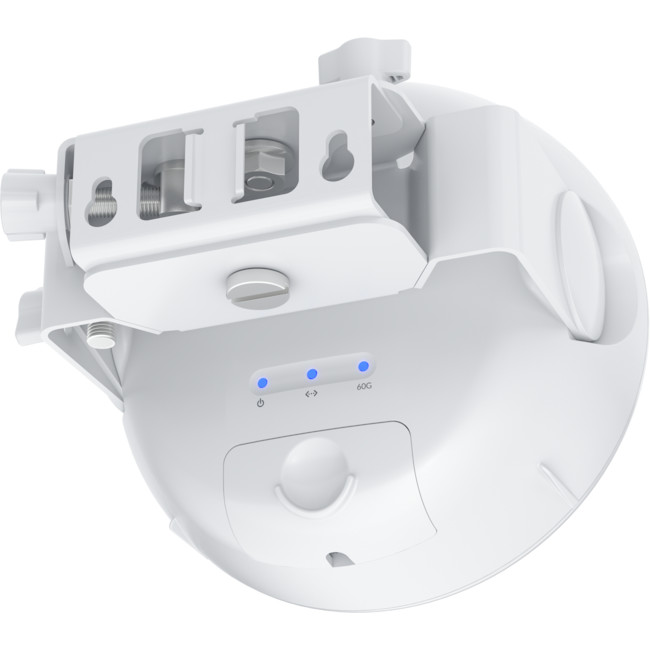

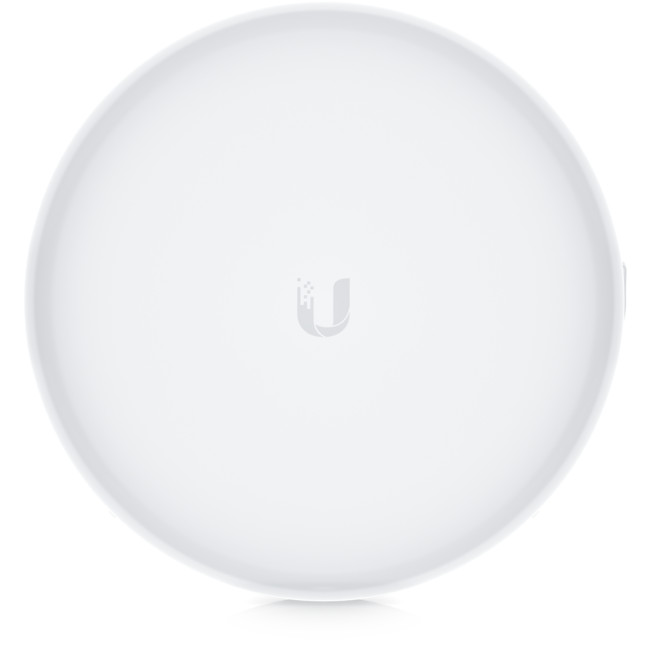

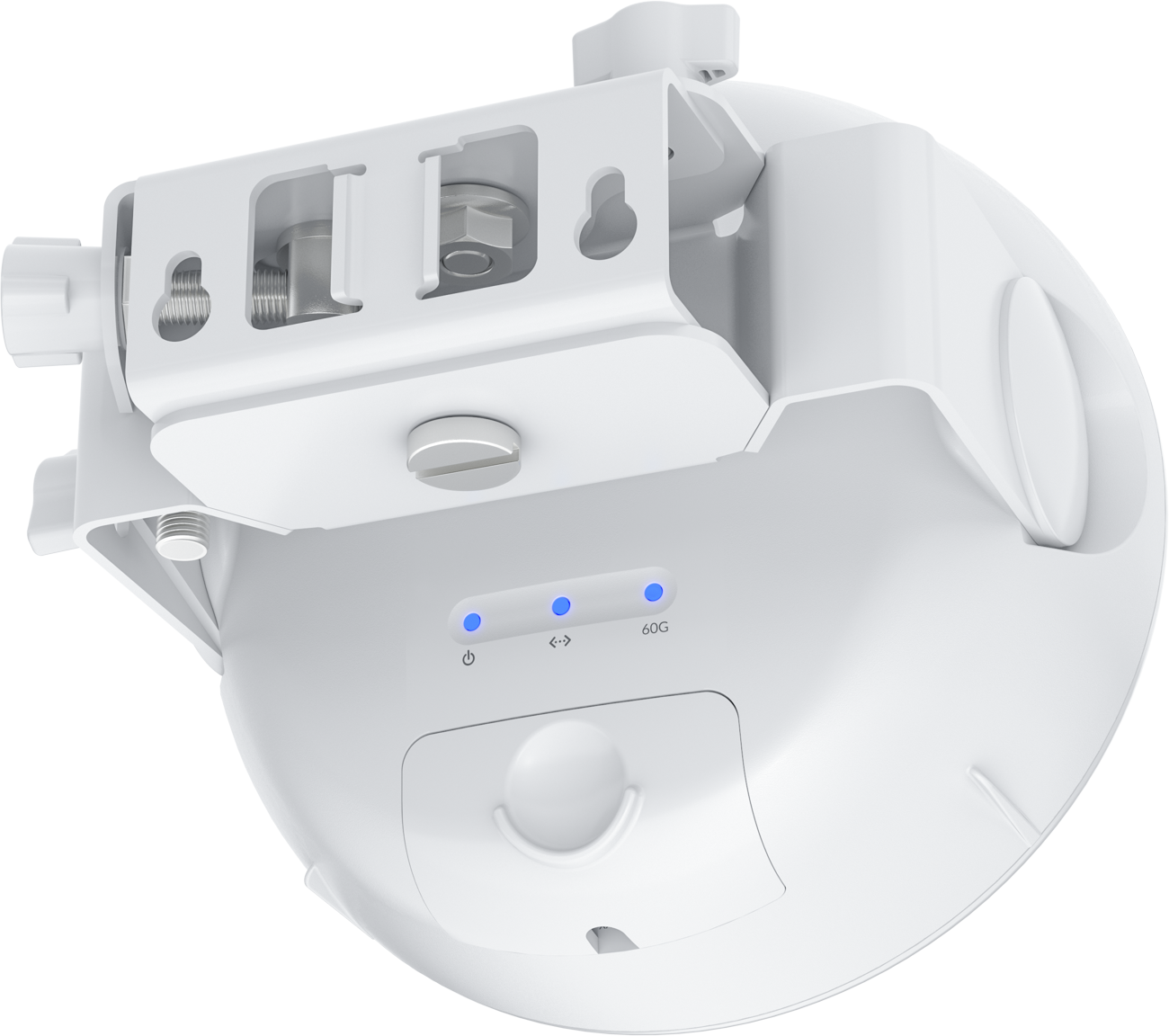

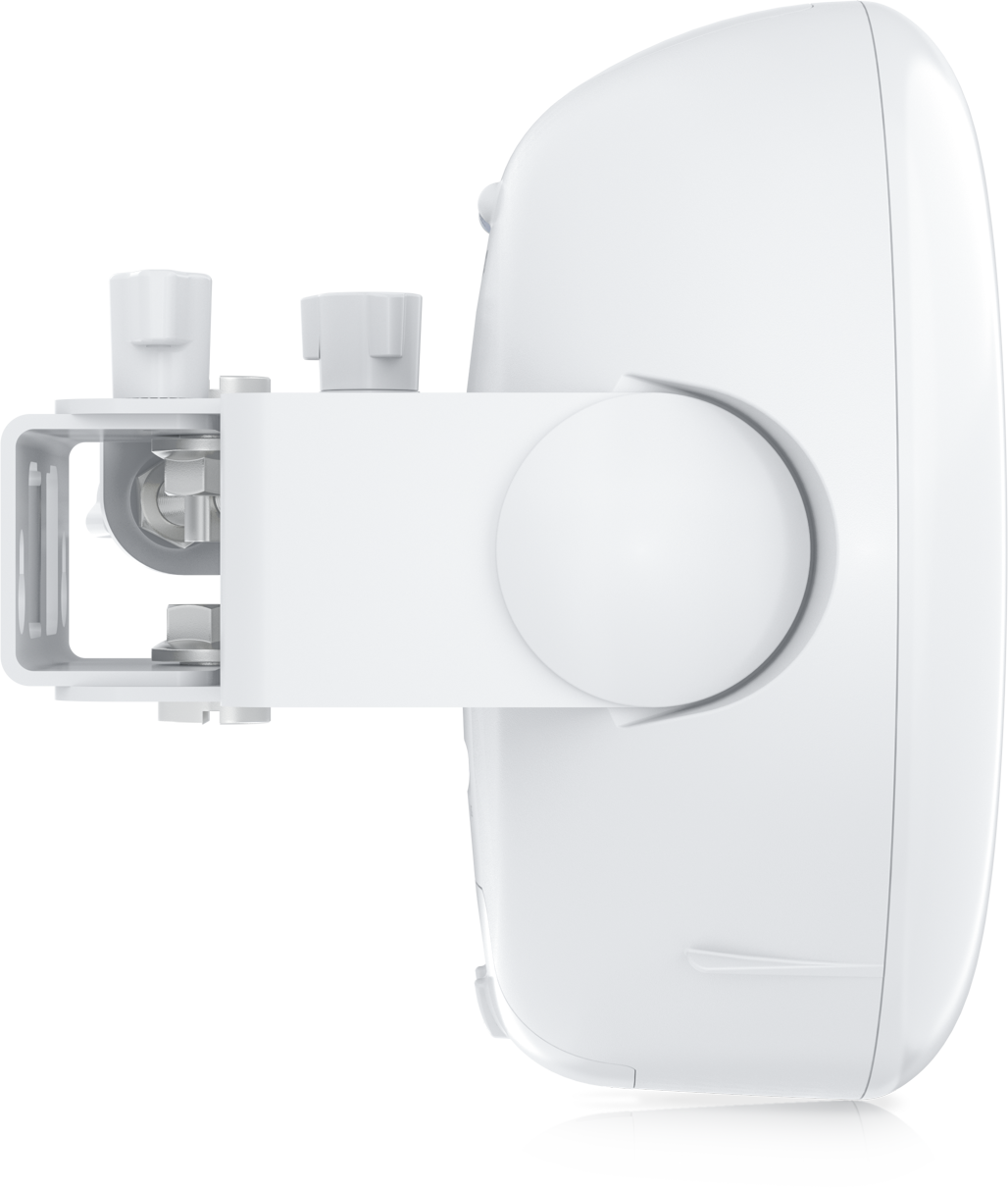

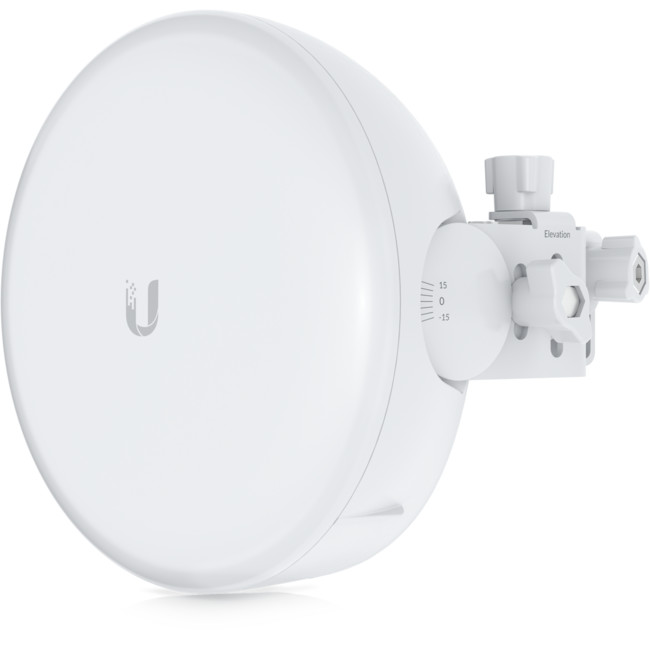

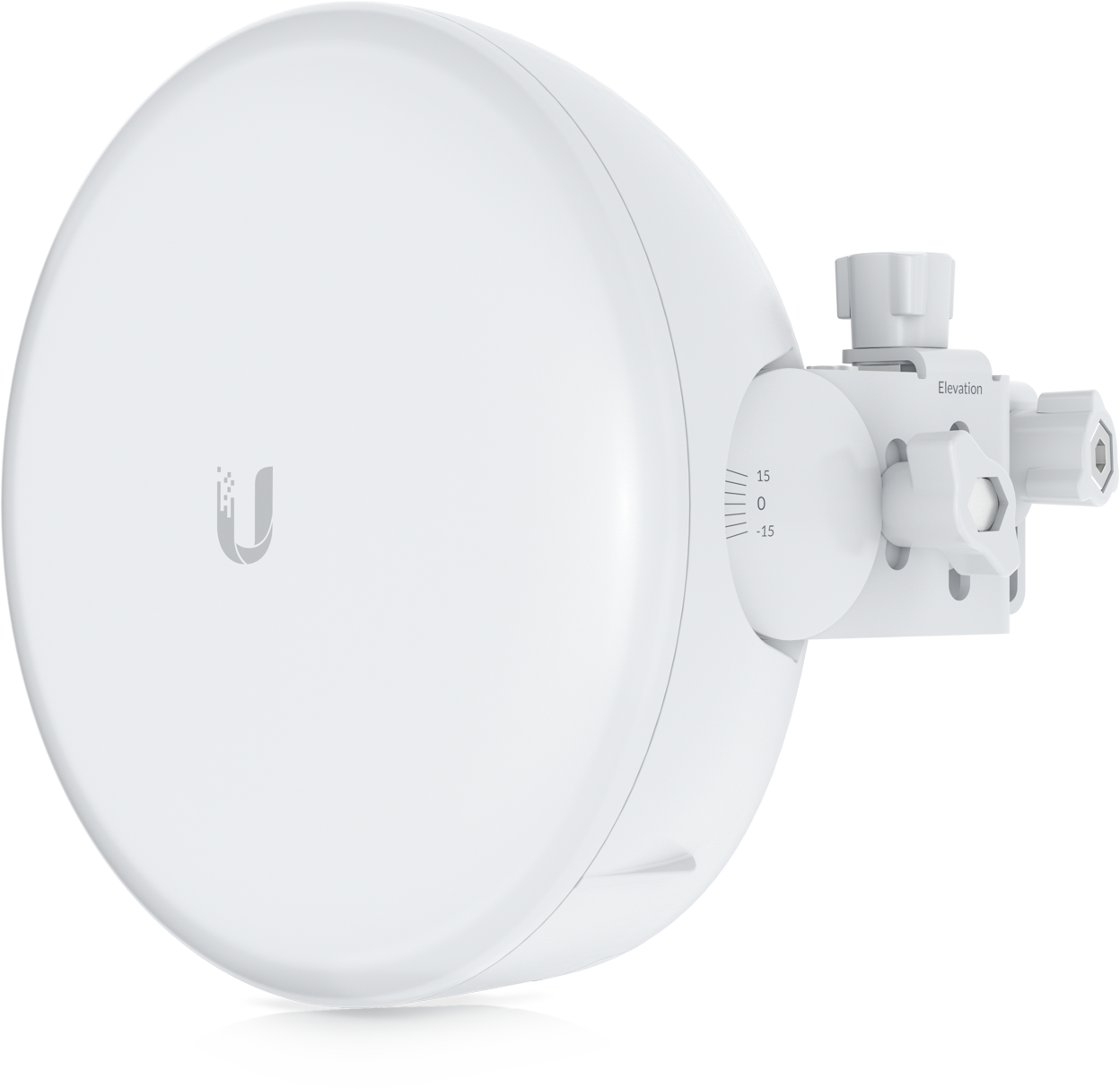

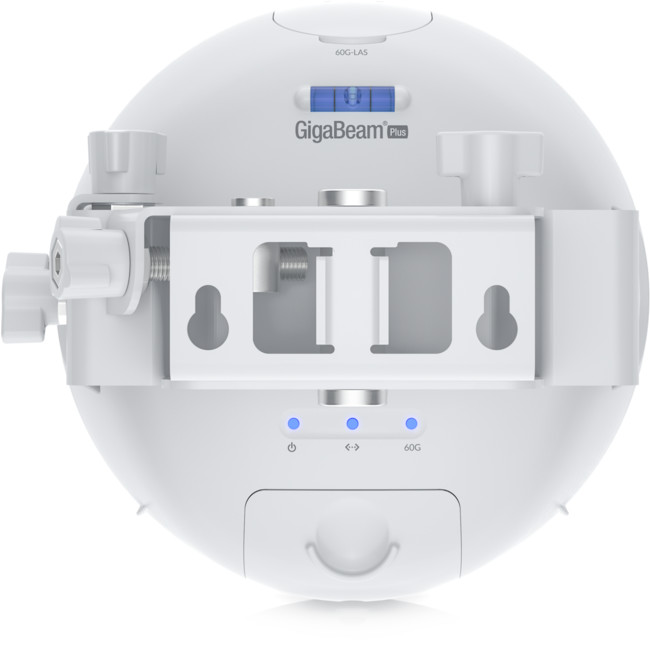

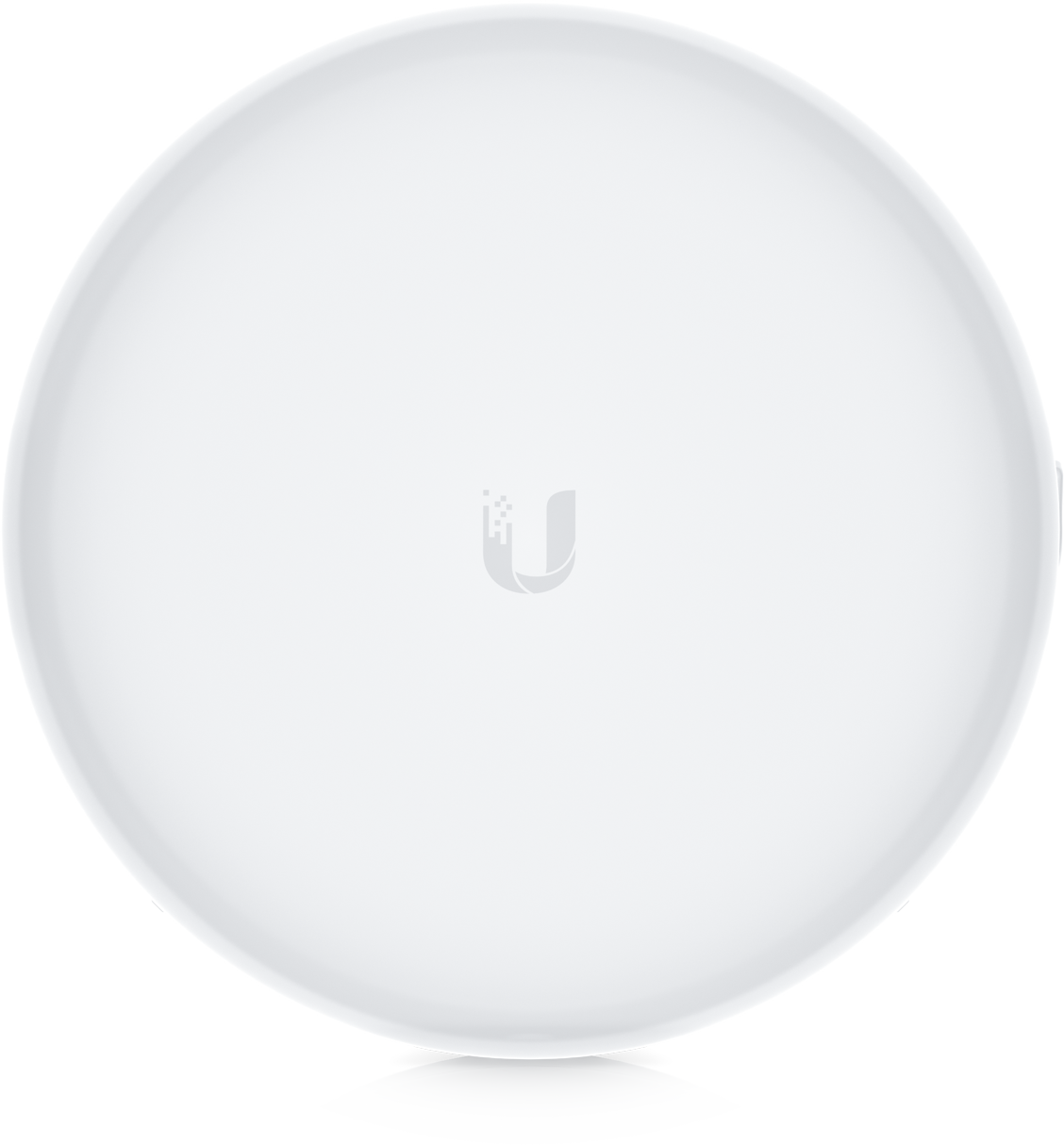

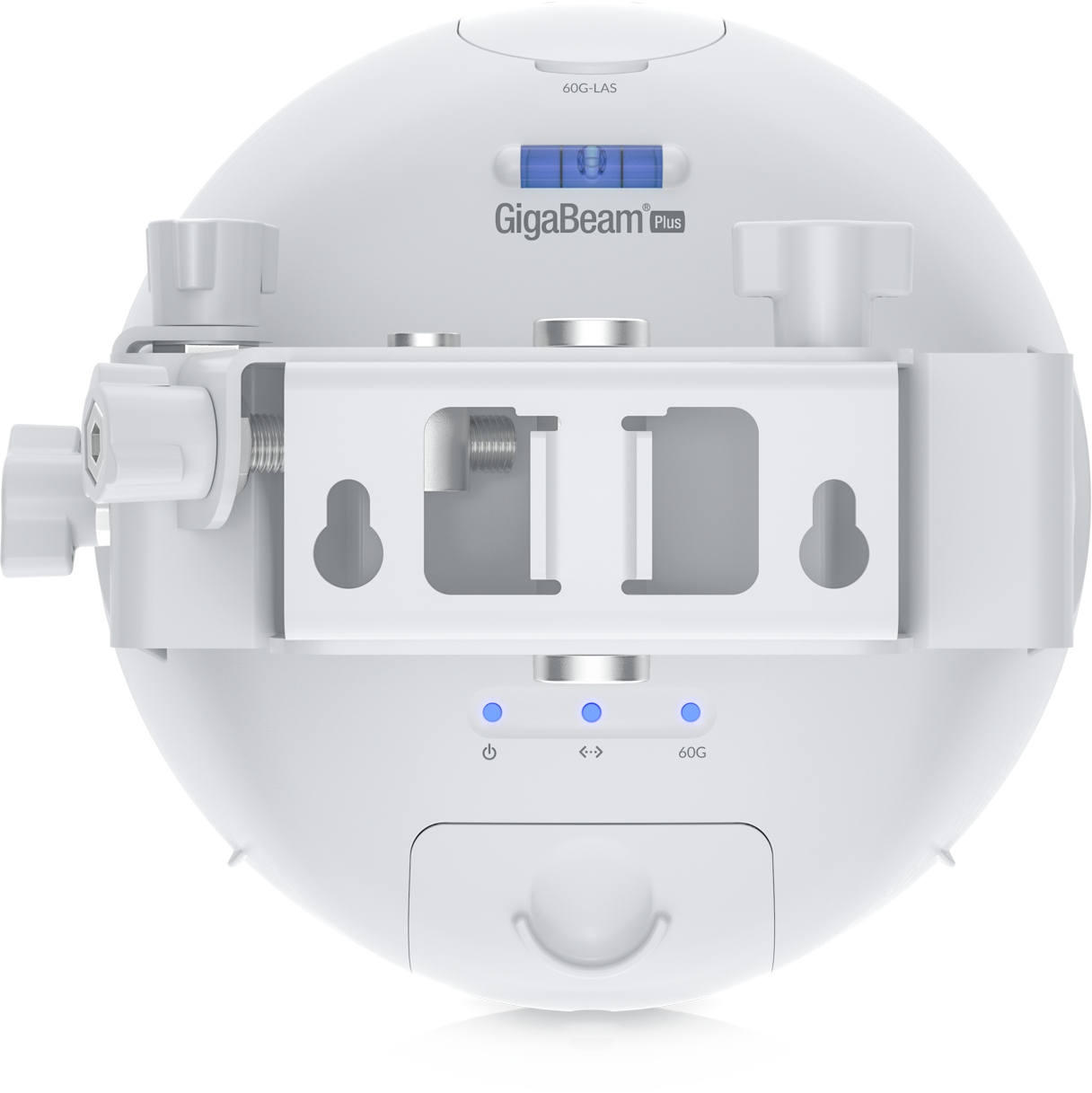

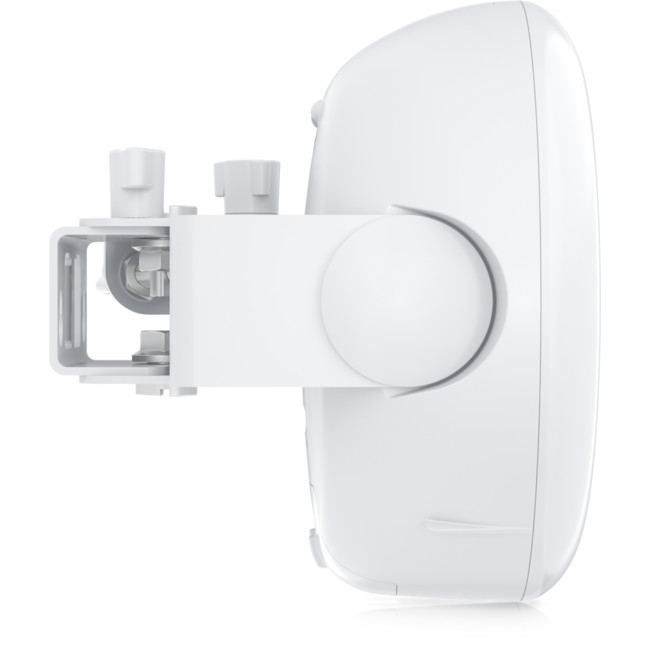

GBE-PLUS AIRMAX GIGA BEAM PLUS 60GHZ

Code: 09051648

1.70 kg
810010075284
EACH
Low Stock
DON'T PAY $1100
$369 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Ubiquiti 60GHz AirMax GigaBeam Plus Radio, Low Latency 1.5 Gbps Throughput, Up to 1.5km Distance

High-gain 60 GHz radio with a Cassegrain reflector that delivers 1.5 Gbps throughput with low latency.
GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP™? Mobile app via Bluetooth

Features:

  • Low-Interference 60 GHz Spectrum
  • 35 dBi Antenna Gain with Integrated Reflector
  • 1.5 Gbps Bidirectional Throughput with Low Latency
  • Long Range, up to 1.5 km
  • link.ui.com Planning Support
  • Quick Setup Using the UISP™? App via Bluetooth
  • 1.5 km link range
  • 1.5 Gbps max. throughput
  • (1) GbE port

Note. This product should be purchased in pairs in order to form links.

Mechanical
Dimensions Ø155 x 137 mm (Ø6.1 x 5.4")
Weight 1 kg (2.2 lb)
Enclosure material UV-resistant polycarbonate, stainless steel
Mount material Metal
Wind loading 50 N at 200 km/h (11.24 lbf at 125 mph)
Hardware
Processor Quad-Core ARM® Cortex® A7
Memory 256 MB DDR3
Networking interface (1) GbE RJ45 port
RF connections Internal
Max. power consumption 11W
Power method Passive PoE 2-pairs (4, 5 ; 7, 8-)
Power supply 24V DC, 0.5A gigabit PoE adapter (Included)
Supported voltage range 22 27V DC
ESD/EMP protection Air/contact: ± 24kV
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Operating modes PtP master or station
Ubiquiti specific features Integrated 60 GHz radio, discovery protocol
Security WPA2 AES only
Services UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
Tools Antenna alignment, discovery utility, traceroute, speed test
Management interface UISP application (web/mobile)
Minimum software requirements Any modern web browser/iOS™ or Android™ based smartphone
