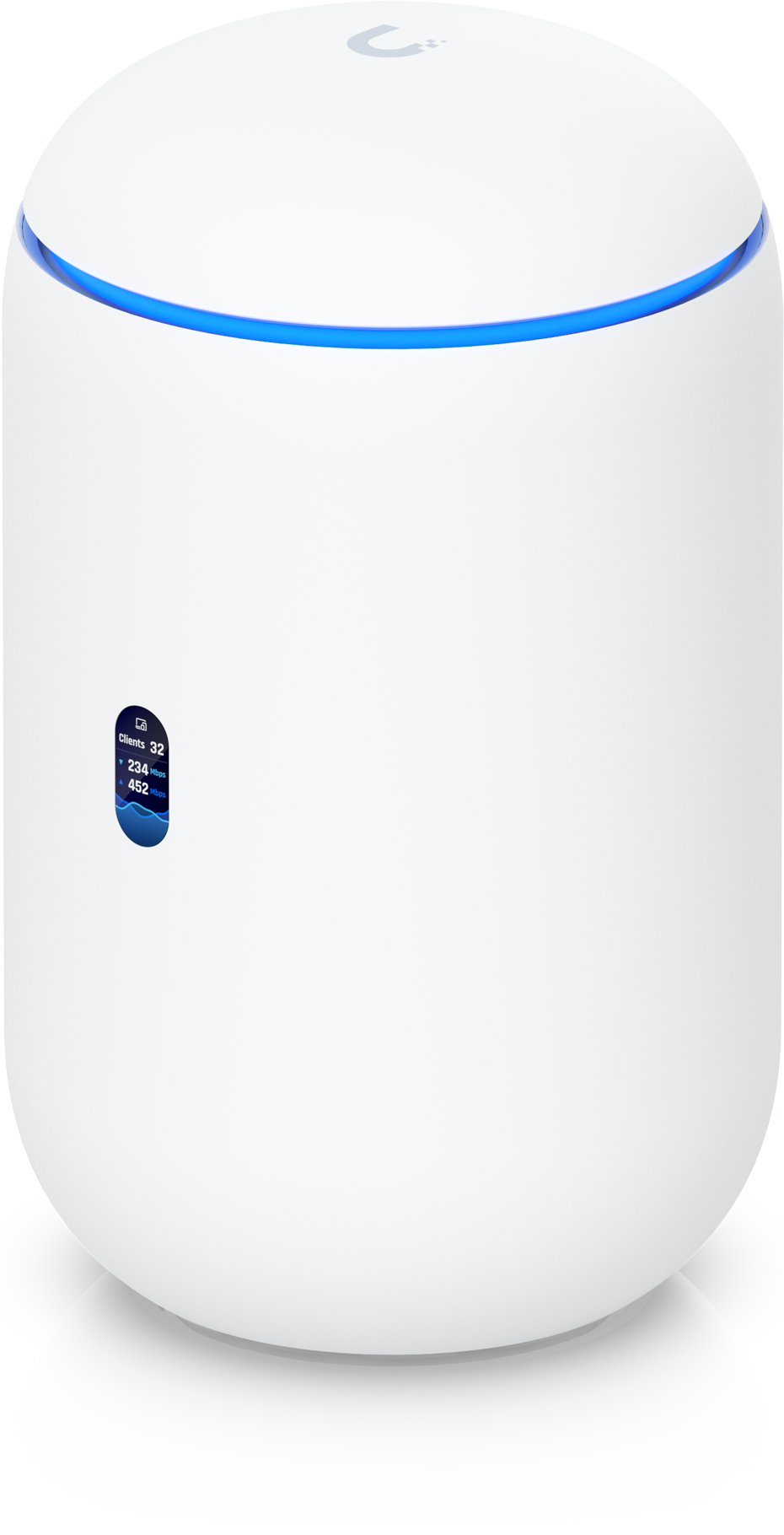

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
The Dream Router 7 serves as a desktop 10G cloud gateway, delivering high-speed networking with integrated Wi-Fi 7 support. This ensures enhanced wireless performance, reduced latency, and seamless connectivity for modern applications.
Desktop gateway firewall with an integrated WiFi 7 access point that powers your network and full UniFi application suite.

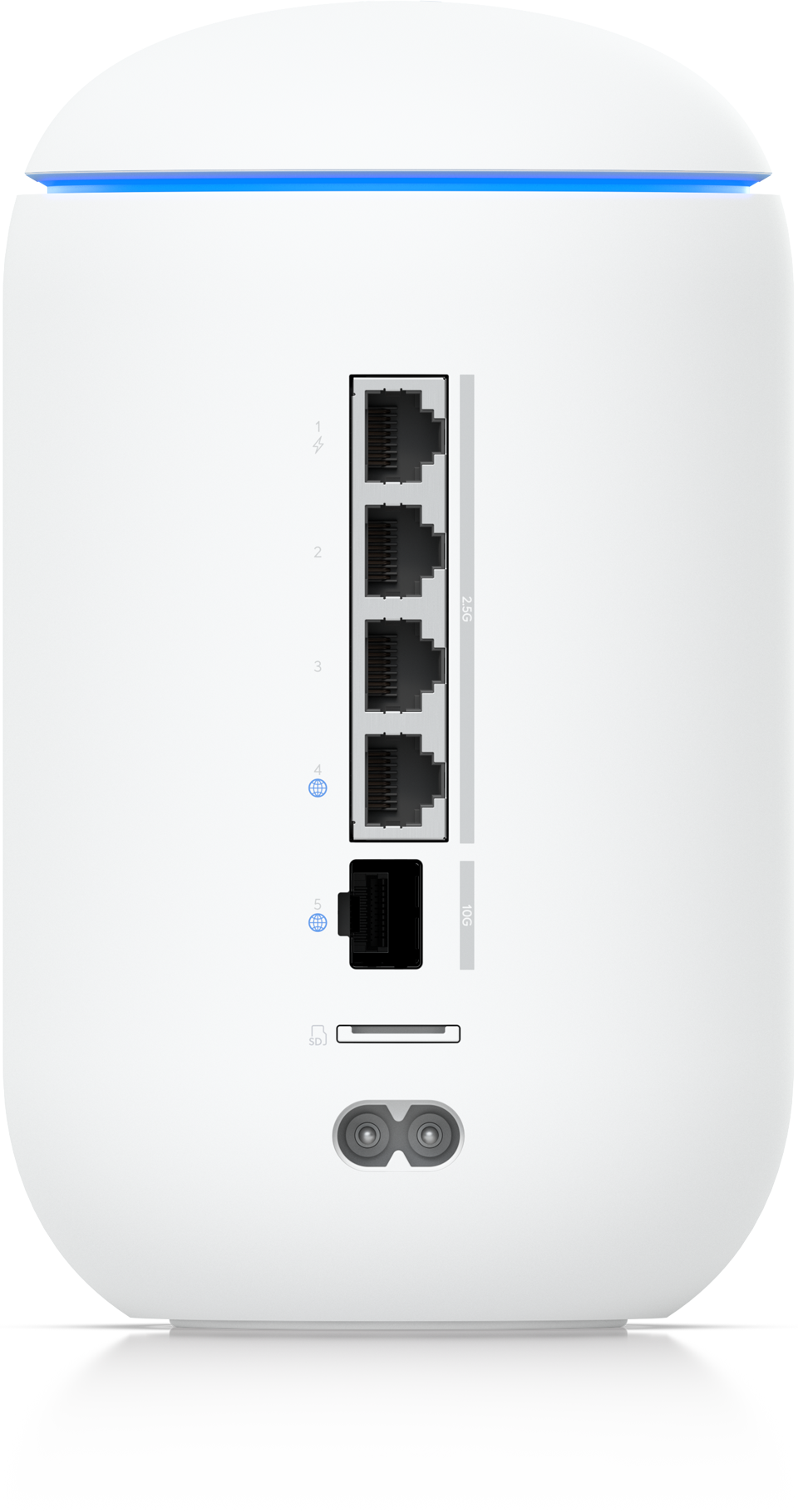

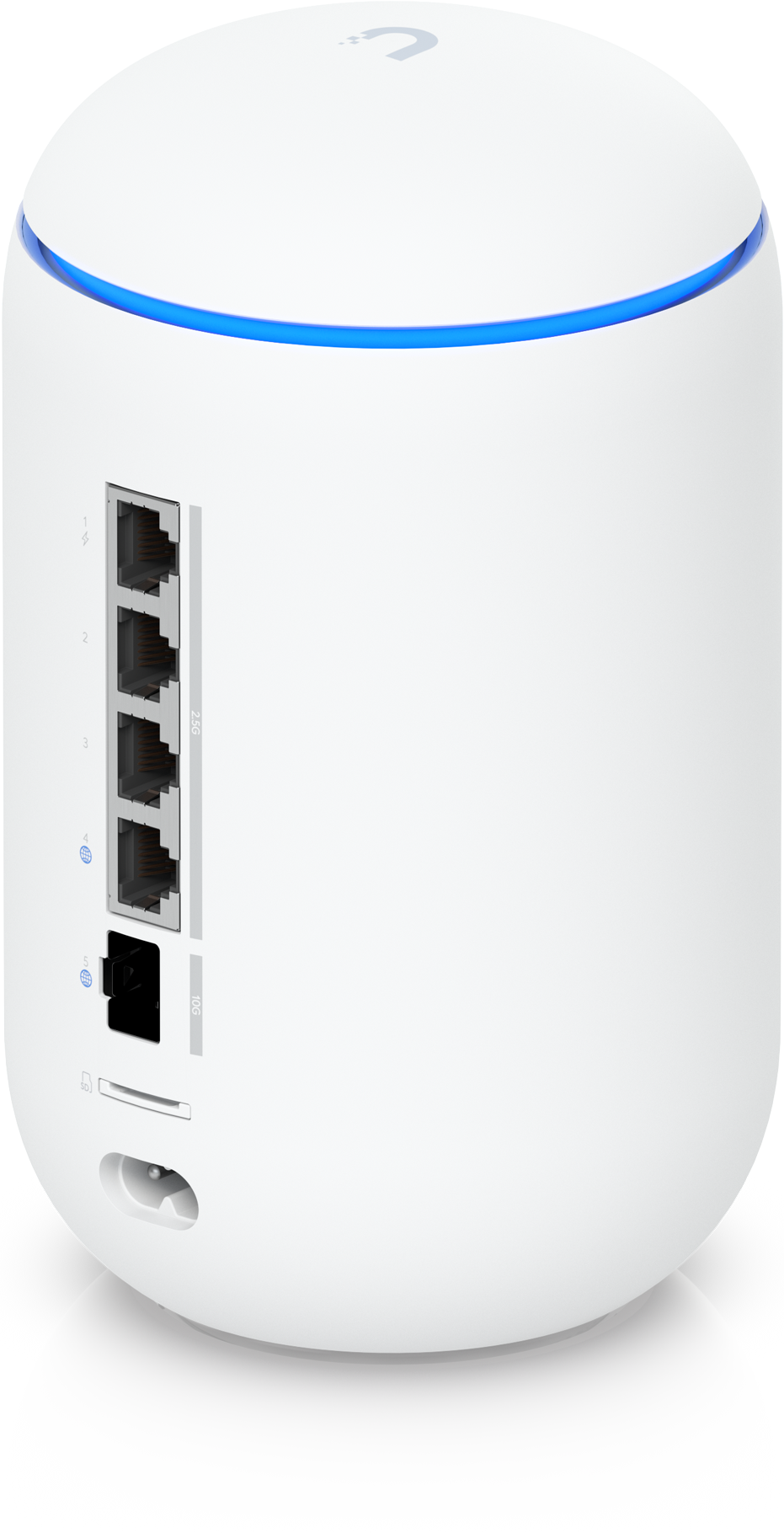

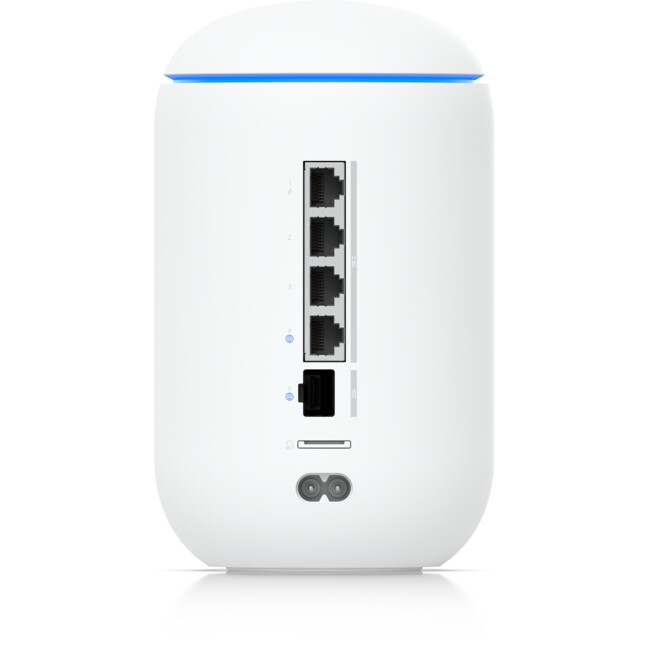

The Dream Router 7 features a 10G SFP+ port, enabling ultra-fast WAN connections to support high-bandwidth applications and future-proof your network infrastructure. In addition to its 10G WAN port, the UDR7 includes three 2.5 GbE RJ45 LAN ports, one of which supports PoE.
Equipped with full UniFi application support, the Dream Router 7 allows for centralised management of network devices, security cameras, and more. This integration simplifies network administration and enhances overall system efficiency.
With a built-in microSD card slot, the Dream Router 7 offers expandable storage options for applications like UniFi Protect. This provides flexibility in managing and storing surveillance footage and other critical data.
Overview |
Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
UniFi Application Suite | Network: Yes |
| Protect: Yes |
| Access: Yes |
| Talk: Yes |
| Connect: Yes |
Managed UniFi Devices | 30+ |
Managed Cameras | (5) HD |
| (2) 2K |
| (1) 4K |
Simultaneous Users Connected | 300+ |
Default WAN Ports | (1) 10G SFP+ |
| (1) 2.5 GbE RJ45 |
LAN Ports | (3) 2.5 GbE RJ45 including (1) PoE |
IDS/IPS Throughput | 2.3 Gbps |
Form Factor | Compact desktop |
Coverage Area |
160 m² (1,750 ft²) |
Security |
Stateful Firewall | Yes |
Application-Aware Layer 7 Firewall | Yes |
DPI & Traffic Identification | Yes |
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
Content Filtering | Yes |
Intrusion Prevention (IPS/IDS) | Yes |
Ad Blocking | Yes |
IDS/IPS Signatures | 20,000+ with CyberSecure |
VLAN/Subnet-based Traffic Segmentation | Yes |
VPN & SD-WAN |
License-Free SD-WAN | Yes |
Site-to-Site VPN | Site Magic: Yes |
| IPsec: Yes |
| OpenVPN: Yes |
VPN Server | Identity Endpoint One-Click VPN: Yes |
| Teleport Zero-Configuration VPN: Yes |
| WireGuard: Yes |
| OpenVPN: Yes |
| L2TP: Yes |
VPN Client | OpenVPN: Yes |
| WireGuard: Yes |
Networking |
Multi-WAN Load Balancing | Yes |
Dynamic Routing | OSPF |
Advanced QoS | Yes |
Multicast DNS (mDNS) | Yes |
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
Integrated RADIUS Server | Yes |
RADIUS over TLS (RadSec) | Yes |
Additional Internet Failover with UniFi LTE Backup | Yes |
Internet Quality and Outage Reporting | Yes |
MAC Address Table Size | 2,000 |
Policy-based WAN and VPN Routing | Yes |
Customisable DHCP Server | Yes |
IPv6 ISP Support | Yes |
IGMP Proxy | Yes |
Integrated WiFi |
WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
Throughput | 6 GHz: 5.7 Gbps |
| 5 GHz: 4.3 Gbps |
| 2.4 GHz: 688 Mbps |
MIMO | 6 GHz: 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz: 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
Antenna Gain | 6 GHz: 6 dBi |
| 5 GHz: 7 dBi |
| 2.4 GHz: 5 dBi |
Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
Max. BSSIDs | 4 per Radio |
Supported Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b: 1, 2, 5.5, 11 Mbps |
| 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
Hardware |
NVR Storage | Pre-installed 64GB microSD for NVR |
Expansion Slot | MicroSD Card |
PoE Budget | 15.4W |
Voltage Range PoE Mode | 44-57V |
Power Method | Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 50W |
| Max. TX Power | 6 GHz: 24 dBm |
| 5 GHz: 26 dBm |
| 2.4 GHz: 23 dBm |
Supported Voltage Range | 100-240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| Weight | 1.1 kg (2.4 lb) |
Enclosure Material | Polycarbonate |
ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Button | (1) Factory-reset |
| Software |
VLAN | 802.1Q |
| Guest Traffic Isolation | Yes |
Application Requirements | UniFi Network Version 9.0.108 and later |
