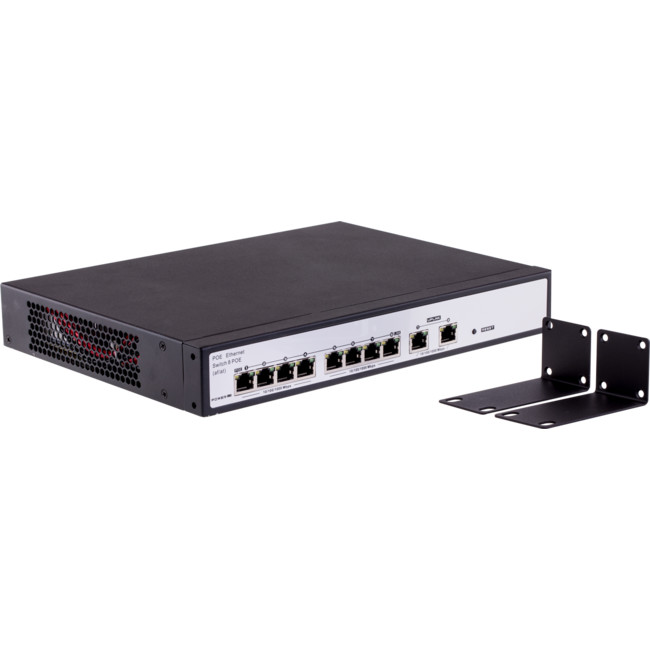

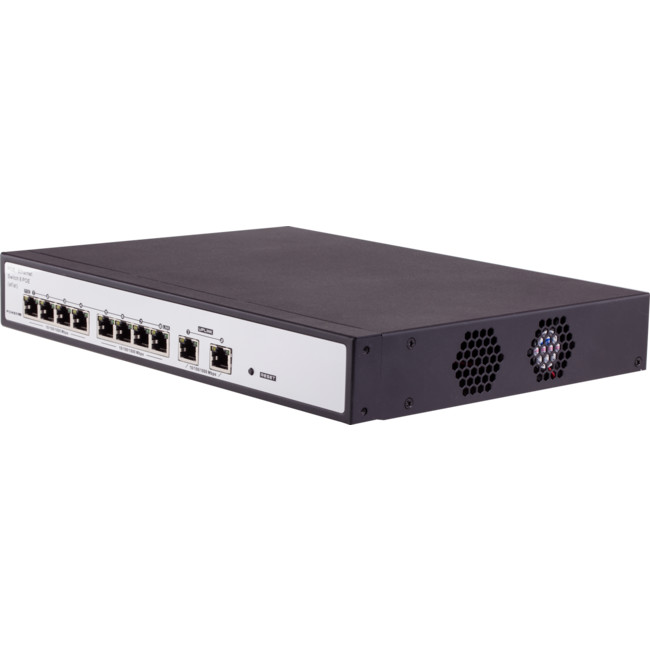

POE08265 8 PORT 265W POE SWITCH

Code: 09051450

3.07 kg
9328202026323
EACH
5
Low Stock
$249 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

8-Port 10/100Mbps IEEE 802.3af/802.3at PoE Switch

Features

  • Provide 8 x 100Mbps Ethernet ports, 2 x 1000Mbps combo up-link port (2x10/100/1000Mbps port or 2x1000Base-XSFP optical fiber port)
  • Support End-Span method, complies with IEEE802.3 af/atstandards, can supply max 30W power which is possible to power high-power infrared cameras.
  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z, IEEE802.3af/at standards.
  • Support IEEE802.3x full-duplex flow control, support Auto MDI/MDIX.
  • Support port-base Vlan, prevent from broadcast storm so that make data conversion more efficient and safe.
  • Restart function helps master IC reset wholly. Easy for users to solve network failure without swapping
  • Excellent lightning protection, lightning capacity up to 4KV

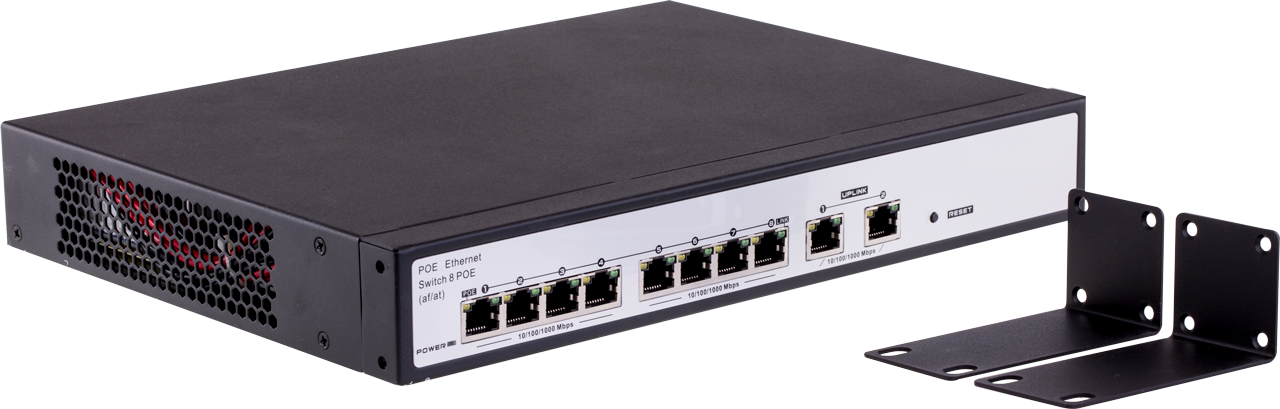

  • Easy to install and operate on walls or on the desktops

Overviews

POE08265 is specialized unmanaged PoE switch designed for video surveillance and network project system, etc. It provides 8 x 100Mbps Ethernet ports and 2 x 1000Mbps combo uplink port (2x10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port), can effectively prevent whole system from broadcast storm so that make the data transfer more safe.
This general network switch and PoE network switch.can meetcustomers’ general demands. PoE network switch with PoE function, designed for high-definition network cameras’ internet access. It provides 8 100Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.

Applications

  • Security Monitoring System
  • Multimedia Network Teaching System
  • Medical Monitoring Display System
  • Industrial Automation Control System
  • Banking, securities, financial information display system
  • Remote Network Server Monitoring
  • Department Store Security
  • Casino Security
  • Hospitals, Airports and banks
  • School Campuses

Technical Specifications



Model

POE08265

Power Supply

Power Supply Mode

Power Adaptor

Voltage Range

DC 48~56V

Power Consumption

The device<8W
PoE power supply <260W

Network Port Parameter

Network Ports

1~8 Ethernet Port:10/100/100Mbps
2 Uplink Port:10/100/1000 Mbps

Transmission Distance

1~8 Ethernet Port:0-100m
Uplink Port:0-100m

Transmission Media

1~8 Ethernet Port:Cat5e/6 standard UTP cable,
Uplink Port:Cat5e/6 standard UTP cable

PoE Agreement

IEEE802.3 af/at standards

PoE Power Supply Mode

End-span method

PoE Power Supply Wattage

Each port=30W,Whole device<260W

Network Switch Specification

Network Standard

IEEE802.3,IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z

Swap Mode

Store-and- forward

Data-Caching Mechanism

1M

MAC Address List

4K

Status Indicators

Power Indicator Light

One power light (red)

Optical Fiber Port Indicator

One fiber link indication light ( green), Green light keeps on when the fiber port is well connected; Blinking when transceiver data

FE Uplink Port

LED (Green): On, port is link on Off, port is link down;LED(Yellow):on when link speed is 1000M,Off when link speed is 10/100M Blink when transceiver data,

PoE Indicator

8 PoE indicator light(yellow)

PoE Network Port LED

1~8 port ( green lighton RJ45 jack) Keeps on when normally connected, Blinking when transceiver data

Reset Indicator

1 restart indication light (green), light on when press the button

Vlan Indicator

One green indication light

Button/ Switch

Reset Button

One button. Whole machine will restart while press the button

Vlan Switch

One, slide switch to “ON” press restart button, Vlan function opens

ProtectionLevel

Surge Immunity

Level 3, executive standard:IEC61000-4-5

Electrostatic Protection

1a touch electric discharge: level 3
1a Air discharge: level 3 Executivestandard:IEC61000-4-2

Operating Environment

Working Temperature

0~55 degree

Storage Temperature

-40~70 degree

Humidity(non-congeal)

0~95%

MechanicalAttributes

Dimensions (L*W*H)

300mmx222mmx44mm

Color

Black

Weight

1Kg

Reliability

Mean time between failures (MTBF)

>50000h
