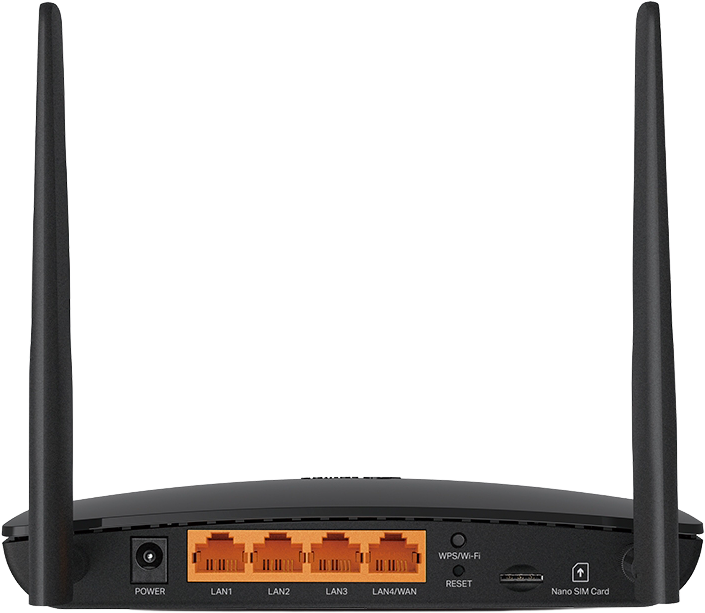

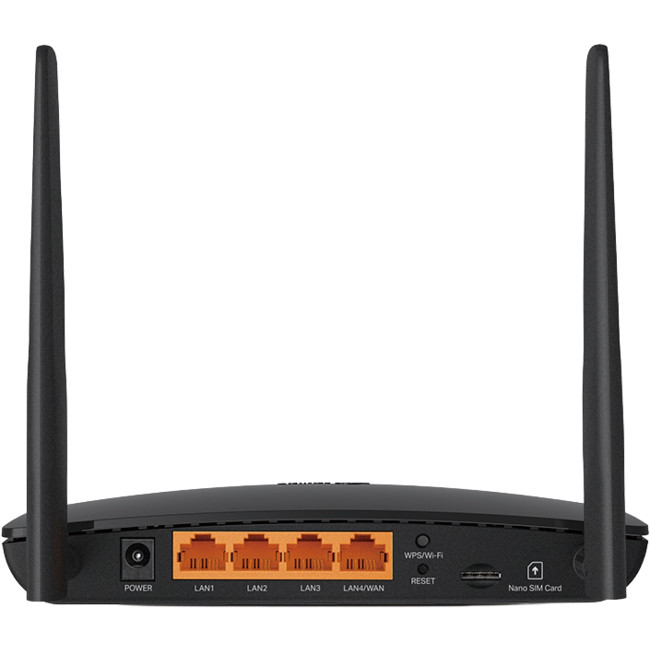

| HARDWARE FEATURES | Interface | - 3 × 10/100Mbps LAN Ports
- 1 × 10/100Mbps LAN/WAN Port

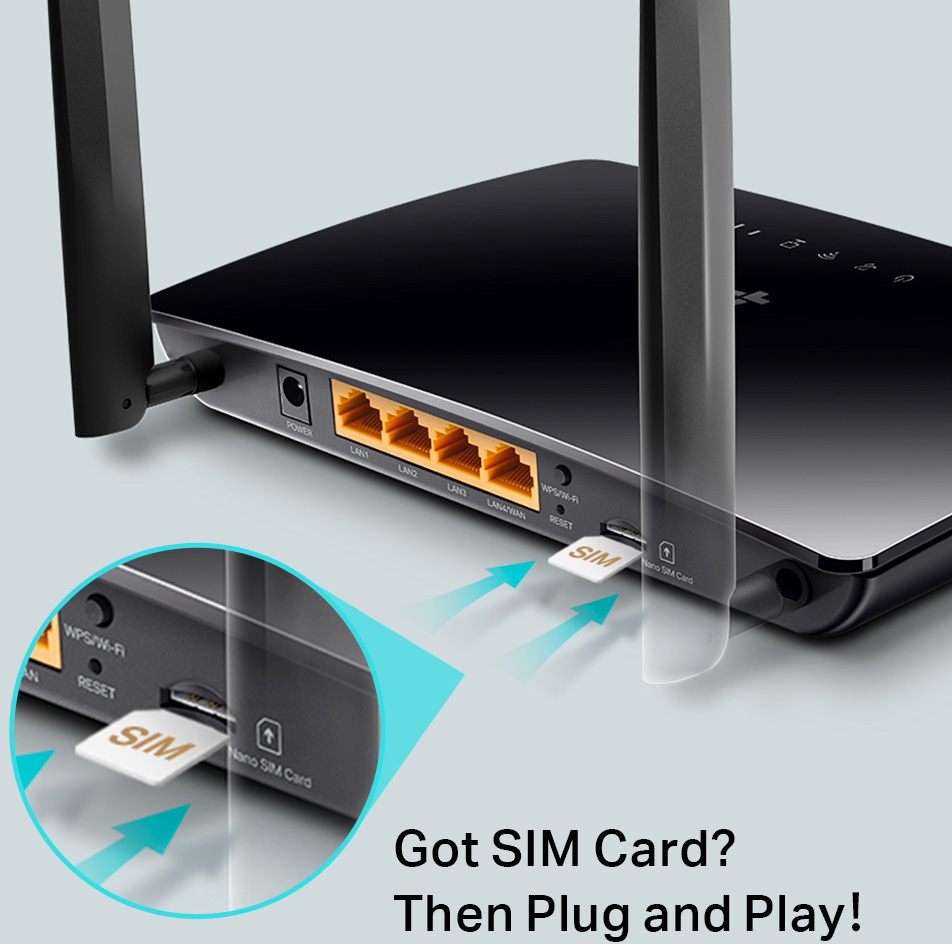

- 1 × Nano SIM Card Slot
- 2 × External SMA-F Antenna Interface
|
| Button | WPS/Wi-Fi Button, Reset Button |
| Antenna | 2 × Detachable External 4G LTE Antennas |
| WIRELESS FEATURES | Wireless Standards | - IEEE 802.11a/n/ac 5 GHz
- IEEE 802.11b/g/n 2.4 GHz
|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
| Reception Sensitivity | - 5 GHz:
- 11a 54M: −77 dBm
- 11ac VHT20 MCS0: −95.5 dBm
- 11ac VHT20 MCS8: −73 dBm
- 11ac VHT40 MCS0: −93 dBm
- 11ac VHT20 MCS9: −68 dBm
- 11ac VHT80 MCS0: −90 dBm
- 11ac VHT20 MCS9: −65 dBm
- 2.4 GHz
- 11g 54M: −74.5 dBm
- 11n HT20 MCS0: −92 dBm
- 11n HT20 MCS7: −73 dBm
- 11n HT40 MCS0: −89 dBm
- 11n HT40 MCS7: −70 dBm
|
| Wireless Functions | - Enable/Disable Wireless Radio
- Wireless Schedule
- WMM
- Wireless Statistics
|

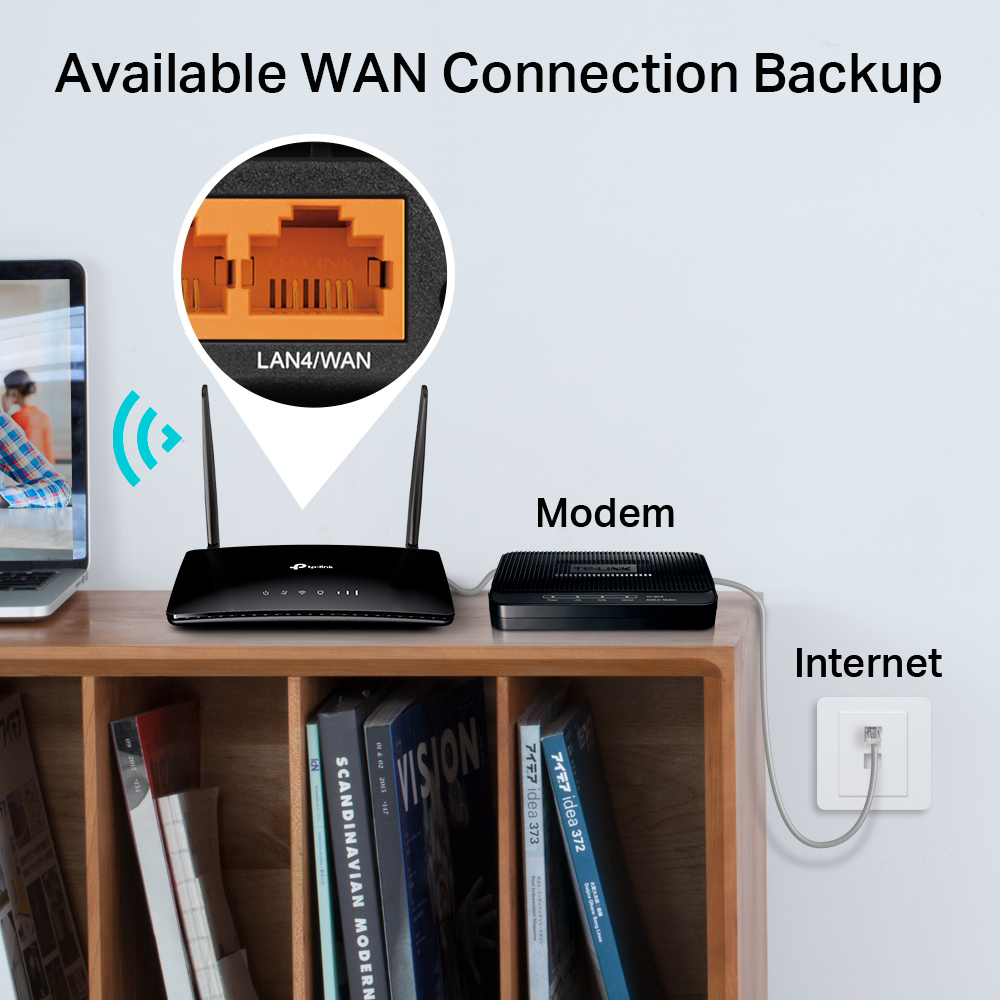

| WAN Failover | |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Transmission Power | - <20 dBm (2.4 GHz)
- <23 dBm (5 GHz)
|
| Network Type | - 4G:
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
- TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
- 3G:
- HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
|
| SOFTWARE FEATURES | Quality of Service | Prioritises network traffic by device or application |
| Operating Modes | - 3G/4G Router
- Wireless Router
|
| WAN Type | - Dynamic IP
- Static IP
- PPPoE
- PPTP (Dual Access)
- L2TP (Dual Access)
|
| Management Features | - Access Control
- Local Management
- Remote Management
- Reboot Schedule
|
| DHCP | - Server
- Client
- DHCP Client List
- Address Reservation
|
| Port Forwarding | - Virtual Server
- Port Triggering
- UPnP
- DMZ
|
| Dynamic DNS | |
| VPN | |
| Access Control | - Parental Control
- Local Management Control
|
| Firewall Security | - DoS
- SPI Firewall
- IP Address Filter
- Domain Filter
- IP and MAC Address Binding
|
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | - 1 × 2.4GHz Guest Network
- 1 × 5GHz Guest Network
|
| ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | −40°C~70°C (−40°F~158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| GENERAL | Certification | CE, RoHS |
| External Power Supply | 12V/1A |
| Dimensions (W×D×H) | 174mm × 124.5mm × 33.5mm (6.85″ × 4.9″ × 1.32″) |

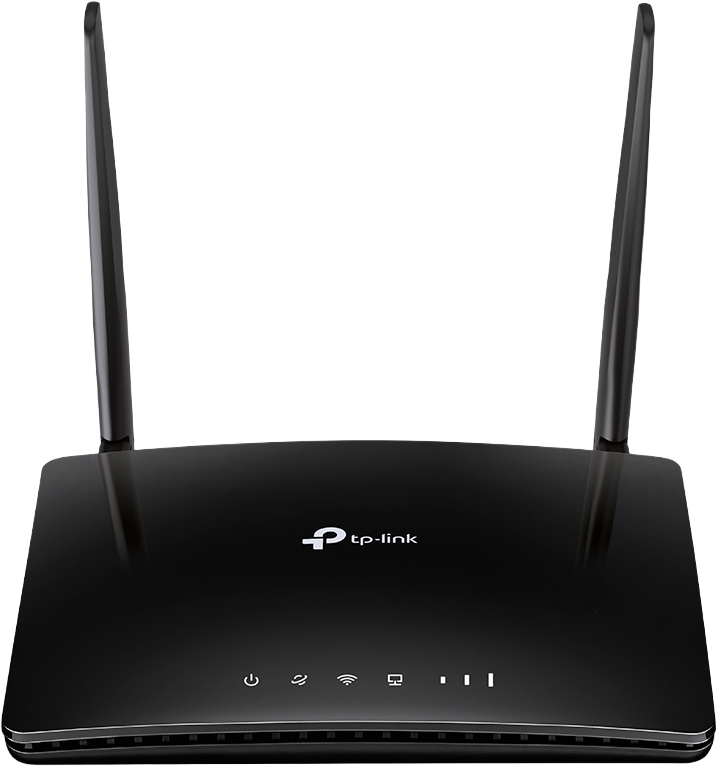

| Package Contents | - AC1200 Wireless Dual Band 4G LTE Router, Archer MR402
- RJ45 Ethernet Cable
- 1.5m Power Adapter
- Quick Installation Guide
|
| System Requirements | - Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10
- MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers
- Nano SIM Card
|
