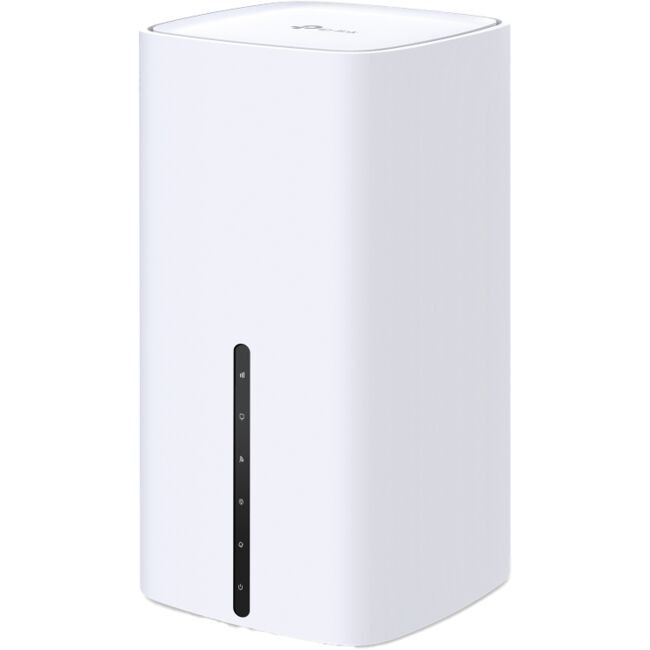

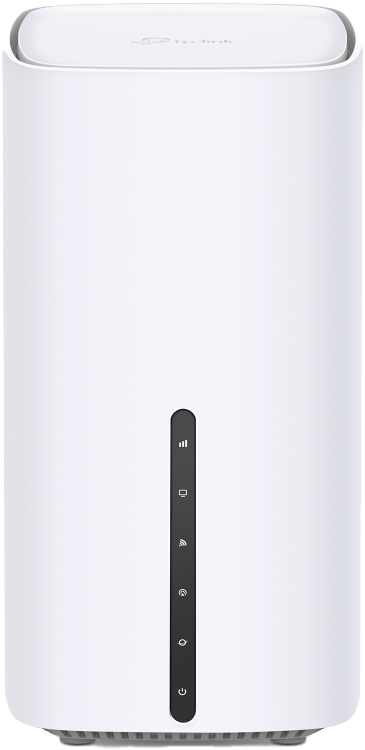

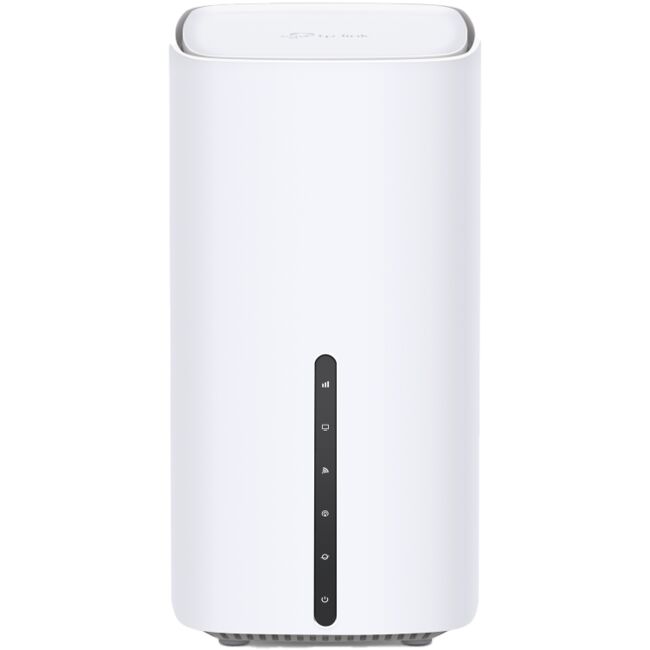

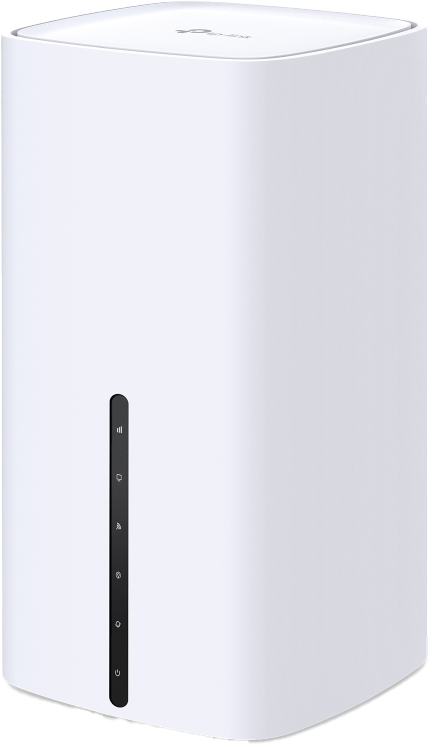

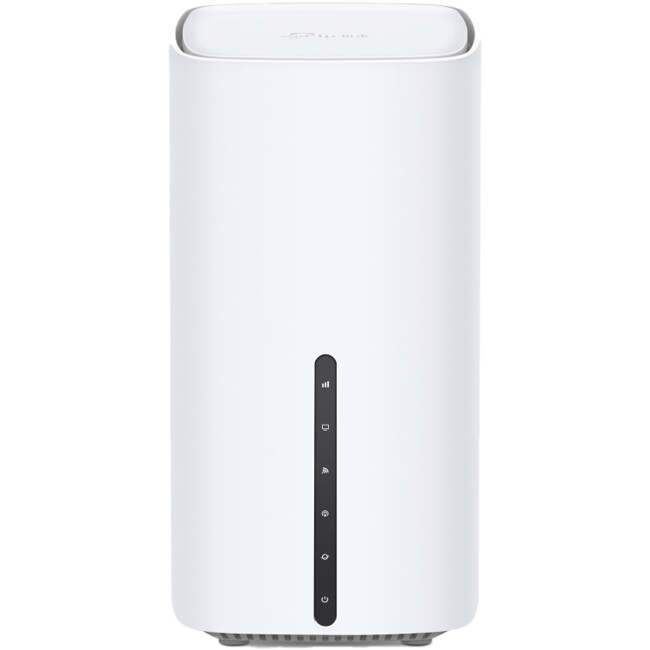

ARCHERNX600 5G AX3600 DUAL BAND 2.5 GIG ROUTER

Code: 09051132

8885020624878
EACH
8
ETA 2025-09-17
$649 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

TP-Link Archer NX600 5G AX3600 Wireless Dual-Band 2.5 Gig Router, 2402 Mbps at 5 GHz 1148 Mbps at 2.4 GHz, 5G NR 4.67Gbps/1.25Gbps, LTE support Cat

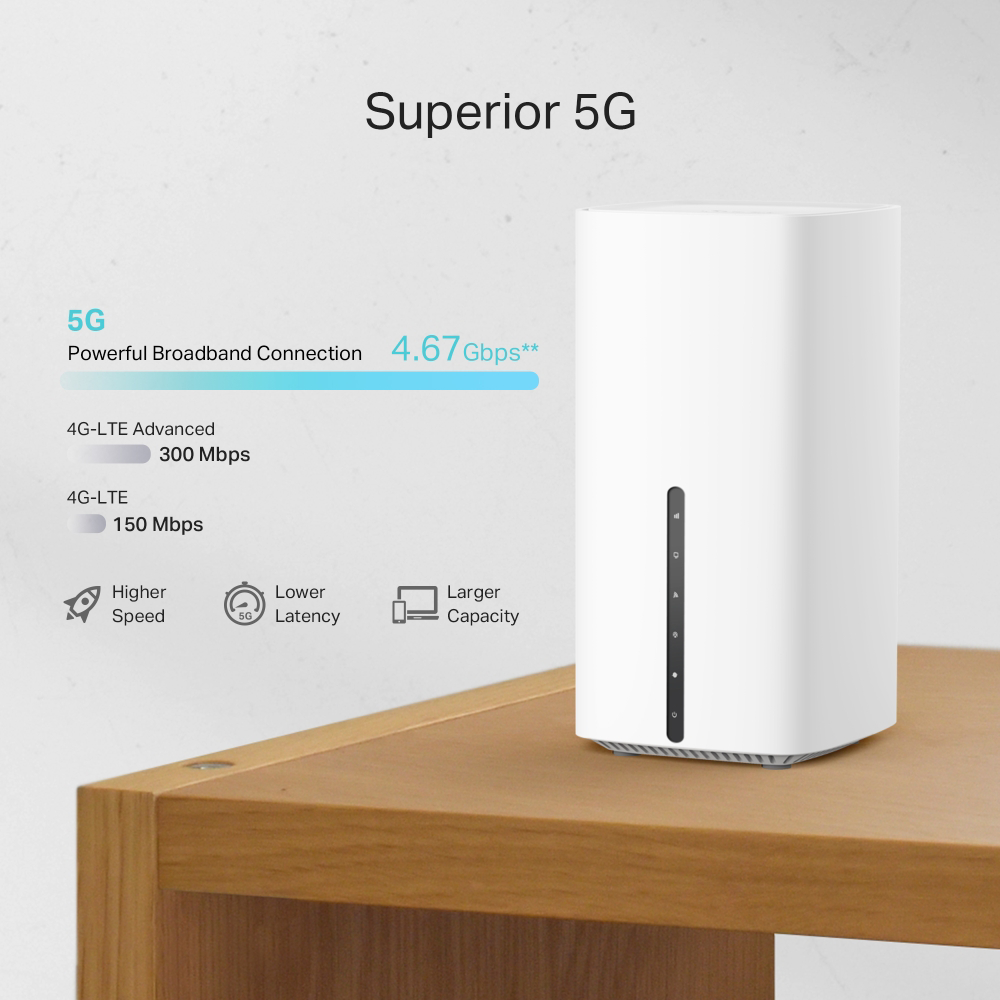

  • Boost Your 5GSpeed -Takeadvantage of your advanced 5G network with download speeds up to4.67Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
  • AX3600Dual-Band Wi-Fi 6Speed -2402Mbps (5 GHz) 1148 Mbps (2.4 GHz).
  • Plug&Play -Enjoy5G network right after inserting a SIM card.
  • EasyMesh-Compatible -Co-workwith EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
  • 2.5 Gbps WAN/LANPort -The2.5 Gbps WAN/LANport enables NX600 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.

HARDWARE FEATURES

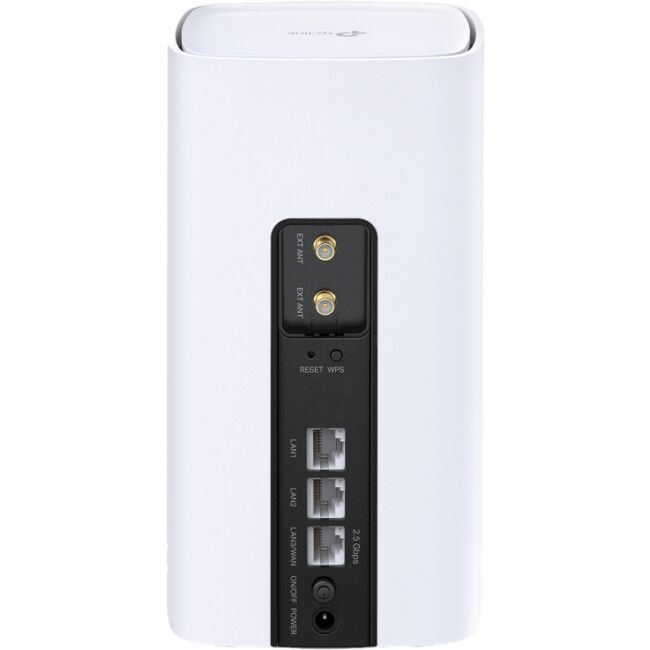

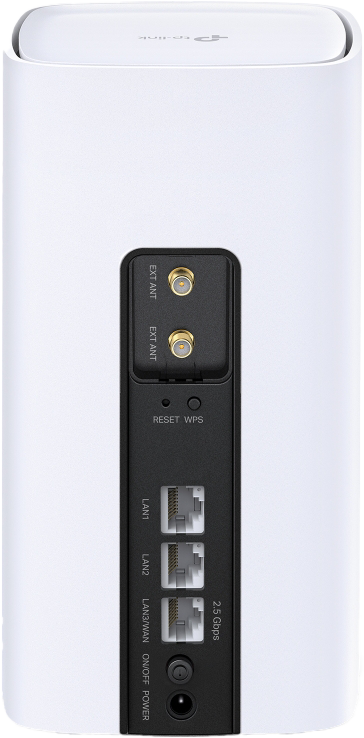

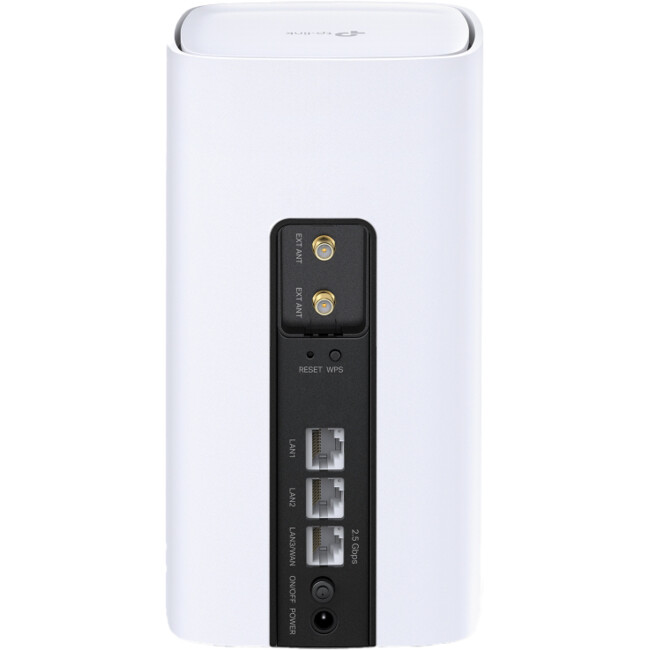

Interface 1 × 2.5 Gbps WAN/LAN Port
2 × 10/100/1000 Mbps LAN Ports
1 × Nano SIM Card Slot
2 × External SMA-F Antenna Interface
Button WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
External Power Supply Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2A
Dimensions ( W x D x H ) 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)
Antenna 8 × 5G/LTE Internal Antennas
2 × Wi-Fi Internal Antennas

WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 1148 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz
Reception Sensitivity 5GHz:
11a 54M:-80 dBm
11ax HE20:-68 dBm
11ax HE40:-65 dBm
11ax HE80:-62 dBm
11ac VHT20:-76 dBm
11ac VHT40:-72 dBm
11ac VHT80:-68 dBm
11n HT20:-79 dBm
11n HT40:-75 dBm
2.4GHz
11g 54M:-78 dBm
11ax HE20:-65 dBm
11ax HE40:-62 dBm
11ac VHT20:-73 dBm
11ac VHT40:-68 dBm
11n HT20:-75 dBm
11n HT40:-72 dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN Failover Yes
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power <23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz)
Network Type 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/ (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
DC-HSDPA/HSPA /HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES
Quality of Service Prioritizes network traffic by device or application
Security DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features TP-Link Cloud, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link, DynDns, NO-IP
VPN PPTP VPN, IPSec VPN , OpenVPN
Access Control Parental Control, Local Management Control
Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding
Protocols IPv4, IPv6
Guest Network 2.4 GHz Guest Network x 1
5 GHz Guest Network x 1

OTHERS
Certification CE, RCM, RoHS
Package Content 5G AX3600 Wireless Dual-Band Gigabit Router Archer NX600
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Nano SIM Card
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
