PP246 24 PORT CAT6 PATCH PANEL

Code: 09009636

0.7700 kg
9312663124919
EACH
Call for Availability!
$69.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

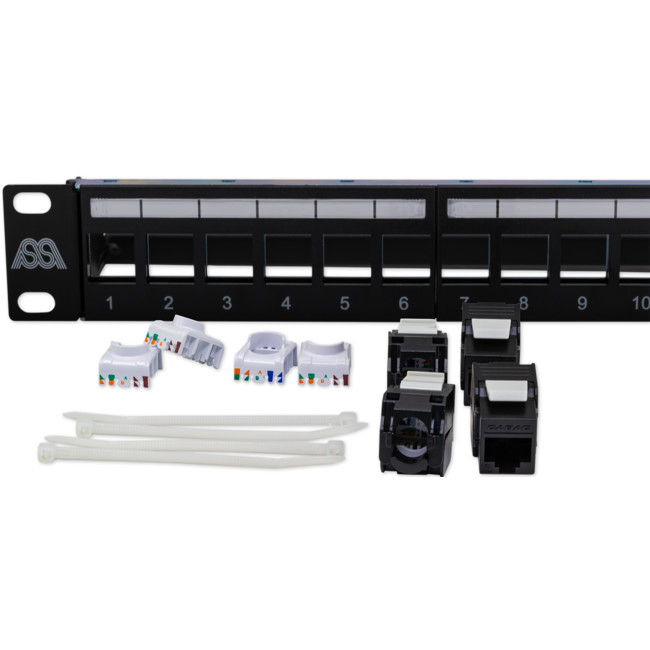

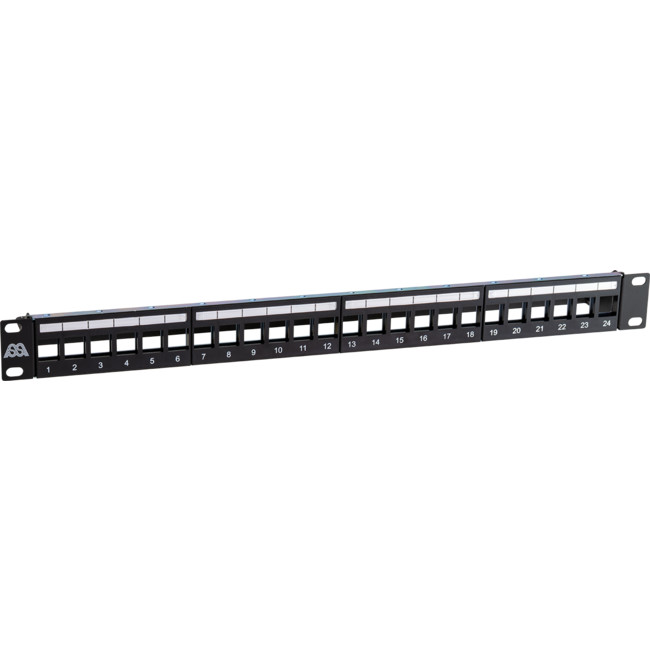

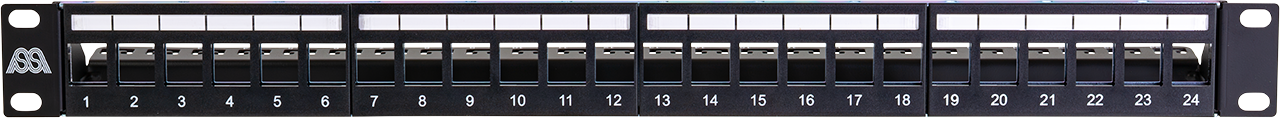

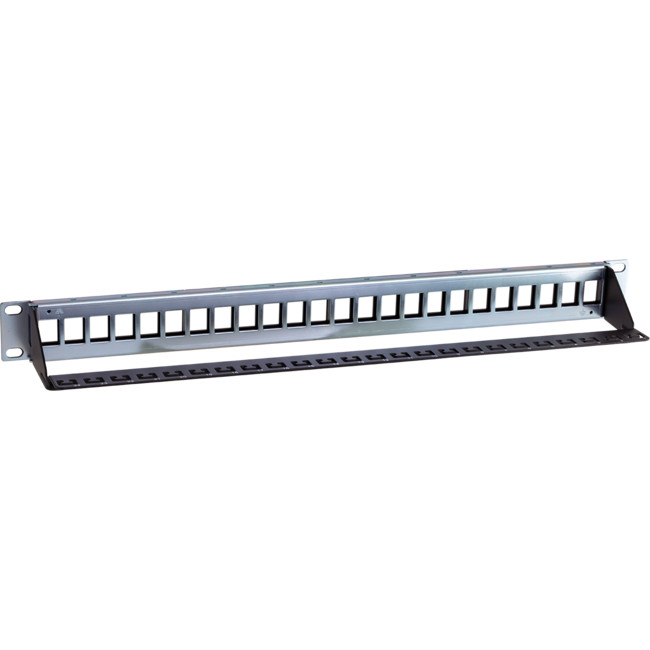

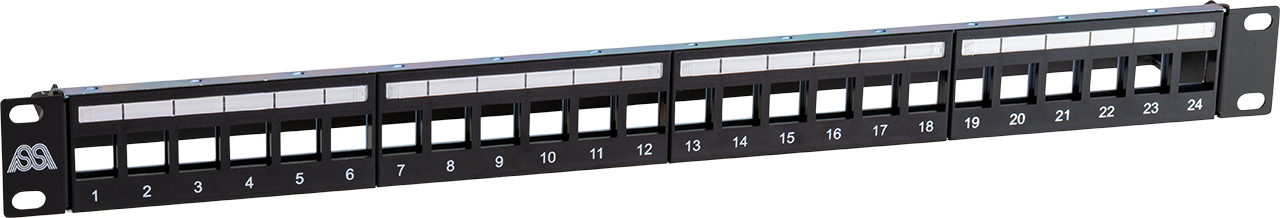

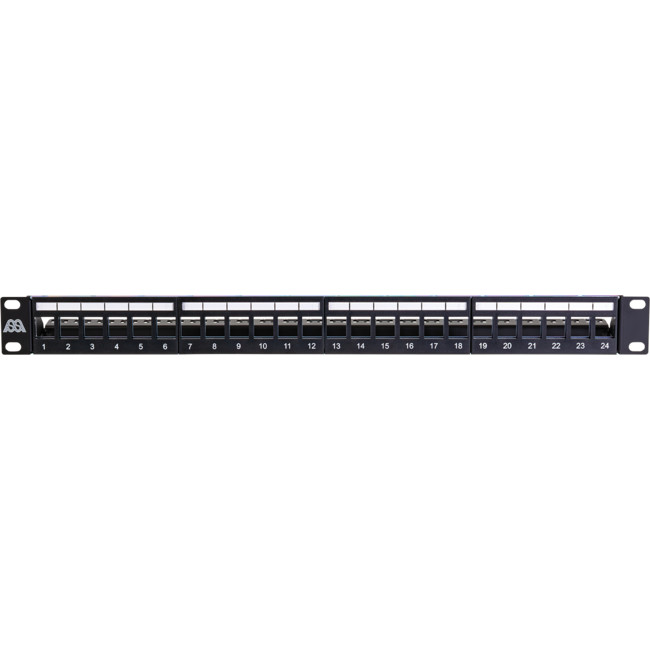

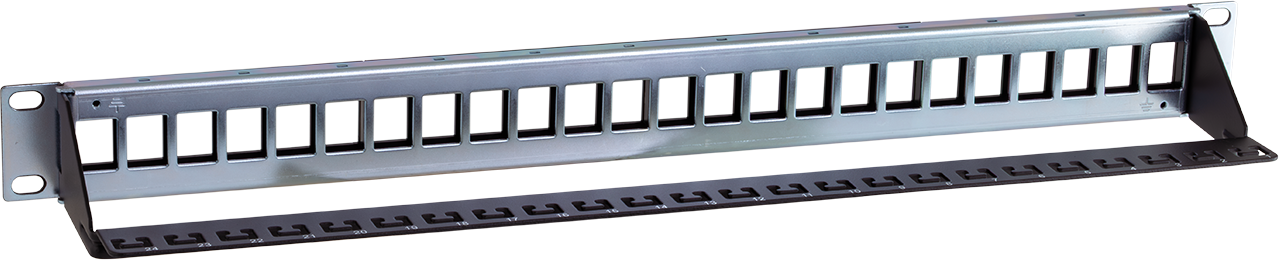

24-Port CAT6 Metal Patch Panel

  • 1U metal patch panel case
  • RJ45 Jacks:
    • Body: PC, UL94V-0 rated
    • Colour: Black (other colours available, MOQ applies)
    • Contacts: Phosphor bronze
    • Contact area: 50µ″ gold-plated over nickel
    • Solder area: Tin-lead over nickel
  • 110 Connectors:
    • Body: PC, UL94V-0 rated
    • Colour: Ivory
    • Contacts: Tin-plated phosphor bronze
  • P.C. Board: FR4, 1.6mm, double-sided, UL94V-0 rated
  • Operating temperature: 0°C to 80°C
  • Insertion force: 900g for 8 contacts
  • Retention strength: 7.7kg between jack and plug
  • Durability:
    • 750 insertion cycles
    • Contact resistance tested every 100 cycles
    • Max insertion speed: 20 cycles/min
  • Certifications: ETL Verified, UL Listed, ANSI/TIA/EIA-568-B.2, ISO/IEC 11801 Class E, FCC

Note: Panel is unloaded.
