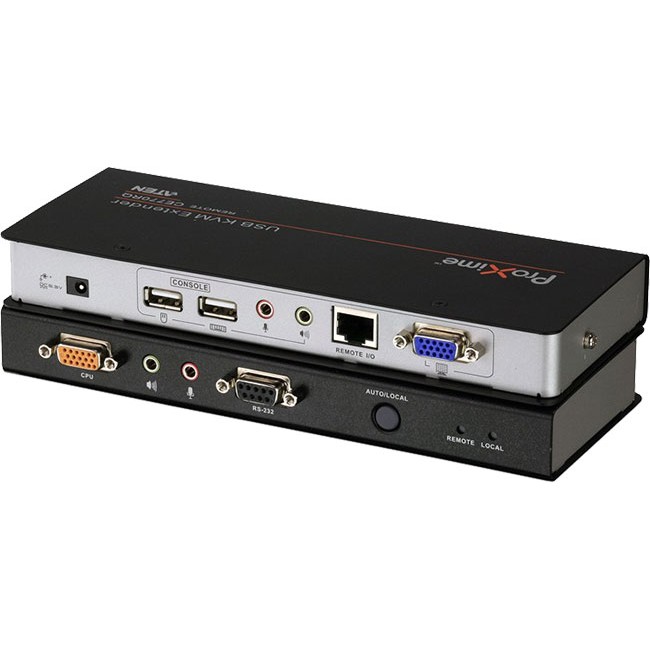

Name: CE770 KVM EXTENDER OVER CAT5 USB BASED AUDIO ENABLED
Brand: ATEN
SKU: 09005505
Price: 748 AUD
Availability: InStock

USB BASED AUDIO ENABLED

Code: 09005505

EACH

Special
Buy-In

$748 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features

Aten USB based KVM Extender with Deskew function 1920x1200 up to 150mtrs - Mac compatible

The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console.

The CE770 supports RGB delay tuner to manually synchronizethe RGB signals. This allows users to deploy system equipment over large distances. The CE770's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

Local and Remote Units connect at distances up to 300 m using Cat 5e cable
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC)
RS-232 serial ports - allow you to connect to aserial terminal, or serial devices such as touchscreens and barcode scanners
Audio Enabled - supports stereo speakers and microphone
Superior Audio - no loss in audio quality at 300 m
Pushbutton operating mode selection (Local Unitonly) - select between Local and Auto operating modes, with the press of a single button
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
Spports Wide Screen formats
Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B

Function			CE770L	CE770RQ
Connectors	Console Ports	Keyboard	1 x USB Type A Female (White)
		Video	1 x HDB-15Female (Blue)
		Mouse	1 x USB Type A Female (White)
		Speakers	1 x Mini Stereo Jack Female (Green)
		Mic.	1 x Mini Stereo Jack Female (Pink)
		RS-232	1 x DB-9 Female (Black)	1 x DB-9 Male (Black)
	KVM Ports	Keyboard/ Video / Mouse	1 x SPHD-17 Female (Yellow)	N/A
		Speakers	1 x Mini Stereo Jack (Green)
		Mic.	1 x Mini Stereo Jack (Pink)
	Power		1 x DC Jack (Black)
	Unit to Unit		1 x RJ-45 Female (Black)
LEDs	Local		1 (Green)	N/A
	Remote		1 (Green)	N/A
	B		N/A	1 (Blue)
	G	Link	N/A	1 (Orange/Green)
	R	Remote	N/A	1 (Red)
Pushbuttons	Operating Mode Selection		1 x Pushbutton	N/A
	Color / Up		N/A	1 x Pushbutton
	Select / Down		N/A	1 x Pushbutton
Emulation	Keyboard /Mouse		USB
Video			1920 x 1200 @ 60Hz (150 m); 1280 x 1024 @ 60Hz(300m); DDC, DDC2, DDC2B
Power Consumption			DC5.3V/3.5W	DC5.3V/5.1W
Environment	Operating Temp.		0 - 50?XC
	Storage Temp.		-20 - 60?XC
	Humidity		0-80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.49 kg	0.48 kg
	Dimensions (L x W x H)		20.00 x 8.00 x 2.50 cm

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.

Package Contents

1x CE770L USB KVM Extender (Local Unit)
1x CE770RQ USB KVM Extender (Remote Unit)
1x USB KVM Cable (1.8m)
2x Power Adapter
1x Rack Mount Kits
2x Grounding Wires
1x User Manual
1x Quick Start Guide
