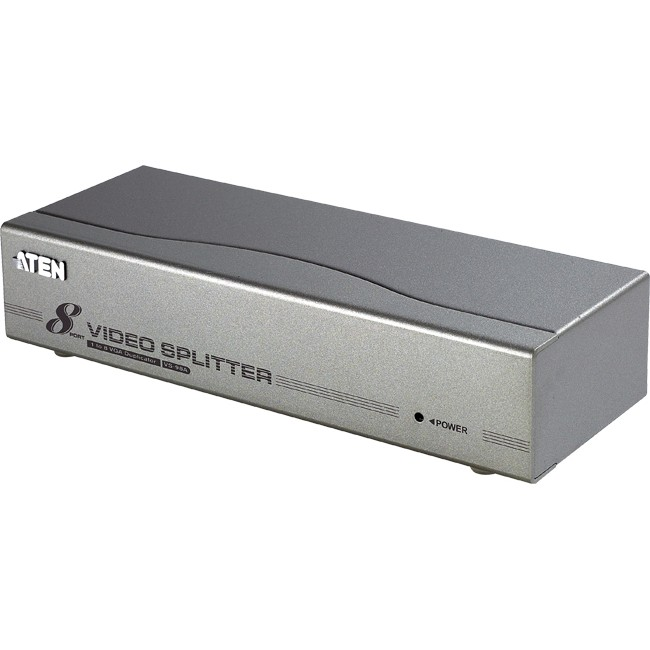

VS98A 8 WAY VGA VIDEO DISTRIBUTION

AMPLIFIER SPLITTER

Code: 09005046

0.8900 kg
672792000140
EACH
ETA
2024-04-15
$121 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

8-Port VGA Video Splitter

The VS98A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to eight outputs, but also boosts the video signal over a distance of up to 65 meters. Cascadable to support up to 512 displays, and offering bandwidth up to 300 MHz, the VS98A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.

FEATURES:

  • One video input to 8 video outputs
  • Cascadable to 3 levels - provides up to 512 video signals
  • Supports 300 MHz bandwidth
  • Long-distance transmission - up to 65 m
  • Superior video quality - 1920 x 1440@60Hz
  • DDC, DDC2, DDC2B Compatible (Port 1 only)
  • Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
  • All metal casing

Package Content:

  • 1x 8-Port Video Splitter
  • 1x Power Adapter
  • 1x User Guide

SPECIFICATIONS:

Display Connections 8/512*
Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 8 x HDB-15 Female (Blue)
Power 1 x DC Jack
LEDs Power 1 (Orange)
Video Resolution 1920 x 1440 @ 60Hz
Bandwidth 300 MHz
Signal Range 65 m
Power Consumption DC9V, 3.94W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.69 kg
Dimensions
(L x W x H)
20.00 x 7.50 x4.50 cm
* Display connections in three-level cascade
