UEX100-KIT USB 2.0 HDBASET EXTENDER KIT

Blustream UEX100E-KIT USB 2.0 HDBaseT™ Extender Set – 100m

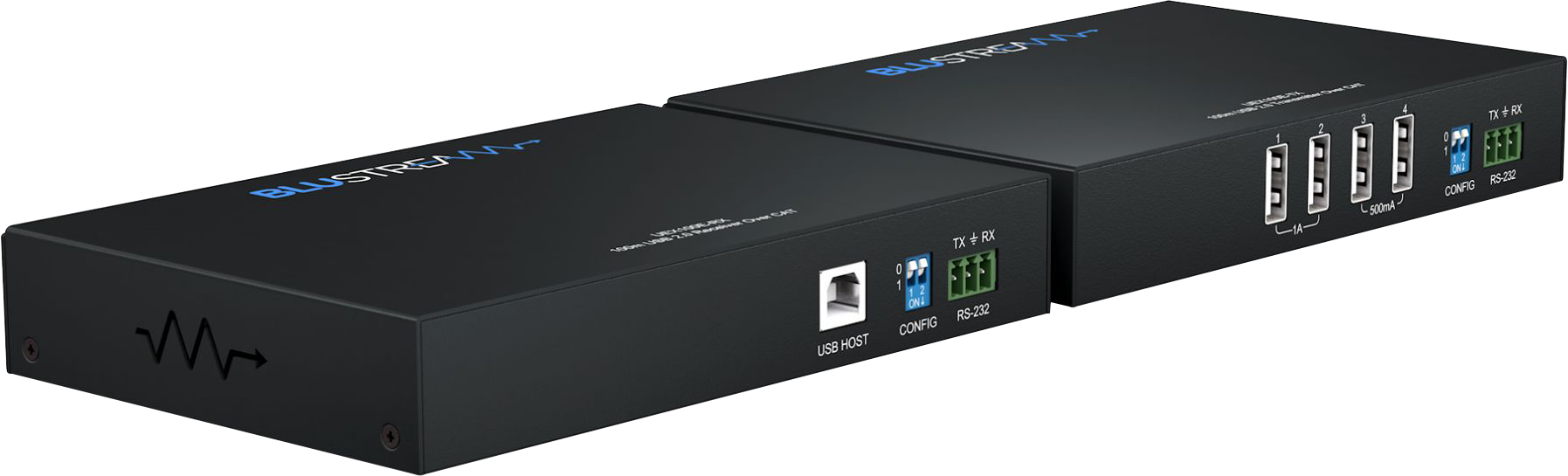

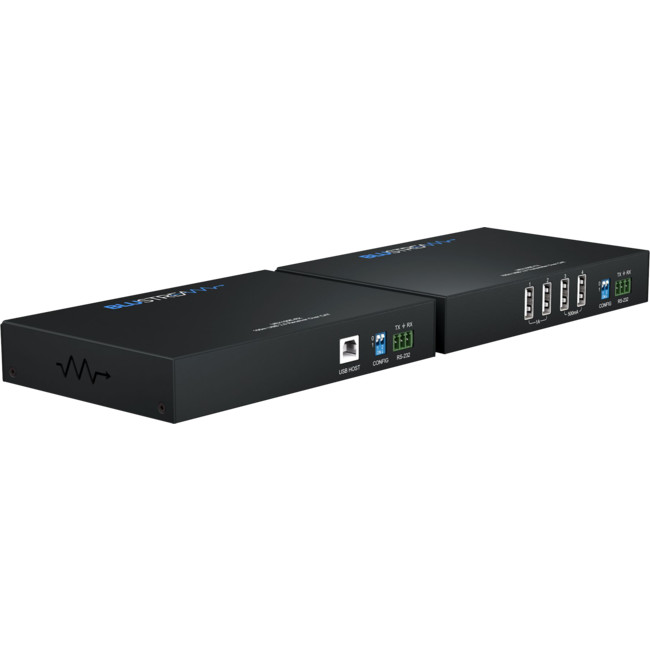

The UEX100E-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 2.0 data, 2ch analogue audio, and control signals up to 100m over a single CAT cable.

The UEX100E-KIT allows up to 4 × USB devices to be connected to a single USB host with support for a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.

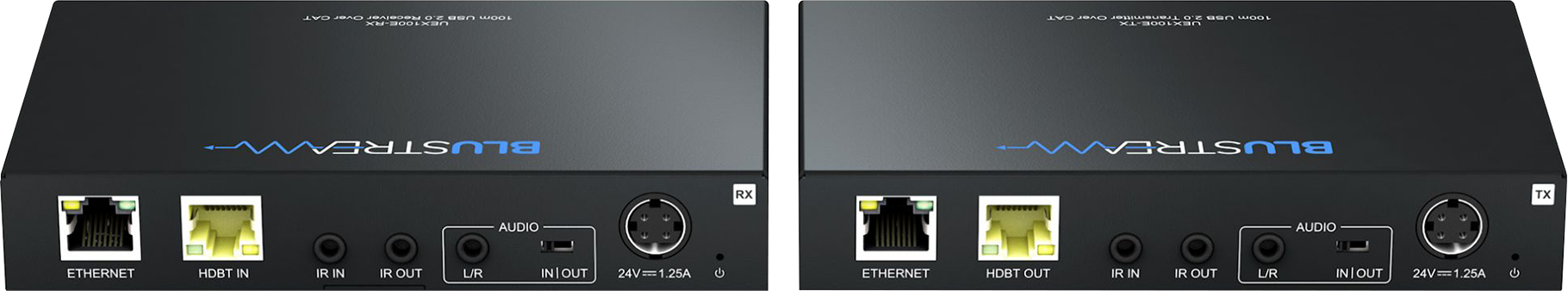

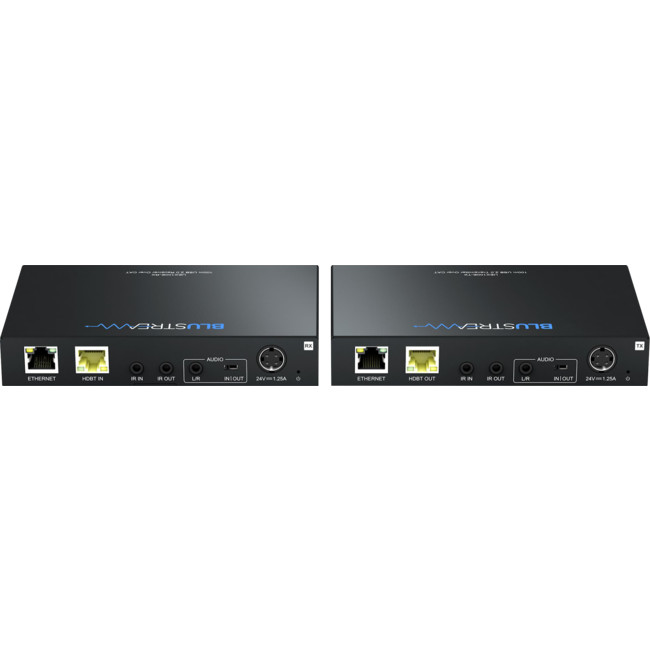

The UEX100E-KIT also provides bi-directional Power over Cable (PoC), bi-directional IR, RS-232, 2ch analogue audio, and 100Mbps Ethernet/LAN pass through.

Key Features

• Extends USB up to a distance of 100m over a single CAT cable using HDBaseT™ technology*
• Supports USB 2.0 signal extension
• Backwards compatible with USB 1.1 devices
• Transmitted data bandwidth up to 480Mbps (combined)

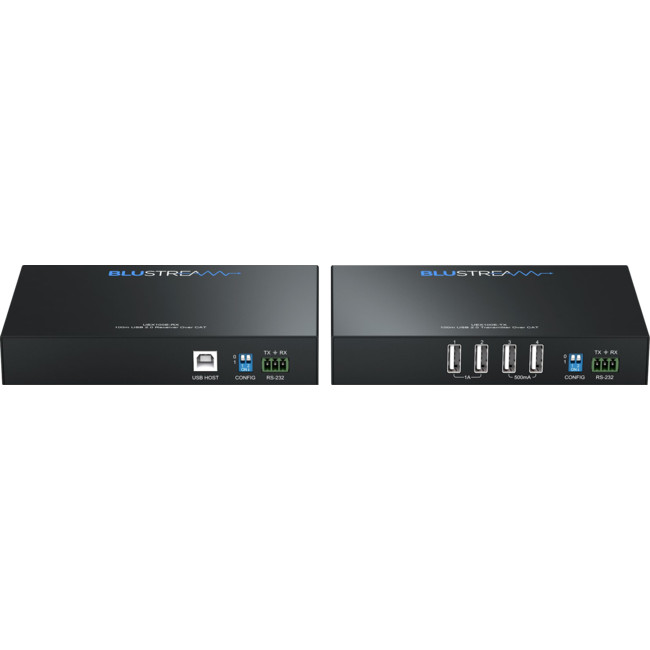

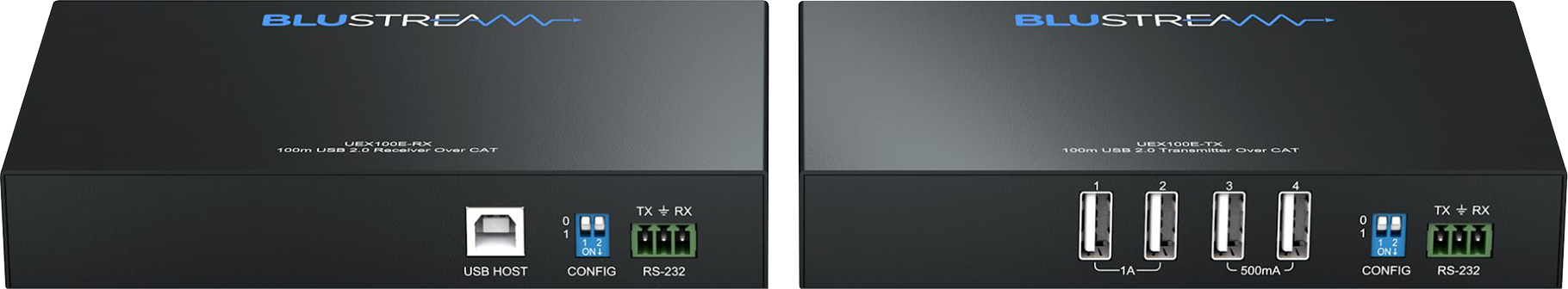

• 1 × USB-B port on the receiver for connection to host device
• 4 x USB-A ports on transmitter for connection to devices
• USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA
• Bi-directional Ethernet pass-through (100Mbps)
• Bi-directional IR & RS-232 pass through
• Supports 2ch PCM Analogue Audio pass through (direction selectable)
• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
• Simple plug and play, no driver installation or setuprequired

Signal distribution length subject to length of device and host USB cables and CAT cable type

Specifications

UEX100E-RX

UEX100E-TX

Box Contents

1 × UEX100E-TX
1 × UEX100E-RX
1 × USB-A to USB-B cable (1m)
1 × 24V/1.25A DC power supply
2 × Mounting kits
1 × Quick Reference Guide
