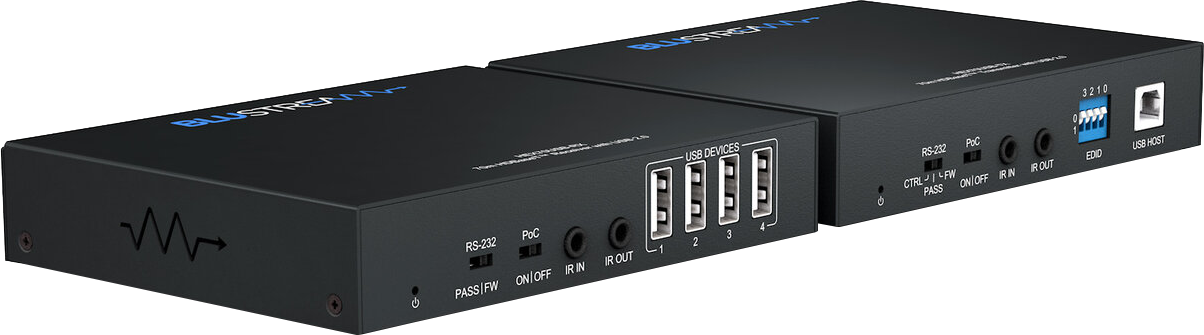

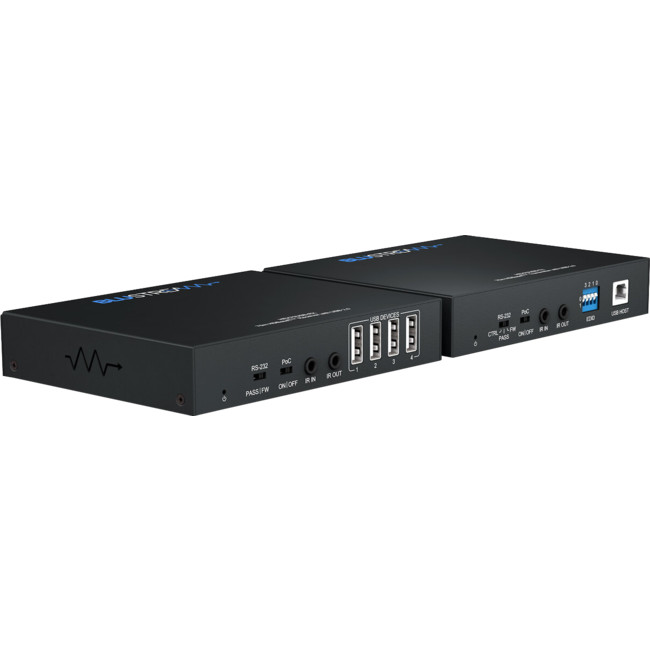

HEX70USB-KIT HDBASET HDMI -USB EXTENDER KIT

Blustream- HEX70USB-KIT

HDBaseT™ USB Extender Set - 70m (4K 60Hz 4:2:0 up to 40m), USB 2.0 Extension, Bi-directional IR & RS-232, Audio Breakout, Bi-directional PoC, and HDCP 2.2

The HEX70USB-KIT 4K HDBaseT™ USB 2.0 extender set offers the very best in performance and flexibility, delivering HDMI to lengths of 70m (4K 60Hz 4:2:0 to 40m), USB 2.0 extension, bi-directional IR and RS-232, HDMI audio breakout, bi-directional PoC, and advanced EDID management. HDCP2.2 compliant.

Key Features

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

• Extends HDMI 1080p up to a distance of 70m over a single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280Mbps

• USB Type-A connections support 5V 500mA output per port

• Supports all known HDMI audio formats including DolbyAtmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissions

• Bi-directional IR pass-through

• Bi-directional RS-232 pass-through

• Supplied with Blustream IR receiver and emitter

• Supports bi-directional PoC (Power over Cable) to power extenders from either Transmitter or Receiver end

• HDCP 2.2 compliant with advanced EDID management

• HDMI audio breakout to analogue L/R audio and Opticaldigital (S/PDIF) outputs concurrently

Specifications

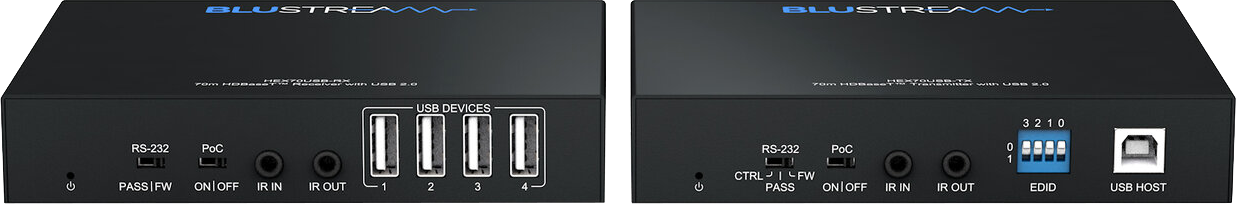

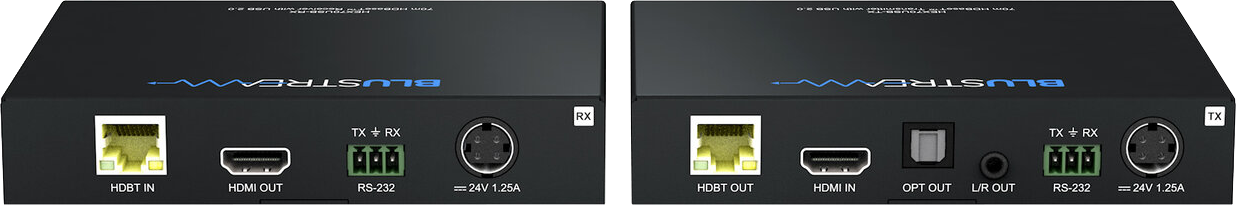

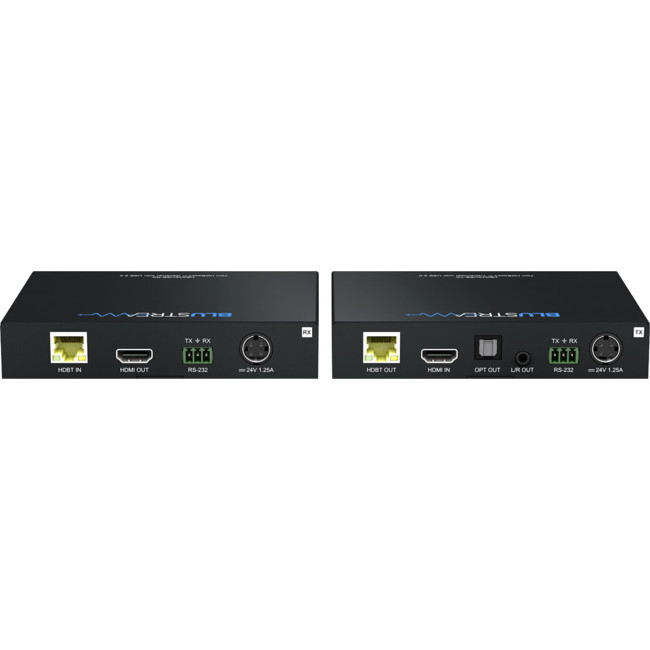

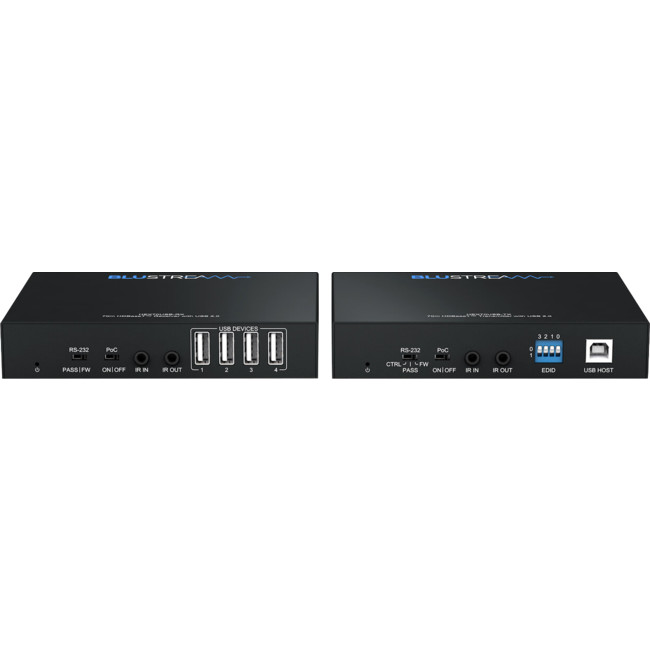

HEX70USB-TX

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female

• Video Output Connectors: 1 x HDBaseT™ RJ45 connector

• RS-232 serial port: 1 x 3-pin Phoenix connector

• USB/KVM Port: 1 x USB Type-B (Host)

• IR Input ports: 1 x 3.5mm stereo jack

• IR Output ports: 1 x 3.5mm mono jack

HEX70USB-RX

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector

• Video Output Connectors: 1 x HDMI Type A, 19-pin, female

• Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio

• RS-232 serial port: 1 x 3-pin Phoenix connector

• USB/KVM Port: 4 x USB Type-A (Peripherals)

• IR Input ports: 1 x 3.5mm stereo jack

• IR Output ports: 1 x 3.5mm mono jack

• Casing Dimensions (W x D x H ): 135mm x 105mm x 25mm (TX/RX)

• Shipping Weight (Kit): 0.8kg

• Operating Temperature: 32°F to 104°F (-5°C to 55°C)

• Storage Temperature: -4°F to 140°F (-25°Cto 70°C)

• Power Supply: 24V/1.25A DC, 4-pin DIN connector

Box Contents

1 x HEX70USB-TX
1 x HEX70USB-RX
1 x 24V/1.25A DC power supply
1 x USB-A to USB-B cable
1 xIRE1 emitter
1 xIRR receiver
1 x Serial Cable - DB9 to 3-pin Phoenix connector
1 x 3-pin Phoenix connector
2 x Mounting kit
