HDIPPRO25 4K HDMI OVER IP EXTENDER WITH KVM VIDEO WALL

HDIPPRO25 H.265 AV over IP Extender (with CMP System)

Transform your AV distribution with the HDIPPRO25 H.265 AV over IP Extender, a high-performance solution designed for modern video applications, including video walls, multi-viewer setups, and matrix switching. Operating seamlessly with the included CMP Integrated Management Platform, this extender delivers exceptional 4K@60Hz video with 4:4:4 chroma subsampling over a single Cat5e/6 cable – up to 120 meters. Ideal for digital signage, command centers, conference rooms, educational facilities, and any AV over IP installation requiring high-quality 4K video, low latency, and flexible control.

Key Features

• Superior Compression & Quality
  H.265/264 encoding ensures efficient bandwidth usage while supporting resolutions up to 4K@60Hz YUV 4:4:4 and audio sampling at 48kHz.
• HDMI Loopout on Transmitter

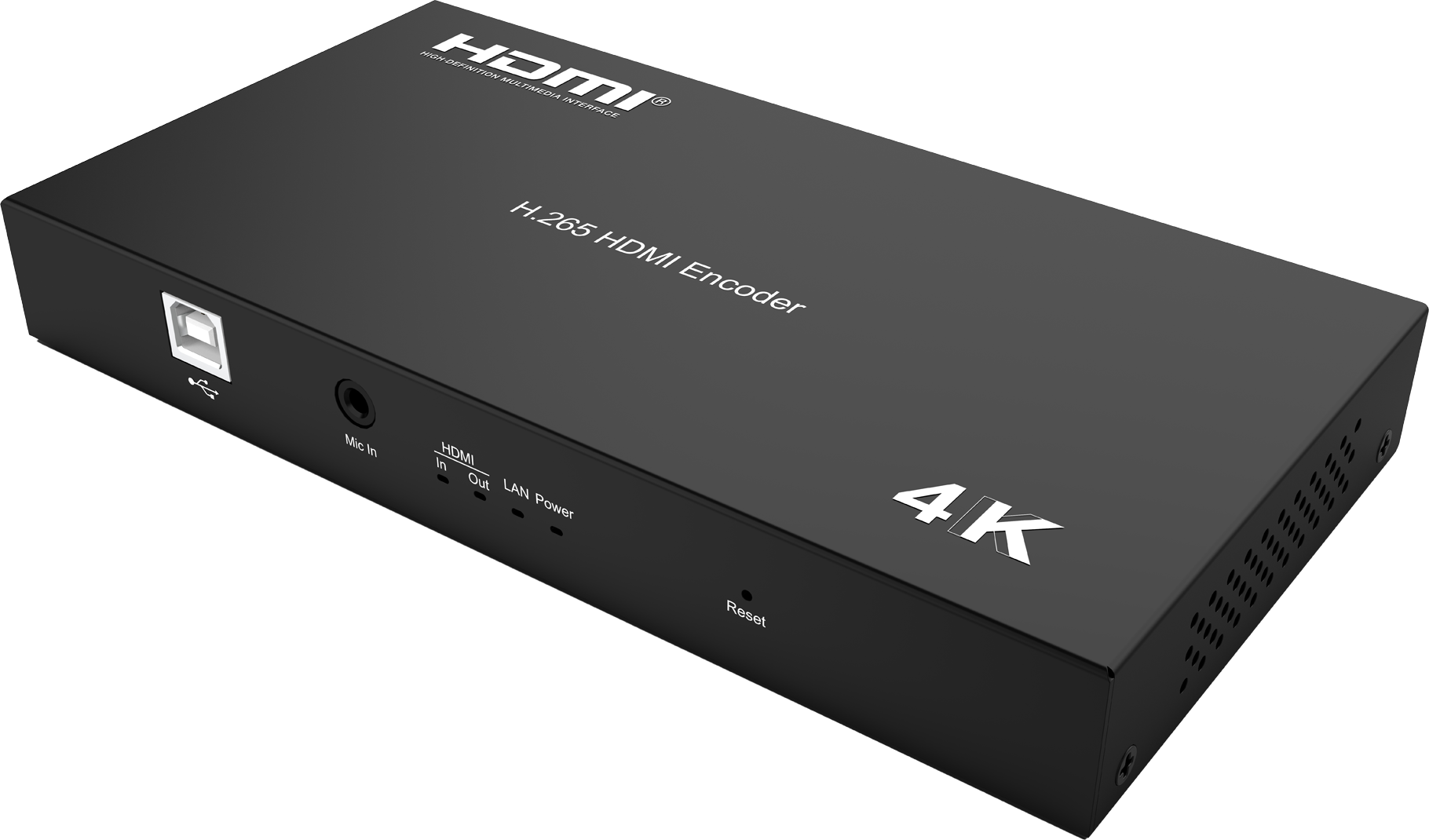

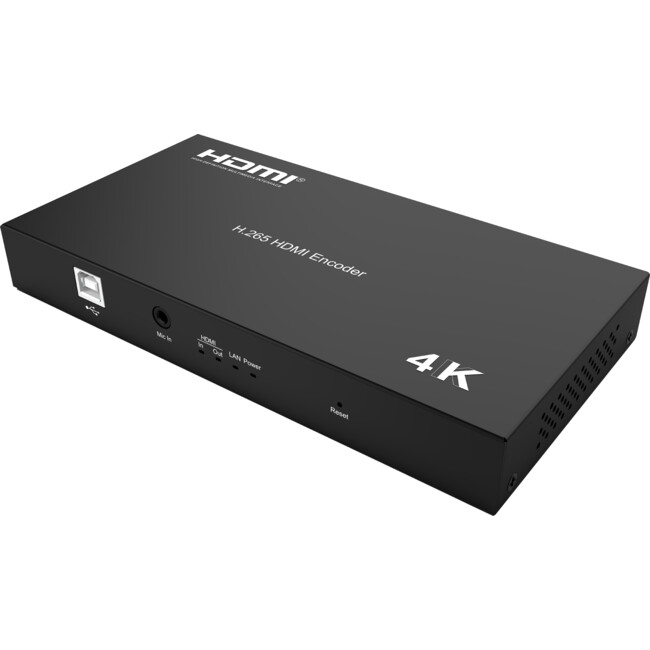

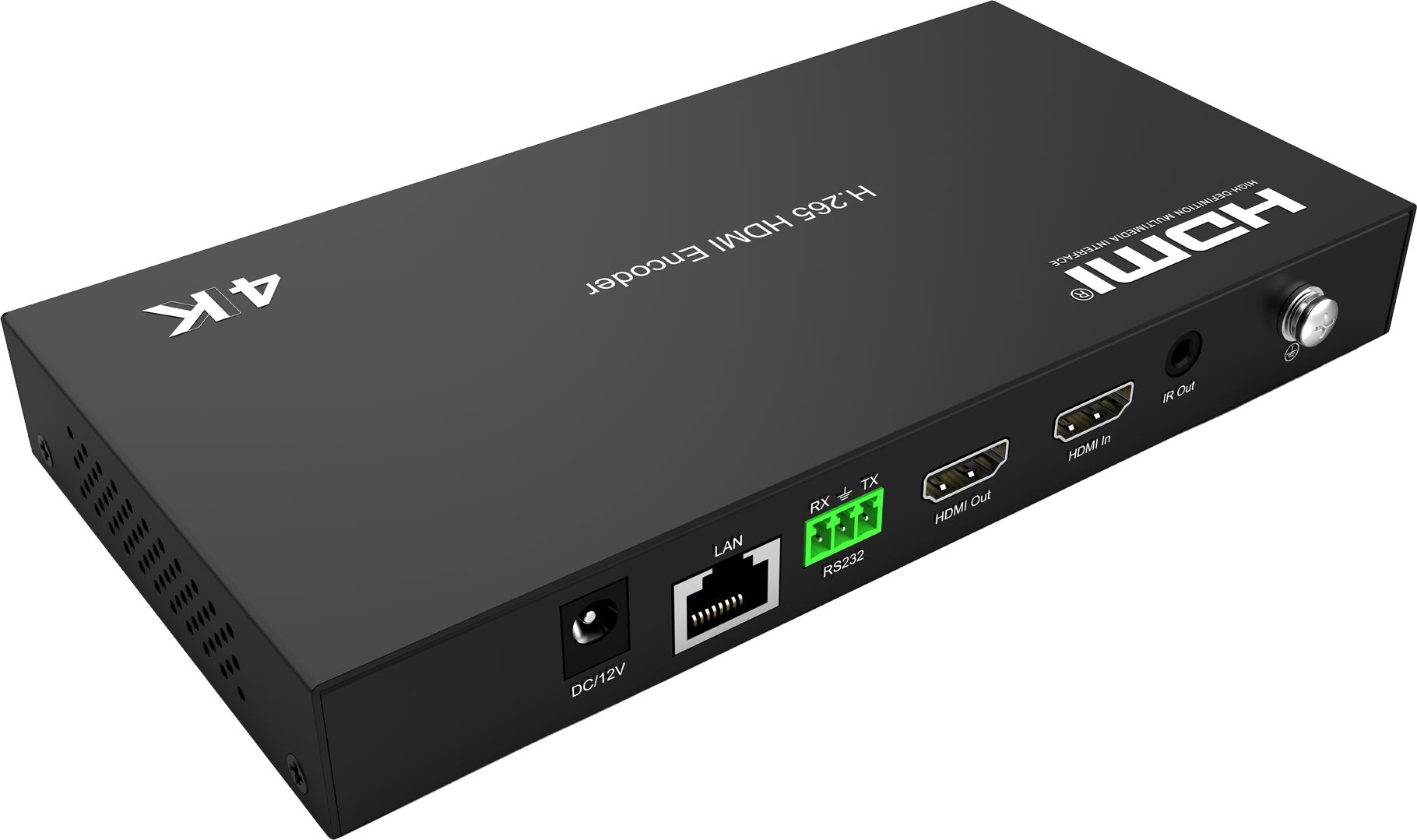

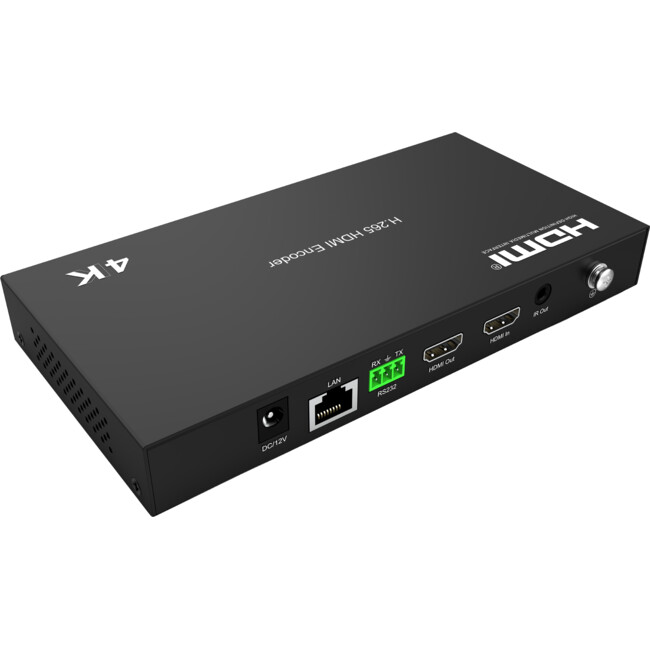

  The encoder features a dedicated HDMI loop output, allowing a local display to be connected at the source side without additional distribution hardware.
• Low Latency
  End-to-end latency of just 30–80 milliseconds for real-time responsiveness.
• Flexible Control Modes
  Supports one-to-one, one-to-many, and many-to-many distribution. Easily configure Matrix switching, Video Wall, and Multi-viewer layouts via the CMP platform.
• KVM & USB Extension
  Built-in USB 1.1 KVM extension allows keyboard/mouse control at the receiver side.
• Bidirectional RS232 & IR Pass-through
  Full RS232 pass-through (2400–115200 baud) and 38kHz IR control – perfect for remote device management. (Note: Not supported in multi-viewer mode.)
• Analog Audio Support
  Separate microphone/analog audio input on the encoder and analog audio output on the decoder.
• Streaming Protocols
  Supports RTSP / RTMP – view streams directly in VLC or other players.
  Main stream: rtsp://ip:8554/ch0/0
  Sub stream: rtsp://ip:8554/ch0/1
• Network Friendly
  Requires IGMP-managed switch. Default IP: 192.168.5.50 and supports DHCP
• Easy Management
  The CMP System (Windows software) provides live preview, device configuration (IP, video/audio parameters, EDID, OSD), user management (admin/operator roles), and batch firmware upgrades.

Specifications

What is in the box?

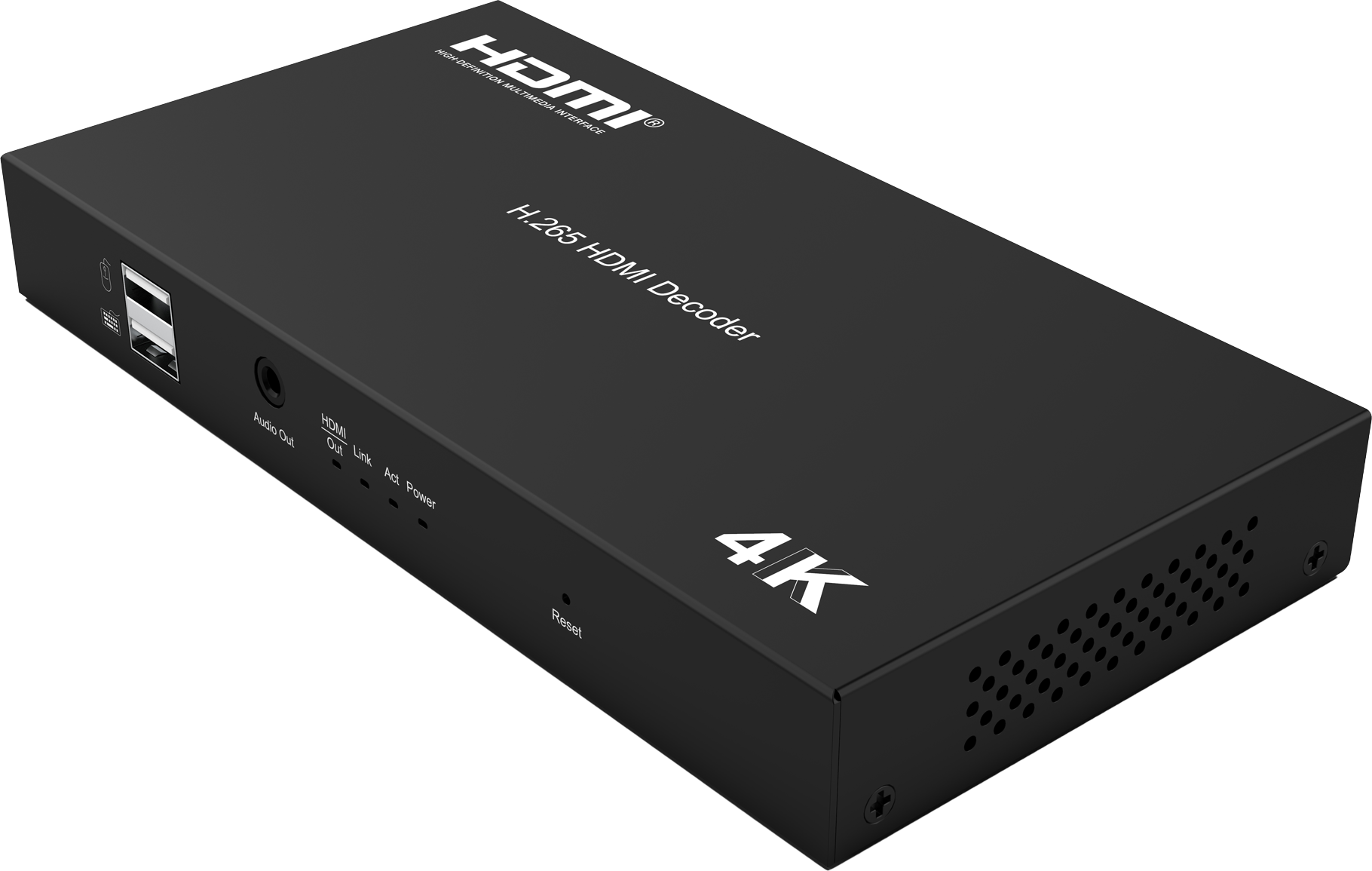

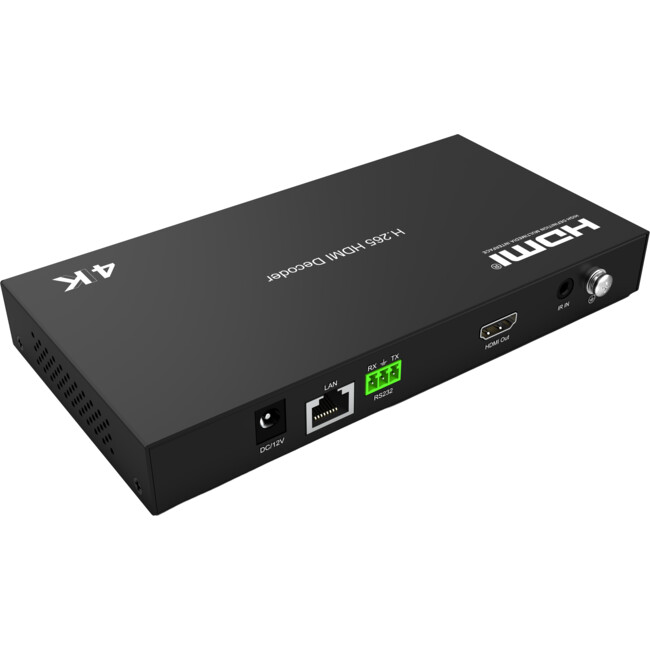

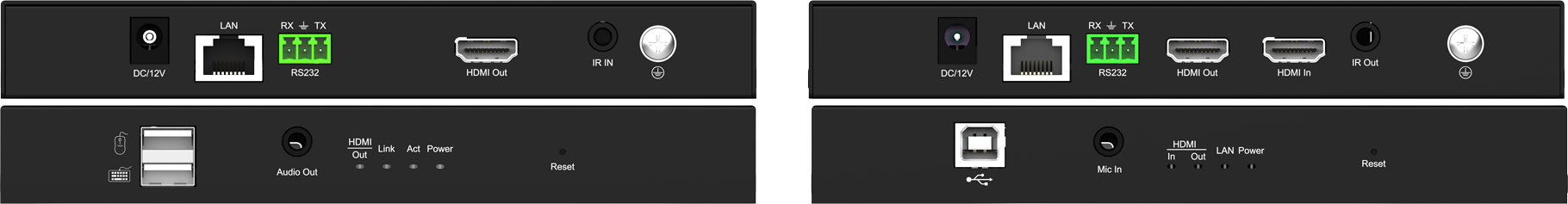

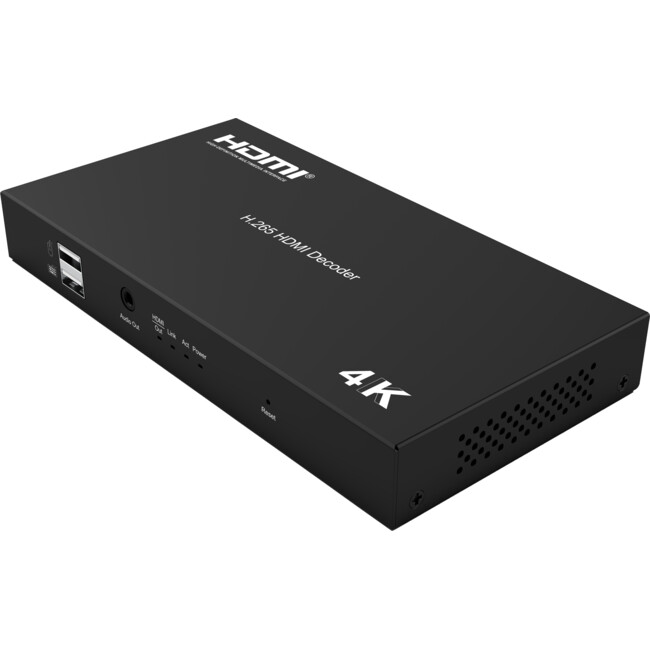

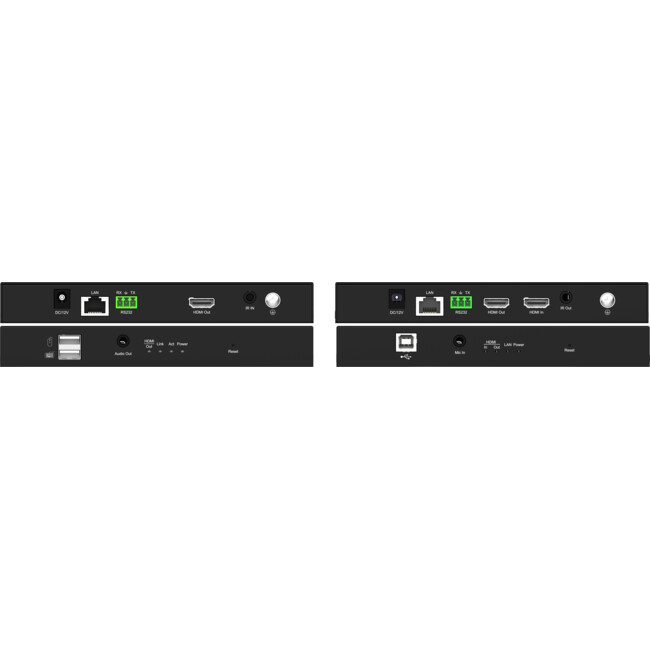

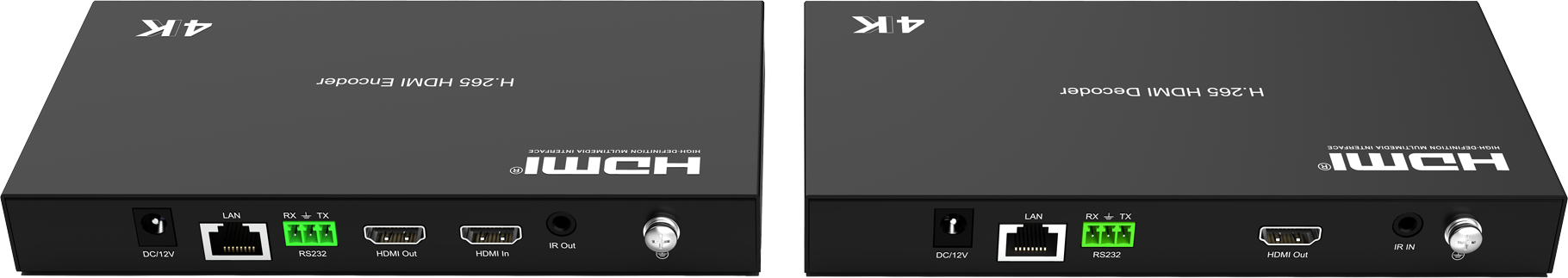

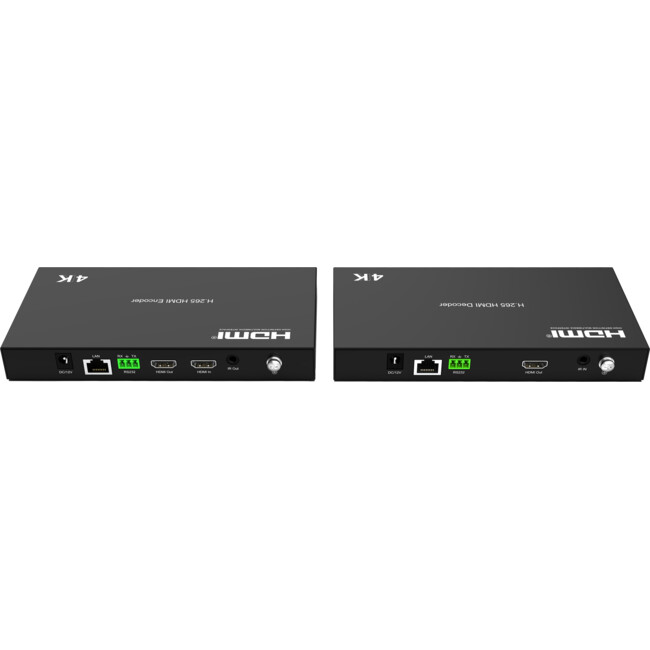

• HDIPPRO25 transmitter and receiver
• DC12V 1A power supply x 2pcs
• IR TX and RX cable x 1pc
• Phoenix terminal x 2pcs
• Mounting ears x 4pcs
• USB cable x 1pc
• CD DISC x 1pc (user manual and CMP system)
