HDIP26 H.265 HDMI OVER IP EXTENDER

H.265 HDMI OVER IP EXTENDER KIT WITH HDMI LOOP-OUT, IR AND RS232

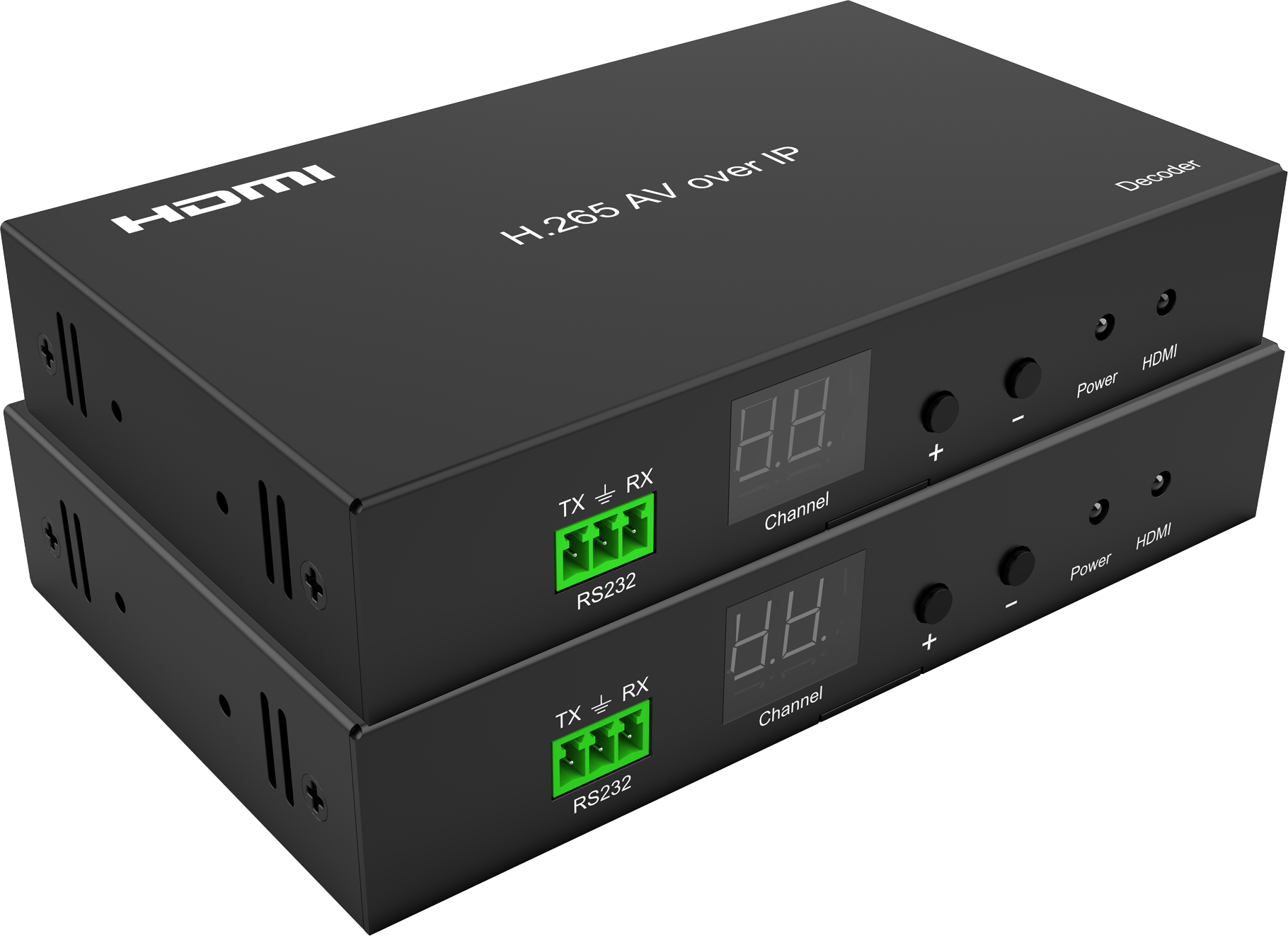

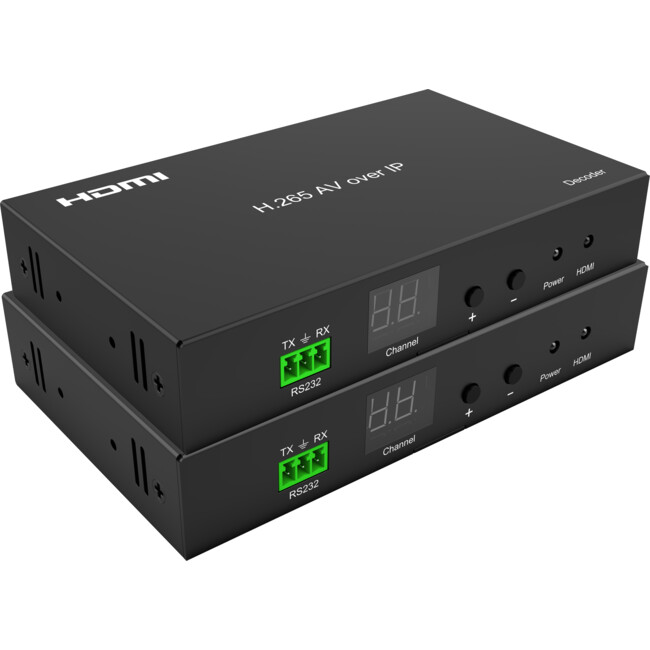

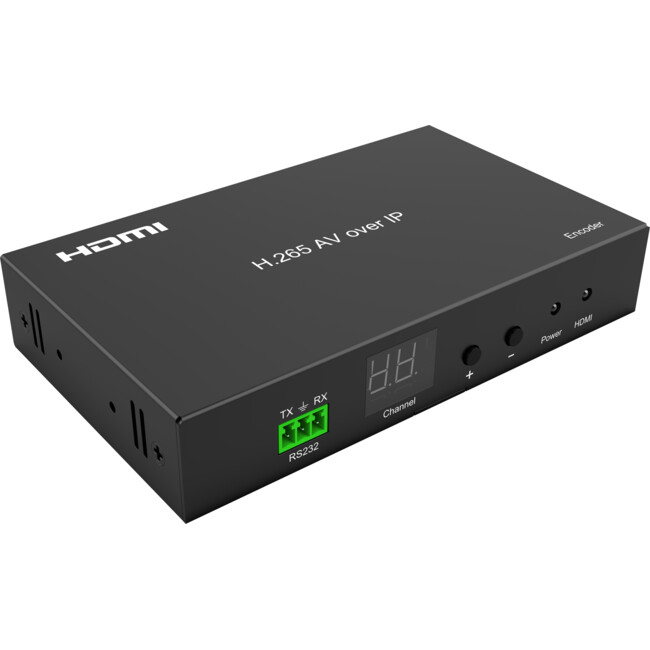

The Pro.2 HDIP26 sends 1080p HDMI video and audio from a single source, such as a Blu-ray or DVD player, media player or set-top box, to one or many displays over standard Cat5e/6 network cable. Run up to 120m point to point on a single cable, or connect through a network switch to build one-to-many, many-to-one and many-to-many (matrix) systems. H.265 compression keeps bandwidth low for smooth playback over the LAN, making it ideal for meeting rooms, classrooms, retail advertising, transport hubs, shopping centres and the home.

Features:

• H.265 Compression:
  • Low-bandwidth encoding for smooth video over the LAN, with resolutions up to 1080p
• Long Range:
  • Up to 120m over a single Cat5e/6 cable point to point, or further through a network switch
• HDMI Loop-Out:
  • Local HDMI output on the transmitter to drive a display at the source end
• Flexible System Modes:
  • One-to-one, one-to-many, many-to-one and many-to-many with large cascade, via an IGMP/DHCP network switch
  • Up to 255 receivers in a system
• Simple Group ID Switching:
  • Front-panel +/- buttons and LED display set the Group ID (00 to 99). Each receiver shows the transmitter with the matching Group ID
  • On-screen OSD number on each display for easy identification
• Control Pass-Through:
  • Bi-directional IR (38kHz) to control the source from the display end
  • 2-way RS232 pass-through up to 115200 baud for PCs, control systems and other serial devices
• PC Tool Control:
  • PC software for device search, Group ID, naming, IP settings, image adjustment, receiver output resolution, firmware updates and batch operations across all units
• Automatic IP addressing via DHCP, with unique factory MAC addresses so no MAC setup is needed
• Transmitter stream can be viewed on a PC in VLC media player over RTSP (non-HDCP sources)
• HDCP 1.4 compliant
• Mounting ears included
• Add more displays with the HDIP26RX spare receiver, sold separately

• Model: HDIP26 (transmitter and receiver kit)
• Video:
  • Compression: H.265 encoder/decoder over UDP
  • Video formats: 480i, 480p, 576p, 720p, 1080i, 1080p up to 60Hz
  • PC (VESA) resolutions: 640x480 up to 1920x1080 and 1600x1200 at 60Hz
  • HDCP: 1.4
• Audio:
  • LPCM 2.0, 48kHz sampling rate
• Control:
  • IR: bi-directional, 38kHz
  • RS232: bi-directional pass-through, 2400 to 115200 baud (8 selectable rates)
• Network:
  • Group ID: 00 to 99
  • Default IP: TX 192.168.1.168, RX 192.168.1.169
  • Switch requirements: IGMP and DHCP support recommended for multi-unit systems
  • Up to 255 receivers per system (total transmitters and receivers less than 256)
• Connections:

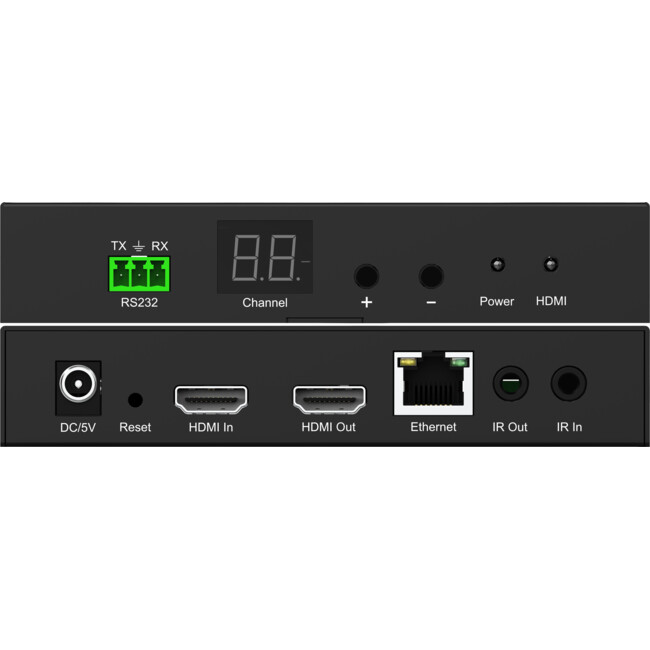

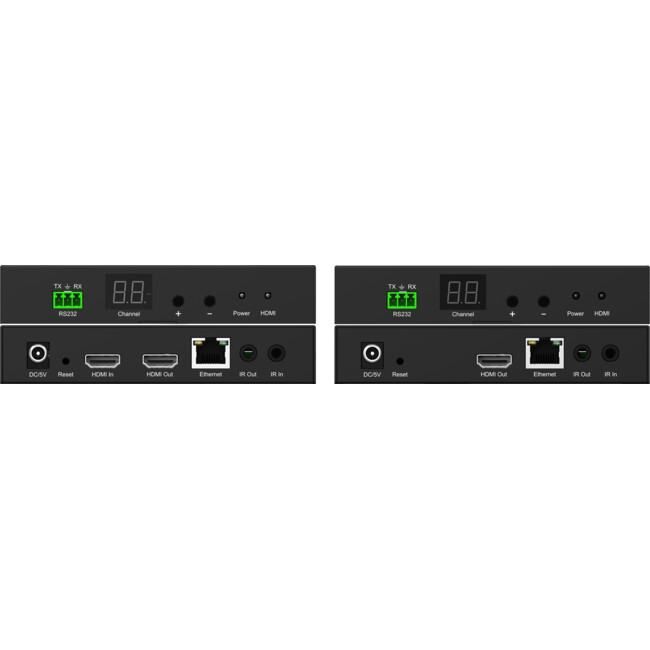

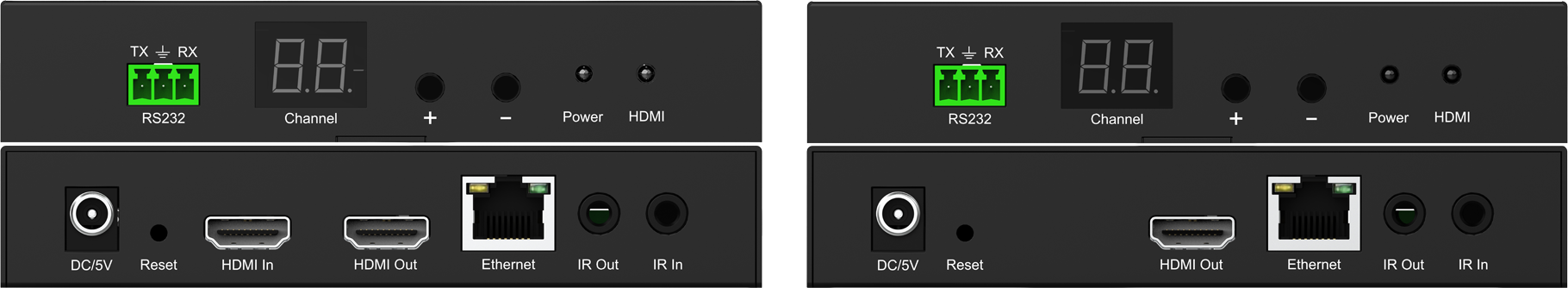

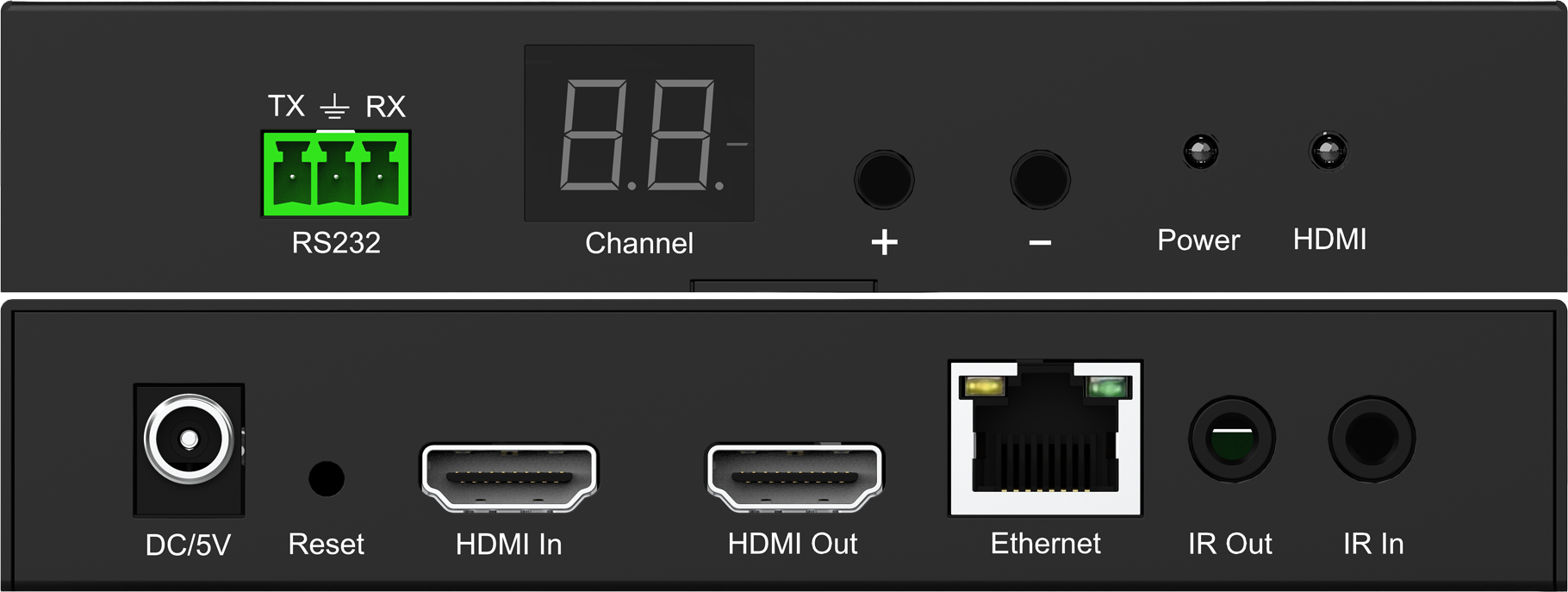

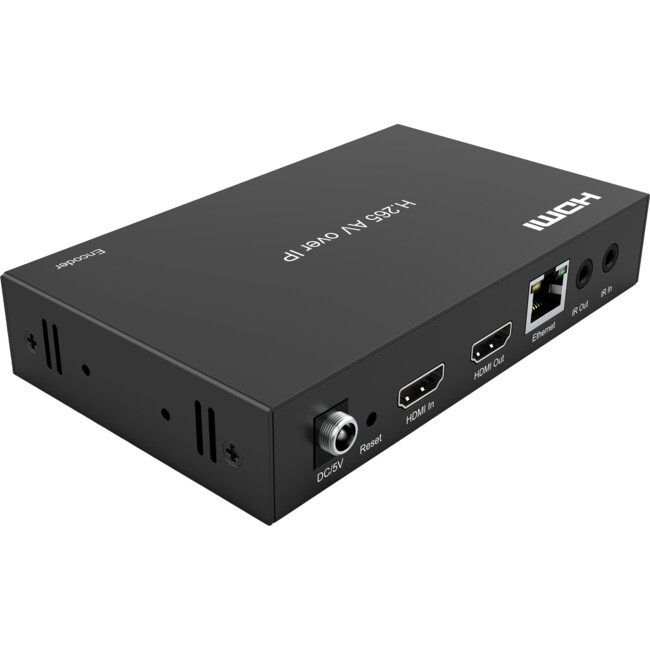

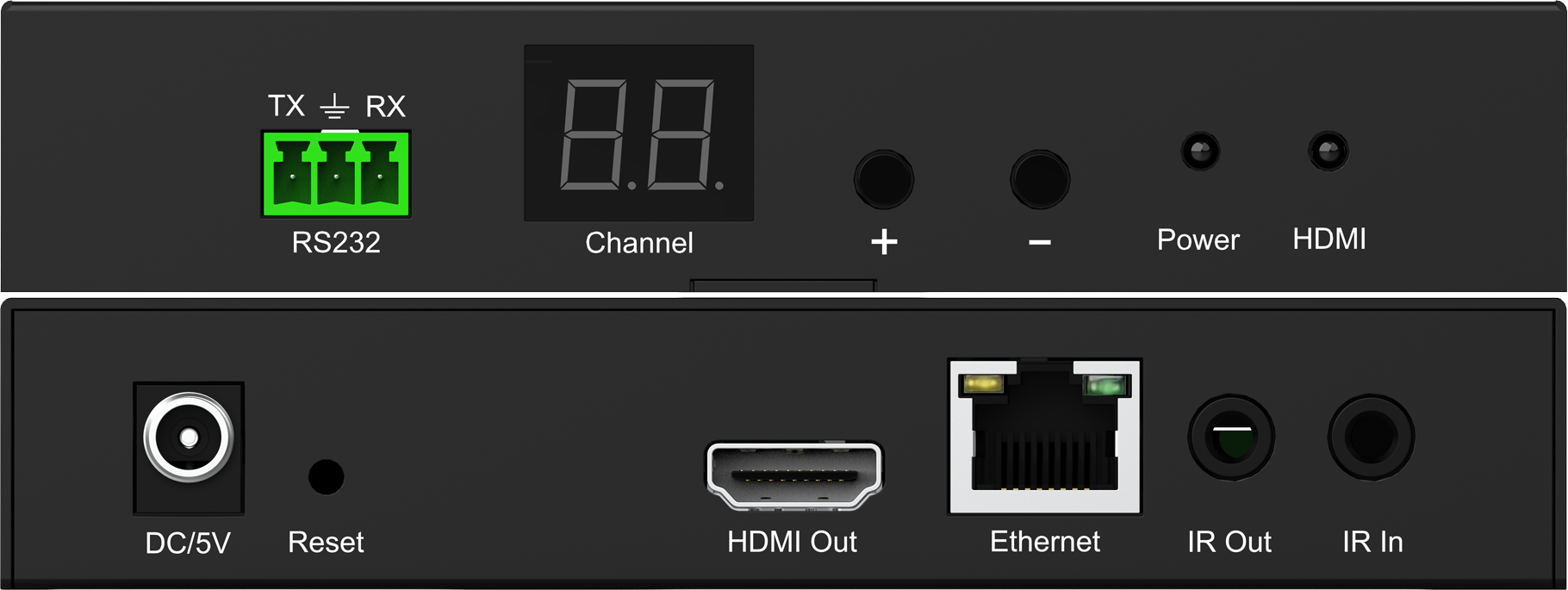

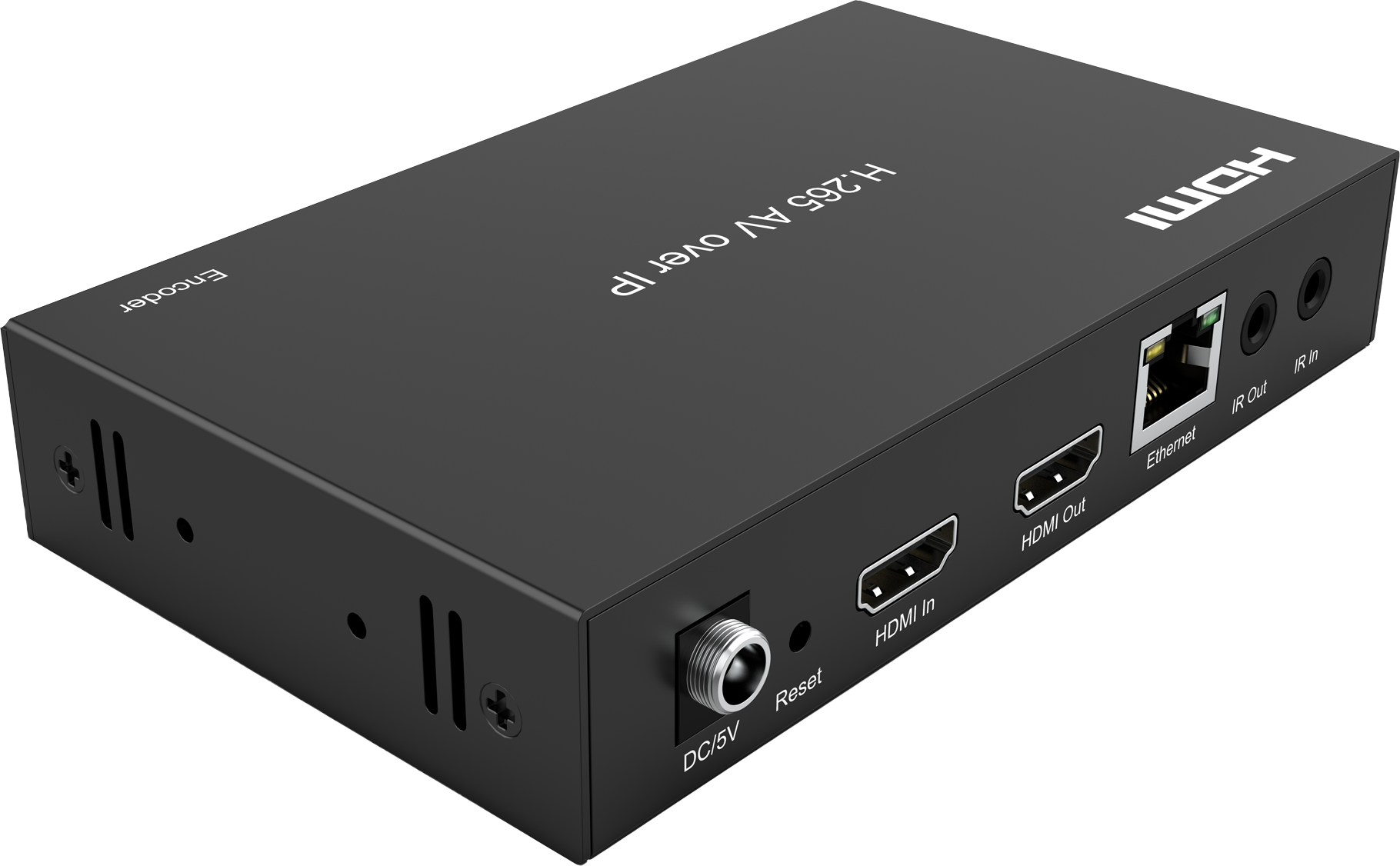

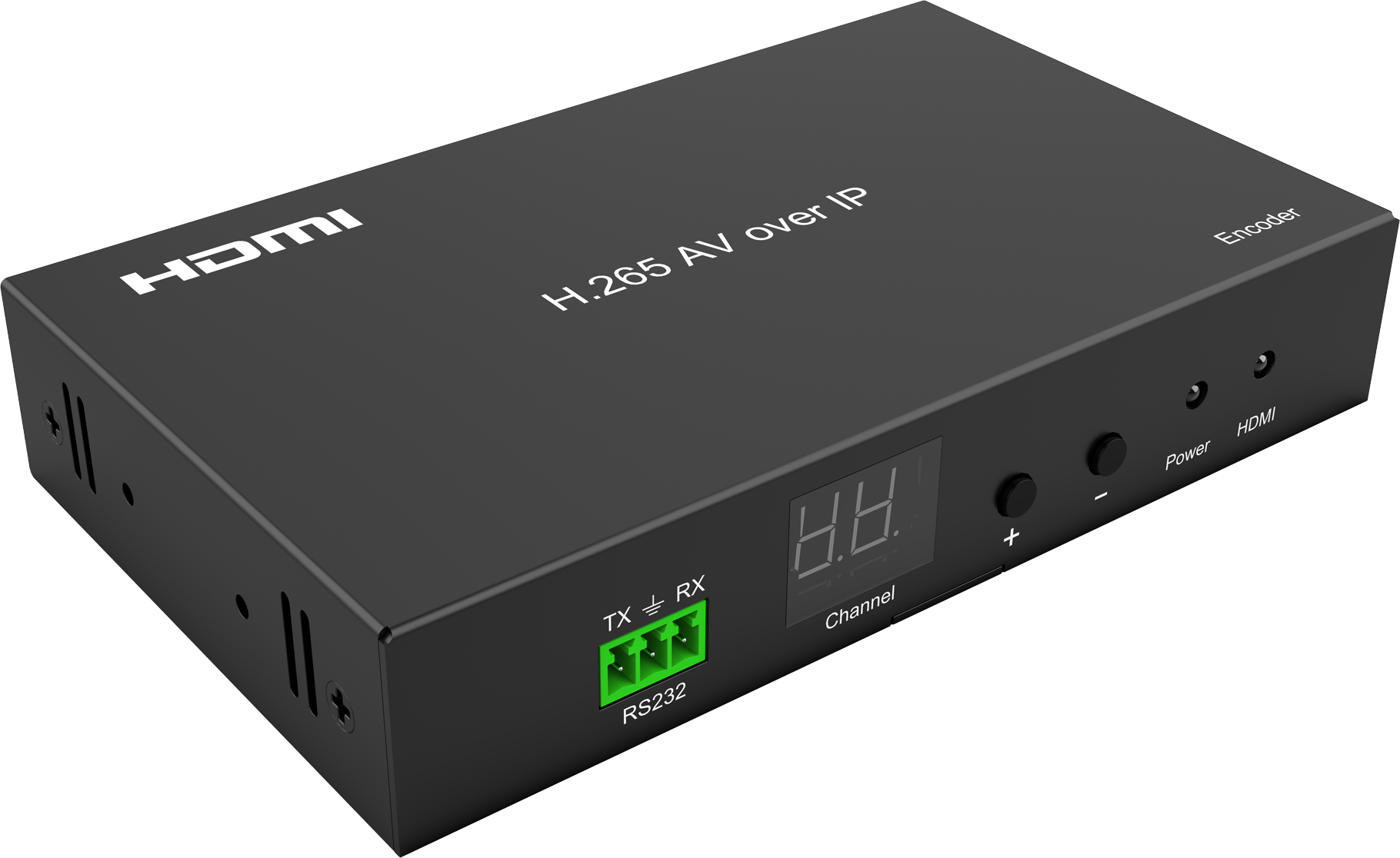

  • Transmitter: 1x HDMI input, 1x HDMI loop-out, 1x RJ45 output, Phoenix RS232 port, IR TX port, IR RX port, DC 5V input, reset button

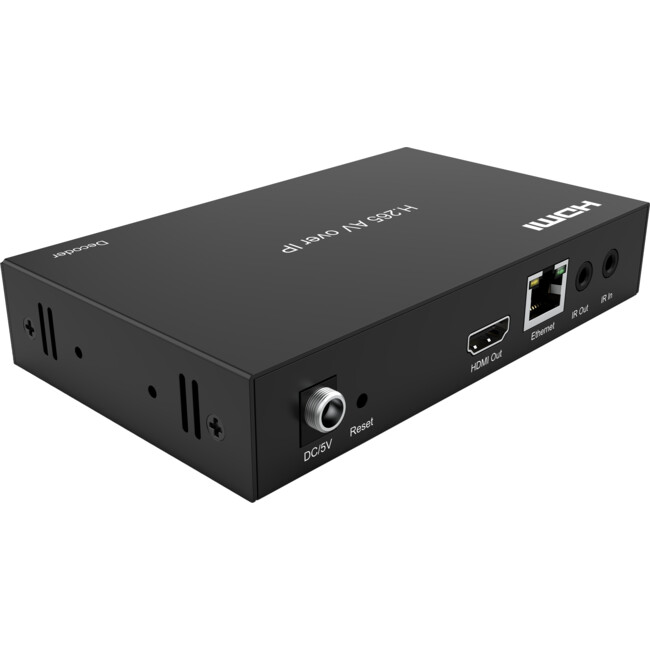

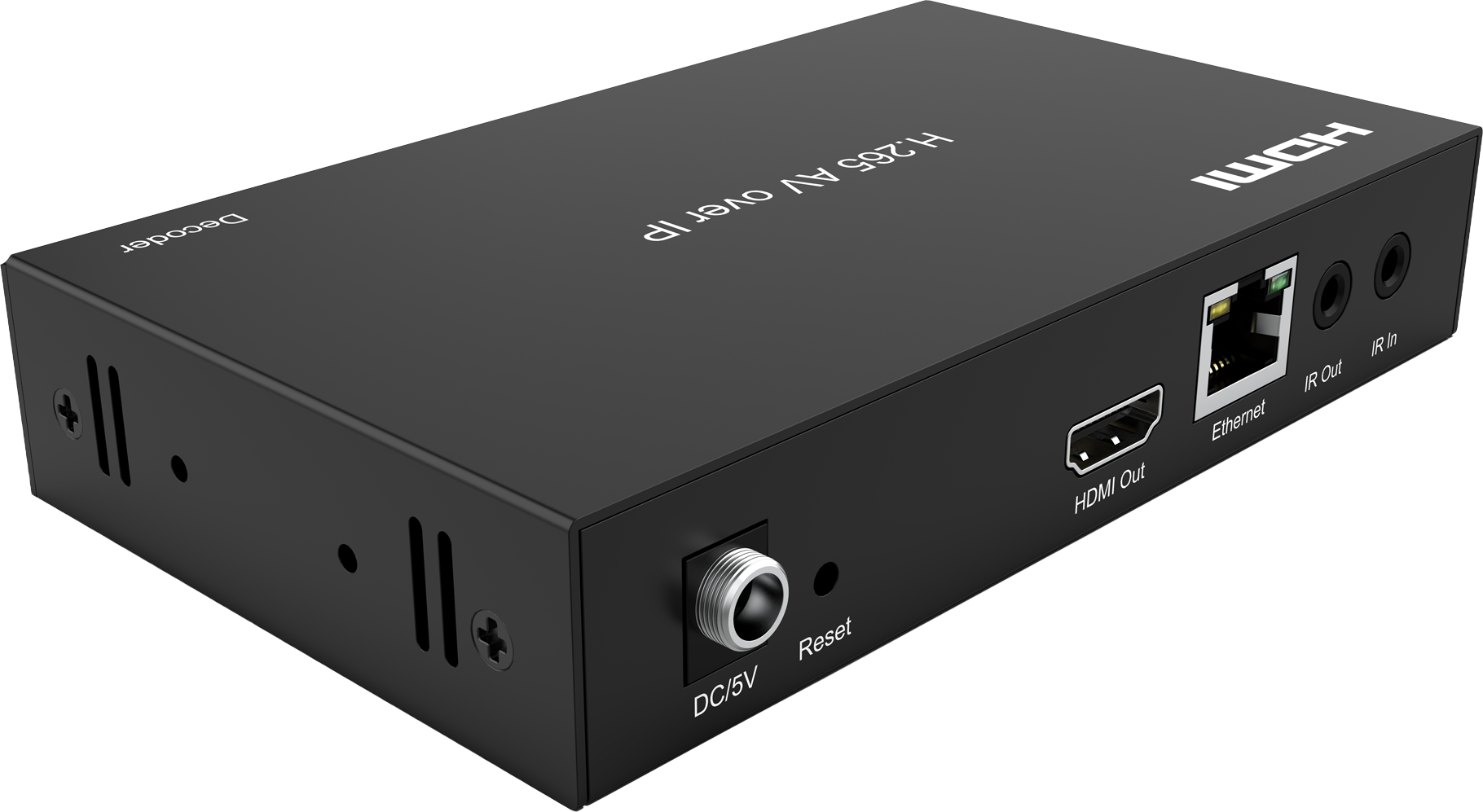

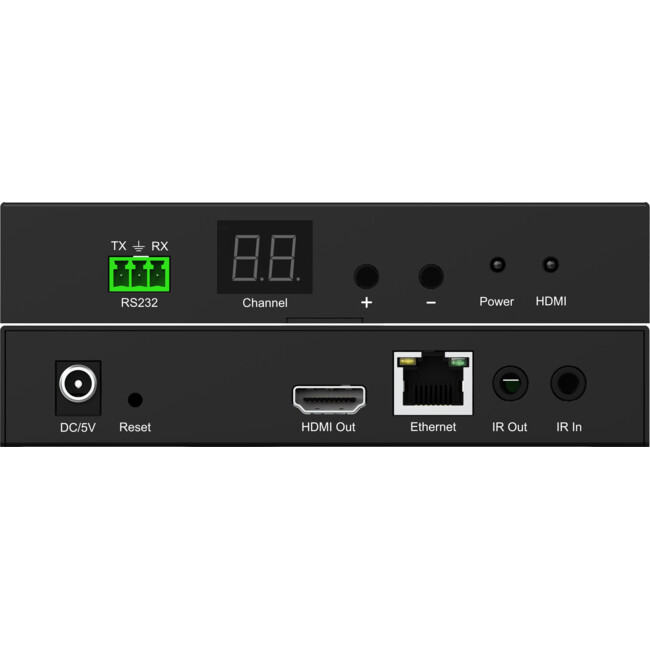

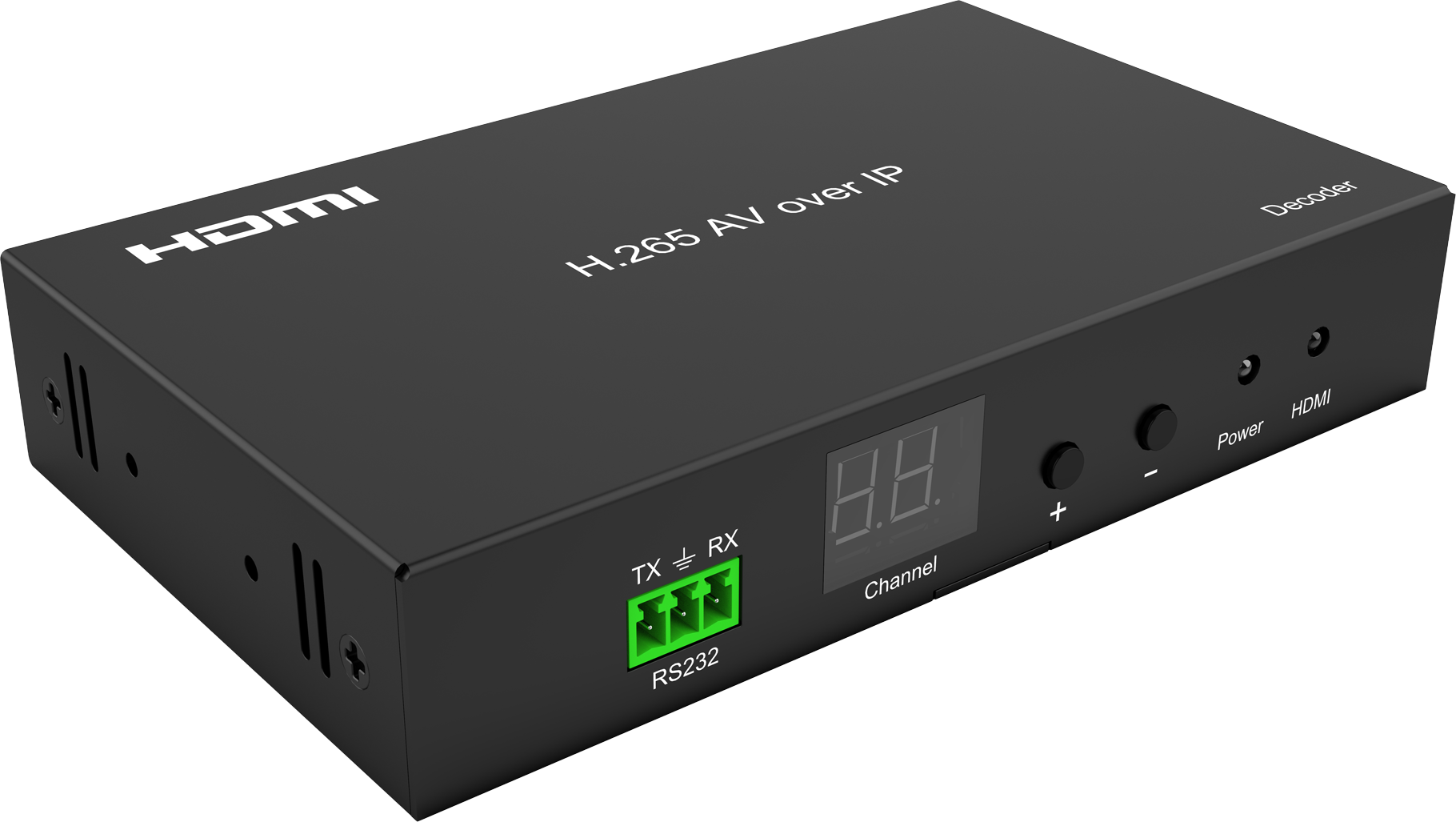

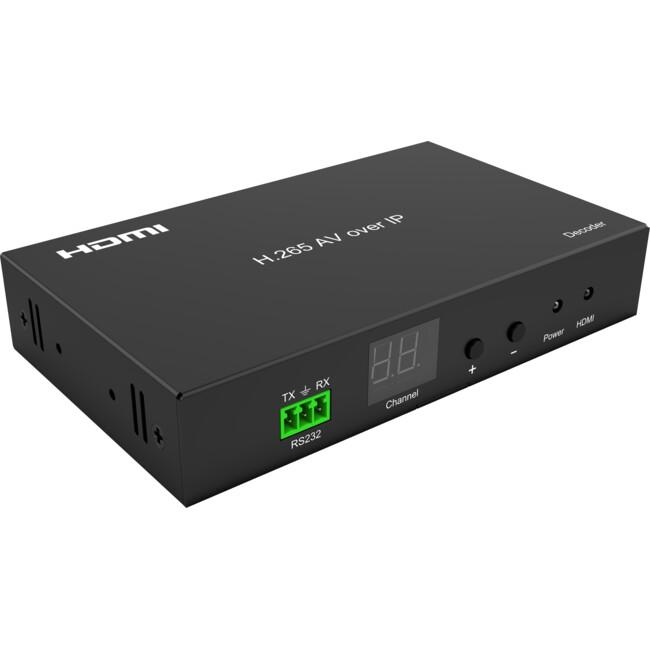

  • Receiver: 1x RJ45 input, 1x HDMI output, Phoenix RS232 port, IR TX port, IR RX port, DC 5V input, reset button
• Receiver output resolution (via PC tool): 1920x1080, 1440x900, 1280x800, 1280x720 at 60Hz
• Transmission distance: up to 120m over Cat5e/6
• Power supply: 5V DC 1A per unit
• Power consumption: TX 4.45W, RX 1.75W
• Operating temperature: -5 to +35 degrees C
• Operating humidity: 5 to 90 percent RH, non-condensing
• Dimensions: 134.4 x 79.2 x 25.1mm (each unit)
• Weight: 0.28kg (each unit)
• In the box:
  • 1x Transmitter
  • 1x Receiver
  • 2x 5V DC 1A power adapters
  • 2x IR transmitter (IR-TX) cables
  • 2x IR receiver (IR-RX) cables
  • 2x Phoenix plugs for RS232 termination
  • 4x Mounting ears
  • 1x User manual
