HD41QMV3 4K 4 WAY HDMI QUAD MULTI-VIEWER

4 IN 1 OUT SEAMLESS SWITCH IR 4K30

Code: 07350817

9328202037244
EACH
10
In Stock
$359.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

HD41QMV3 HDMI 4x1 Seamless Switch

Elevate Your Multi-Source Display Setup

The HD41QMV3 is a high-performance HDMI 4x1 Seamless Switch designed to streamline your audio-visual experience. Perfect for professional presentations, home theaters, gaming setups, or security monitoring, this device allows you to connect up to four HDMI sources to a single display. With advanced seamless switching and versatile multi-viewer modes, you can transition between sources or view them simultaneously without any signal interruption.

Key Features

  • 4x1 HDMI Connectivity: Connect up to four HDMI input devices (e.g., gaming consoles, set-top boxes, PCs, or Blu-ray players) and output to a single HDMI display.
  • Seamless Switching: Enjoy instant, glitch-free switching between your HDMI sources without the black screen or delay typically associated with traditional switches.
  • 13 Multi-View Screen Modes: Supports up to 13 different screen segmentation modes. Easily split your screen to view all four sources at once, or choose from various layouts to customize your viewing grid (features a power-down memory function to retain your last selected mode).
  • Ultra-HD 4K Support: Delivers stunning video quality with support for resolutions up to 4K@30Hz (YUV 4:4:4), ensuring crisp, detailed visuals. Also fully compatible with 1080p and standard VESA resolutions.
  • Flexible Audio Control: Independently switch the audio output from your selected HDMI source. The front-panel audio button lets you cycle through inputs 1-4 or mute the audio entirely. Supports a maximum audio sampling rate of 48kHz.

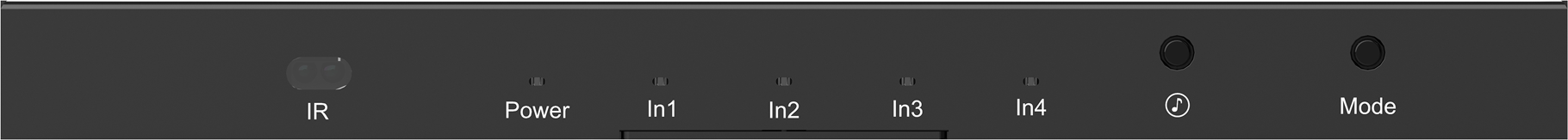

  • Versatile Control Options: Operate the switch conveniently via the included IR Remote Controller or the front Panel Buttons for quick manual adjustments.
  • Plug-and-Play Setup: Comes complete with a 12V DC power adapter, mounting ears for secure installation, and operating instructions. No complex software or drivers are required.

Specifications

Operating Temperature Range

0 to +40°C(32 to +104°F)

Operating Humidity Range

5 to 90% RH (No Condensation)

Bandwidth frequency

6.75Gbps

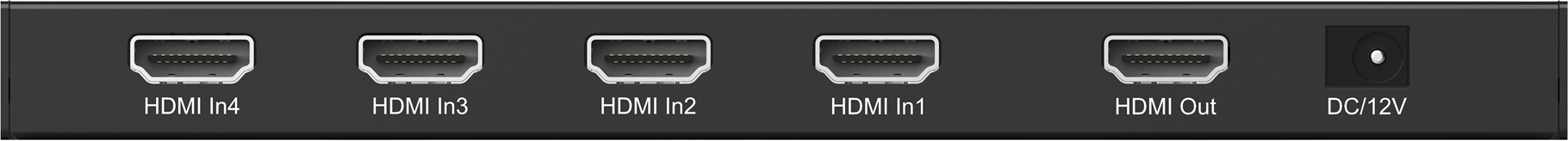

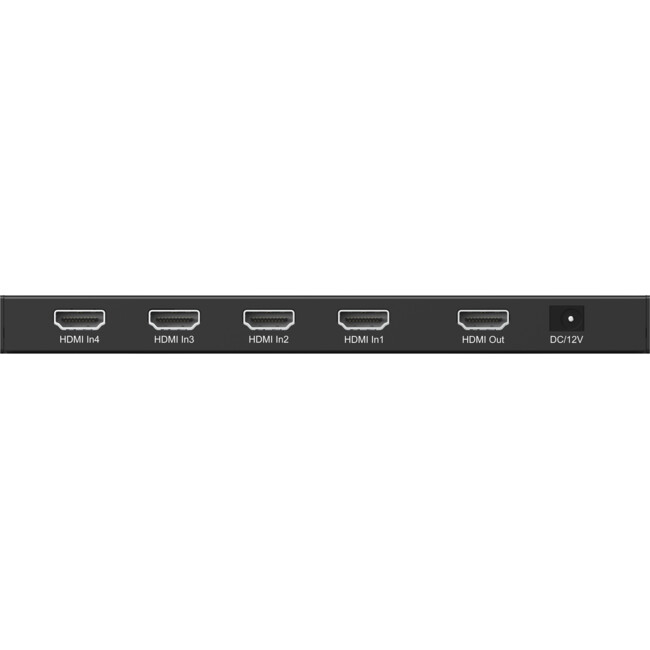

Input ports

4xHDMI(female)

Output ports

1xHDMI outputs(female)

TV resolution

50Hz

576i; 576P; 720P; 1080i; 1080P

60Hz /59.94Hz

480P; 720P; 1080P

30/29.97/24/25Hz

720P; 1080P; 4K/3840x2160

Dimensions (LxWxH)

190.4x113x17mm

Power consumption

8W(MAX)

Transmission Distance

Input 8m, Output 10m(Maximum)over standard HDMI cable/26AWG

Net Weight

480g

VESA Resolution

Rate

Resolution

Support

60Hz

640×480

Y

800×600

Y

1024×768

Y

1280×768

Y

1280×1024

Y

1680×1050

Y

1920×1080

Y

1280×720

Y

1360×768

Y

1920×1200

Y

1280×1024

Y

30Hz

3840×2160P

Y

What is in the box?

  • HD41QMV3 main unit x 1pc
  • IR remote controller x 1pc
  • 12V 1A DC power supply x 1pc
  • Mounting ear x 1 pair
  • Manual x 1pc
