PRO1463KA MIC/LINE MIXER OVER CAT5 EXTENDER

PRO1463KA Mic/Line Mixer over Cat5 Extender

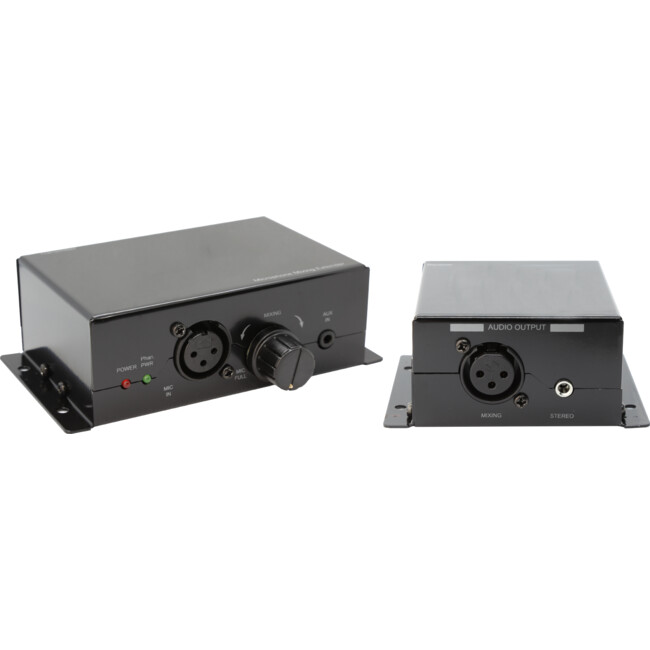

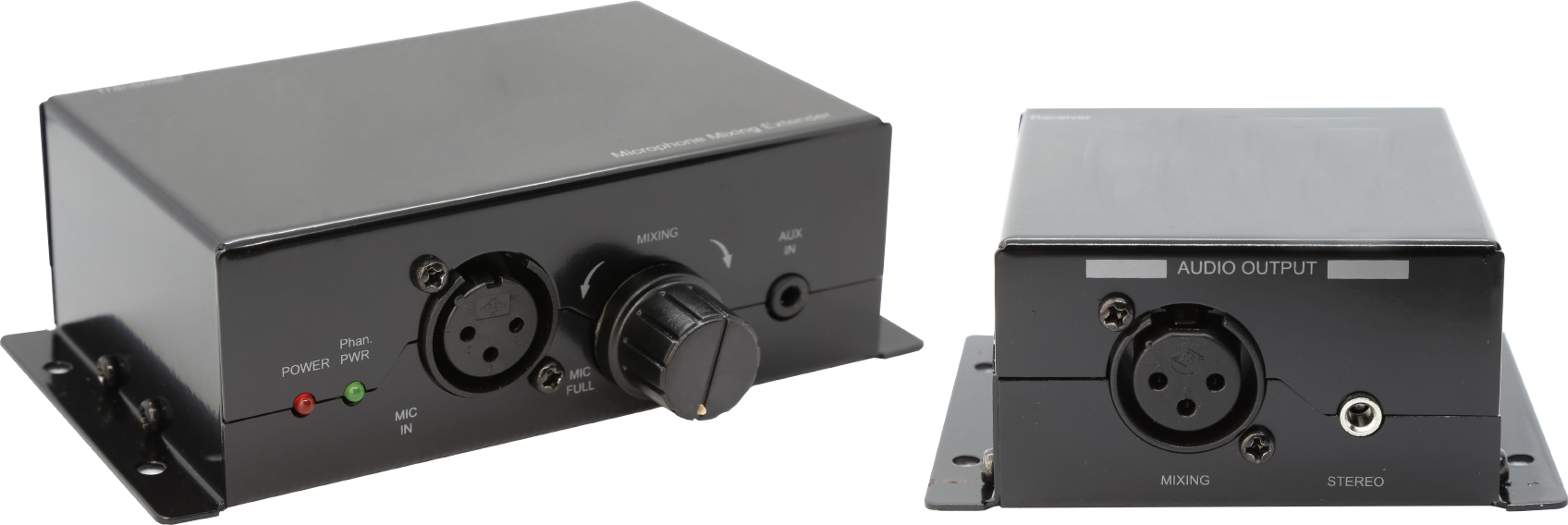

The PRO1463KA is a mic/line mixer over Cat5 extender that carries balanced audio over standard Cat 5 cable, up to 100 meters between the transmitter and receiver. It actively mixes mic and line signals at the transmitter end and delivers clean line-level audio at the receiver via XLR or 3.5 mm jack. Only one power supply is needed - the receiver powers the whole chain, so cascaded transmitters don't require their own adapters.

Key Features

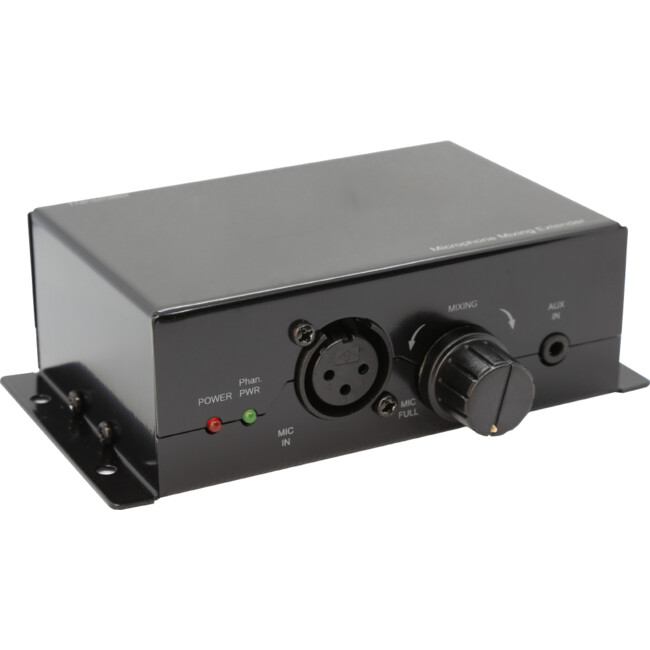

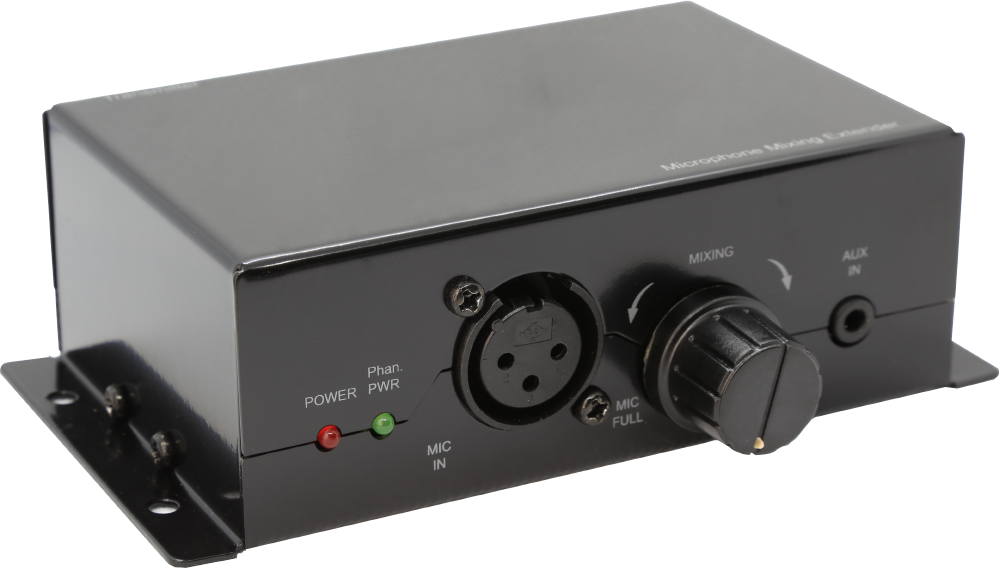

• Active mic/line mixing- combines a mic input (XLR) with an AUX line input, each with balanced level control.
• Front-panel volume control knob - easy level adjustment on the transmitter, no need to reach the receiver.
• Dynamic and condenser mic support - phantom power (+12V DC) can be switched on or off as needed.
• Cascade function - multiple transmitters can be chained over Cat 5 to expand input sources (up to 300 m in cascade), with only one power supply required for the entire chain

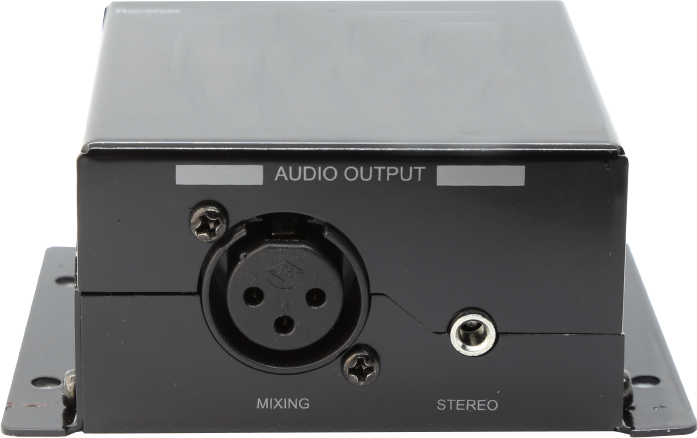

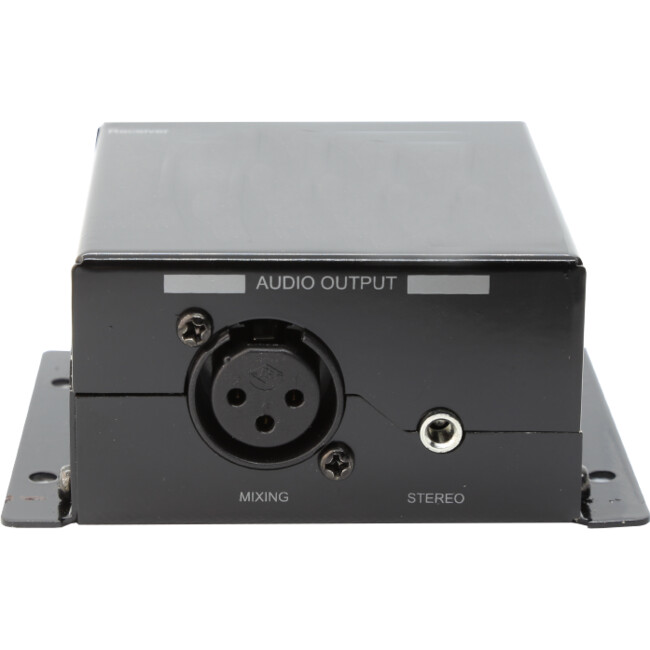

• Flexible receiver outputs - 3-pin XLR (line level) and 3.5 mm jack
• Differential transmission - balanced differential structure preserves sound quality over long cable runs
• Simple installation - Cat 5 cabling between transmitter and receiver; no special wiring needed

Typical Setup

Mic and AUX sources connect to the transmitter. Audio travels over Cat 5 to the PRO1463KA receiver, which outputs line level to an amplifier or active speakers. For more input sources, additional transmitters can be cascaded - Tx No.1 ? Tx No.2 ? receiver - with the receiver's single power supply feeding all units.

Specifications
