PAC500AU PASSIVE AUDIO OVER CAT5

Blustream PAC500AU - Passive Audio OverCAT Cable

Blustreams PAC500AU Audio over CAT cable extender transmits analogue audio signals up to distance of 500m.

This plug and play device requires no power supply making itideal for simple installations in which analogue audio needsto be extended over long distances.

Key Features

• Extend analogue audio signals up to distances of 500m over a single CAT cable
• Passive solution - Extender kit does not require a power supply

Specifications

PAC500AU-TX:

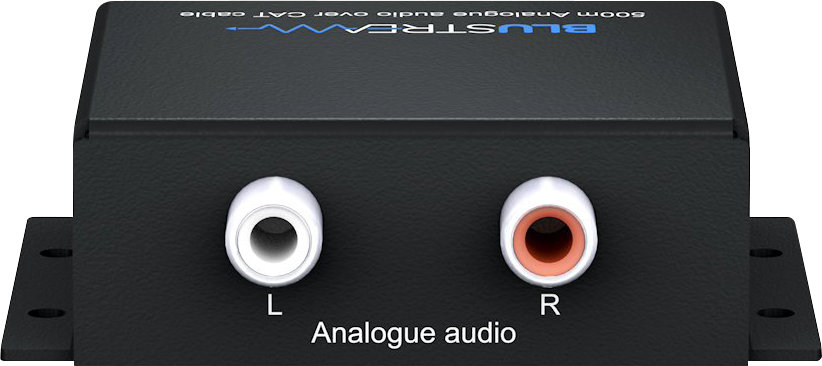

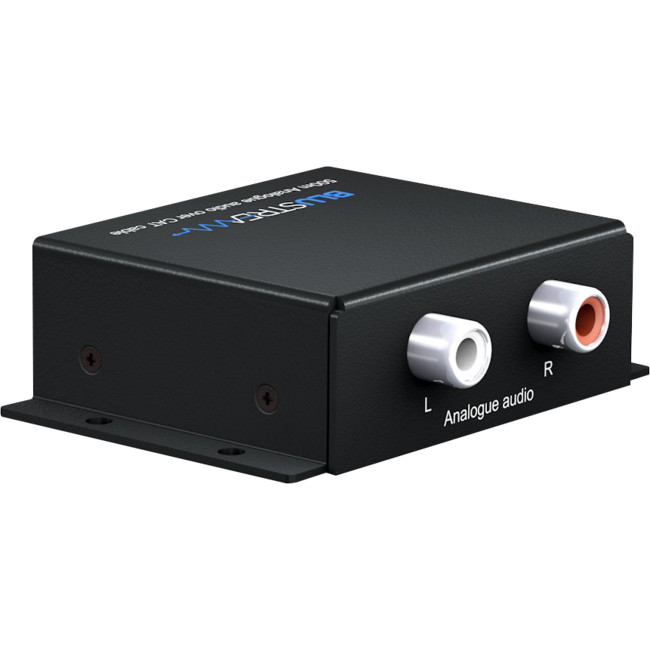

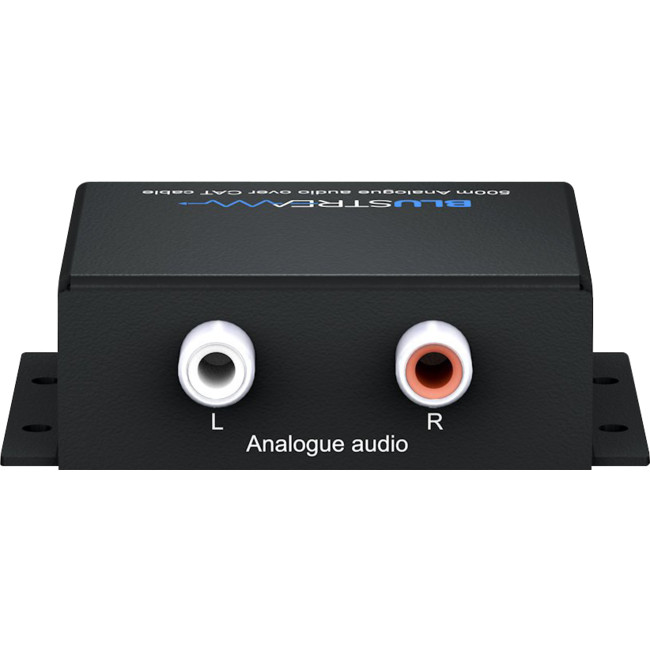

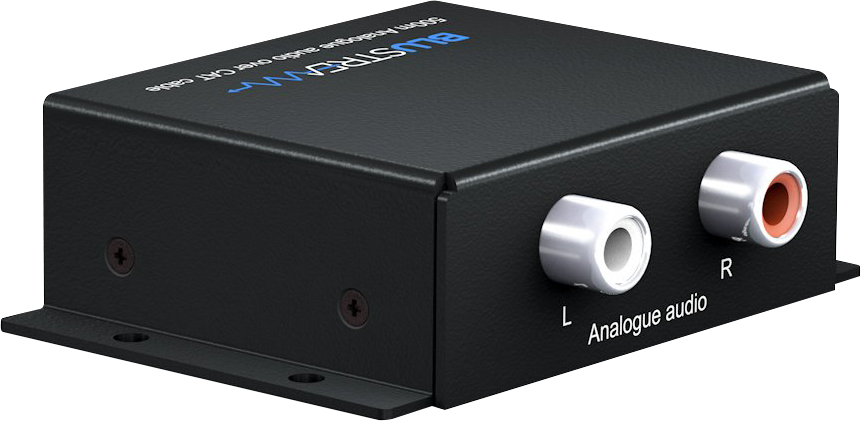

• Audio Input Connectors: 2 x RCA analogue Left / Right

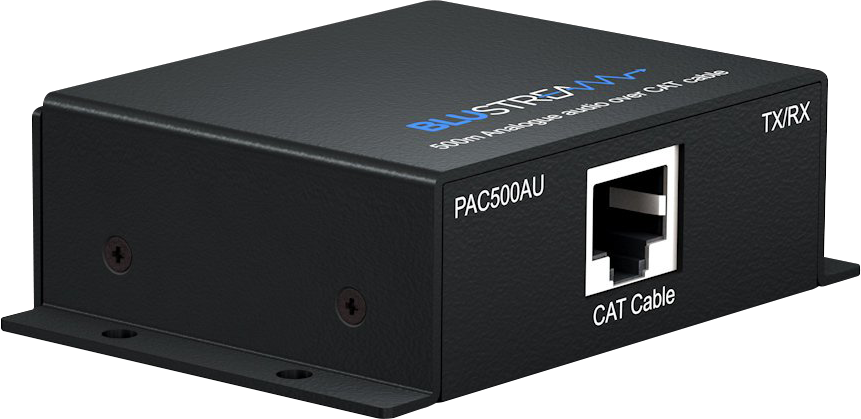

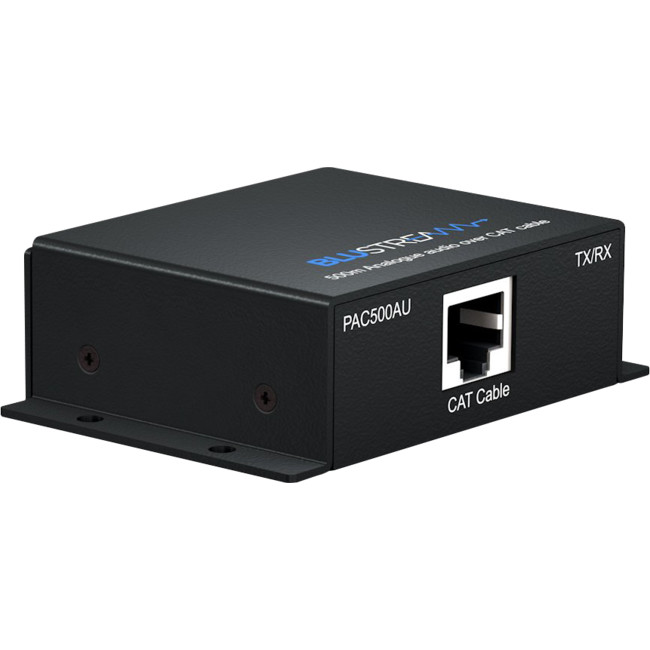

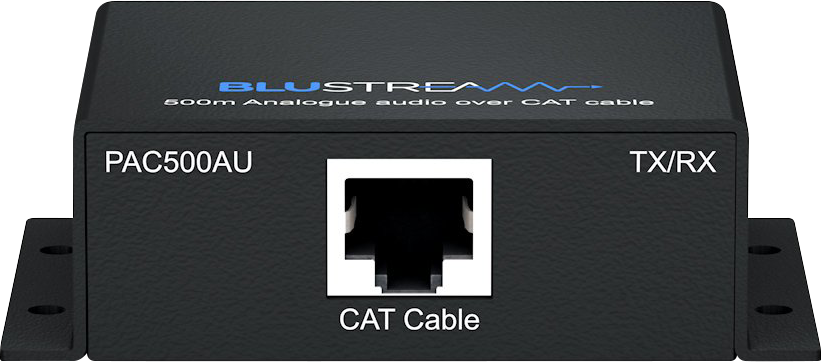

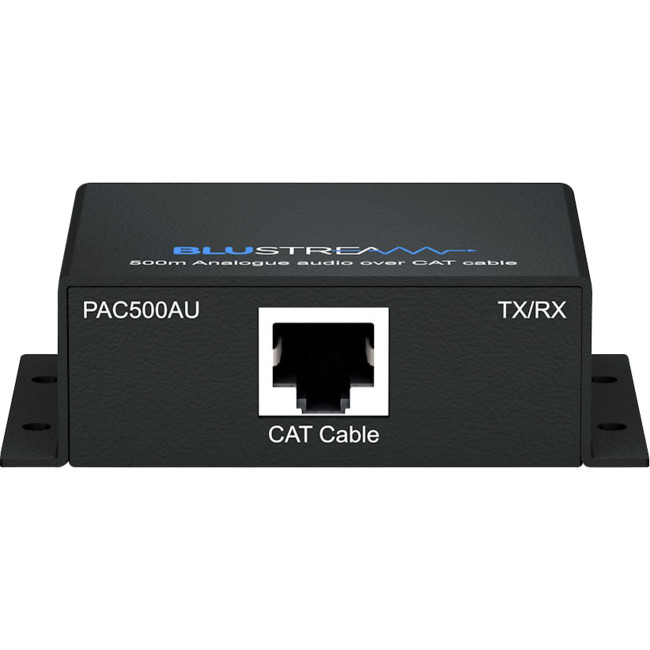

• Output Connectors: 1 x RJ45


PAC500AU-RX:

• Input Connectors: 1 x RJ45
• Output Connectors: 2 x RCA analogue Left / Right
• Casing Dimensions (W x H x D): 79mm x 55mm x 24mm
• Dimensions including connections (W x H x D): 79mm x 63mm x 24mm
• Shipping Weight: 0.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°Cto 60°C)

  *Note: PAC500AU TX/RX units can used as both a transmitter or receiver

Box Contents

1 x PAC500AU RX
1 x PAC500AU TX
1 x Quick Reference Guide
