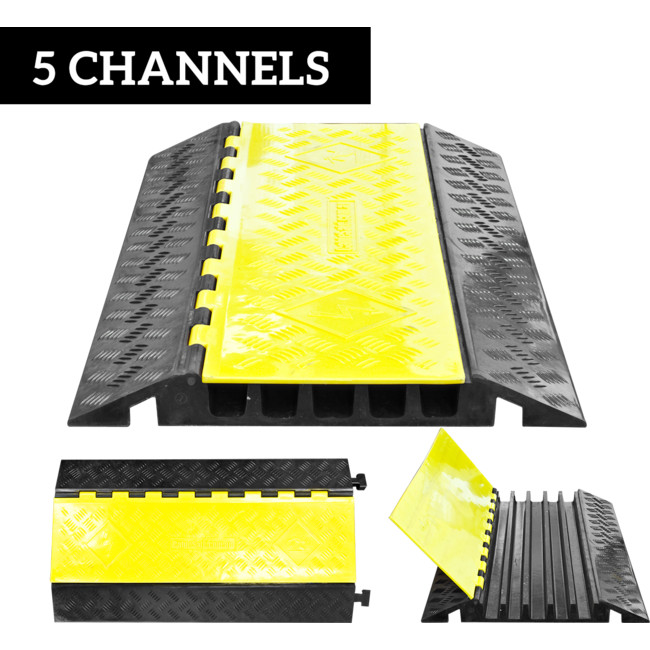

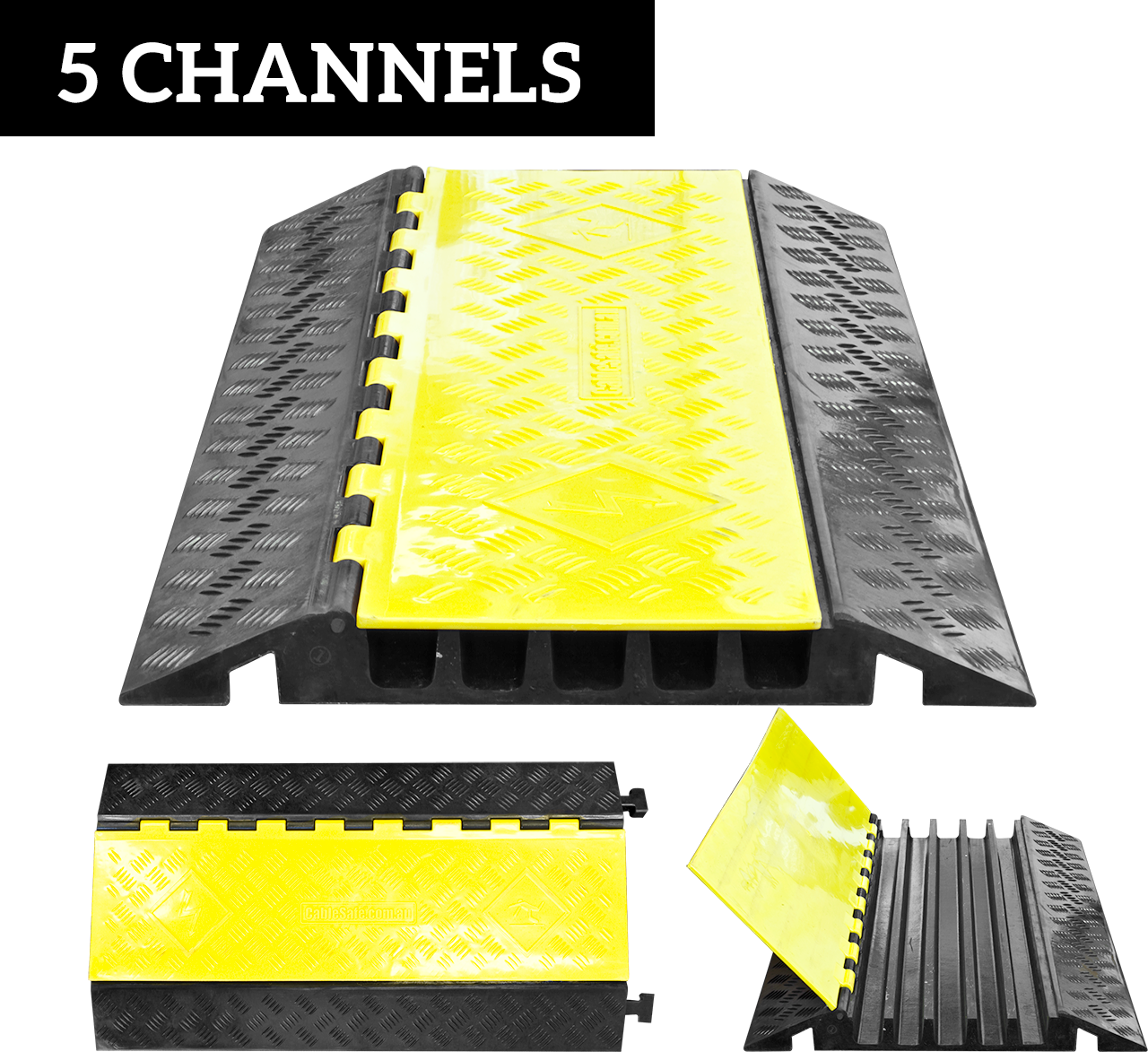

CS05I 5X 3.5CM CHANNEL CABLE GUARD

5 Channel Heavy Duty Cable Guard

CableSafe is proud to present to you our range of very affordable 3 and 5 channel cable ramps now available in Australia. We have worked hard on being able to supply ourcustomers with cost effective yet superb quality, cable guard solutions. Better cable management has never been easier to find or more affordable.

FEATURES:

This unit is specifically designed for  cable management where cables or hoses need to be run out over roadways or in pedestrian areas and a trip risk exists. Italso allows heavy vehicles to drive over these cables or hoses without damaging them.

The main points of difference between this and other products on the market  are the ability to get more cables or  hoses into the channels due to their  size and the overall cost benefit.

This product sells for about one third  the cost of other comparable products.

Applications Include:

• Traffic Management
• Construction
• Factories & Workshops
• Mining
• Entertainment Industry
• Aircraft Maintenance
• Utility Companies
• Jack Up Barge


SPECIFICATIONS:

• Dimensions : 900mm long  x 500mm wide  x 50mm high
• Weight: 16KG
• Channel Size: 4 Channels @ 34mm (W) x 36mm (H) and 1Centre Channel 40mm(W) x 36mm(H)
• Weight Loading: NATA Laboratory Tested to 4.1 T per tyre for 5 Minutes ( Equivalent to 16T per axle)
• Connecting System: Integrated Male-Female allowing any Length to be Achieved
• Non-Conductive
• Patented 5 bar tread surface provides maximum traction.
• Inbuilt carry handle makes it easier to carry one unit in each hand.
• Very low profile design decreases trip risk significantly compared to other higher profile products.
