FIB200M SM OS2 FIBRE CABLE 200M ROLL

SC/UPC-SC/UPC SM DX 3.0MM LSZH

Code: 05060900

4.76 kg
9328202021137
EACH
10
7 IN
STOCK
DON'T PAY $129
$89 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

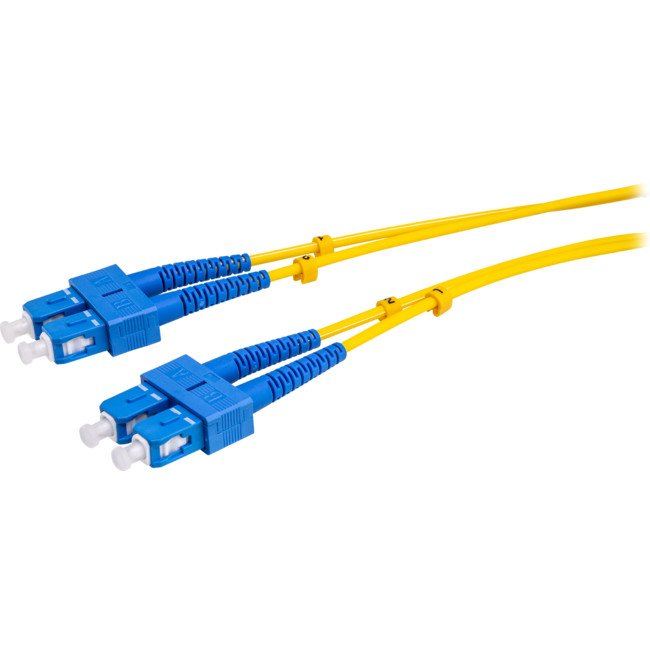

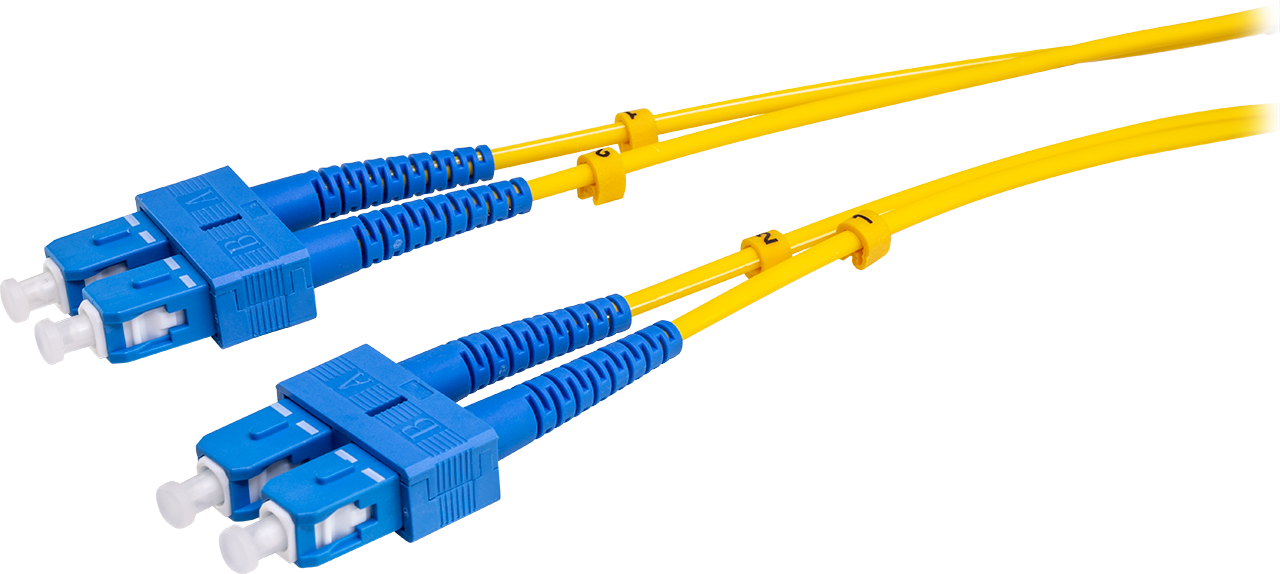

SC Fibre Optic Patch Cord stands for Subscriber Connector- a general purpose push/pull style connector. SC has an advantage in duplexibility to support send/ receive channels. SC Connectors are frequently used for newer network applications.
The square, snap-in connector latches with a simple push-pull motion and is keyed. They feature a 2.5mm ferrule and molded housing for protection.

Features

  • Superior qualified standard PC/ UPC/ APC polishing
  • Compliant with Telcordia GR-326-Core, TIA/ EIA and IEC
  • 100% optic test (Insertion Loss & Return Loss)
  • Single mode, Duplex
  • Comply to IEC Standard
  • G652D OS2 standard
  • Flexible boot are available
  • PVC/ LSZH

Applications

  • High Speed and volume Fibre Optic Transmission Systems
  • CATV Networks
  • LAN
  • Fibre Optic Instrumentation

Specifications

Patch Cord/Pigtail Spec
Type SC/UPC to SC/UPC Single Mode Duplex 3.0mm
Insertion loss A1: 0.17dB; A2: 0.10dB; B3: 0.13dB; B4: 0.07dB
Return Loss A1: 52.3dB; A2: 51.8dB; B3: 52.0dB; B4: 52.1dB
Repeatability ≤0.1dB
Durability ≥1000 matings
Operating Temperature -40 °C to 80 °C
Tensile Strength(N) ≥90N (f3), ≥70N (f2)
Cable Length 200m
