BBNBNV1 NBN COMPLIANT ENCLOSURE

OPTICOM ESTATE APPROVED

Code: 04850740

14.05 kg
EACH
40
40 IN
STOCK
TRADE ALERT!
$258 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

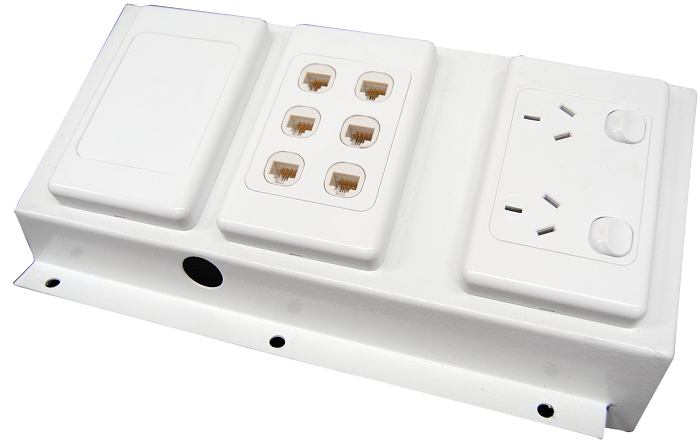

Built Boards 2015 NBN Enclosure is a revamp on the lastmodel and now includes, a double power point and 6 gang - CAT6 Outlet

Built Boards NBN Enclosure is large enough to house all the NBN hardware, with additional space for Data comms, TV and Phone terminations.

The enclosures are designed with many additional benefits, including duel gear trays, removable gland plates to the top and rear, and pad lockable turn knobs to avoid clients loosing odd shaped switchboard keys.

These Enclosures have top and bottom venting.

NBN Enclosures are commonly called HDC - Home Distributor Cabinets, the perfect home for all the NBN FTTH equipment.

This Enclosure complies to the NBN Co guidelines & regulations

This Enclosure is one of the most cost effective ways on the market to hide the hardware and messy cabling.

Enclosures are not supplied with the NBN Rollout. They are an option that should be installed prior to the NBN installation.

The main purpose for the enclosures is to protect the hardware and give an aesthetically pleasing look.



  • Compliant to NBN Co Regulations -  NBN-NO-GDE-0011
  • Approved by OptiComm to house their equipment

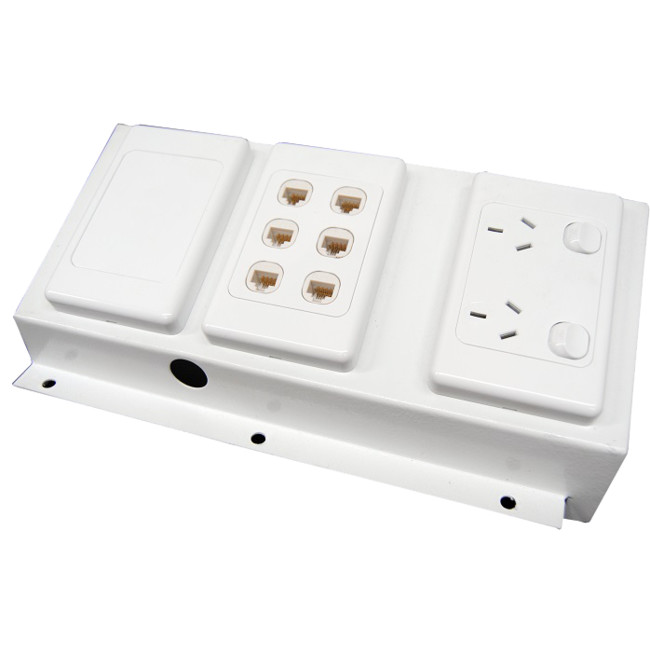

  • Double Power point
  • CAT6 - 6 gang outlet
  • Blank plate for an additional wall plate

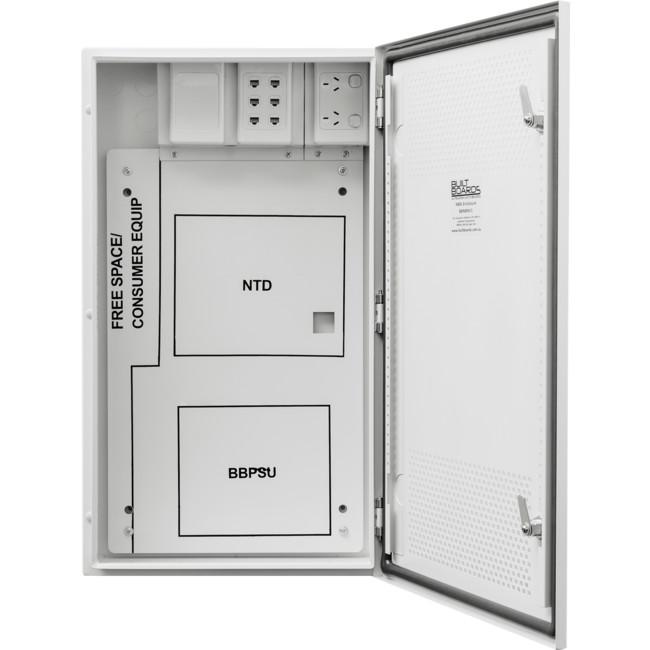

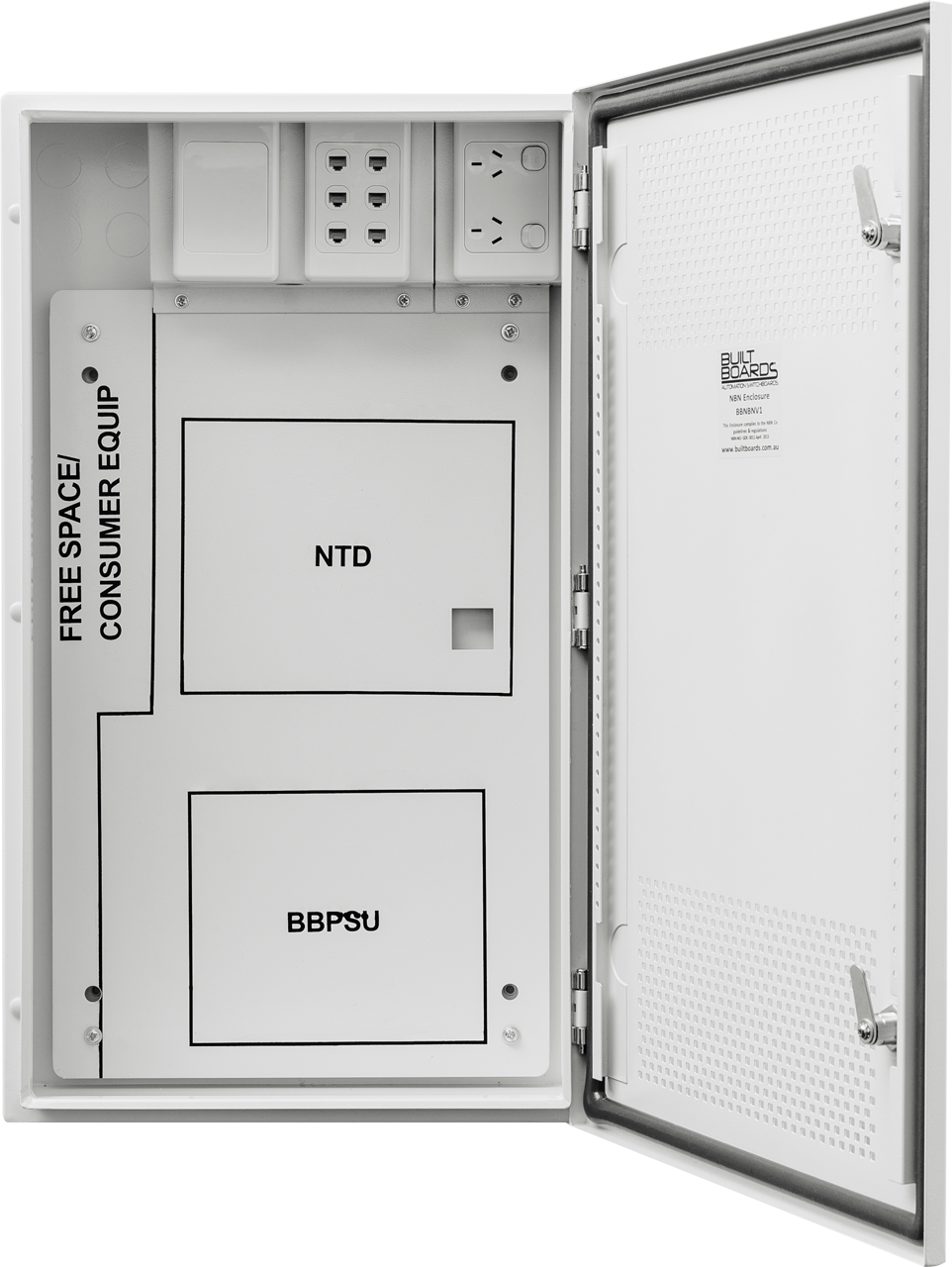

  • Hardware outline guide printed on gear tray
  • 700mm high x 400mm wide x 150mm deep

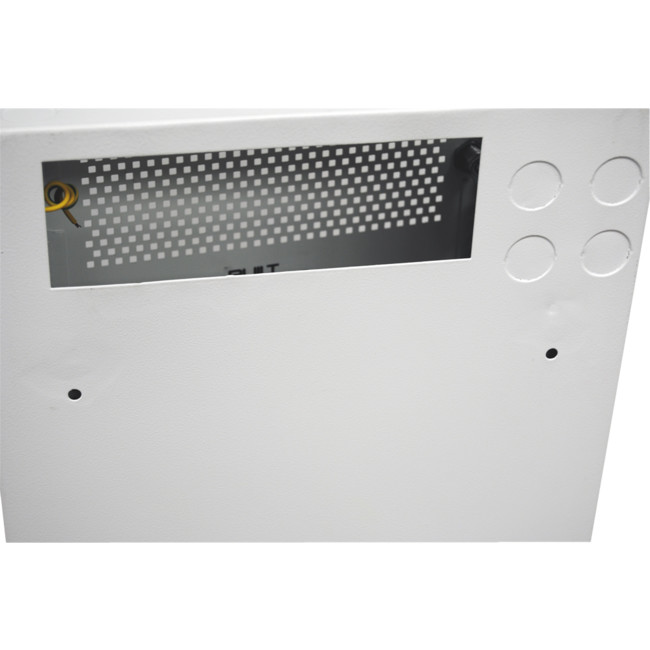

  • Top knockouts

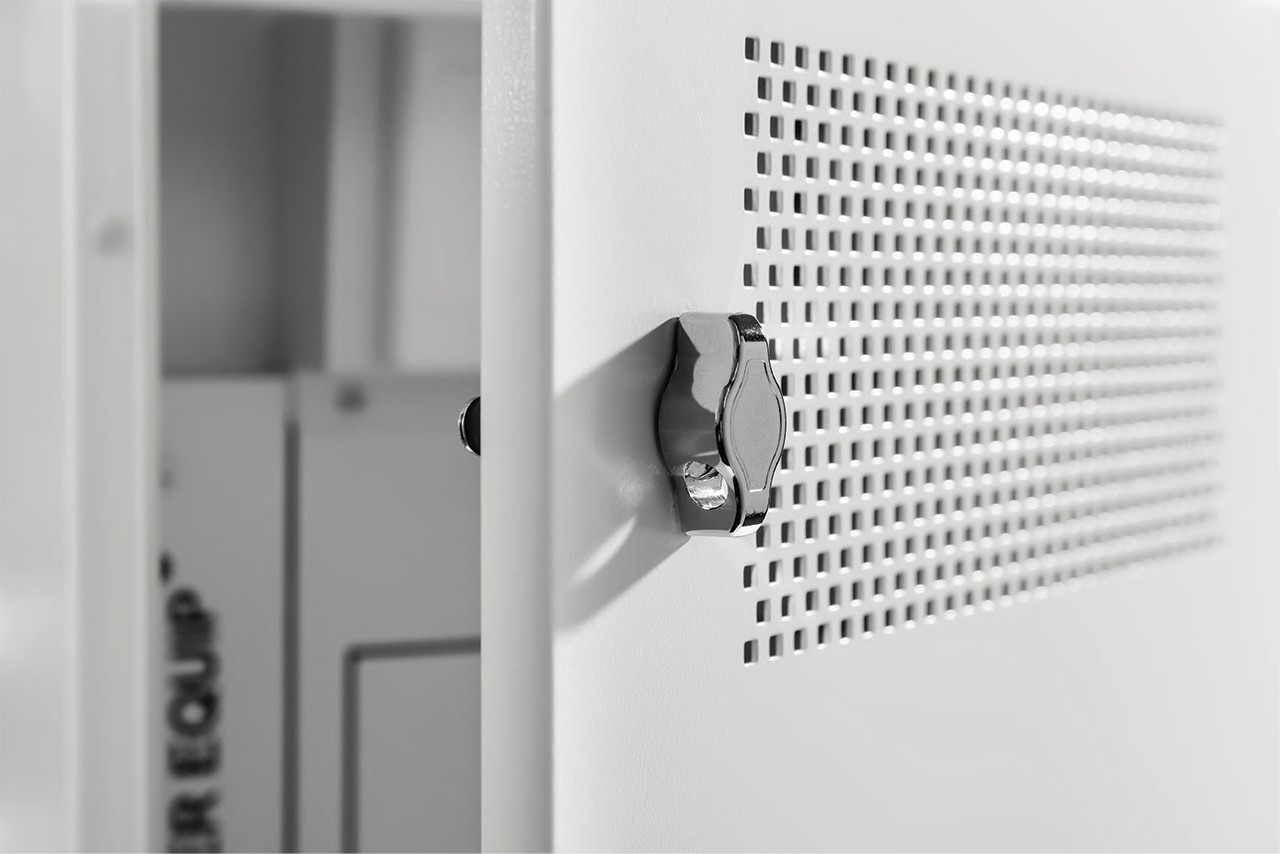

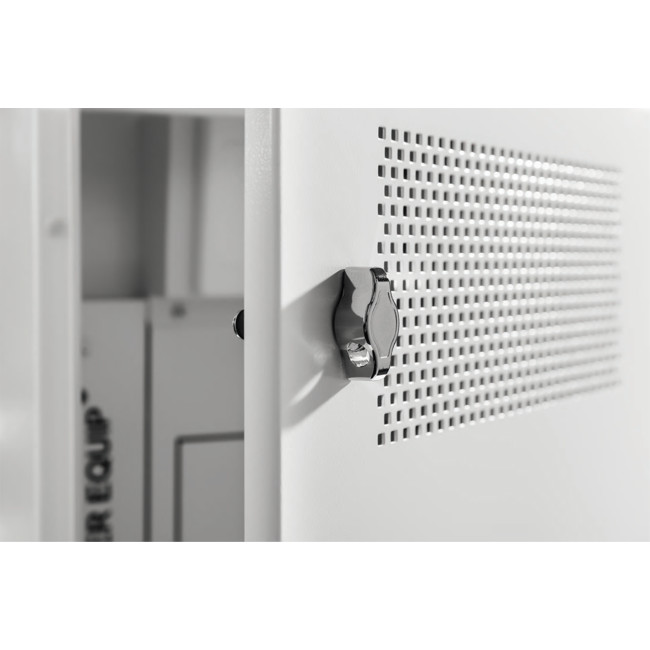

  • Chrome pad-lockable turn knobs

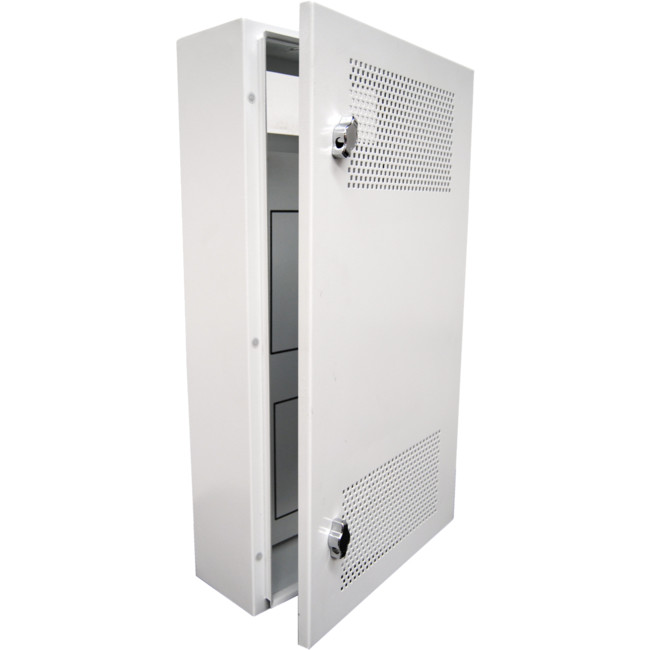

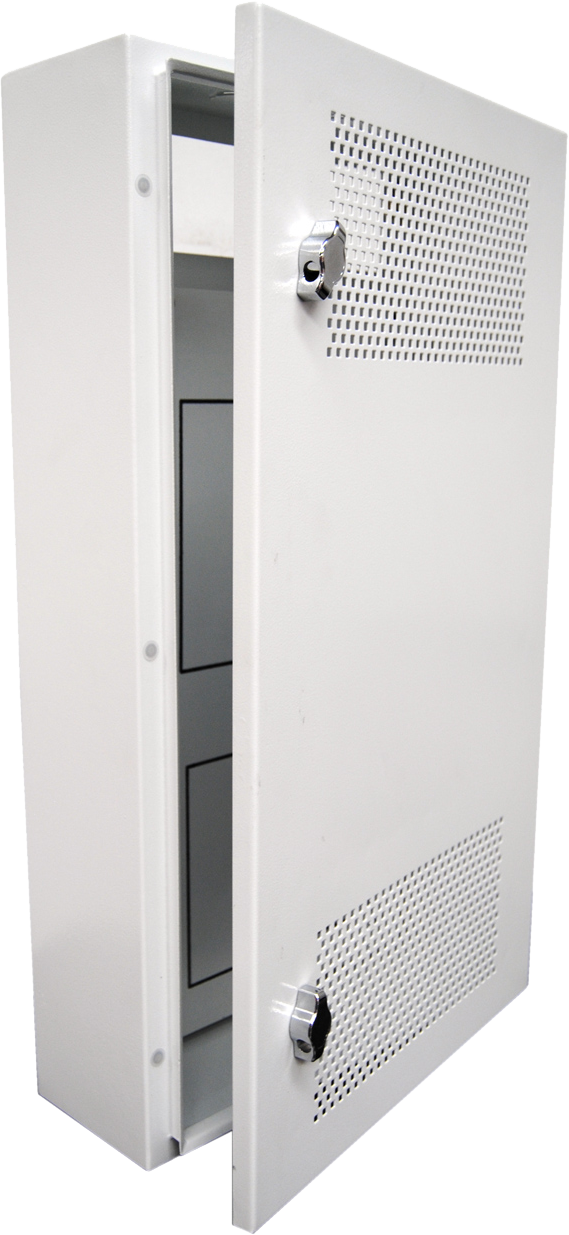

  • Upper and lower vents to door
  • Rear Entry window for surface mounting
  • Wi-Fi Friendly - Lab test proven
  • Solid construction
  • 2mm powder coated galvanized steel gear tray
  • Can be installed at frame stage
  • Powder coat ripple finish in white
  • Optional flush frame kit -  BBNBNFK

Optional flush frame kit - Part Number: BBNBNFK
The flush frame kit is supplied assembled. The frame simply slides over the recessed enclosure and gives 25mm extra coverage to hide the cut-out.

The frame is constructed from 1.2mm steel and is powder coated to match the enclosure.
