WiiM Bar Gloss Black
See the Sound. Build the Theater
WiiM Bar is a display-first 3.0.2 Dolby Atmos® soundbar that lets you see, control, and expand your home audio experience. Its glass-covered, vibrant 2.1-inch round touch
display shows album art, track information, time, EQ, Smart Presets, Recently Played content, clock faces, dynamic wallpapers, and playback/source controls directly on the
device.
Built with an 8-driver array, 4 passive radiators, top-firing height channels, and RoomFit™ auto-correction, WiiM Bar delivers immersive sound for movies, TV, and music.
Group with compatible WiiM devices to expand from a single soundbar into a 5.1.2 home theater system with wireless surrounds and subwoofer support— all managed through
touch, voice, or the WiiM Home App.
Get ready to elevate your music and home theater experience with unmatched convenience and fidelity!
Key Features
- See the Sound: A glass-covered, vibrant 2.1-inch round touch display puts album art, track info, time, EQ, Smart Presets, Recently Played content, clock faces, dynamic
wallpapers, and playback/source controls right on the soundbar. - Immersive 3.0.2 Dolby Atmos® and DTS:X Playback: Top-firing height channels, HDMI eARC, and support for LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS, and DTS:X help deliver cinematic sound for movies, TV, and games.
- Expandable 5.1.2 WiiM Home Theater: Start with a 3.0.2 Dolby Atmos® soundbar and group with compatible WiiM devices to add wireless surrounds and subwoofer
support, expanding into a 5.1.2 home theater system. - 8-Driver Acoustic System with 4 Passive Radiators: Three front mid-woofers, three front tweeters, two top full-range height drivers, and four passive radiators work
together to support a wide soundstage, clear vocals, height effects, and bass performance from a single soundbar. - RoomFit™ Auto-Correction: RoomFit™ helps tailor playback to your space, optimizing the listening experience for different room layouts and placements.
- Clear Voice, AI Dialog Enhancement, and Night Mode: Dialogue-focused listening modes help improve vocal clarity, while Night Mode helps manage the dynamic range
for lower-volume or late-night listening. - Stream Your Way: Stream 20+ music services directly from the WiiM Home App, or connect through Google Cast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, and Roon.
- Wi-Fi 6E and Bluetooth with LE Audio: Wi-Fi 6E, Ethernet, and Bluetooth with LE Audio provide flexible connectivity for streaming, control, and everyday listening.
- Scalable Whole-Home Audio: Seamlessly integrates with WiiM Amp, Ultra, Pro, Mini, and Edition speakers for synchronized multi-room music grouping.
- Control Your Way: Manage EQ, Smart Presets, and routines via the WiiM Home App, Alexa, Google Assistant, or the included Voice Remote 2 Lite.
- Future-Proof Performance: Regular firmware updates continuously unlock new features, services, and audio enhancements.
Specifications
- Audio and HDMI Ports
- Channels: 3.0.2 (top-firing height), expandable to 5.1.2 with sub/surround
- Format: LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS/DTS:X

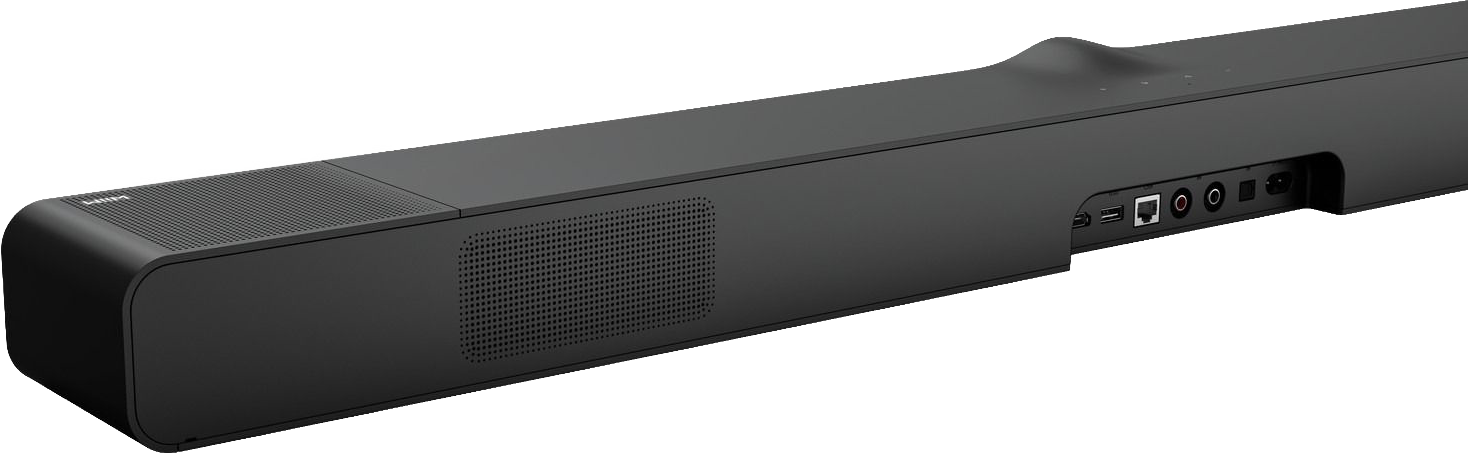

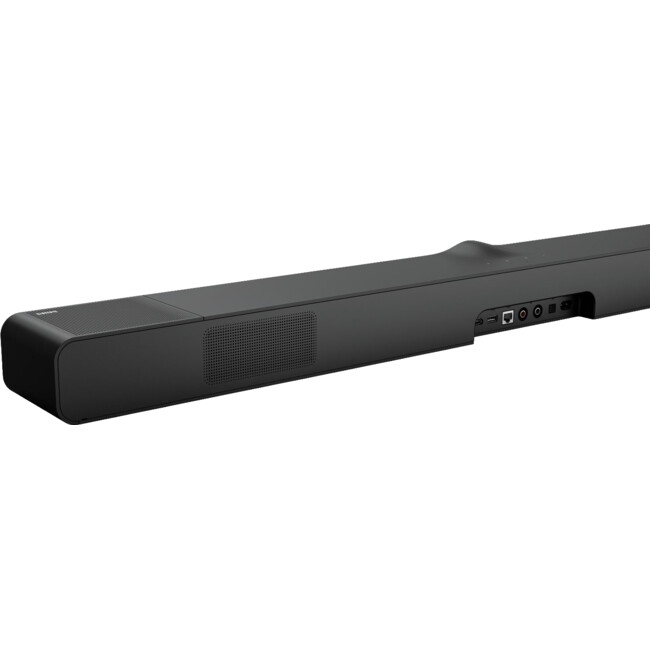

- Audio Port
- HDMI eARC
- Optical
- Line In
- USB Audio In (configurable via software)
- USB Audio Out (configurable via software)
- Connectivity, Streaming, & Power
- 100-240V AC input
- Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.
- Bluetooth 5.4 with BLE, A2DP Rx/Tx, AVRCP, HID, LE Audio (via software update).
- Ethernet, 10M/100 Mbps.
- Cast Agnostic: Google Cast / Chromecast Audio; Spotify Connect; TIDAL
- Connect; Qobuz Connect; Amazon Music Cast; Qobuz Connect; DLNA (UPnP); Qplay 3.0; LMS; Roon.
- USB Host for Storage – Access personal media library and use it as a standalone media server for other WiiM and DLNA devices.
- USB Audio In or Out (configurable via software)
- Glass-covered vibrant 2.1" Round Touch Display
- Glanceable: High-contrast, distance-readable time/track info and album art.
- Fast Control: Tap to play/pause/skip/like and pick a source.
- Quick EQ: Preset and Custom EQs on the device; deep EQ in the WiiM Home app.
- Smart Preset: Choose your favorite preset routine and content with one tap.
- Recently Played: Choose your latest played playlists, stations, and shows.
- Personalization: Multiple clock faces, dynamic wallpapers, and album art standby.
- Physical
- Dimensions: 1060 × 105 × 74 mm (70 mm without foot).
- Weight: 5kg /11.02 lb
- LED: RGB+W status LED with defined patterns (setup, BT pair, inputs, OTA, errors).
- Proximity-lit Capacitive Buttons: Volume +, -, Play/Pause, Source Switch.
- 2.1” Hi-Res Full Color LCD Touch Screen.
