DA44AU 4X4 DANTE DIGITAL AUDIO MATRIX

BLUSTREAM

Code: 01619044

EACH
Special
Buy-In
TRADE ALERT!
$2299 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

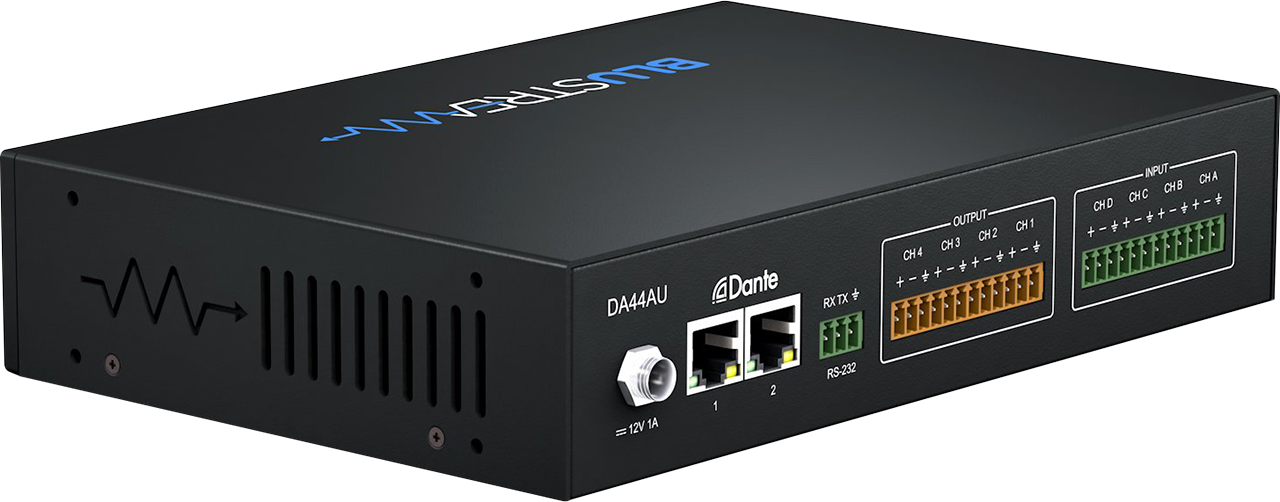

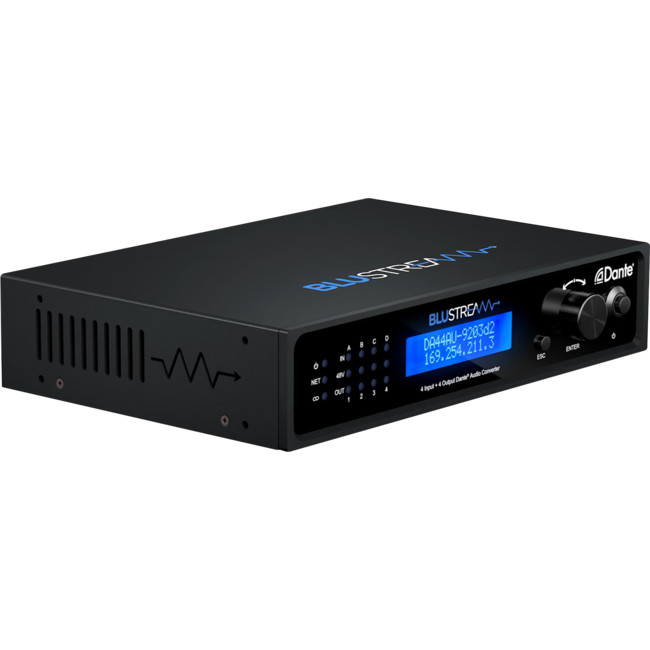

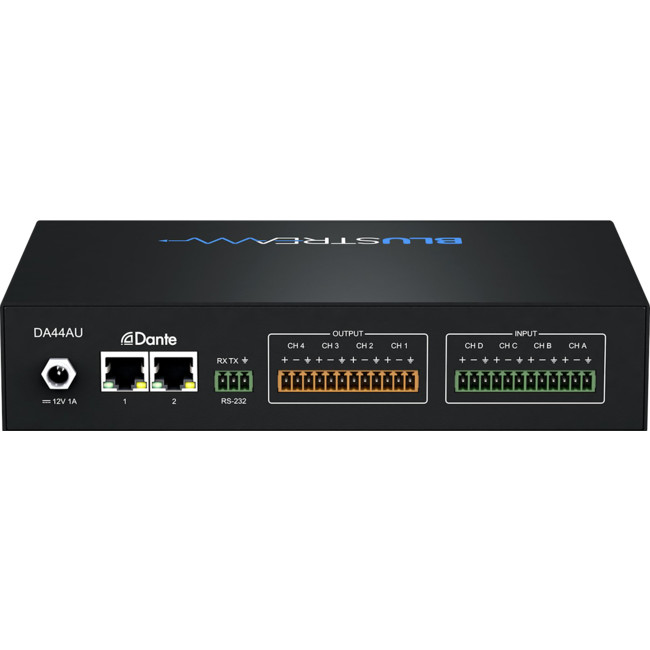

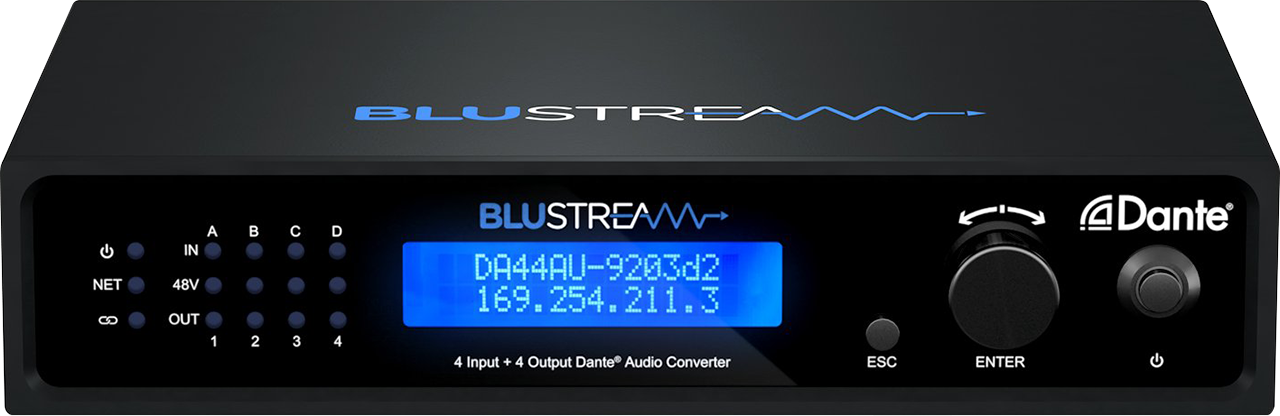

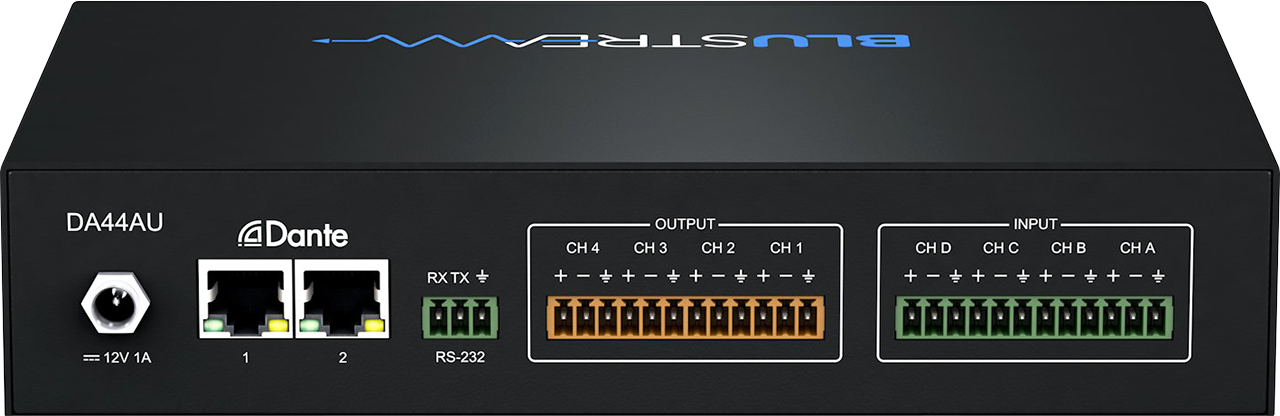

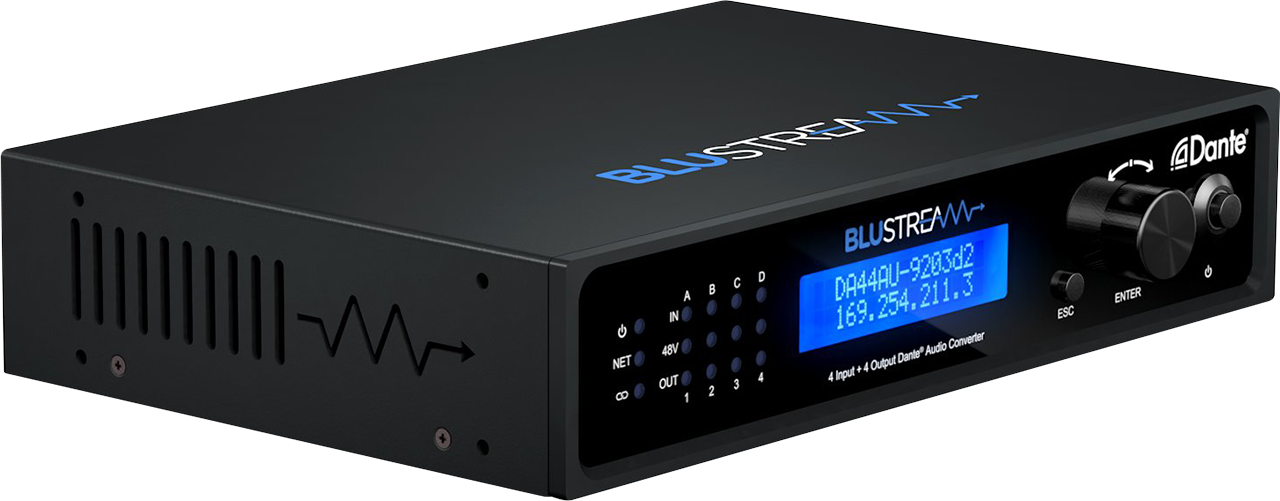

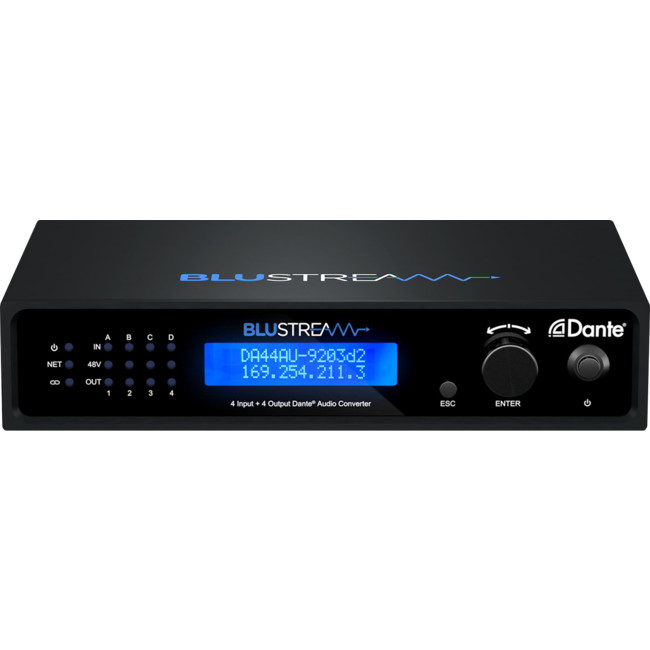

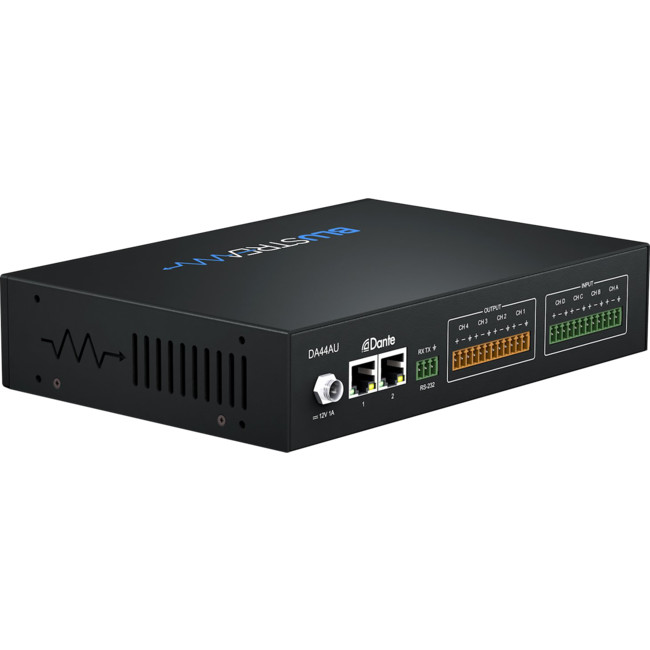

DA44AU 4×4 Dante® Digital Audio Converter

Blustreams DA44AU is a four input / four output Dante® digital audio converter.

The DA44AU allows any non-Dante® audio source such asmixing consoles, amplifiers, computers and Blustream Matrix / distribution products to be connected as an audio source within a Dante® network, as well as converting a Dante® signal back to an analogue audio signal.

The DA44AU supports both balanced and unbalanced audio aswell as microphone line level inputs inc. 48V phantom power.

The DA44AU supports AES67 RTP audio transport.


Features

  • Features 4 × analogue audio inputs that are converted to a Dante® compatible signal.
  • Features conversion of 4 × Dante® signals to analogue audio outputs.
  • Analogue audio inputs support both balanced and unbalanced audio + MIC line level signals.
  • MIC line level supports 48V phantom power.
  • Supports 44.1, 48 & 96kHz sample rates @ 24-bit.
  • Configurable Dante® device latency (supports 1, 2or 5ms configurable using Dante® Controller).
  • Independent input gain / output volume settings per channel.
  • Supports AES67 RTP audio transport.


Specifications

Audio Input Connectors 12-PIN Phoenix connector (4ch balanced / unbalanced analogue audio / MIC)
Audio Output Connectors
  • 2 × RJ45, female (1Gb Dante™ network)
  • 12-PIN Phoenix connector (4ch balanced / unbalanced analogue audio / MIC)
Casing Dimensions (W×H×D) 120mm × 23mm × 34m (without feet)
Operating Temperature −5°C to +55°C (32°F to 104°F)
Storage Temperature −25°C to +70°C (−4°F to 140°F)
Power Supply 12V/1A DC


Box Contents

  • 1 × DA44AU
  • 1 × 12V/1A DC Power Supply
  • 1 × Mounting Kit
  • 1 × Quick Reference Guide
