DA11USB2 DANTE AUDIO ANALOGUE ENCODER / DECODER

Code: 01619035

9340242004970
EACH
Low Stock
TRADE ALERT!
$499 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

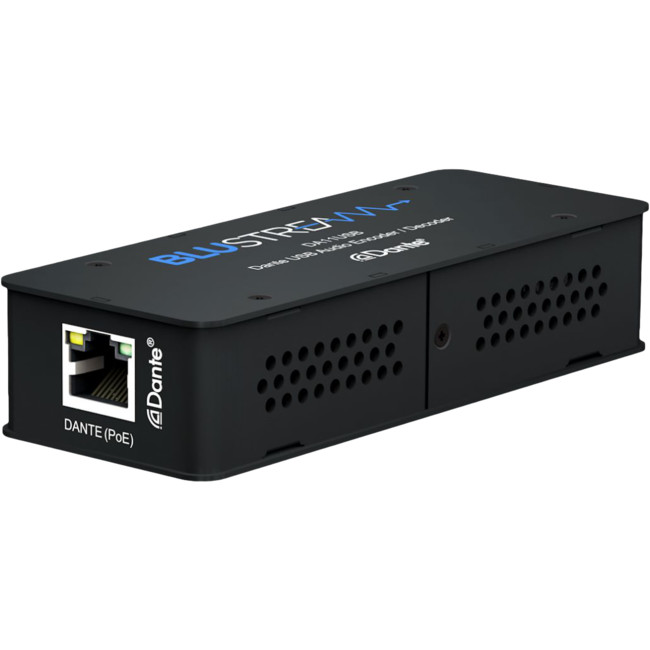

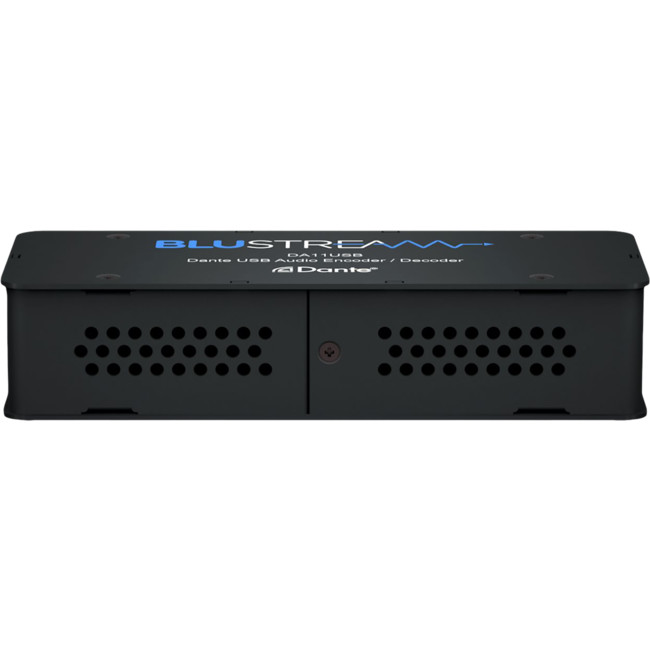

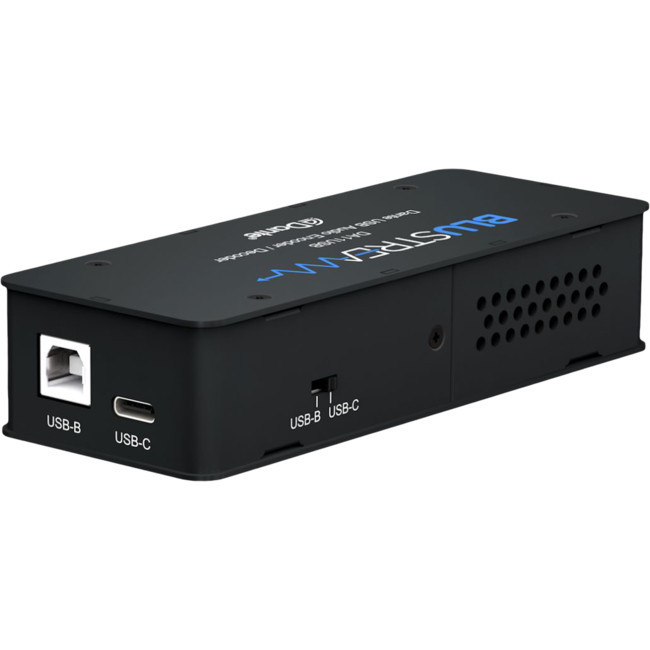

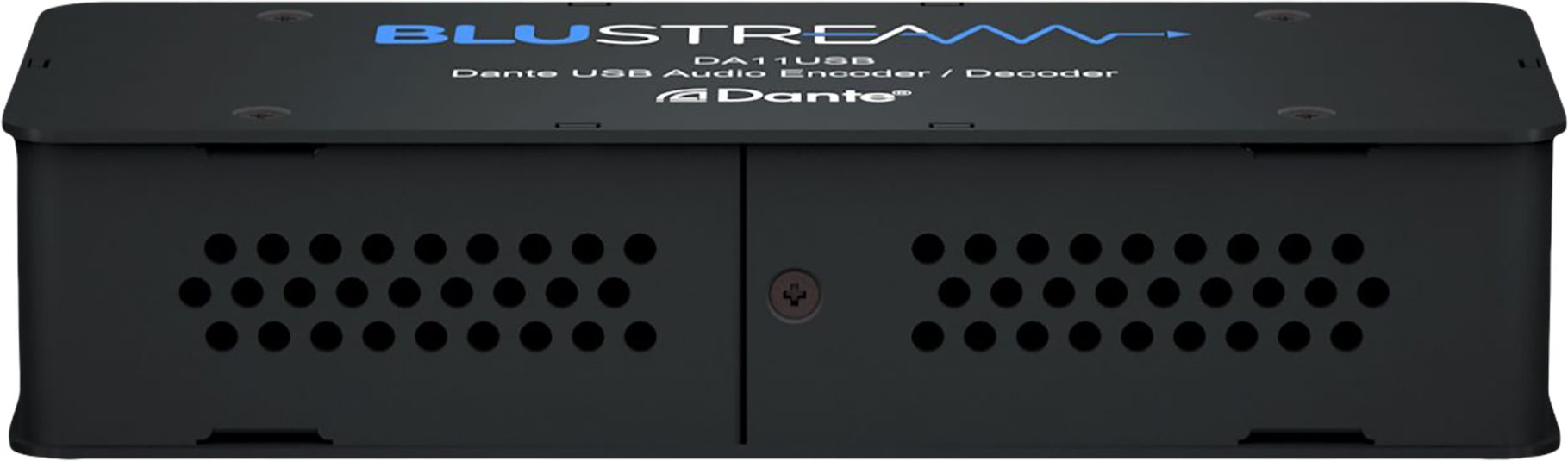

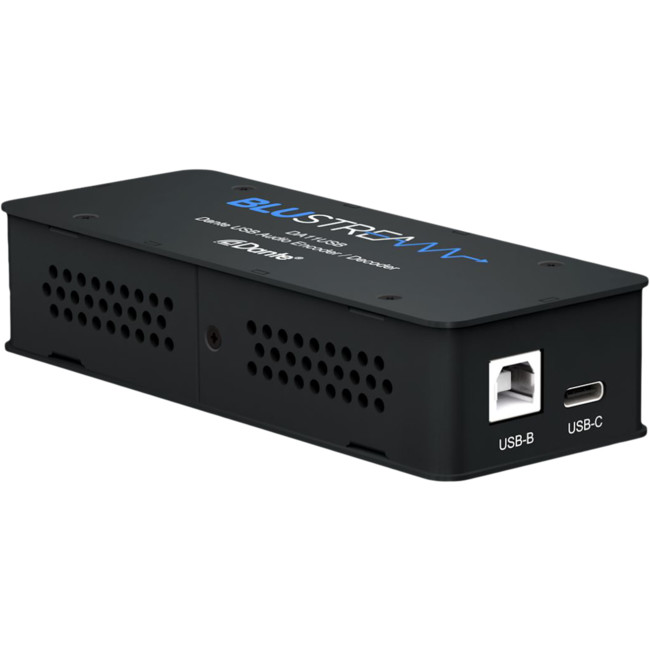

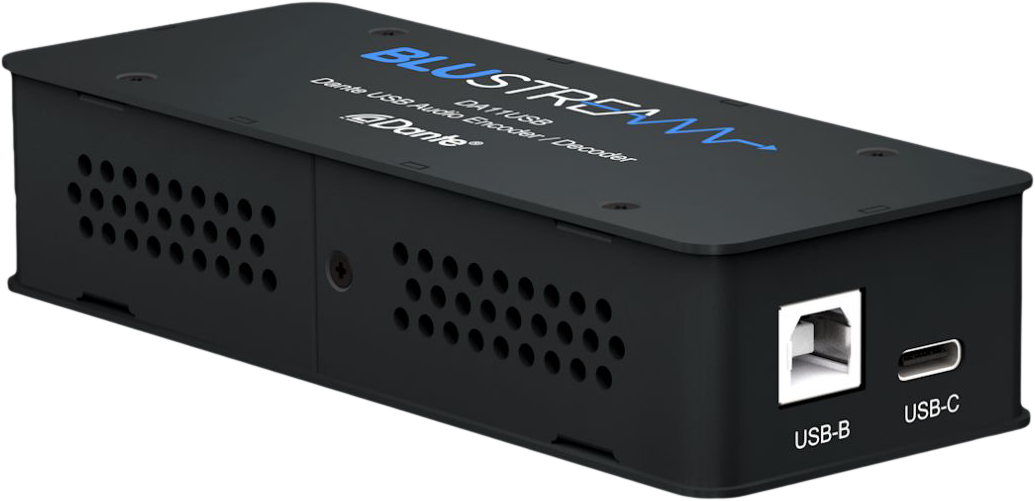

Blustream DA11USB2 Dante® USB Audio Encoder / Decoder

DA11USB-V2 has been designed to both encode 2ch USB audio to a Dante® digital signal, and decode a Dante® digital signal to 2ch USB audio. The DA11USB-V2 features both USB Type-B and USB-C connections selectable via local dip-switch and is a plug & play device that is powered using PoE (Power Over Ethernet) or via 5V from the USB device. The DA11USB-V2 also supports AES67 RTP audio transport.


Audio Breakout Dante PoE USB C USB

Key Features

  • Encodes 2ch USB audio to Dante® digital signal
  • Decodes a Dante® digital signal to USB audio

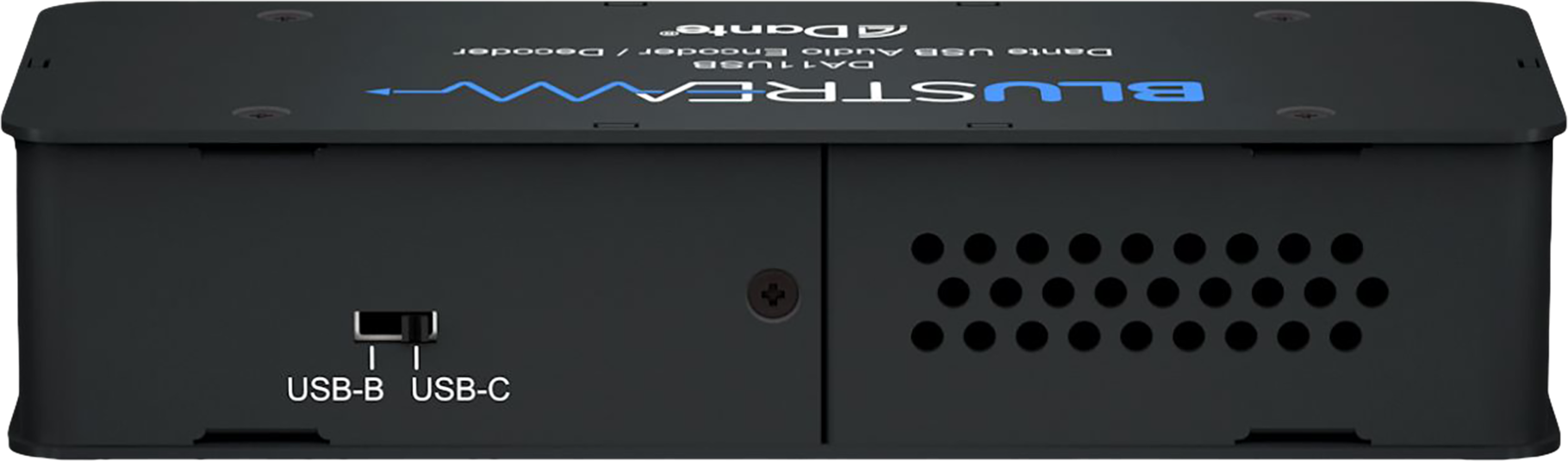

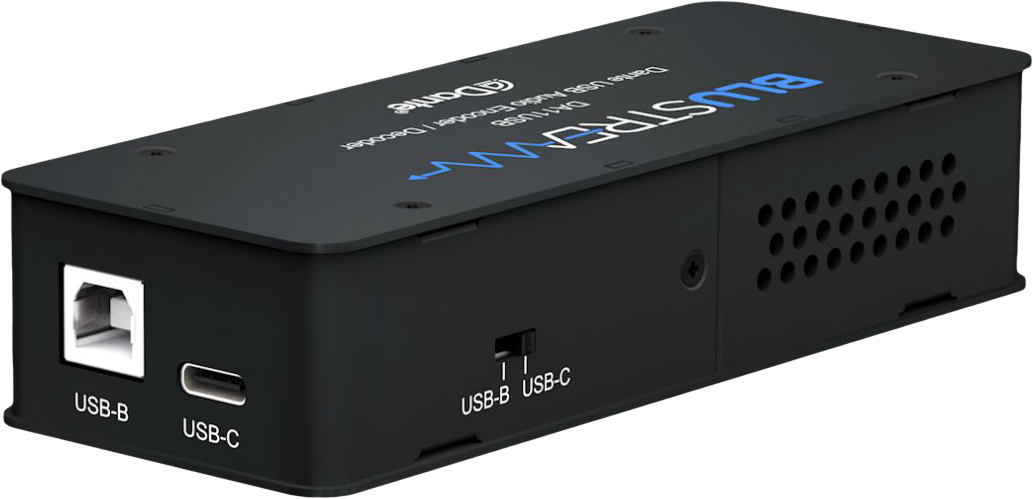

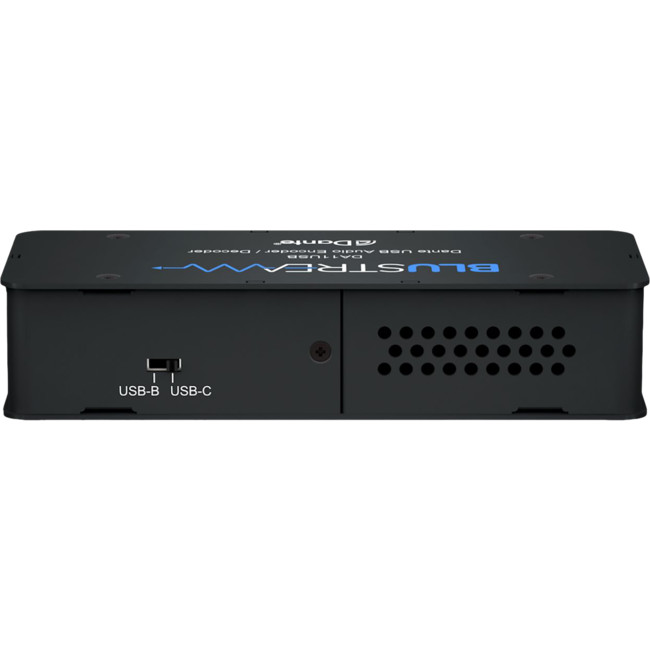

  • Selectable USB audio between USB Type-B and USB-C inputs
  • Compliant with USB Audio Device Class Specification V2.0
  • Dante® Audio Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
  • Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Features Class 3 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 5V USB where network switch does not support PoE

Dante® is a registered trademark of Audinate Pty Ltd

Specifications

Audio Input Connectors

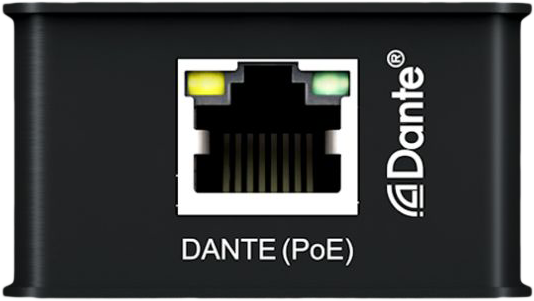

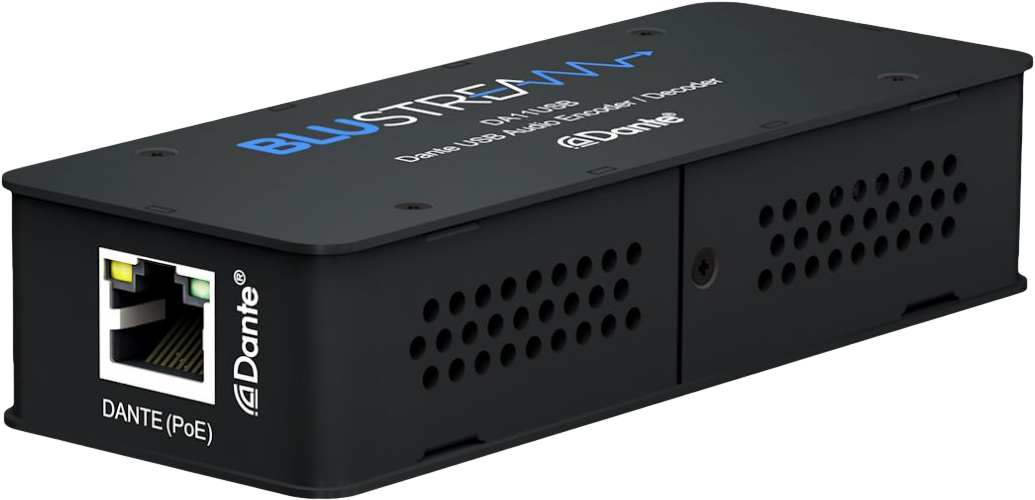

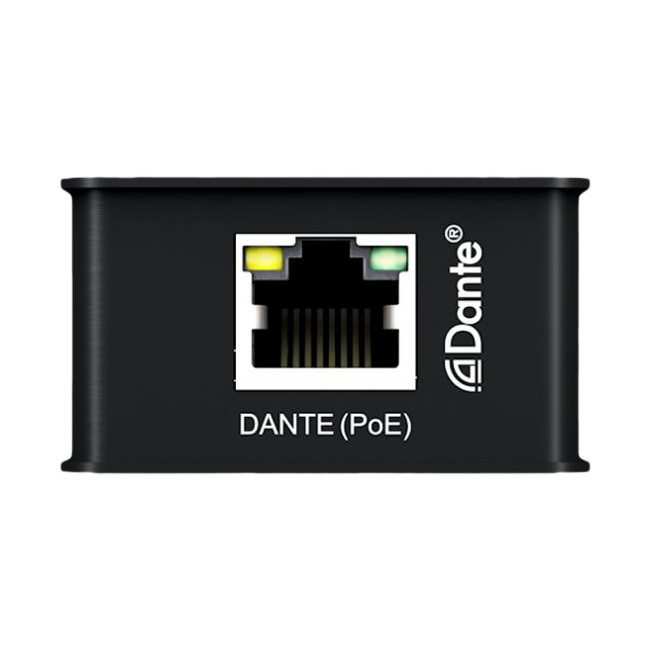

  • 1 × RJ45, female (100Mbps Dante® network)

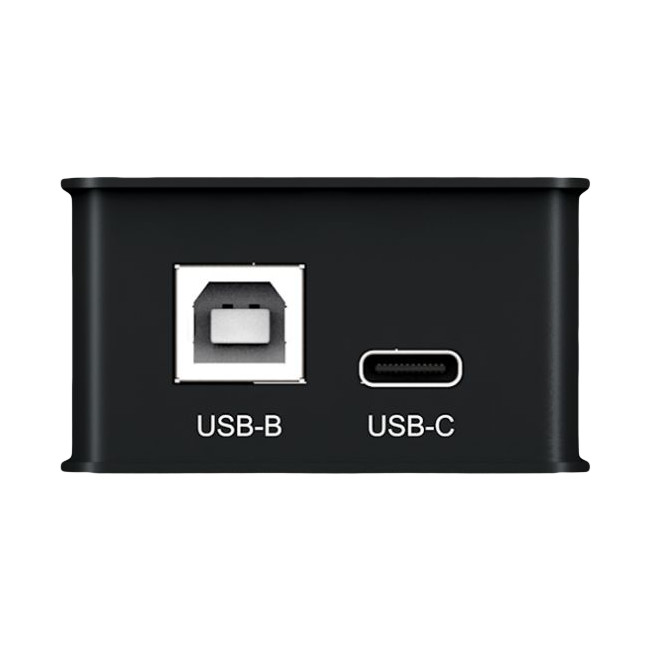

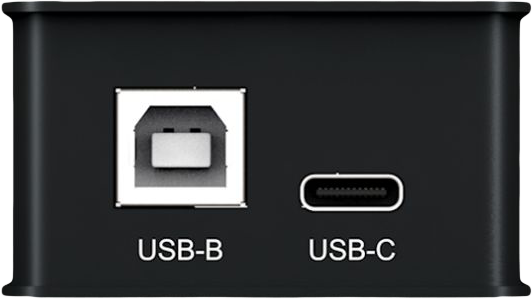

  • 1 × USB Type B female
  • 1 × USB Type C female
Audio Output Connectors
  • 1 × RJ45, female (100Mbps Dante® network)
  • 1 × USB Type B female
  • 1 × USB Type C female
Casing Dimensions (W×H×D) 120mm × 26mm × 47mm without feet
Shipping Weight 0.3kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature −20°C to 60°C (−4°F to 140°F)
Power Supply Class 3 IEEE 802.3af PoE, or 5V USB

Box Conents

  • 1 × DA11USB-V2
  • 1 × USB-A to USB-B cable – 1m
  • 1 × USB-C to USB-C cable – 1m
  • 1 × Quick Reference Guide



Blustream Dante audio converters
