The Alfresco Pack - Upgrade Your Outdoor Listening Experience

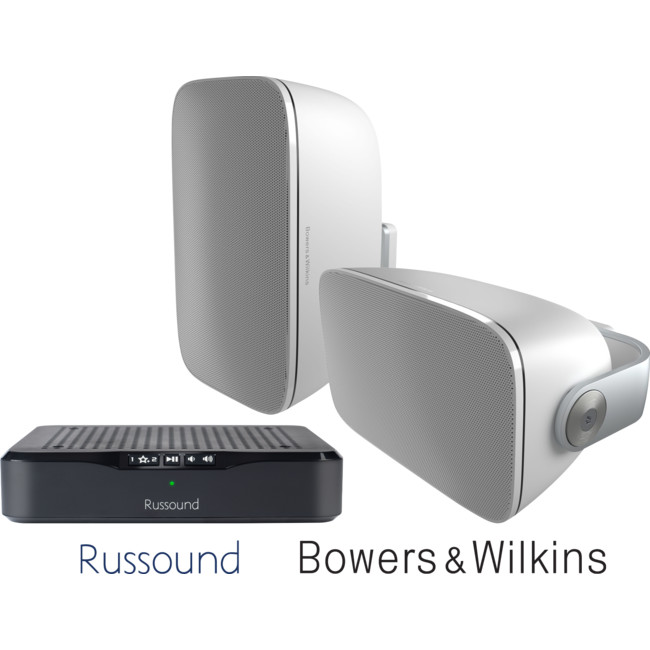

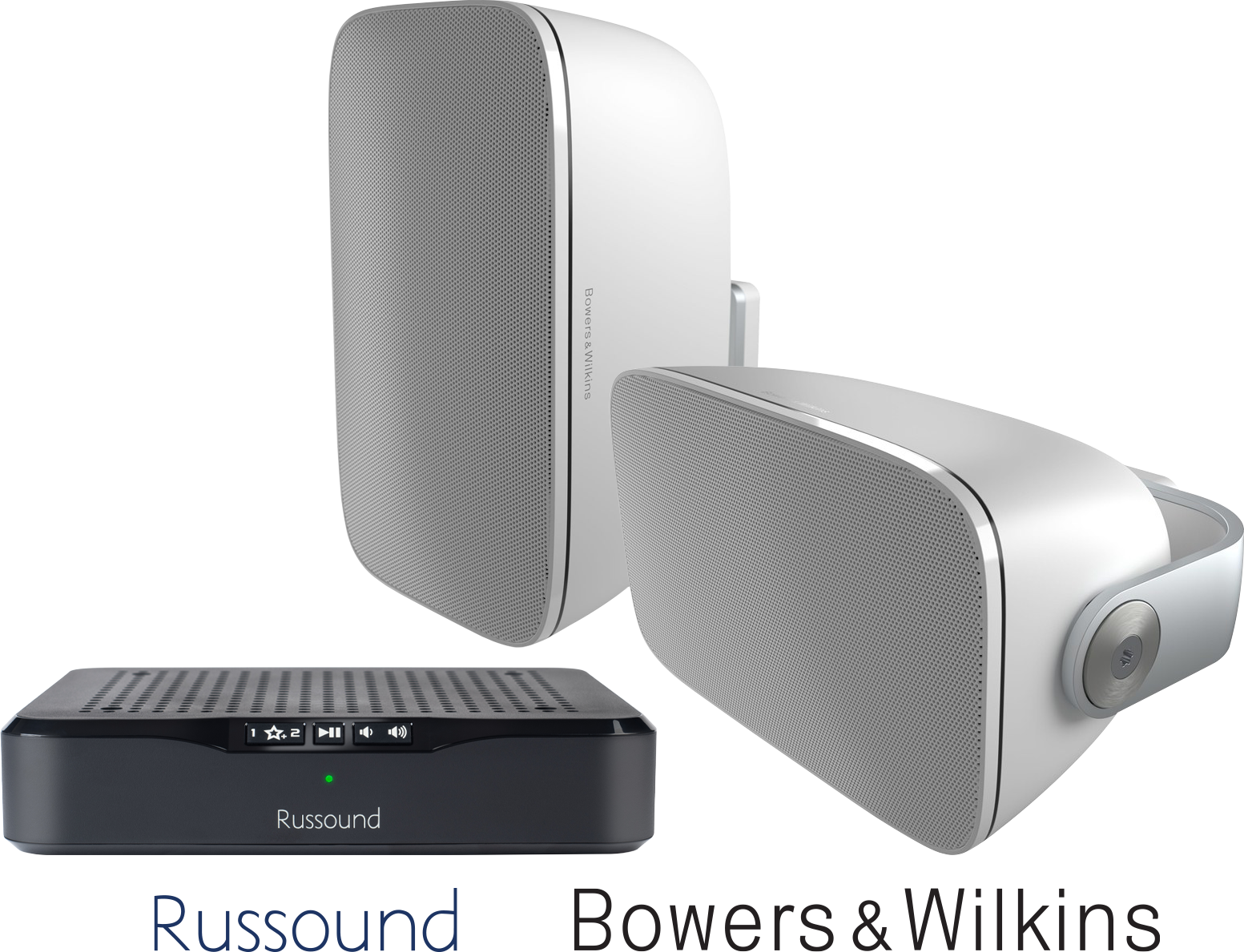

Kit Comprises:
- 1 x Russound MBX-AMP Wi-Fi Streaming Zone Amplifier (01610902)
- 1 x Pair Bowers & Wilkins AM-1 2-Way Outdoor Loudspeakers (39817122)
Russound MBX-AMP Wi-Fi Streaming Zone Amplifier
The MBX-AMP Wi-Fi Streaming Zone Amplifier is designed to offer a simple-to-install and simple-to-configure streaming media solution to add high quality streaming audio anywhere in the home. Additionally, the advanced TV integration features enable the MBX-AMP to share speakers between your TV and your audio system easily without having to use any additional hardware or control system. Just use the included Infrared Sensor and quickly teach the MBX-AMP your remote control's volume and mute commands. It's that easy.
The MBX-AMP allows for expansion to up to 32 streaming rooms of audio in a single installation with any combination of other MBX-Series streaming products from Russound.
In addition to offering streaming audio from popular internet sources, the MBX-AMP also offers streaming of local UPnP™compliant audio.
In addition, a built-in USB port allows users to connect an external flash drive or an externally-powered USB hard drive for use as additional music sources.
- Connect your TV's digital audio output to improve your TV's sound quality and to share your speakers with your premium audio system.
- External IR Sensor included to use the MBX-AMP with your current remote control for Volume/Mute commands
- Built-in AirPlay 2 streaming with full metadata to iOS/Android apps or XTS5.5 touchscreens
- Built-in Chromecast for Audio support with full metadata to iOS/Android apps or XTS5.5 touchscreens
- Bluetooth Audio
- Hi-Res audio streaming support up to 24-bit/192 kHz
- USB for Flash or external USB Hard drive-based music collections
- Digital (PCM) and Analog Stereo Inputs
- Digital or analogue output
- Controllable with the Russound App and fully compatible with the Russound XTS5.5 in-wall touchscreen
- Bass, Treble, and Loudness settings available through the Russound App
- Supports local favourites
- Onboard browser-based configuration, accessible from a smartphone or tablet
- Mix and match with other MBX-Series® components for versatile system designs
Bowers & Wilkins AM-1 2-Way Outdoor Loudspeakers
The AM-1 Architectural Monitor offers a unique combination of high-quality sound and supreme flexibility. Articulate, exciting and powerful, AM-1 avoids the compromises commonly associated with versatile, all-weather monitors, and delivers all the performance expected of a Bowers & Wilkins loudspeaker.
A two-way design, AM-1 features an inverted drive unit configuration, with a 25mm aluminium-dome tweeter mounted below rather than above a 5inch glass-fibre bass/midrange driver. This ensures optimal dispersion of sound when the speaker is mounted high on the wall. AM-1's low-frequency output is bolstered by the use of a rear-mounted auxiliary bass radiator (ABR). Used instead of a conventional bass reflex port, the ABR endows AM-1 with exceptional bass response for a cabinet of its size. Unlike a port, it also provides AM-1?s cabinet with a continual seal against the elements. This combination of advanced drive units, unique configuration and classically simple crossover components combines to create a loudspeaker as musical as it is flexible.
AM-1 has been carefully designed to be easy to install and very flexible. Designed to be positioned in either landscapeor portrait mode, AM-1 combines a rust-proof aluminium grille with a rigid cabinet composed of glass-filled plastics, ensuring class-leading resistance to extremes of dust, moisture and UV exposure. And while it has very obvious benefits outside, its discreet styling and impressive performance will also find favour for use internally.
{tab Specifications}
Russound MBX-AMP Wi-Fi Streaming Zone Amplifier
- Frequency Response:20Hz to 20KHz
- Speaker Output:50 Watts Per Channel @ 8ohms, 70 watts @ 4 ohms
- Audio Outputs:AnalogStereo RCA, Digital Optical, RCA Subwoofer Out(Analog Output configurable via software as fixed or variable)
- Line Audio Output:2V rms
- Audio Inputs:3.5mm Analog Stereo Audio, Digital Optical, USB2.0 Media Playback
- Communication Ports:Ethernet RJ45 10/100 BaseT
- Wi-Fi:802.11ac, dual band
- Bluetooth Audio Support:Yes
- Subwoofer Out Low Frequency Filter:80Hz
- Trigger Output:12vDC @100mA
- Music File Formats:MP3 (CBR, VBR), WAV(8, 16-bit), OGG Vorbis, FLAC (8, 16-bit), AAC, AAC (supports up to 24-bit/192kHz)
- Power Requirements:100-240V~50/60Hz, 4A
- Product Dimensions:8.25”W x 7”D x 1.75”H (21cm W x 17.8cm D x 4.5cm H)
- Product Weight:1.5 lb (0.68 kg)
Bowers & Wilkins AM-1 2-Way Outdoor Loudspeakers
- Technical features:
- Nautilus tube loaded aluminium dome tweeter
- Glassfibre cone bass/midrange
- Auxiliary Bass Radiator (ABR)
- Description:2-way system with Auxiliary Bass Radiator (ABR)
- Drive units:
- 1x 25mm (1in) aluminium dome high-frequency
- 1x 130mm (5in) glassfibre cone bass/midrange
- Frequency range:-6dB at 46Hz and 50kHz (wall mounted)
- Frequency response:51Hz - 22kHz on reference axis (wall mounted)
- Sensitivity:86dB (2.83V, 1m)
- Total harmonic distortion:<1% 200Hz - 20kHz (86dB, 1m)
- Nominal impedance:8O (5.2O min)
- Recommended amplifier power:20W - 100W into 8O on unclipped programme power
- Dimensions (Includes wall bracket):
- Height: 310mm (12.25in)
- Width: 180mm (7in)
- Depth: 210mm (8.25in)
- Net weight:4Kg (8.8lb)
- Finishes:
