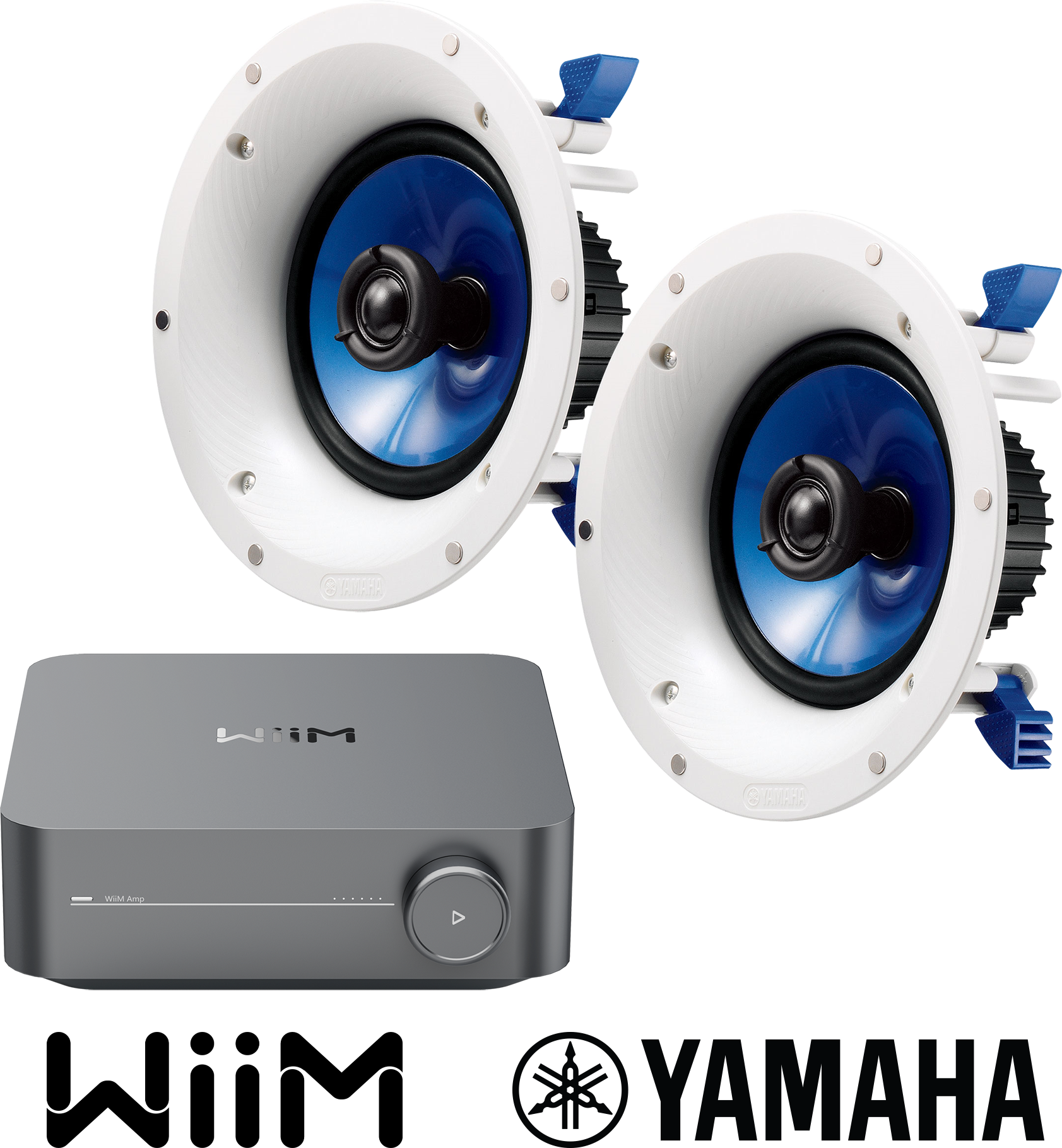

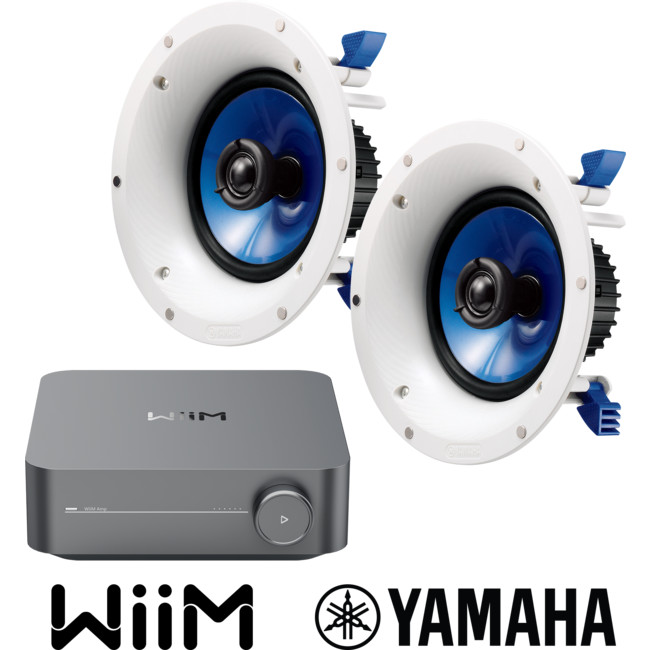

Housed in a sleek aluminum shell, the compact WiiM Amp offers versatile placement options. Inside, premium components and innovative circuitry ensure robust, crystal-clear amplification. A custom-designed heatsink ensures optimal thermal performance. Don't let its compact design fool you it packs 60 Watts per channel at 8 ohms, and 120 Watts per channel at 4 ohms. Transform your passive speakers including floor-standing, architectural, outdoor, or bookshelf, into smart audio powerhouses.

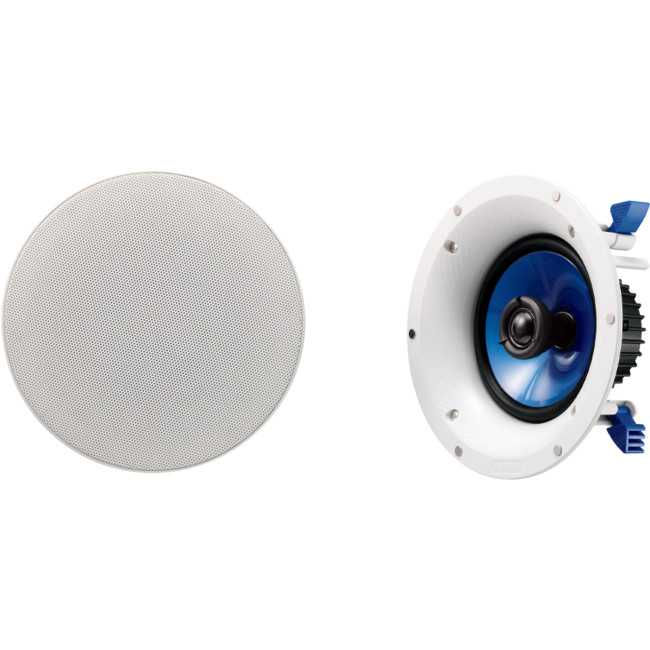

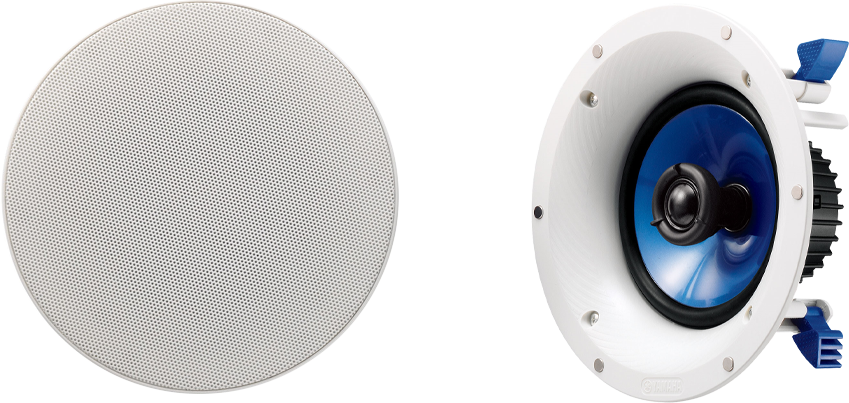

Yamaha s new easy-to-install and versatile in-ceiling speakers deliver high-performance sound in a low-profile and unobtrusive design. The speakers are designed to fit all situations. The NS-IC600 is fantastic for 2-channel sound reproduction or home theatre use in a living room, dining room, family room or bedroom.
| Amplifier | TI 3255 Class-D digital amplifier
60 Watts/channel at 8 ohms, 120 Watts/channel at 4 ohms |
|---|
| DAC | Highest Performance 32-bit ESS Sabre 9018 Audiophile Digital to Analog Converter- DNR: up to 135dB
- THD N: -120dB
|
|---|
| Colour | Space Grey |
|---|
| Finish | Aluminium |
|---|
| Controls | Volume knob, play/pause, and more |
|---|
| LED | - Status
Three-color LED indicates device status - Volume
Six white LEDs for the volume indicator
|
|---|
| Speaker Output | Stereo or dual mono sound |
|---|
| Home Theatre Audio Formats | Stereo PCM (Dolby Digital and DTS are not supported) |
|---|
| Audio Input | Bring your TV audio, record player, CD player, or other audio source into the digital world- Analog (RCA)
- Digital Optical port
- HDMI ARC
up to 24-bit/192 kHz |
|---|
| Audio Output | Up to 192 kHz/ 24-bit, varying sample rate and bit depth based on the audio source without resampling- Passive Speaker Terminal (Banana plugs)
- Subwoofer Output
- Comprehensive bass management
- Adjustable crossover frequency, level, phase, and latency
|
|---|
| Audio Output Quality | SNR - 98 dB
THD N - 0.002% (-92 dB) |
|---|
| Audio Format | MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG |
|---|
| EQ | - 24 preset EQ settings for different music genres
- 10-band graphic EQ that can adjust to optimize sound performance for every audio source (Line in, BT or network)
- 4-band parametric EQ that can adjust to optimize the sound performance based on your room characteristics, allowing more fine granular adjustment
|
|---|
| Subwoofer Output | Auto-detecting cable insert, user-adjustable 30-200 Hz crossover |
|---|
| Power Supply | 100-240V 50/60Hz AC Power |
|---|
| Network | - Wi-Fi 5, 802.11 b/g/n/ac 2.4G and 5G Hz dual band
- Ethernet [10/100 Mbps]
|
|---|
| Bluetooth | BT 5.1
A2DP Sink and Source, AVRCP
BLE HID
works with included WiiM remote |
|---|
| Supported Streaming Protocol | AirPlay 2, Chromecast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA |
|---|
| Dimensions | 190 (W) x 190 (D) x 63 (H) mm |
|---|
| Weight | 1.84kg |
|---|
