The Enthusiast Pack - Serious Sound for Passionate Listeners

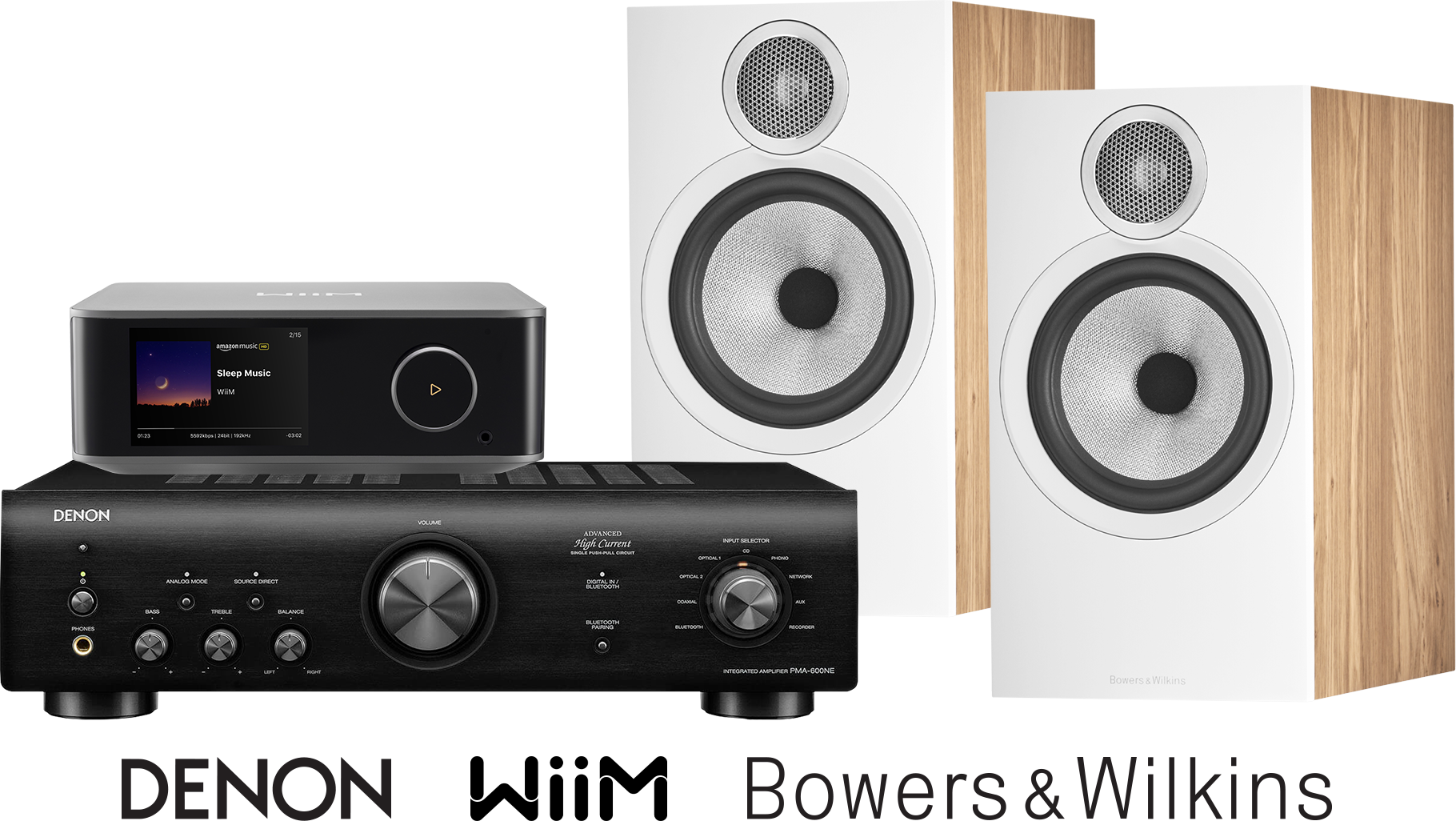

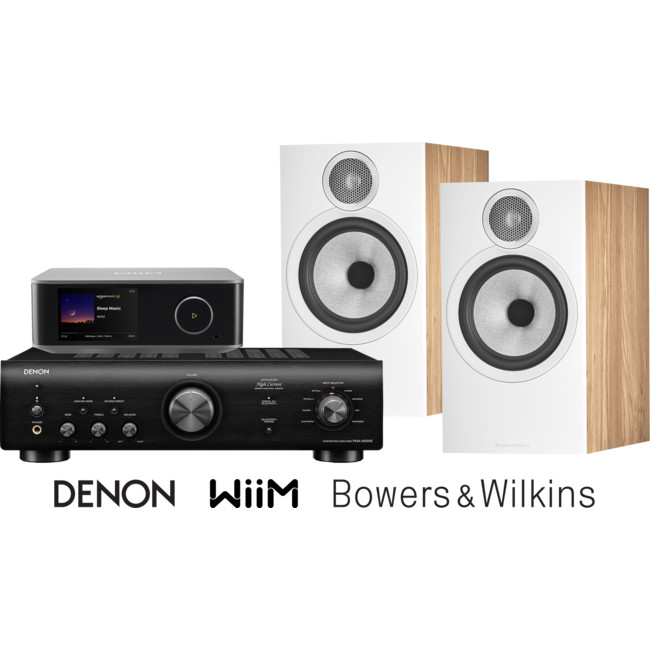

Kit Comprises:
- 1 x WiiM Ultra Network Audio Streamer (01614860)
- 1 x Denon PMA-600NE Integrated Amplifier (01932935)
- 1 x Pair Bowers & Wilkins 606S3 2-Way Bookshelf Speakers (39817772)
WiiM Ultra Network Audio Streamer
The WiiM Ultra is WiiM's flagship music streamer and a central digital hub for your audio ecosystem, boasting audiophile-grade components and build-quality alongside rich audio connections and a vibrant 3.5″ full-colour touchscreen. It offers Hi-Res streaming capabilities, advanced room correction, and smart home integration to enhance your existing setup, whether it be powered speakers or amplifiers. Additionally, it seamlessly connects with a wide range of devices including turntables, TVs, headphones, AV receivers, subwoofers, smart speakers, Bluetooth® headsets, and more, providing a comprehensive and versatile audio solution.
Get ready for a musical journey with unparalleled convenience and fidelity!
- Elegant aluminium case with 3.5″ vibrant touchscreen display covered with glass
- High-performance music streamer with Premium 32-bit/384kHz ES9038Q2M SABRE DAC
- Multiroom Streaming connect with Amazon Echo, Google Home, and other WiiM devices to create Multiroom Audio
- Supports Chromecast Audio, Spotify, TIDAL Connect, Alexa Cast, DLNA
- HDMI ARC for connecting to TV
- Dedicated front facing Headphone Output
- Phono-In to connect your Turntable and ground connector.
- Audio Inputs: HDMI ARC, Optical, Line-In, Phono-In
- Audio Outputs: Line Out, Optical, Coax, USB, Subwoofer, Trigger
- Latest Wi-Fi 6E and Bluetooth® V5.3 with two antennas offering rock-solid Bluetooth® or Wi-Fi audio streaming.
- Gapless playback of Hi-Res music up to 24-bit/192 kHz using SPDIF, Coax, Line, and Headphone output
- Built-in room correction takes precise acoustic measurements of your room, creating customized correction for your speakers and subwoofer.
- Stream Hi-Res music with bit-perfect digital output or high-fidelity analogue audio (SNR >120dB, THD+N <0.0002%)
- Display features: App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings.
- USB Port for Storage and Audio Out
- Group with Nest speakers and Display, Group with Echo speakers and Display, Alexa Multiroom with UHD
- Works with Alexa and Google
- 2-Way Bluetooth® V5.3 to stream from your smartphone or connect and listen to your wireless headphones
Denon PMA-600NE Integrated Amplifier with 70W per Channel and Bluetooth
Designed for the aspiring music enthusiast, the Denon PMA-600NE is the superior choice for those who want to build their first 2-channel Hi-Fi system. Powered by the Denon Advanced High Current (AHC) single-push-pull circuit power amplifier, the PMA-600NE integrated amplifier delivers 70 Watts (4ohm, 1kHz, THD: 0.7%) of powerper-channel. Easily connect both analog and digital sources including your turntable to the built-in phono pre-amp. Listen to your favorite high-resolution audio content with the 192kHz/24bit D/A converter or connect via Bluetooth to stream nearly unlimited songs. The PMA-600NE provides exceptional sound quality that balances high power with delicate, musical details.
Key Features
HIGH POWER 70W INTEGRATED AMPLIFIER
Engineered with remarkable Denon amplifier technology, the PMA-600NE delivers 70 Watts of power-per-channel. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.
BUILT-IN 192KHZ/24BIT D/A CONVERTER
Experience high-resolution audio playback to enjoy the highest quality of your favorite songs.
MM PHONO EQUALISER
The PMA-600NE includes a phono equalizer that supports playing from sources with a MM cartridge. This phono equalizer has high gain, and unlike loops in other circuit board patterns which cause adverse effects on sound quality, the simple, straightforward design, significantly improves sound.

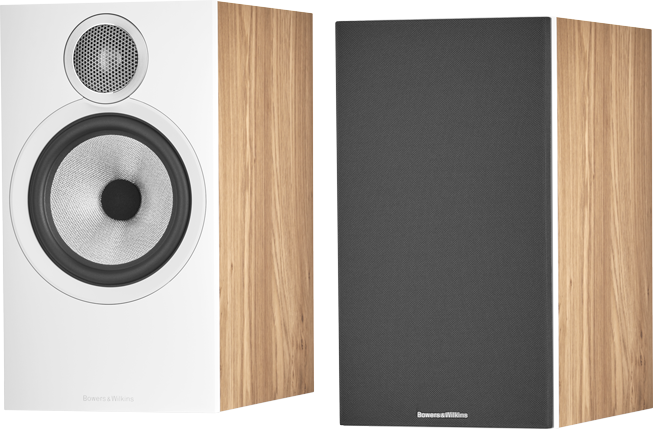

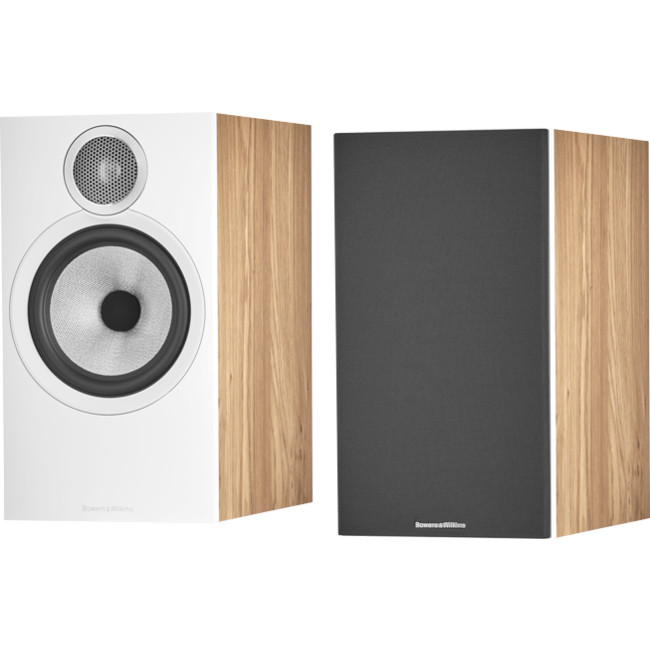

Bowers & Wilkins 606S3 2-Way Bookshelf Speakers
The 606 S3 stand-mount speaker provides the ideal combination of size and performance. It combines our all-new Titanium Dome™ tweeter with the powerful accuracy and transparency of our acclaimed Continuum™ bass/midrange cone.
Features:
An icon enhanced
- The new 606 S3 takes the award-winning 606 formula and evolves it. By complementing the Continuum cone and Titanium Dome tweeter with upgraded speaker terminals, and a subtly modernised design, 606 is now even more appealing to even more music lovers.
Layered, beautiful details
- The new 606 S3 introduces our all-new Titanium Dome tweeter, which combines exceptional resolution and insight with smooth, refined high-frequency reproduction.
- The result? An accurate and immersive insight into your favourite music.
Truly amazing sound
- 606 S3 introduces our new and even more acoustically transparent tweeter grille mesh, first developed for our revered Signature models.
- Alongside the new Titanium Dome tweeter, the resolution and realism is exceptional.
Precision and transparency
- Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit.
- With 606 S3, experience a more open, neutral performance that delivers voices and instruments with precision and transparency.

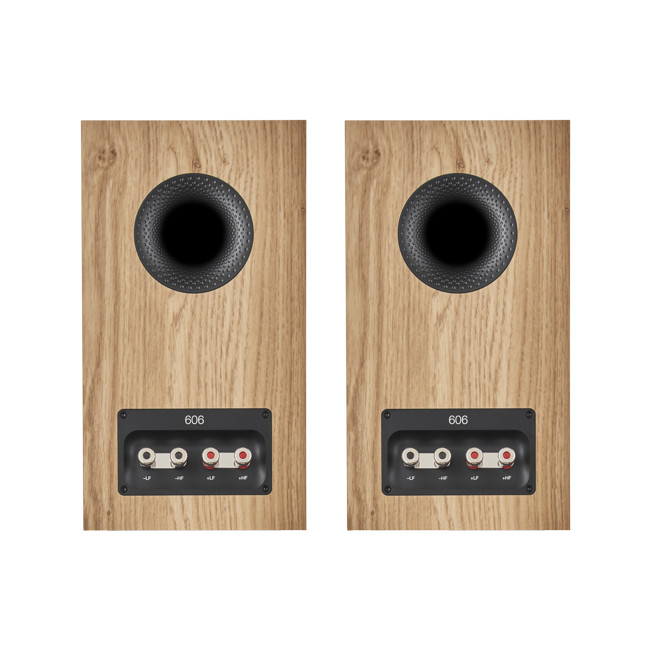

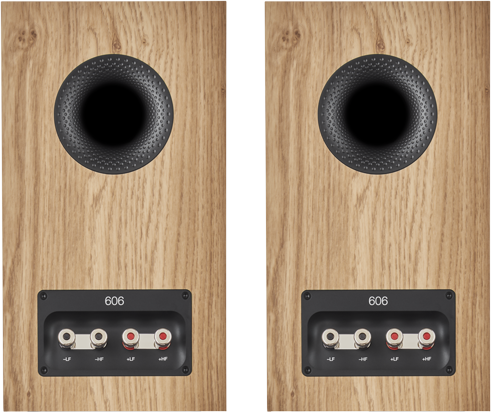

Upgraded speaker terminals
- Derived from the speaker terminals recently introduced in our 700 Series range, the speaker terminals on the new 606 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.
{tab Specifications}
Denon PMA-600NE Integrated Amplifier with 70W per Channel and Bluetooth
Power Amplifier Section | |
---|
Rated Power | 45W 45W (8ohm, 20Hz-20kHz, THD 0.07%) 70W 70W (4ohm, 1kHz., THD 0.7%) |
---|
Total Harmonic Distortion | 0.01% (Rated Output 3dB) 8ohm 1kHz |
---|
Input Sensitivity MM | 2.5mV / 47kohm |
---|
SN Ratio MM | 84dB (5mV input signal) |
---|
CD/Network/Aux/Recorder | 100mV |
---|
Input Sensitivity | 110mV / 30kohms |
---|
S/N Ratio | 105dB |
---|
Bluetooth | Yes |
---|
OFF Mode | Yes (Analog Mode) |
---|
Tone Controls - Bass | Yes |
---|
Tone Controls - Treble | Yes |
---|
Tone Controls - Balance | Yes |
---|
Power Supply | AC 120V, 60kHz |
---|
Power Consumption | 185W |
---|
Maximum Dimensions (W x D x H) | 17.1 x 12.1 x 4.76 |
---|
Weight | 15LBS |
---|
Phono (MM) | x 1 |
---|
CD | x 1 |
---|
Aux | x 1 |
---|
Optical Input | x 2 |
---|
Coaxial Input | x 1 |
---|
Recorder (Playback) | x 1 |
---|
IR Control (Input) | Yes |
---|
Preout (Subwoofer) | Yes |
---|
Recorder Out | Yes |
---|
IR Control (Output) | Yes |
---|
Speaker Terminal | x 1 pair |
---|
Bowers & Wilkins 606S3 2-Way Bookshelf Speakers
Technical features | Decoupled Double Dome Titanium tweeter Continuum cone bass / midrange Flowport |
---|
Frequency response ( /-3dB from reference axis) | 52Hz - 28kHz 3dB |
---|
Description | 2-way vented-box system |
---|
Drive units | 1x 25mm (1 in) Titanium Dome high-frequency 1x 165mm (6.5 in) Continuum cone bass / midrange |
---|
Frequency range | -6dB 40Hz - 33kHz |
---|
Sensitivity (on axis at 2.83Vrms at 1m) | 88dB |
---|
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 150Hz - 12kHz |
---|
Nominal impedance | 8O (minimum 3.7O) |
---|
Recommended amplifier power | 30W - 120W into 8O on unclipped programme |
---|
Max recommended cable impedance | 0.1O |
---|
Dimensions | Height: 344 mm (13.6 in) cabinet only Width: 189 mm (7.4 in) cabinet only Depth: 300 mm (11.8 in) cabinet only 328 mm (12.9 in) including grille and terminals |
---|
